ALBERTS 309282 Accessory Set for Safety Bar for Folding Shutters - Instruction Manual

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of the ALBERTS 309282 Accessory Set. This set is designed to enhance the security of folding shutters by facilitating the installation of a safety bar.

The components are made from black hot-dip galvanized steel, ensuring durability and resistance to corrosion in various environmental conditions.

Package Contents

Before beginning installation, please verify that all components listed below and shown in the product image are present.

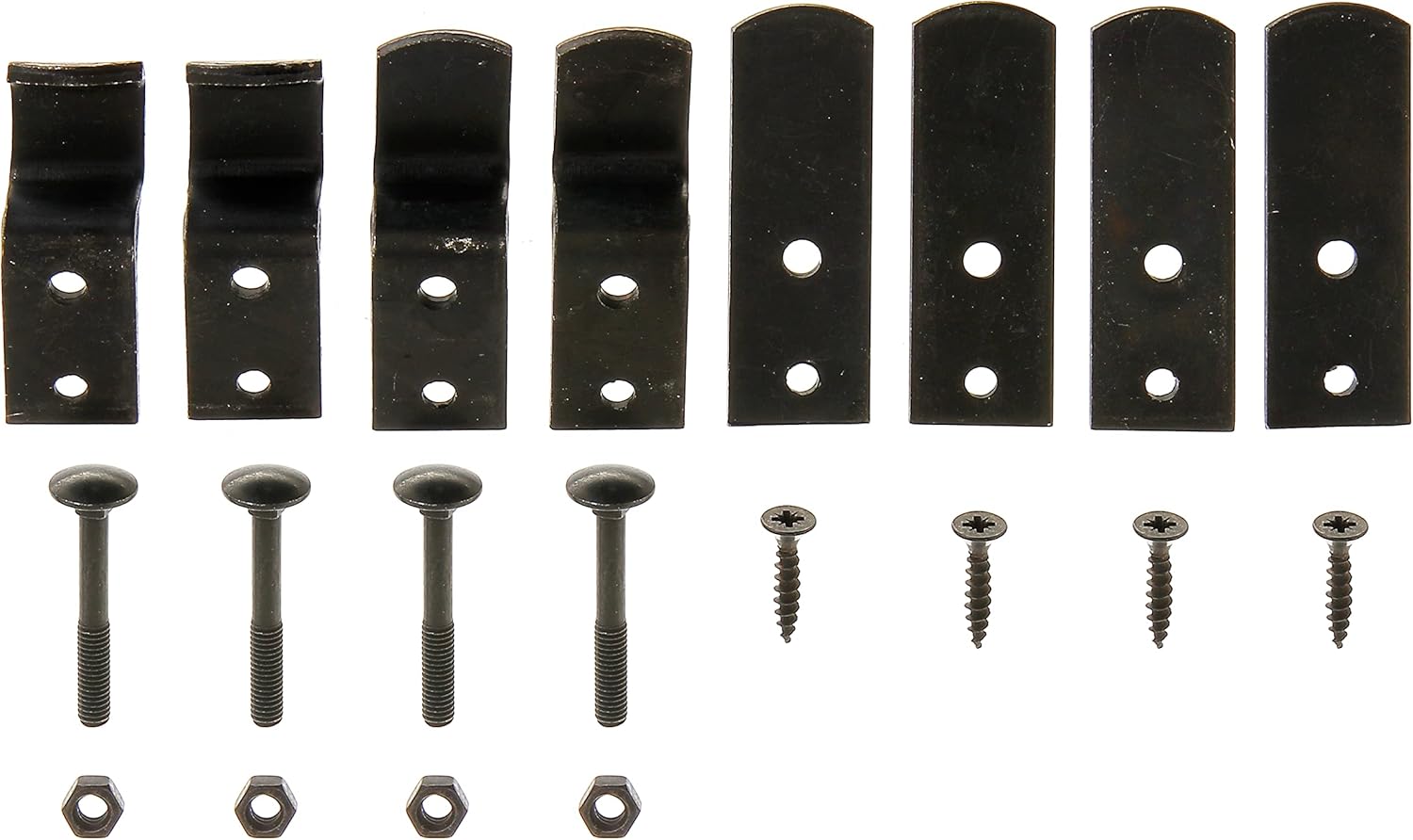

This image displays all components included in the ALBERTS 309282 Accessory Set. It features different types of black, galvanized steel brackets, along with corresponding bolts, nuts, and screws required for assembly and installation.

• Various galvanized steel brackets (different shapes for specific mounting needs)
• Bolts with rounded heads
• Hexagonal nuts
• Wood screws (Phillips head)

Specifications

Safety Information

Please read and adhere to the following safety guidelines before, during, and after the installation of the accessory set.

• Always wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.
• Ensure the work area is well-lit and clear of obstructions.
• Use the correct tools for each step of the installation process.
• If drilling into walls or concrete, check for hidden electrical wires or plumbing before drilling.
• Do not overtighten fasteners, as this may damage components or the mounting surface.

Setup and Installation

This accessory set is designed for securing folding shutters, particularly with a safety bar made of square steel. The brackets are intended for embedding in concrete or surface mounting with appropriate fasteners.

Required Tools (Example)

• Drill
• Drill bits (appropriate for concrete/wood)
• Wrench or socket set
• Screwdriver (Phillips head)
• Measuring tape
• Level
• Marking tool

Installation Steps

1. Step 1: Planning and Measurement

   Determine the optimal position for the safety bar and the accessory set on your folding shutters. Mark the drilling points accurately using a measuring tape and level. Ensure the safety bar will provide adequate security when installed.

2. Step 2: Preparing Mounting Surfaces

   For brackets designed for embedding in concrete, prepare the concrete foundation according to standard construction practices. For surface-mounted brackets, ensure the surface is clean, stable, and capable of supporting the safety bar.

3. Step 3: Drilling Pilot Holes

   Drill pilot holes at the marked positions. Use a drill bit appropriate for the material (e.g., masonry bit for concrete, wood bit for wood). The recessed screw holes in the brackets are designed for a flush finish.

4. Step 4: Attaching Brackets

   Position the brackets over the pilot holes. Use the provided screws for wood surfaces or appropriate anchors and bolts for concrete/masonry. Securely fasten all brackets. For bolts and nuts, ensure they are tightened firmly but not excessively.

5. Step 5: Installing the Safety Bar

   Insert the square steel safety bar into the installed brackets. Ensure it fits snugly and is properly aligned. Depending on the design of your safety bar and brackets, additional fasteners may be required to secure the bar within the brackets (not included in this accessory set).

6. Step 6: Final Check

   Verify that all components are securely fastened and the safety bar operates as intended. Test the stability and security of the installed system.

Operating Instructions

Once the ALBERTS 309282 Accessory Set and the safety bar are correctly installed, the operation involves engaging and disengaging the safety bar to secure or release the folding shutters.

• To secure the shutters, position the safety bar within the installed brackets, ensuring it prevents the shutters from opening.
• To open the shutters, disengage or remove the safety bar from its secured position.
• Always ensure the safety bar is fully engaged when security is required.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your ALBERTS 309282 Accessory Set.

• Cleaning: Periodically wipe down the galvanized steel components with a damp cloth to remove dirt and debris. Avoid abrasive cleaners that could damage the galvanized finish.
• Inspection: Annually inspect all brackets, bolts, and screws for signs of wear, corrosion, or loosening.
• Tightening: Re-tighten any loose fasteners to maintain structural integrity.
• Corrosion: Although galvanized, inspect for any signs of rust, especially in harsh environments. Address any rust promptly with appropriate rust treatment or protective coatings.

Troubleshooting

This section addresses common issues that may arise with the ALBERTS 309282 Accessory Set.

• Issue: Loose Brackets

  Solution: Check all fasteners (screws, bolts, nuts). Tighten them securely. If screws are stripped, consider using larger screws or wall anchors.

• Issue: Safety Bar Does Not Fit Properly

  Solution: Verify that the safety bar dimensions match the bracket design. Ensure brackets are installed level and at the correct distance. Re-measure and adjust bracket positions if necessary.

• Issue: Signs of Rust

  Solution: Clean the affected area thoroughly. Apply a rust-inhibiting primer and paint suitable for galvanized steel. Regular maintenance can prevent this.

Warranty and Support

For specific warranty information regarding your ALBERTS 309282 Accessory Set, please refer to the documentation provided at the point of purchase or contact Alberts customer service directly.

For technical support or further assistance, please visit the official Alberts website or contact their customer support channels.
