Mainstay 2.2 Quart Air Fryer Instruction Manual

Introduction

Thank you for purchasing the Mainstay 2.2 Quart Air Fryer. This appliance is designed to cook your favorite foods with little to no oil, providing a healthier alternative to traditional frying. Please read this instruction manual thoroughly before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the main unit housing in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not use the appliance for other than its intended use.
• Ensure the frying basket is properly inserted before operating.
• Do not block the air inlet or air outlet vents during operation.
• Do not overfill the frying basket.
• Do not place flammable materials near the appliance.

Product Overview

Familiarize yourself with the components of your Mainstay 2.2 Quart Air Fryer.

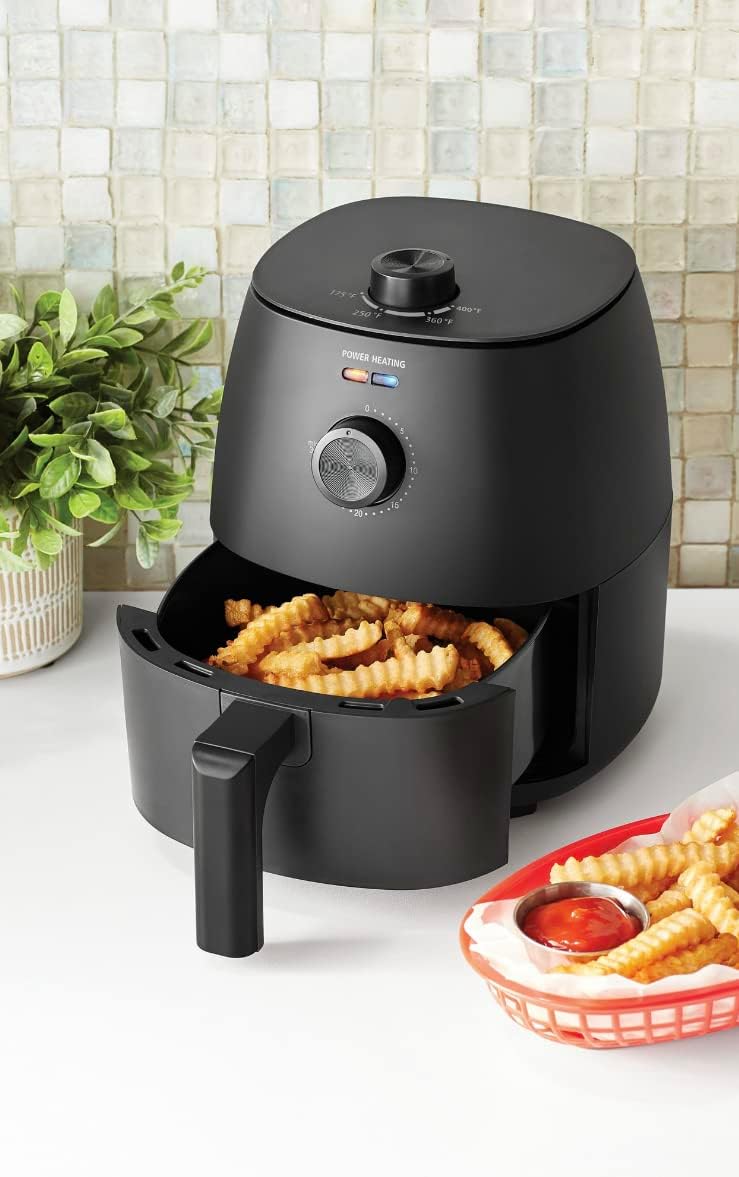

The Mainstay 2.2 Quart Air Fryer, shown with its cooking basket pulled out, containing food. The control panel is visible on the top and front.

A close-up view of the Mainstay 2.2 Quart Air Fryer's front panel, highlighting the temperature dial on top and the timer dial with power indicator lights on the front.

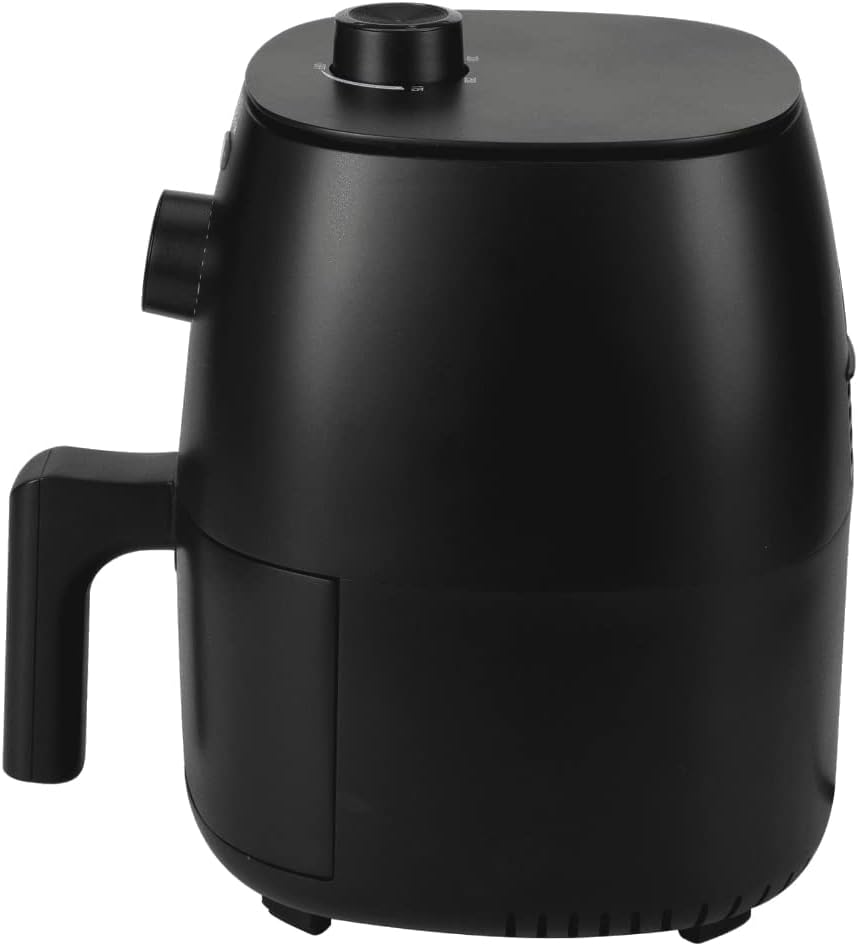

A side view of the Mainstay 2.2 Quart Air Fryer, showing the compact design and the handle of the cooking basket.

Components

• Main Unit Housing
• Temperature Control Dial (Top)
• Timer Dial (Front)
• Power Indicator Lights (Heating, Power)
• Frying Basket
• Basket Handle
• Air Inlet (Top)
• Air Outlet (Rear)

Before First Use

1. Remove all packaging materials, stickers, and labels from the appliance.
2. Wipe the exterior of the air fryer with a damp cloth.
3. Clean the frying basket and pan thoroughly with hot water, dish soap, and a non-abrasive sponge.
4. Dry all parts thoroughly before assembly and use.
5. Place the air fryer on a stable, heat-resistant surface, ensuring adequate ventilation around the unit.

Setup

1. Place the air fryer on a flat, stable, and heat-resistant surface.
2. Ensure there is sufficient space around the appliance for proper air circulation (at least 10 cm / 4 inches clearance on all sides).
3. Plug the power cord into a grounded wall outlet.

Operating Instructions

1. Preparation: Pull out the frying basket by its handle. Place the food you wish to cook inside the basket. Do not exceed the MAX fill line indicated on the basket.
2. Insert Basket: Slide the frying basket back into the air fryer until it clicks securely into place.
3. Set Temperature: Turn the temperature control dial, located on the top of the unit, to your desired cooking temperature (ranging from 150°F to 400°F).
4. Set Timer: Turn the timer dial, located on the front panel, to the desired cooking time (up to 30 minutes). The power indicator light will illuminate, and the air fryer will begin heating.
5. Cooking Process: The air fryer will automatically turn off when the timer reaches zero. For some foods, it is recommended to shake the basket halfway through cooking to ensure even crisping. To do this, carefully pull out the basket, shake the contents, and then reinsert it securely.
6. Check Doneness: Once the timer expires, carefully pull out the basket and check if the food is cooked to your preference. If additional cooking time is needed, slide the basket back in and set the timer for a few more minutes.
7. Serve: Carefully remove the cooked food from the basket. Use heat-resistant tongs or a spatula to avoid touching hot surfaces.
8. Turn Off: The air fryer automatically turns off when the timer expires. For complete power off, unplug the appliance from the wall outlet after use.

Cooking Guide

The 2.2 quart capacity of this air fryer is suitable for various food items. The following table provides general guidance for common foods. Cooking times and temperatures may vary based on food quantity, density, and desired crispness.

An infographic displaying the 2.2 quart capacity of the air fryer and suggested quantities for various foods, including frozen fries, chicken wings, coconut shrimp, steak, pizza, chicken thighs, muffins, and onion rings.

Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your air fryer and ensure optimal performance.

1. Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners or scourers.
3. The frying basket is dishwasher safe. For manual cleaning, wash the basket with hot water, dish soap, and a non-abrasive sponge.
4. For stubborn food residue, soak the basket in hot water with dish soap for approximately 10 minutes before cleaning.
5. Clean the interior of the air fryer with a damp cloth. Ensure no water enters the electrical components.
6. Ensure all parts are completely dry before storing the appliance.

Troubleshooting

If you encounter any issues with your air fryer, please refer to the following table for common problems and solutions.

Specifications

Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. Keep your proof of purchase for any warranty claims.
