1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your vidaXL 5-Layer Industrial Corner Shelf, Model 152880. This heavy-duty shelving unit is designed for both residential and commercial storage, offering ample space for organization. Please read these instructions carefully before assembly and retain them for future reference.
Image 1.1: The fully assembled vidaXL 5-Layer Industrial Corner Shelf, showcasing its design and storage capacity in a home environment.
2. Safety Information
To ensure safe use of this product, please observe the following guidelines:
- Read all instructions: Familiarize yourself with the assembly steps and safety warnings before beginning.
- Use appropriate tools: Ensure you have the necessary tools for assembly.
- Assembly by adults: Assembly should be performed by competent adults.
- Stable surface: Assemble the unit on a flat, stable, and clean surface to prevent damage or injury.
- Weight limits: Do not exceed the maximum load capacity per shelf (175 kg / 385 lbs). Distribute weight evenly.
- Secure placement: Place the assembled shelf on a level floor. Consider anchoring the unit to a wall for added stability, especially in areas with children or pets, or if loading with heavy items.
- Avoid climbing: Do not allow children to climb on the shelf.
- Regular inspection: Periodically check all connections and fasteners to ensure they remain tight.
- Proper disposal: Dispose of packaging materials responsibly.
3. Package Contents
Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support.
The package for the vidaXL 5-Layer Industrial Corner Shelf (Model 152880) typically includes:
- Galvanized steel frame components (uprights, beams, crossbars)
- Engineered wood shelf boards (5 pieces)
- Plastic feet/caps for uprights
- Assembly instructions (this manual)

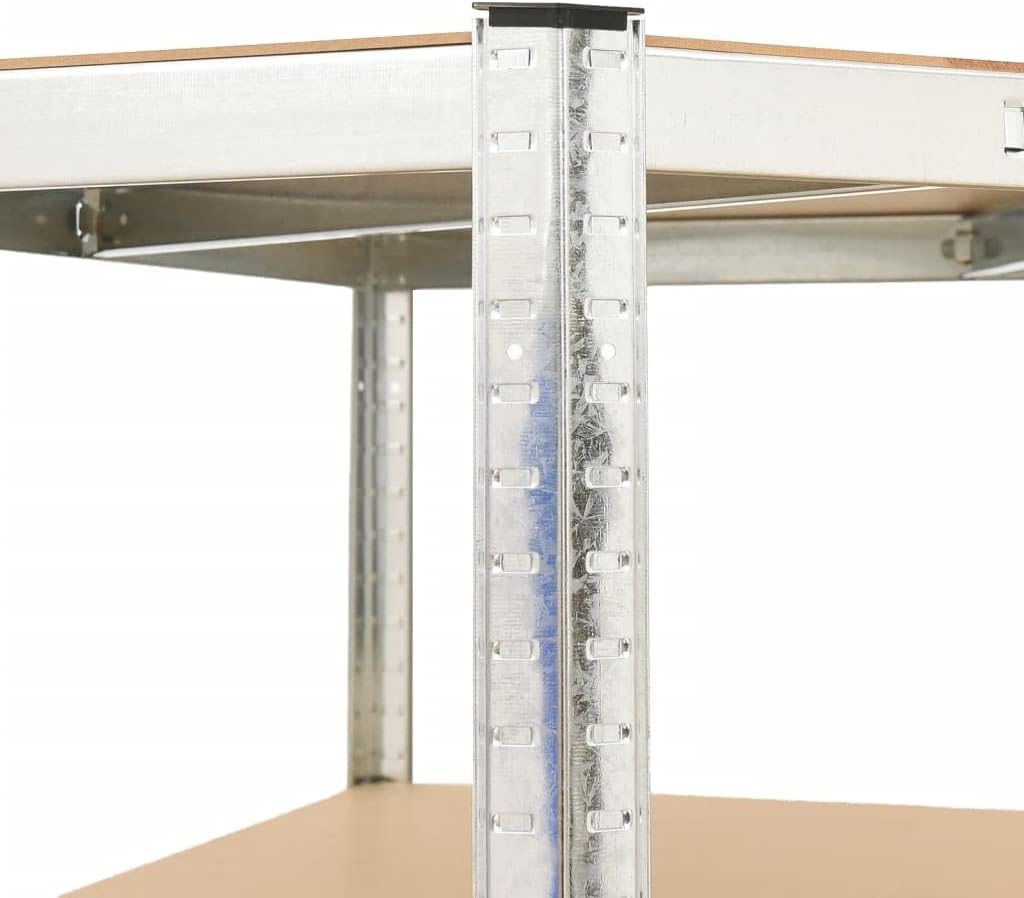

Image 3.1: Detail of the galvanized steel frame component, highlighting the sturdy construction and adjustable slots.
4. Setup & Assembly Instructions
Assembly of the vidaXL 5-Layer Industrial Corner Shelf is a boltless process. Follow these steps carefully:
- Prepare the Area: Clear a spacious, flat, and clean area for assembly. Lay out all components and identify them according to the parts list.
- Assemble the Uprights: Connect the vertical steel uprights. The corner design requires specific alignment. Ensure all connections are secure.
- Attach Bottom Beams: Begin by attaching the horizontal support beams for the lowest shelf to the uprights. These beams slot into the perforations on the uprights. Use a rubber mallet if necessary to ensure a snug fit.
- Insert First Shelf Board: Once the bottom beams are securely in place, carefully lay the first engineered wood shelf board onto the beams.
- Continue with Remaining Shelves: Repeat steps 3 and 4 for the remaining four shelves. You can adjust the height of each shelf by selecting different perforations on the uprights. Ensure all shelves are level before proceeding.
- Attach Top Beams: Secure the top horizontal support beams to complete the frame structure.
- Install Plastic Feet/Caps: Place the plastic feet or caps onto the bottom of the uprights to protect your floor and provide stability.
- Final Check: Once fully assembled, gently shake the unit to ensure it is stable. Re-check all connections.
Image 4.1: Assembly diagram with key dimensions and individual shelf load capacity.
Image 4.2: The empty shelf unit, illustrating the completed frame and shelf board installation.
5. Operating Instructions
Using your vidaXL 5-Layer Industrial Corner Shelf is straightforward:
- Loading: Place items on the shelves, ensuring weight is distributed as evenly as possible. Do not exceed the maximum load capacity of 175 kg (385 lbs) per shelf.
- Adjusting Shelf Height: The shelves are height adjustable. To change a shelf's position, unload the shelf, carefully disassemble the beams supporting it, reposition them to the desired height, and then re-insert the shelf board. Ensure all beams are securely seated before reloading.
- Placement: Position the corner shelf in a stable location, ideally against two walls for maximum stability.
Image 5.1: The shelf in use, displaying its practical storage capabilities.
6. Maintenance
Proper maintenance will extend the life of your shelving unit:
- Cleaning: Wipe the steel frame and engineered wood shelves with a dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed immediately by a dry cloth to prevent moisture damage to the engineered wood. Avoid abrasive cleaners or harsh chemicals.
- Inspection: Periodically check all structural components for any signs of damage, loose connections, or corrosion. Tighten any loose parts.
- Environment: Store and use the shelf in a dry environment to prevent rust on the steel and swelling of the engineered wood.
7. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Shelf is wobbly/unstable. | Uneven floor; loose connections; overloaded. | Ensure the shelf is on a level surface. Check all beam-to-upright connections and ensure they are fully seated. Reduce load if overloaded. Consider anchoring to a wall. |
| Shelf boards do not fit. | Beams not properly aligned or fully seated. | Ensure all horizontal beams are correctly installed and fully pushed into the upright slots. Verify the shelf board orientation. |
| Difficulty assembling beams. | Tight fit. | Use a rubber mallet to gently tap the beams into place. Do not use excessive force. |
8. Specifications
Key specifications for the vidaXL 5-Layer Industrial Corner Shelf (Model 152880):
- Model Number: 152880
- Color: Silver
- Material: Galvanized steel, Engineered wood, Plastic
- Dimensions (L x W x H): 35.4" x 35.4" x 70.9" (90 cm x 90 cm x 180 cm)
- Shelf Type: Tiered Corner Shelf
- Number of Layers: 5
- Load Capacity per Shelf: 175 kg (385 lbs)
- Assembly Required: Yes (Boltless design)
- Special Features: Adjustable shelf height, Sturdy construction
- Product Care: Wipe with Dry Cloth
- Item Weight: 23.77 Kilograms
Image 8.1: Dimensional drawing confirming product specifications.
9. Customer Support
For any questions, missing parts, or assistance with your vidaXL 5-Layer Industrial Corner Shelf, please contact vidaXL customer support. Refer to your purchase documentation for specific contact details or visit the official vidaXL website.
Website: www.vidaxl.com
Please have your model number (152880) and purchase date ready when contacting support.
