EraClean Mini Fridge Deodorizer

1. Introduction

The EraClean Mini Fridge Deodorizer (Model CW-BE01) is a portable, rechargeable device designed to eliminate odors and prolong the freshness of food in various small spaces. Utilizing O3 (ozone) technology, it actively neutralizes odors rather than merely absorbing them. This device is suitable for use in refrigerators, shoe cabinets, wardrobes, cupboards, bookcases, cars, and pet boxes.

Image 1.1: EraClean Mini Fridge Deodorizer, Model CW-BE01. This image shows the compact, white deodorizer unit.

2. Safety Information

Important: This device generates ozone (O3). Ozone is an irritating gas, and its inhalation can have harmful consequences, including pulmonary toxicity. The health standards for ozone exposure have an upper limit of 0.10 ppm.

• When used in a refrigerator, the risk is generally low, especially with the Fresh-Keeping Mode (5 minutes/hour), as ozone dissipates quickly and air mixing is limited.
• Using this device in open spaces of a home or in a car, particularly with the Odor Eliminating Mode (30 minutes/hour), carries a higher risk due to potential ozone accumulation. Avoid prolonged exposure to ozone in enclosed, unventilated areas.
• Do not intentionally inhale the ozone produced by the device.
• Keep out of reach of children and pets.

The EraClean Deodorizer possesses FCC, ROHS, EMC, UKCA, and CE certifications, indicating compliance with relevant safety and environmental standards.

3. Product Components

The EraClean Mini Fridge Deodorizer package includes the following items:

• EraClean Mini Fridge Deodorizer Unit (Model CW-BE01)
• Hook (for hanging the device)
• Type-C Charging Cable
• Instruction Manual (this document)

Image 3.1: The EraClean Deodorizer is compact and portable, measuring approximately 2.83" x 2.04" x 1.25".

4. Setup

4.1 Initial Charging

Before first use, fully charge the device. The deodorizer has a built-in 1000mAh battery.

1. Connect the provided Type-C charging cable to the charging port on the device.
2. Connect the other end of the cable to a standard USB power adapter (not included).
3. Charging typically takes approximately 2 hours. The indicator light will show charging status (e.g., red for charging, off or blue for fully charged, depending on model specifics).

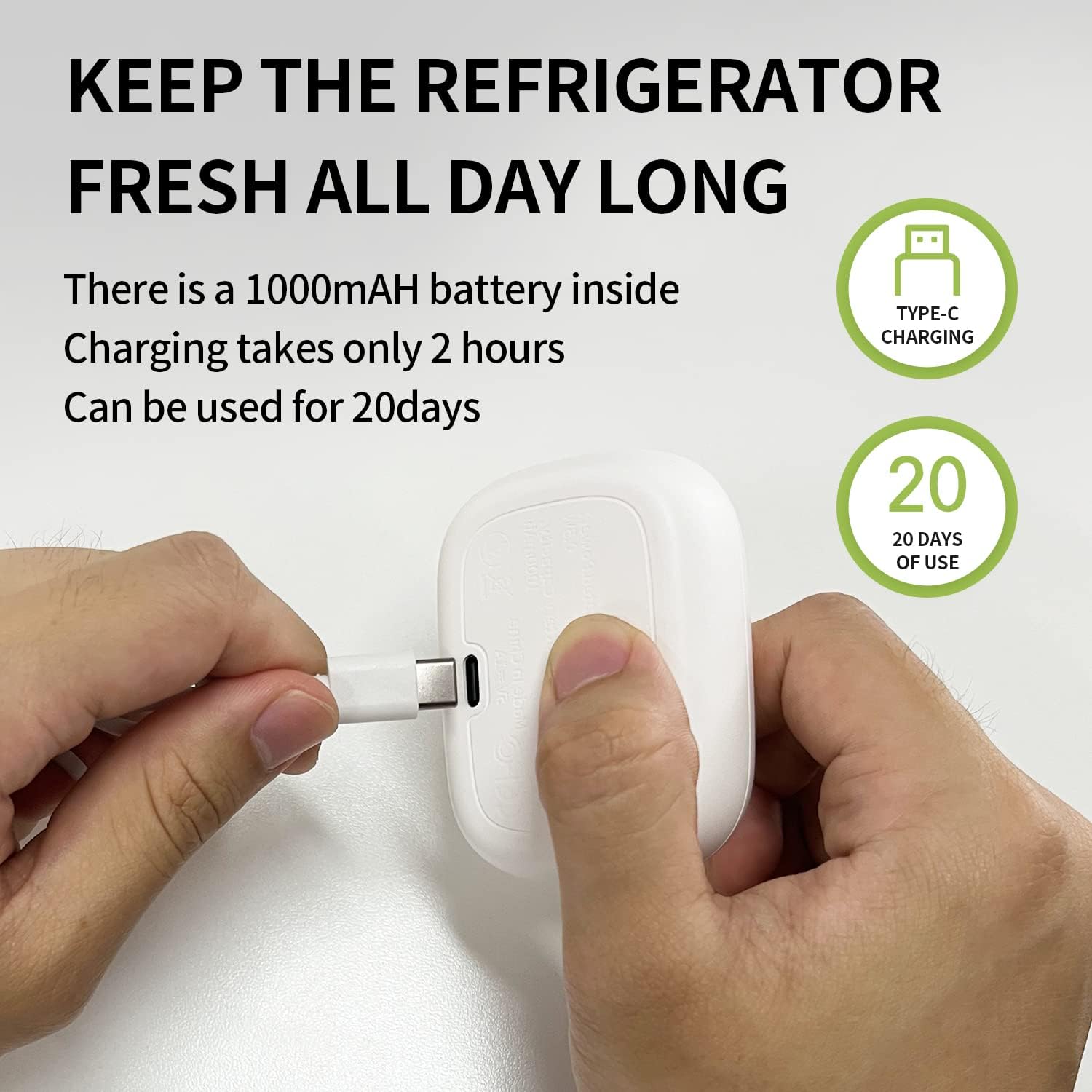

Image 4.1: The device features a Type-C charging port. A full charge provides up to 20 days of use in Fresh-Keeping Mode.

4.2 Placement

Place the deodorizer in the desired location. It can be placed directly on a shelf or hung using the included hook.

• For Refrigerators: Place it on a shelf, ideally near the area where odors are most prevalent or where food freshness is a priority.
• For Wardrobes/Cabinets/Shoe Cabinets: Place it inside the enclosed space.
• For Cars: Place it in a secure location within the vehicle.

Image 4.2: The deodorizer is suitable for various small spaces including bedrooms, shoe cabinets, wardrobes, and cars.

5. Operating Instructions

The EraClean Deodorizer features a single button for controlling its two operating modes.

5.1 Power On/Off and Mode Selection

1. To Power On: Press and hold the button for a few seconds until the indicator light illuminates. The device will typically start in the default mode (refer to specific product manual for default).
2. To Switch Modes: Briefly press the button to cycle between the available modes. The indicator light may change color or pattern to indicate the active mode.
3. To Power Off: Press and hold the button for a few seconds until the indicator light turns off.

5.2 Operating Modes

The device offers two distinct operating modes:

• Fresh-Keeping Mode:
  • Operation Cycle: Operates for 5 minutes, then stops for 55 minutes. This cycle repeats continuously.
  • Battery Life: Provides approximately 20 days of operation on a full charge in this mode.
  • Recommended Use: Ideal for maintaining food freshness and preventing odor buildup in smaller refrigerators (e.g., up to 150 liters / 5.3 cu. ft.).
• Odor Eliminating Mode:
  • Operation Cycle: Operates for 30 minutes, then stops for 30 minutes. This cycle repeats continuously.
  • Battery Life: Significantly shorter than Fresh-Keeping Mode due to increased operation time.
  • Recommended Use: For actively eliminating existing strong odors. Noticeable effects are generally observed within 12 hours. Suitable for larger refrigerators or spaces with persistent odors.

Image 5.1: The deodorizer works to eliminate odors, improving the air quality inside your refrigerator.

Image 5.2: The device targets common fridge odors such as fishy, raw meat, pungent, and other peculiar smells.

6. Maintenance

6.1 Recharging

Recharge the device when the battery is low. The indicator light will typically signal a low battery condition (e.g., flashing red). Regular recharging ensures continuous operation.

• In Fresh-Keeping Mode, expect to recharge approximately every 20 days.
• In Odor Eliminating Mode, recharging will be required more frequently.

6.2 Cleaning

To clean the exterior of the device:

• Ensure the device is powered off before cleaning.
• Wipe the surface with a soft, damp cloth.
• Do not use harsh chemicals, abrasive cleaners, or immerse the device in water.
• Ensure the device is completely dry before powering it on again.

7. Troubleshooting

8. Specifications

9. Support

For any product-related inquiries or issues, please contact EraClean customer support. While specific warranty details are not provided in this manual, EraClean is committed to offering high-quality products and services.

Please refer to the retailer's return policy or EraClean's official website for detailed warranty information and contact methods.
