MOEO Twin Size Low Loft Wood House Bed with 2 Drawers

1. Introduction

This manual provides detailed instructions for the assembly, use, and maintenance of your MOEO Twin Size Low Loft Wood House Bed. Designed with a unique playhouse structure featuring a roof and two front windows, this bed offers both a comfortable sleeping area and an imaginative space. It includes two integrated drawers for convenient storage, making it an ideal solution for optimizing space in smaller living areas. Constructed from sturdy pinewood, MDF, and plywood, this bed is built for stability and durability.

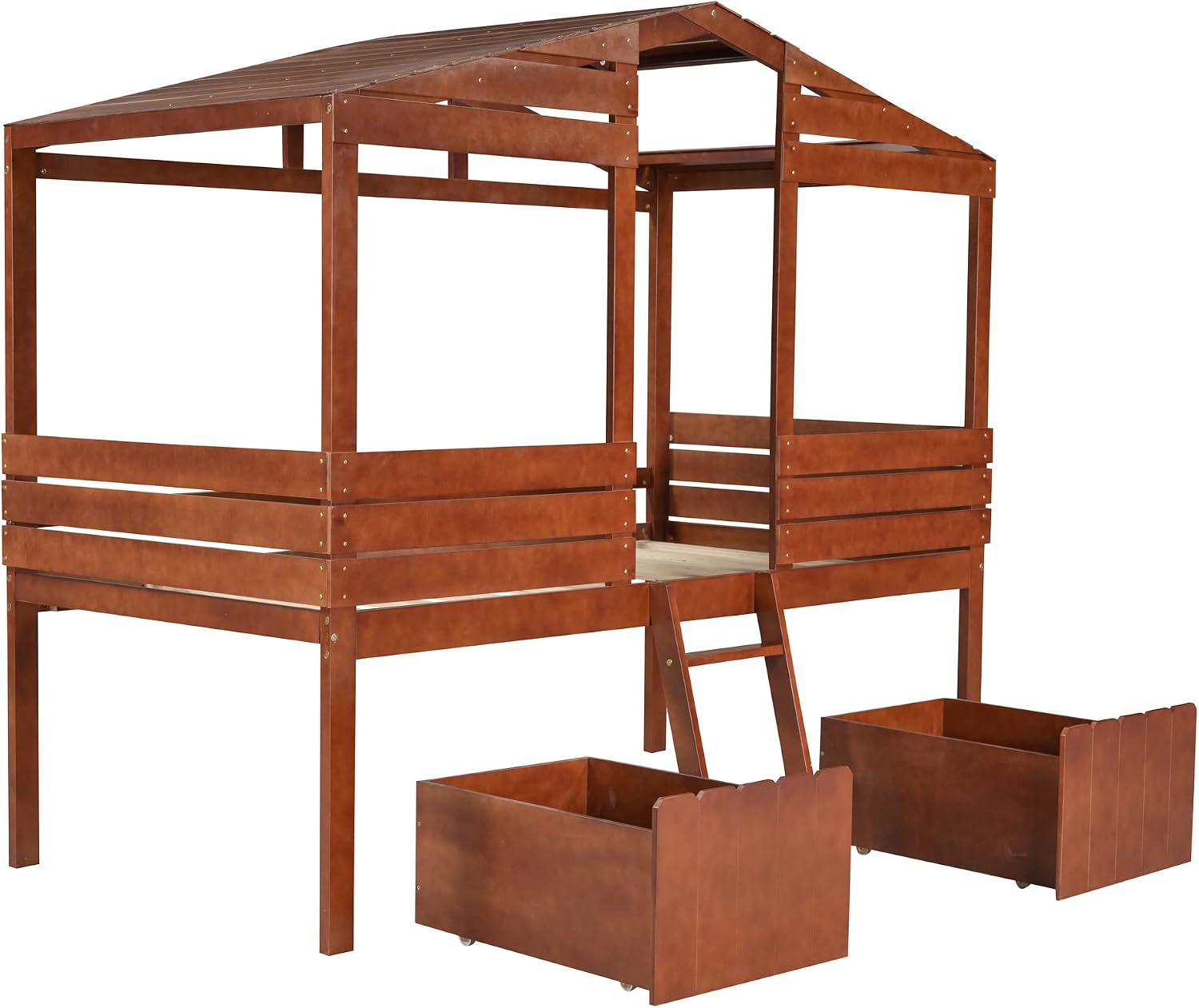

Figure 1.1: MOEO Twin Size Low Loft Wood House Bed with Drawers.

2. Safety Information

Please read and understand all safety warnings and instructions before assembly and use of this product. Failure to follow these instructions can result in serious injury.

• Weight Capacity: The bed is designed to support a maximum weight of 250 lbs (113 kg). Do not exceed this weight limit.
• Mattress Thickness: Use a mattress with a recommended thickness of 4 to 6 inches (10-15 cm).
• Assembly: Assembly must be performed by adults. Ensure all hardware is securely tightened before use. Periodically check and re-tighten all connections.
• Guardrails: The bed features guardrails for safety. Ensure they are properly installed and maintained.
• Ventilation: The semi-enclosed design provides a comforting atmosphere while maintaining adequate air circulation.
• No Box Spring Required: This bed includes slats and does not require a box spring or foundation.

3. Package Contents

Your MOEO Twin Size Low Loft Wood House Bed is shipped in one package. Carefully unpack all components and verify that all parts are present before beginning assembly. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Bed Frame Components (Headboard, Footboard, Side Rails, Roof Panels, Window Panels)
• Ladder
• Bed Slats
• 2 Storage Drawers
• Hardware Pack (Screws, bolts, nuts, Allen wrench, etc.)
• Assembly Instructions Manual

4. Setup and Assembly

Assembly is required for this product. It is recommended that two adults perform the assembly. Clear instructions and all necessary hardware are included in the package.

1. Prepare the Area: Clear a spacious area for assembly. Lay out all components on a soft, clean surface to prevent scratches.
2. Assemble the Bed Frame: Follow the step-by-step diagrams in the included assembly manual to connect the main bed frame components (legs, side rails, headboard, footboard). Ensure all connections are secure but do not fully tighten until instructed.
3. Install the Roof and Window Panels: Attach the roof panels and front window panels to the bed frame according to the instructions. These form the distinctive house design.
4. Attach the Ladder: Securely attach the ladder to the designated position on the bed frame.
5. Install Bed Slats: Place and secure the bed slats across the bed frame. These provide support for the mattress.
6. Assemble and Insert Drawers: Assemble the two storage drawers. Once assembled, slide them into position underneath the bed frame.
7. Final Tightening: Once all components are in place, systematically tighten all screws and bolts. Do not overtighten.

Figure 4.1: Assembled bed frame with drawers.

Figure 4.2: Front view of the assembled bed.

5. Operating (Usage) Instructions

This low loft bed is designed for comfortable sleeping and imaginative play. The integrated drawers provide convenient storage.

• Sleeping Area: Place a twin-size mattress (4-6 inches thick) on the bed slats. The semi-enclosed design offers a cozy sleeping environment.
• Play Space: The house-shaped design encourages imaginative play. Ensure the area around the bed is clear for safe play.
• Storage Drawers: The two drawers are easy to pull in and out. Use them to store books, toys, bedding, or other items to keep the room tidy.
• Ladder Use: Always use the ladder to access and exit the bed. Do not jump on or off the bed.

6. Maintenance

Regular maintenance will help prolong the life and appearance of your bed.

• Cleaning: Wipe the wooden surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
• Hardware Check: Periodically check all screws, bolts, and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and safety.
• Drawer Maintenance: Keep the drawer tracks clean and free of debris to ensure smooth operation.

7. Troubleshooting

If you encounter any issues with your MOEO bed, refer to the following common solutions:

• Bed feels wobbly: Check all assembly hardware. Ensure every screw and bolt is securely tightened.
• Drawers do not slide smoothly: Inspect the drawer tracks for any obstructions or debris. Ensure the drawers were assembled correctly and are aligned on their tracks.
• Squeaking noises: This often indicates loose connections. Re-tighten all hardware. Applying a small amount of furniture wax or silicone spray to joints can also help.

If problems persist, please contact customer support for further assistance.

8. Specifications

Detailed specifications for the MOEO Twin Size Low Loft Wood House Bed:

Figure 8.1: Product Dimensions Diagram.

9. Warranty and Support

Your MOEO Twin Size Low Loft Wood House Bed comes with a One Year Product Warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship.

For warranty claims, missing parts, or technical support, please contact MOEO customer service. Have your purchase receipt and product model number (MOEO) ready when contacting support.

For the most up-to-date contact information, please refer to the MOEO official website or your retailer's support page.
