1. Introduction
Thank you for choosing the PURPLE LEAF 10' x 13' Retractable Metal Pergola. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Designed for durability and versatility, this pergola features a robust aluminum frame and a retractable canopy, offering adjustable shade for your garden, yard, deck, or patio.
Please read this manual thoroughly before beginning assembly or use. Keep it for future reference.
2. Safety Information
- Secure Anchoring: Always ensure the pergola is securely anchored to a stable surface. Use 1/4-inch expansion screws for mounting on wooden floors or concrete surfaces at least 3 inches deep. For concrete footings, ensure they measure at least 15x15x15 inches and weigh over 50 lbs. per footing.
- Wind Conditions: In strong wind conditions, it is recommended to retract the canopy to prevent damage to the fabric and frame.
- Assembly: Assembly requires at least two adults. Follow all steps carefully to ensure structural integrity.
- Inspection: Regularly inspect all components for wear, damage, or loose connections. Tighten fasteners as needed.
- Clearance: Ensure adequate clearance around the pergola for safe operation of the retractable canopy and to prevent obstruction.
3. Package Contents
Please verify that all parts listed in your product's specific parts list (included in the packaging) are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact customer support.
4. Setup and Assembly
Follow the step-by-step instructions provided in your packaged manual for detailed assembly. Key features contributing to the pergola's structure include:
- 5 Crossbeams: The pergola is constructed with five robust crossbeams to enhance stability.
- Powder-Coated Aluminum Frame: The frame is made from strong, powder-coated aluminum, designed for rust resistance and high stability.
- Stable Design: The crossed post and beam construction, along with four 6.7 x 6.7 inch wide aluminum feet with pre-drilled holes, ensures stable ground placement.
Image: Solid structure with 5 crossbeams for enhanced stability.
Image: Sturdy pole structure, stable and not prone to collapse.
Image: Solid foundation for reliable stability, showing the 6.81" x 6.81" base.
Video: Demonstrates the assembly and structural features of the PURPLE LEAF Brown Metal Pergola.
5. Operating Instructions
The pergola features a retractable canopy for flexible shading. To operate:
- Extend the Canopy: Use the integrated pulley system and suction cup fastening levers to smoothly extend the canopy for full shade.
- Retract the Canopy: To open the pergola to sunlight or in anticipation of strong winds, use the pulley system to retract the canopy. Ensure it is fully retracted and secured.
Image: Diagram illustrating the retractable canopy in both open and closed positions.

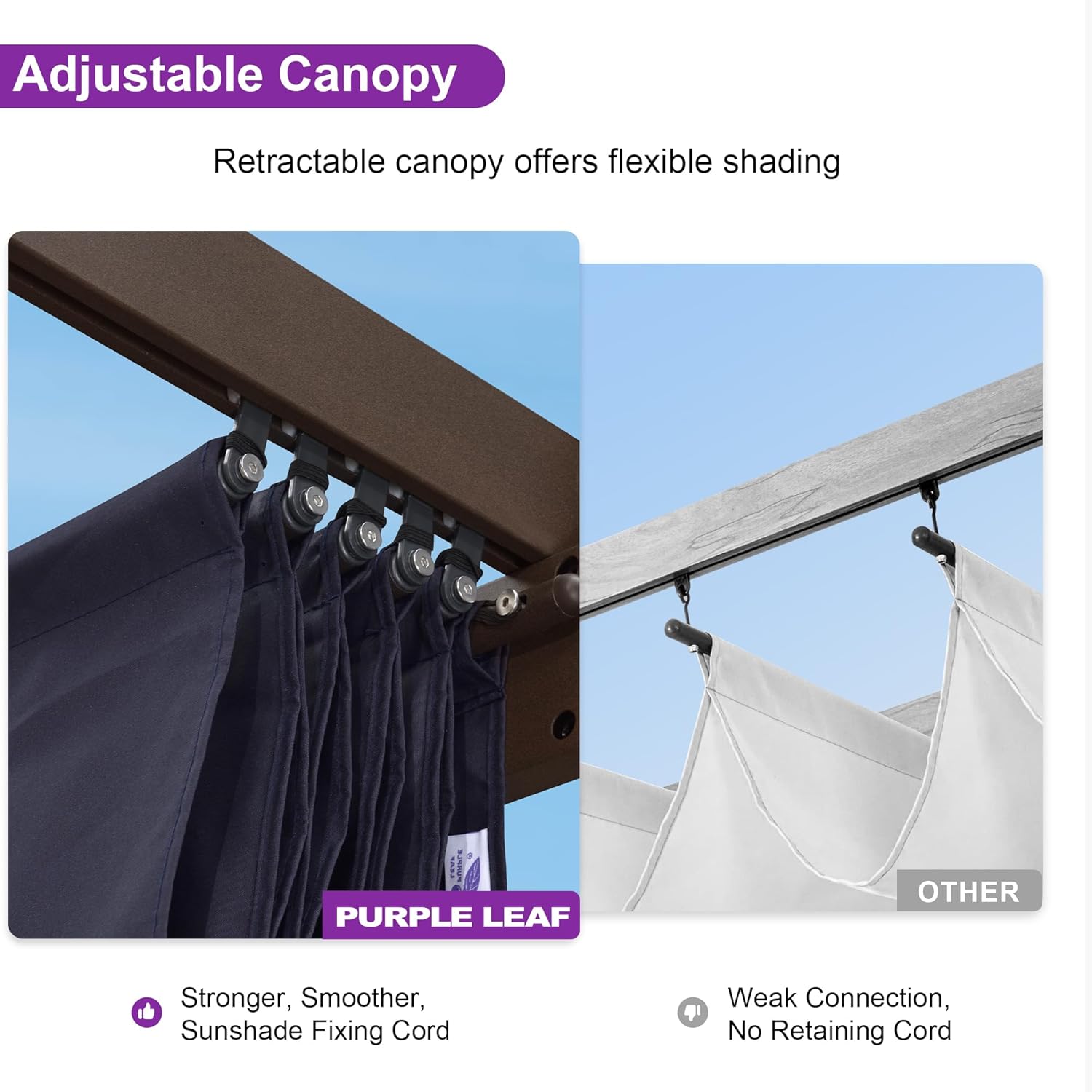

Image: Close-up of the adjustable canopy mechanism, highlighting the smooth fixing cord.
Video: Shows the smooth retraction and extension of the pergola canopy in a garden setting.
Video: A quick demonstration of the PURPLE LEAF Outdoor Retractable Pergola's canopy operation.
6. Maintenance
- Canopy Care: The canopy is made from improved yarn-dyed fabric, which is UV and fade resistant. To clean, gently wipe with a damp cloth and mild soap. Avoid harsh chemicals.
- Frame Care: The powder-coated aluminum frame is designed for rust resistance. Clean with a damp cloth and mild detergent. Inspect for any scratches or chips in the coating and touch up if necessary to prevent rust.
- Hardware: Periodically check all bolts and screws to ensure they are tight. Re-tighten as needed to maintain structural integrity.
- Winter Storage: In areas with heavy snow or extreme weather, it is advisable to remove the canopy for winter storage to prolong its lifespan.

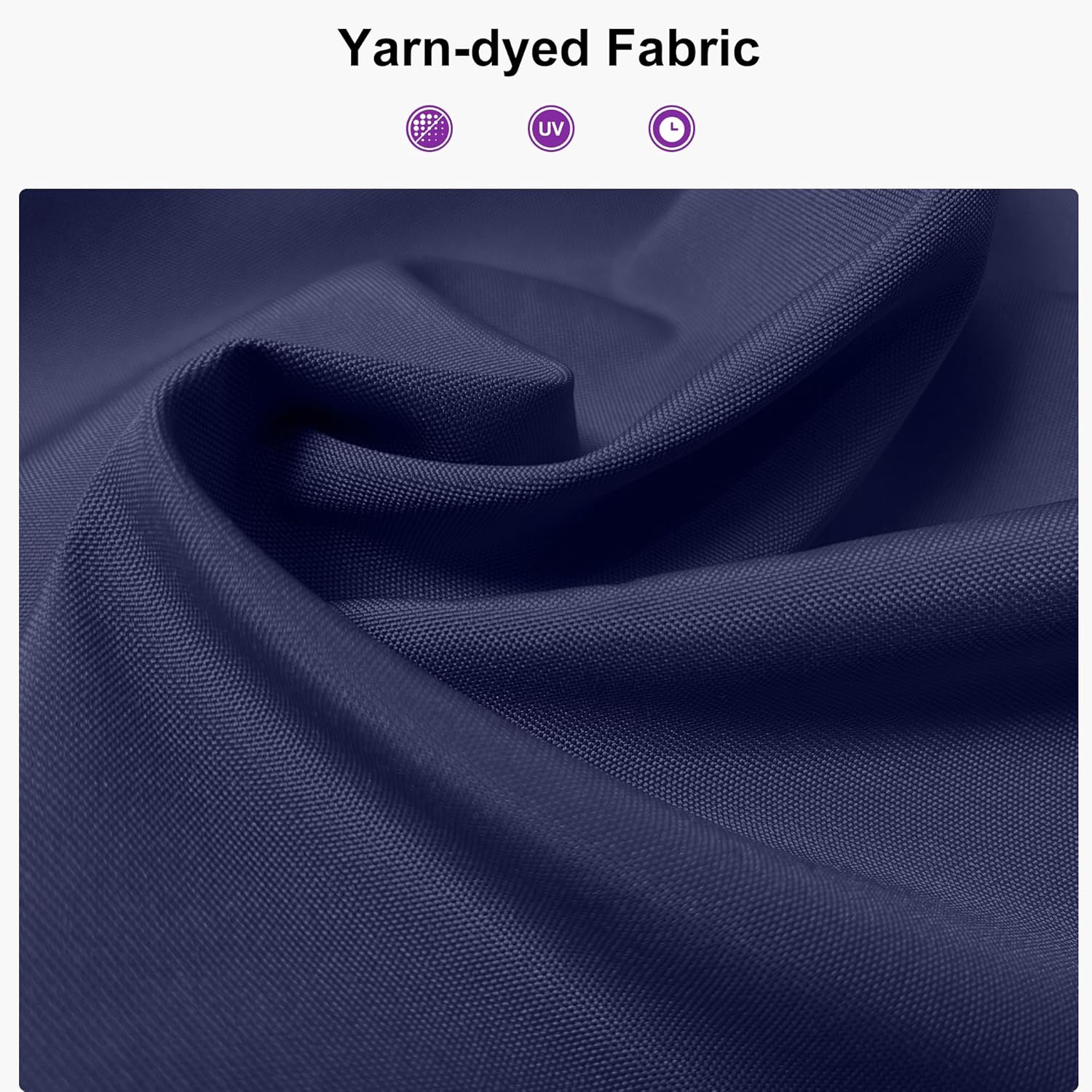

Image: Close-up of the yarn-dyed fabric, highlighting its UV and fade-resistant properties.
7. Troubleshooting
- Canopy not retracting/extending smoothly: Check for any obstructions in the tracks or along the canopy path. Ensure the pulley system is free of debris and operating correctly. Lubricate moving parts if necessary.
- Pergola feels unstable: Verify that all anchoring points are secure and all fasteners are tightened. Re-check the installation instructions for proper ground preparation and anchoring.
- Water pooling on canopy: Ensure the canopy is properly tensioned when extended. If pooling occurs, retract the canopy to prevent damage.
8. Specifications
| Brand | PURPLE LEAF |
| Material | Aluminum, Metal |
| Style | Brown Frame & Navy Blue Canopy |
| Product Dimensions (L x W x H) | 157.48"L x 118.11"W x 96.46"H |
| Item Weight | 92.4 Pounds |
| Water Resistance Level | Water Resistant |
| Ultraviolet Light Protection | 50 |
| Assembly Required | Yes |
9. Warranty and Support
This product is eligible for a 30-day easy returns policy. For specific warranty details, please refer to the documentation included with your purchase or contact PURPLE LEAF customer support.
For any questions, missing parts, or support needs, please contact the seller, purpleleafpremium, directly through the platform where you made your purchase. They offer customer support to assist you.
