Tangkula 2 Person Porch Swing Instruction Manual

1. Product Overview

The Tangkula 2 Person Porch Swing is designed for outdoor leisure, offering a comfortable seating solution for two individuals. It features an adjustable canopy for sun protection and a sturdy steel frame for durability. This manual provides essential information for assembly, operation, and maintenance to ensure safe and enjoyable use of your porch swing.

Image 1.1: The Tangkula 2 Person Porch Swing, featuring a dark brown canopy and seat, designed for outdoor relaxation.

Key Features:

• Adjustable Canopy: Provides flexible shade and is water-resistant, sun-protective, and fade-resistant. Can be folded back for sun exposure.
• Comfortable Seating: Breathable and fast-drying fabric seat, designed for two people.
• Durable Construction: Heavy-duty, rustproof steel frame with a 600 lbs (270 kg) weight capacity.
• Enhanced Stability: Features triangular structures and anti-slip foot pads for secure placement.
• Curved Armrests: Designed for additional comfort.

Image 1.2: Close-up details highlighting the robust S-shaped hook, rustproof steel frame, curved armrests, and anti-slip foot pads, all contributing to the swing's durability and stability.

2. Important Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Ensure all parts are securely fastened before use. Periodically check and tighten all bolts and nuts.
• Do not exceed the maximum weight capacity of 600 lbs (270 kg).
• Keep children under supervision when near or using the swing.
• Avoid standing on the swing or using it in an unsafe manner.
• Place the swing on a level, stable surface to prevent tipping.
• Do not use the swing during strong winds or severe weather conditions.
• Keep hands and feet clear of moving parts during operation.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Patio Swing Frame Components
• Fabric Seat
• Adjustable Canopy
• Hardware Pack (bolts, nuts, washers, tools)
• Instruction Manual

4. Assembly Instructions

Assembly is straightforward and typically requires two people. All parts are labeled for easy identification. Refer to the included diagram for visual guidance.

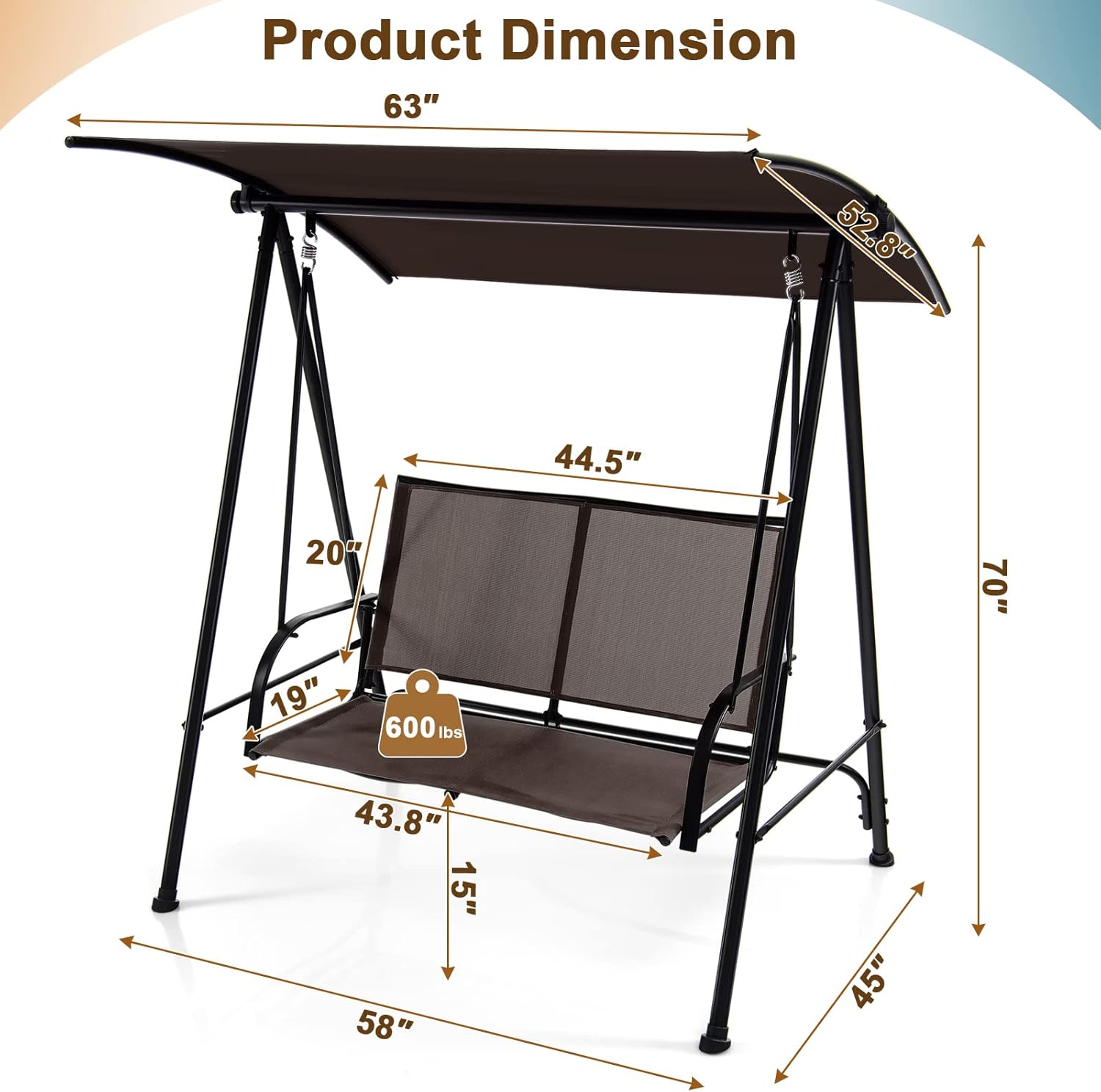

Image 4.1: Product dimensions diagram, useful for understanding the overall structure during assembly.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
2. Assemble Base Frame: Connect the main support bars to form the base of the swing frame. Secure with the provided bolts and nuts, but do not fully tighten yet.
3. Attach Side Frames: Connect the side A-frames to the base frame. Ensure the triangular structures are correctly aligned for stability.
4. Install Seat Frame: Assemble the seat frame and attach it to the hanging points on the side frames using the S-shaped hooks.
5. Mount Canopy Frame: Attach the canopy support bars to the top of the main frame.
6. Install Canopy Fabric: Slide the canopy fabric onto its frame and secure it according to the instructions.
7. Final Tightening: Once all components are in place and aligned, fully tighten all bolts and nuts using the provided tools.
8. Inspect: Double-check all connections for security and stability before first use.

5. Operating Instructions

Adjusting the Canopy:

The canopy can be adjusted to provide optimal shade throughout the day. Simply loosen the adjustment knobs on both sides of the canopy frame, position the canopy to your desired angle, and then tighten the knobs to secure it.

Image 5.1: Visual representation of the adjustable canopy, highlighting its ability to move and its protective qualities.

General Use:

Gently sit on the swing seat. The swing is designed for a smooth, relaxing motion. Avoid sudden movements or excessive force when swinging.

6. Maintenance and Care

Regular maintenance will extend the life and appearance of your porch swing.

• Cleaning: Wipe the fabric seat and steel frame with a clean, damp cloth. For stubborn dirt, a mild soap solution can be used, followed by rinsing with clean water and air drying. Avoid harsh chemicals or abrasive cleaners.
• Frame Inspection: Periodically check the steel frame for any signs of rust or damage. Touch up any scratches with rust-inhibiting paint if necessary.
• Hardware Check: Regularly inspect all bolts, nuts, and connections to ensure they remain tight. Tighten as needed.
• Canopy Care: Clean the canopy fabric with a soft brush and mild soap. Ensure it is completely dry before folding or storing to prevent mildew.
• Winter Storage: During off-season or prolonged periods of non-use, it is recommended to store the swing indoors or cover it with a protective outdoor furniture cover to shield it from extreme weather.

7. Troubleshooting

This section addresses common issues you might encounter.

• Swing is unstable: Ensure the swing is placed on a flat, level surface. Check all bolts and nuts to confirm they are fully tightened. Verify that the anti-slip foot pads are intact and properly positioned.
• Squeaking during swinging: Apply a silicone-based lubricant to the S-shaped hooks and any pivot points on the frame.
• Canopy does not stay in position: Ensure the adjustment knobs on the canopy frame are securely tightened after positioning the canopy.
• Difficulty with assembly: Re-read the assembly instructions carefully. Ensure all parts are correctly oriented as per the diagrams. If issues persist, contact customer support.

8. Product Specifications

9. Warranty and Customer Support

For warranty information or assistance with your Tangkula 2 Person Porch Swing, please refer to the purchase documentation or contact Tangkula customer support directly. Ensure you have your model number (10403-CF) and proof of purchase available when contacting support.

You can typically find contact information on the retailer's website where the product was purchased or on the official Tangkula brand website.
