Ecojoy Commercial Vacuum Sealer Machine V9200 Instruction Manual

1. Product Overview

The Ecojoy Commercial Vacuum Sealer Machine V9200 is designed for efficient food preservation, extending the shelf life of various food items. It features a 12-inch sealing bar and a double pump system for strong vacuuming and sealing. With 7 operational modes, it accommodates different food types and preservation needs, suitable for both dry and moist foods, as well as external vacuuming for canisters.

2. Safety Information

Please read all safety instructions before operating the appliance to prevent injury or damage.

• Electrical Safety: Ensure the power cord is properly connected to a grounded outlet. Do not operate with a damaged cord or plug.
• Hot Surfaces: The sealing bar becomes hot during operation. Avoid direct contact to prevent burns. Allow the machine to cool between continuous uses.
• Water and Liquids: Do not immerse the appliance in water or other liquids. If liquids enter the drip tray, empty and clean it immediately to prevent damage.
• Cleaning: Always unplug the unit before cleaning. Use a damp cloth to wipe surfaces.
• Children: Keep the appliance out of reach of children.
• Intended Use: Use the vacuum sealer only for its intended purpose of vacuum sealing food.

3. Product Components

Familiarize yourself with the main parts of your Ecojoy V9200 vacuum sealer:

• Lid: The top cover of the appliance.
• Manual Lock: Mechanism to secure the lid during operation.
• Control Panel: Digital display and buttons for selecting modes and adjusting settings.
• Power Switch: On/Off switch located at the rear.
• Power Socket: Connection point for the power cord.
• Heating Bar: Generates heat for sealing bags.
• Vacuum Gaskets: Seals the vacuum chamber to create a vacuum.
• Dripping Tray: Collects excess liquids, removable for cleaning.
• Lock Catch: Secures the lid.
• Vacuum Outlet: Port for external vacuuming with the hose.

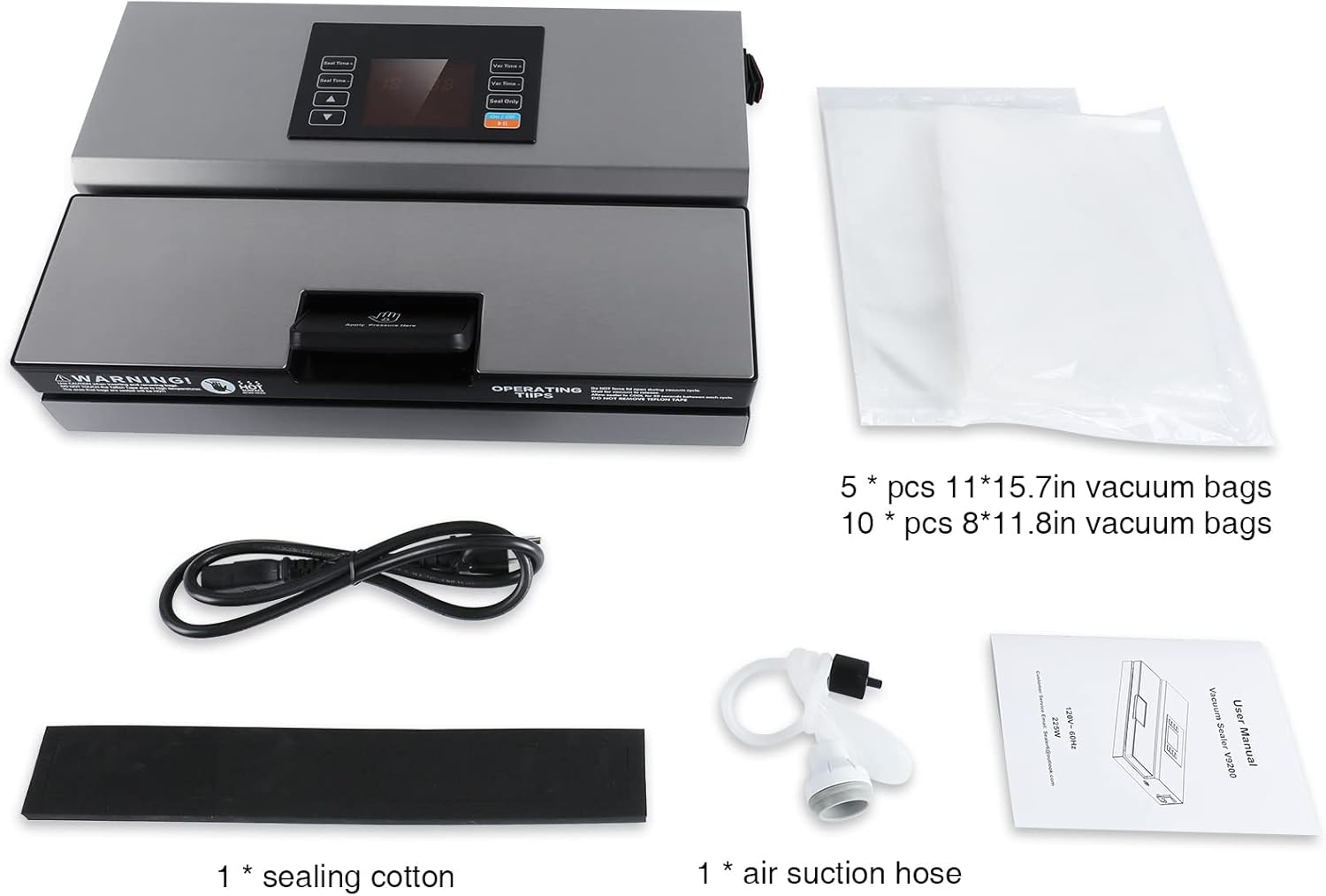

4. Package Contents

Upon unpacking, ensure all the following items are present:

• 1 x Ecojoy Commercial Vacuum Sealer Machine V9200
• 1 x Sealing Cotton (replacement)
• 1 x Air Suction Hose
• 5 x Vacuum Bags (11 x 15.7 inches)
• 10 x Vacuum Bags (8 x 11.8 inches)
• 1 x User Manual

5. Initial Setup

1. Unpack: Carefully remove all components from the packaging.
2. Placement: Place the vacuum sealer on a flat, stable, and dry surface.
3. Power Connection: Connect the power cord to the power socket on the back of the unit, then plug it into a standard 110V AC electrical outlet.
4. Power On: Flip the main power switch on the back of the unit to the 'ON' position. The control panel will illuminate.

Setup Demonstration Video

6. Operating Instructions

6.1 Basic Vacuum Sealing

1. Prepare the Bag: Place the food item into a vacuum sealer bag, ensuring at least 1 inch of space between the food and the top of the bag. For optimal sealing, leave 2 inches of headspace and lay the bag flat across the seal bar.
2. Position the Bag: Open the lid of the vacuum sealer. Place the open end of the bag flat into the drip tray, ensuring it is centered over the vacuum channel and within the sealing bar area.
3. Close and Lock: Close the lid firmly until you hear a click, indicating it is locked. Apply pressure to the 'Apply Pressure Here' area if needed to ensure a tight seal.
4. Select Mode: Turn on the control panel using the 'On/Off' button. Choose your desired vacuum operation mode (e.g., VAC SEAL for general use). You can adjust 'Seal Time' and 'Vac Time' using the '+' and '-' buttons.
5. Start Sealing: Press the 'On/Off' button again to start the vacuum and sealing process. The machine will automatically complete the cycle.
6. Release and Remove: Once the cycle is complete and the vacuum is released (you may hear a hiss), open the manual lock and remove the sealed bag.

6.2 Understanding the 7 Functional Modes

The Ecojoy V9200 offers 7 modes for versatile food preservation:

• VAC SEAL: Performs both vacuuming and sealing automatically. This is the standard mode for most dry and solid foods.
• SEAL ONLY: Seals the bag without vacuuming. Useful for sealing bags that do not require vacuuming or for creating custom-sized bags from rolls.
• SPEED: Adjusts the vacuuming speed. An indicator light on means high-speed operation, while off means low-speed.
• CANISTER: For use with external vacuum canisters. Connect the air suction hose to the vacuum outlet and the canister.
• MOIST: Optimized for moist foods. This mode adjusts vacuum and seal times to prevent liquids from being drawn into the machine and ensures a strong seal.
• PULSE VAC: Allows manual control over the vacuum process. Press and hold to vacuum, release to stop. This is ideal for delicate items that could be crushed by full vacuum.
• MARINATE: Used with vacuum canisters to quickly marinate food by opening food pores under vacuum pressure.

6.3 Operation Demonstration Video

7. Maintenance and Cleaning

Regular cleaning and maintenance ensure the longevity and optimal performance of your vacuum sealer.

• Always Unplug: Before any cleaning or maintenance, ensure the appliance is unplugged from the power source.
• Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
• Drip Tray: The drip tray is removable for easy cleaning. Wash it with warm, soapy water, rinse thoroughly, and dry completely before reinserting.
• Vacuum Gaskets: Inspect the vacuum gaskets for any food debris or damage. Wipe them clean with a damp cloth. Ensure they are dry and properly seated for effective sealing.
• Sealing Bar: Gently wipe the sealing bar with a dry cloth. Do not use sharp objects or abrasive materials on the sealing bar.
• Storage: Store the vacuum sealer in a clean, dry place with the lid unlocked to prevent compression of the gaskets.

8. Troubleshooting

If you encounter issues with your vacuum sealer, refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official Ecojoy website. Keep your purchase receipt as proof of purchase for any warranty claims.
