Iceagle Airfryer XL 6.5L 1700W Hot Air Fryer Instruction Manual

1. Introduction

Thank you for choosing the Iceagle Airfryer XL 6.5L 1700W. This appliance is designed to cook your favorite foods with little to no oil, providing a healthier alternative to traditional frying methods. Please read this instruction manual thoroughly before first use to ensure safe and optimal operation. Keep this manual for future reference.

2. Important Safety Instructions

WARNING: To prevent electric shock, fire, or injury, always follow basic safety precautions.

• Read all instructions before using the appliance.
• Do not immerse the cord, plug, or the appliance housing in water or other liquids.
• Supervise children closely when the appliance is in use.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use accessories not recommended by the appliance manufacturer, as this may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use the appliance for other than intended use.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting the appliance.
• The appliance is equipped with a safety switch that prevents operation if the basket is not properly inserted.
• Hot air is released through the air outlet opening during operation. Keep your hands and face at a safe distance from the air outlet opening.

3. Product Overview

The Iceagle Airfryer XL features a sleek design with a digital LED touch screen for easy operation. It includes a robust metal interior for durability and efficient heat retention.

Figure 1: Iceagle Airfryer XL showing the main unit with the cooking basket pulled out, containing a roasted chicken and vegetables.

Components:

• Main Unit: Houses the heating element, fan, and control panel.
• Digital LED Touch Screen: For selecting programs, adjusting time and temperature.
• Cooking Basket: Removable, non-stick, and dishwasher-safe for easy cleaning.
• Crisper Plate: Sits inside the cooking basket to allow air circulation around food.
• Handle: For safely pulling out and inserting the cooking basket.

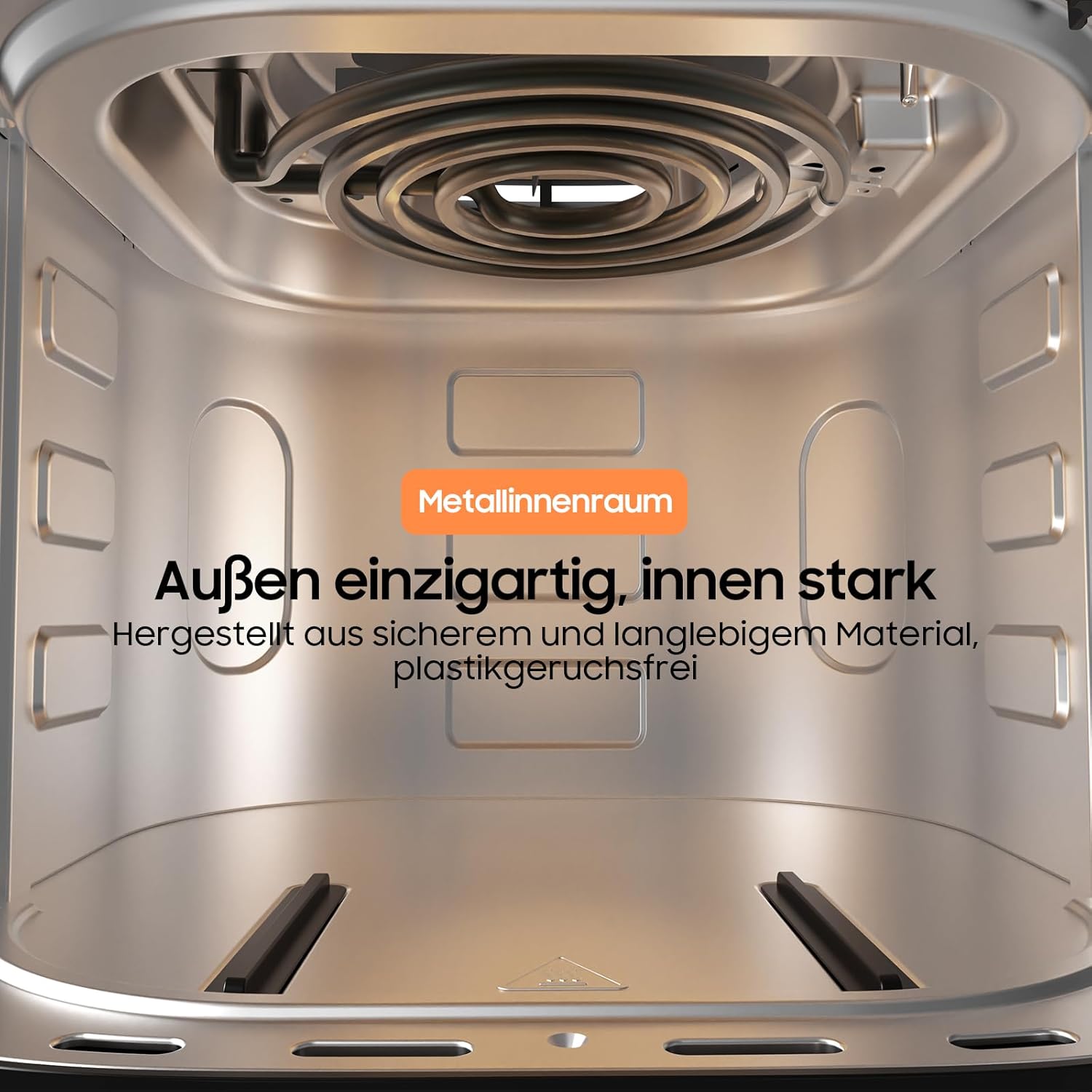

Figure 2: Close-up view of the air fryer's interior, highlighting the robust metal lining for enhanced durability and heat retention.

4. Setup and First Use

4.1 Unpacking

Carefully remove the air fryer and all packaging materials. Ensure all components are present and undamaged. Dispose of packaging materials responsibly.

4.2 Initial Cleaning

1. Wipe the exterior of the appliance with a damp cloth.
2. Remove the cooking basket and crisper plate. Wash them thoroughly with hot water, dish soap, and a non-abrasive sponge.
3. Rinse and dry all parts completely before reassembling.

4.3 Placement

Place the air fryer on a stable, heat-resistant surface, away from walls and other appliances to allow for proper air circulation. Ensure there is at least 10 cm (4 inches) of clear space on all sides and above the appliance.

4.4 Power Connection

Plug the power cord into a grounded wall outlet. The appliance is now ready for use.

5. Operating Instructions

The Iceagle Airfryer XL features an intuitive digital LED touch screen for easy control.

Figure 3: The digital LED touch screen control panel, displaying various function icons and temperature/timer settings.

5.1 Power On/Off

• To power on, press the Power button on the control panel. The display will light up.
• To power off, press and hold the Power button until the display turns off.

5.2 Pre-programmed Functions

The air fryer comes with 8 pre-programmed cooking functions for convenience. These functions automatically set optimal time and temperature for common dishes.

Figure 4: The control panel displaying icons for 8 pre-programmed cooking functions, including fries, grill, chicken, shrimp, steak, toast, vegetables, and grilled fish.

1. Place food in the cooking basket. Ensure the crisper plate is at the bottom.
2. Insert the cooking basket firmly into the air fryer.
3. Press the Power button to turn on the appliance.
4. Select the desired pre-programmed function by tapping its icon on the touch screen. The display will show the default time and temperature.
5. Press the Start/Pause button to begin cooking.

5.3 Manual Operation (Adjusting Time and Temperature)

For custom cooking, you can manually set the time and temperature.

1. Place food in the cooking basket and insert it into the air fryer.
2. Press the Power button.
3. Use the Temperature adjustment buttons to set the desired temperature (range: 80°C to 200°C).
4. Use the Time adjustment buttons to set the desired cooking time.
5. Press the Start/Pause button to begin cooking.

5.4 During Cooking

• The air fryer uses a 360° hot air circulation system for even cooking.
• For best results, especially with larger quantities or certain foods, shake or turn the food halfway through the cooking time. To do this, carefully pull out the cooking basket by its handle. The air fryer will automatically pause. Shake or turn the food, then reinsert the basket to resume cooking.


Figure 5: Visual representation of the 360-degree hot air circulation system, ensuring even cooking and crisp results.

• The appliance will beep when the cooking time is complete. Carefully pull out the basket and transfer the food to a serving plate.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.

6.1 Before Cleaning

• Unplug the air fryer from the power outlet.
• Allow the appliance to cool down completely before cleaning.

6.2 Cleaning the Cooking Basket and Crisper Plate

• The non-stick cooking basket and crisper plate are dishwasher safe.
• Alternatively, wash them with hot water, dish soap, and a non-abrasive sponge. For stubborn residue, soak them in warm soapy water for about 10 minutes before cleaning.
• Ensure they are completely dry before reassembling or storing.

Figure 6: The removable non-stick cooking basket and crisper plate are shown being loaded into a dishwasher, illustrating their easy-to-clean design.

6.3 Cleaning the Exterior

• Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads.
• Never immerse the main unit in water or any other liquid.

6.4 Cleaning the Interior

• Wipe the interior with a damp cloth. If necessary, use a mild detergent.
• Clean the heating element with a cleaning brush to remove any food residue.

7. Troubleshooting

If you encounter any issues with your Iceagle Airfryer XL, please refer to the following common problems and solutions:

8. Specifications

Refer to the following technical specifications for the Iceagle Airfryer XL (Model AF-625A):

Figure 7: Dimensions of the Iceagle Airfryer XL: 26cm width, 27cm depth, 28cm height.

• Model Number: AF-625A
• Brand: iceagle
• Capacity: 6.5 Litres
• Power: 1700 Watts
• Voltage: 230 Volts (AC)
• Temperature Range: 80°C - 200°C
• Timer: Up to 60 minutes (approx.)
• Material: Plastic (exterior), Metal (interior)
• Dimensions (L x W x H): Approximately 27 cm x 26 cm x 28 cm
• Weight: 4 Kilograms
• Special Features: Automatic shut-off, Temperature control, Digital Timer, 8 Pre-programmed functions.

9. Warranty and Support

Specific warranty information for the Iceagle Airfryer XL (Model AF-625A) is not provided in the product details. Please refer to the warranty card included with your purchase or contact the retailer for details regarding warranty coverage.

Customer Support:

For technical assistance, troubleshooting beyond this manual, or inquiries about replacement parts, please contact Iceagle customer support through their official website or the retailer where the product was purchased. Please have your model number (AF-625A) and purchase date available when contacting support.
