Atermiter X99 Dual CPU Motherboard User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, configuration, and maintenance of your Atermiter X99 Dual CPU Motherboard. Please read this manual thoroughly before attempting any installation or operation to ensure proper functionality and to prevent damage to your components.

2. Safety Information

Always observe the following safety precautions when handling computer components:

• Disconnect the power cord from the wall outlet before touching any components.
• Wear an anti-static wrist strap or frequently touch a grounded metal object to discharge static electricity.
• Handle components by their edges; avoid touching pins or circuitry.
• Ensure proper ventilation for your system to prevent overheating.
• Keep liquids away from your computer components.

3. Package Contents

Verify that all items are present in your motherboard package:

• Atermiter X99 Dual CPU Motherboard
• SATA Data Cables
• I/O Shield
• User Manual (this document)
• Driver CD/USB (if included)

4. Motherboard Layout and Features

Familiarize yourself with the key components and connectors on your Atermiter X99 Dual CPU Motherboard.

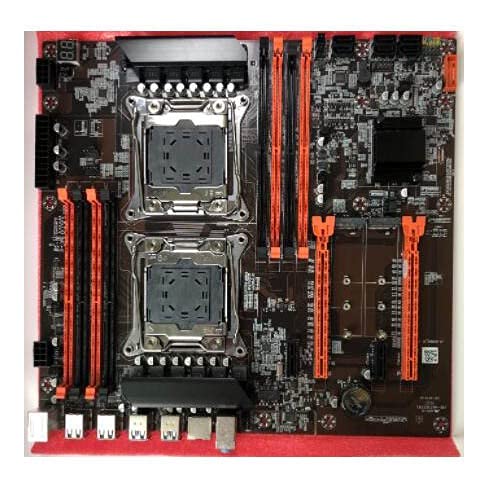

Figure 1: Overview of the Atermiter X99 Dual CPU Motherboard, showing dual CPU sockets, 8 DDR4 DIMM slots, and various expansion slots.

This motherboard features dual LGA 2011 V3 sockets, supporting Intel Xeon processors. It includes 8 DDR4 DIMM slots for high-capacity memory configurations and multiple expansion slots for graphics cards and other peripherals.

Figure 2: Atermiter X99 Dual CPU Motherboard highlighting key features such as X99 chipset, 8 DDR4 DIMM slots, SATA3.0, and USB3.0 ports.

The rear I/O panel provides essential connectivity for your peripherals.

Figure 3: Rear I/O panel showing various ports including USB, Ethernet, and audio jacks.

5. Setup and Installation

5.1 Installing CPUs

1. Open the CPU retention mechanism on both LGA 2011 V3 sockets.
2. Carefully align the Intel Xeon processors with the sockets, ensuring the triangular markers match.
3. Gently place the CPUs into the sockets without forcing them.
4. Close the retention mechanism to secure the CPUs.
5. Apply thermal paste and install compatible CPU coolers for both processors.

5.2 Installing RAM

1. Open the clips on the DDR4 DIMM slots.
2. Align the memory modules with the slots, ensuring the notch on the module matches the key in the slot.
3. Press down firmly on both ends of the memory module until the clips snap into place.
4. For optimal performance, install memory in matched pairs or quads according to the motherboard's manual for dual-channel or quad-channel configurations.

5.3 Installing Storage Devices

5.3.1 SATA Drives

1. Connect one end of a SATA data cable to a SATA3 port on the motherboard.
2. Connect the other end of the SATA data cable to your SATA hard drive or SSD.
3. Connect a SATA power cable from your power supply to the drive.

5.3.2 M.2 Drives

1. Locate the M.2 slots on the motherboard.
2. Remove the M.2 standoff screw.
3. Insert the M.2 SSD into the slot at a 30-degree angle.
4. Gently push the SSD down and secure it with the standoff screw.

5.4 Connecting Peripherals and Power

1. Connect the 24-pin ATX power connector and the 8-pin (or 4+4-pin) CPU power connectors from your power supply to the motherboard.
2. Connect front panel headers (power switch, reset switch, USB ports, audio jacks) according to the labels on the motherboard and your PC case.
3. Install your graphics card(s) into the PCIe slots and connect any necessary PCIe power cables from the power supply.
4. Connect other peripherals such as USB devices, monitor, keyboard, and mouse to the rear I/O panel.

6. Operating Instructions

6.1 First Boot

After completing all hardware installations, connect your monitor, keyboard, and mouse. Power on your system. The system should perform a Power-On Self-Test (POST). If successful, you will see the BIOS/UEFI splash screen.

6.2 BIOS/UEFI Setup

To enter the BIOS/UEFI setup utility, press the designated key (usually DEL or F2) during the POST process. Here you can configure system settings, boot order, and monitor hardware status.

6.3 Operating System Installation

Insert your operating system installation media (USB drive or DVD) and set the boot order in the BIOS/UEFI to boot from the installation media. Follow the on-screen instructions to install your preferred operating system (e.g., Windows 10).

7. Maintenance

7.1 Cleaning

Regularly clean your computer's interior to prevent dust buildup, which can lead to overheating. Use compressed air to remove dust from fans, heatsinks, and motherboard components. Ensure the system is powered off and unplugged before cleaning.

7.2 BIOS Updates

Periodically check the manufacturer's website for BIOS/UEFI updates. Updates can improve system stability, add support for new hardware, or fix bugs. Follow the provided instructions carefully when performing a BIOS update to avoid system damage.

8. Troubleshooting

If you encounter issues, refer to the following common troubleshooting steps:

• No Power: Ensure all power cables (24-pin ATX, 8-pin CPU, GPU PCIe) are securely connected. Check power supply functionality.
• No Display: Verify that the monitor is connected to the graphics card (not the motherboard's integrated graphics, if applicable). Reseat the graphics card and RAM modules.
• POST Errors/Beep Codes: Consult your motherboard's specific beep code guide (often found online) to diagnose the issue. Common causes include RAM or CPU problems.
• System Instability/Crashes: Check CPU and GPU temperatures. Ensure drivers are up to date. Test memory modules individually.
• Operating System Not Booting: Verify boot order in BIOS/UEFI. Check for corrupted OS installation or faulty storage drive.

9. Specifications

Detailed technical specifications for the Atermiter X99 Dual CPU Motherboard:

10. Warranty Information

This Atermiter X99 Dual CPU Motherboard comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Atermiter website for detailed terms and conditions regarding warranty coverage, duration, and service procedures. Keep your proof of purchase for warranty claims.

11. Support

For technical assistance, driver downloads, or further information, please visit the official Atermiter support website. You may also contact their customer service department through the channels provided on their website. When contacting support, please have your motherboard model (X99 Dual CPU) and serial number ready.
