JJSMKCH 2-in-1 Foldable Hand Truck Dolly User Manual
Model: hand truck foldable
1. Introduction
Thank you for choosing the JJSMKCH 2-in-1 Foldable Hand Truck Dolly. This versatile tool is designed for efficient material handling, easily converting between a 2-wheel upright hand truck and a 4-wheel platform dolly. Its robust construction and foldable design make it ideal for various tasks, from moving boxes and luggage to groceries and potted plants. Please read this manual thoroughly before use to ensure safe and optimal operation.
2. Safety Information
- Always ensure the hand truck is fully locked into position (either 2-wheel or 4-wheel mode) before loading any items.
- Do not exceed the maximum load capacity of 330 lbs (150 kg). Overloading can cause damage to the unit and potential injury.
- Distribute weight evenly on the platform to maintain stability.
- Use caution when moving loads on inclines or uneven surfaces.
- Keep hands and feet clear of moving parts during conversion and operation.
- Secure loads with the provided bungee cords to prevent shifting during transport.
- Store the hand truck in a dry, safe place when not in use.
3. Product Overview and Components
Familiarize yourself with the main components of your JJSMKCH 2-in-1 Foldable Hand Truck Dolly.
Figure 1: Overview of the JJSMKCH 2-in-1 Foldable Hand Truck Dolly and its accessories.
- Retractable Handle: Adjustable for height and comfortable grip.
- Platform/Toe Plate: The main loading surface.
- Wheels: Four durable rubber wheels, with 360-degree swivel functionality for maneuverability.
- Conversion Mechanism: Levers and switches for changing between 2-wheel and 4-wheel modes.
- Bungee Cords: Two adjustable cords included for securing loads.
4. Setup and Operation
4.1 Unfolding and Converting to 4-Wheel Dolly Mode

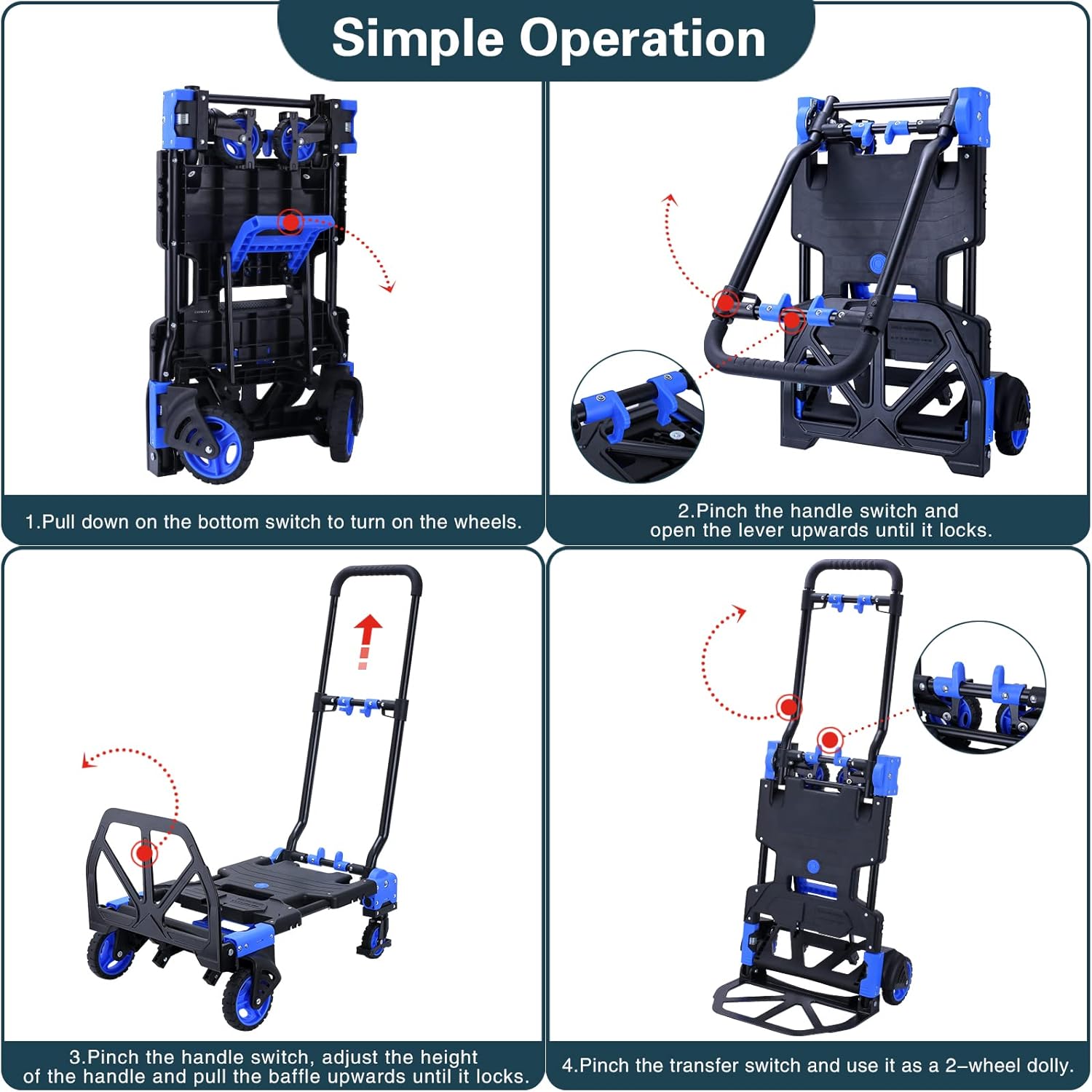

- Step 1: Release Wheels
Locate the bottom switch on the folded unit. Pull down on this switch to release and turn the wheels into position.
Figure 2: Pulling down the bottom switch to deploy wheels.
- Step 2: Extend Handle
Pinch the handle switch and open the main lever upwards until it locks into place, forming the handle for the dolly.
Figure 3: Extending the main handle.
- Step 3: Adjust Handle Height and Deploy Platform
Pinch the handle switch again to adjust the handle to your desired height (3 gear retractable handle). Simultaneously, pull the baffle (platform) upwards until it locks into its horizontal position, creating the 4-wheel dolly platform.
Figure 4: Adjusting handle height and deploying the platform for 4-wheel mode.
4.2 Converting to 2-Wheel Hand Truck Mode
- Step 1: Engage Transfer Switch
From the 4-wheel dolly configuration, locate the transfer switch near the base of the handle. Pinch this switch and rotate the platform downwards until it locks into the upright 2-wheel hand truck position.
Figure 5: Converting to 2-wheel hand truck mode.
4.3 Folding for Storage
To fold the hand truck for compact storage, reverse the steps for unfolding. Ensure all locking mechanisms are disengaged before folding. The folded size is approximately 25 x 18 x 4.7 inches.
Figure 6: The hand truck folded for compact storage.
5. Maintenance
- Cleaning: Wipe down the frame and wheels with a damp cloth as needed. Avoid harsh chemicals.
- Lubrication: Periodically check moving parts and wheel axles. Apply a small amount of silicone-based lubricant if movement becomes stiff.
- Inspection: Regularly inspect the frame, wheels, and locking mechanisms for any signs of wear, damage, or loose fasteners. Tighten any loose screws.
- Storage: Store the hand truck in a dry environment to prevent rust and prolong its lifespan.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Hand truck does not fold/unfold smoothly. | Dirt or debris in joints; lack of lubrication; locking mechanism stuck. | Clean joints and apply lubricant. Ensure all release switches are fully engaged/disengaged. |
| Wheels are stiff or noisy. | Dirt in wheel bearings; lack of lubrication. | Clean wheels and axles. Apply lubricant to bearings. |
| Handle does not lock at desired height. | Handle switch not fully engaged; internal mechanism obstruction. | Ensure the handle switch is fully pressed when adjusting and released to lock. Check for obstructions. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | JJSMKCH |
| Model Number | hand truck foldable |
| Material | Alloy Steel |
| Color | C-blue |
| Item Weight | 16 Pounds (7.26 kg) |

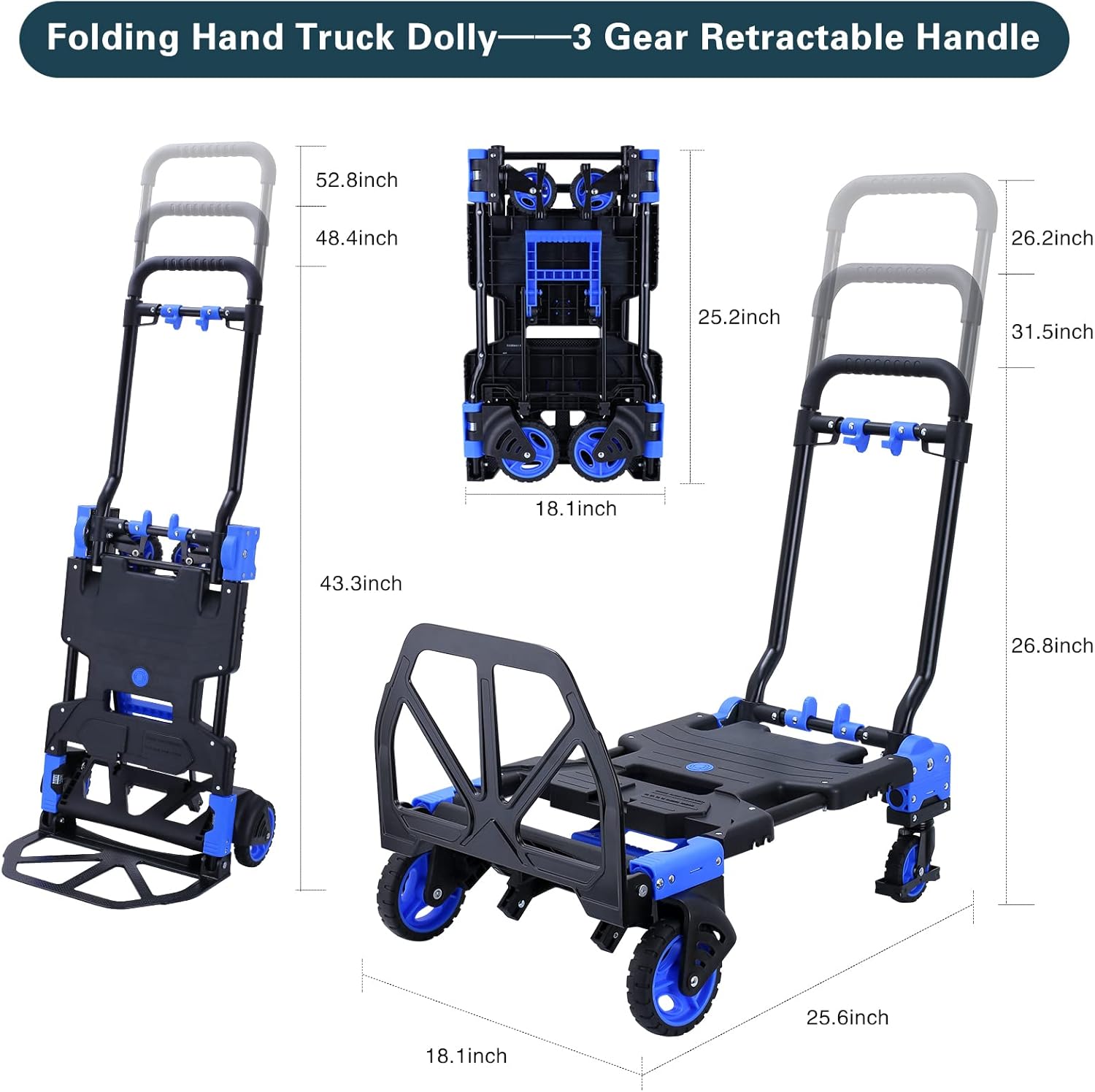

| Product Dimensions (L x W x H) | 25.6" x 18.1" x 52.8" (65 cm x 46 cm x 134 cm) |
| Folded Size (Approx.) | 25" x 18" x 4.7" (63.5 cm x 45.7 cm x 11.9 cm) |
| Wheel Type | Rubber, 5-inch dual bearing |
| Load Capacity | 330 Pounds (150 kg) |
| Number of Wheels | 4 |
| Handle Adjustment | 3-gear retractable, up to 36.2 inches |
| UPC | 735550188006 |
8. Warranty and Support
JJSMKCH is committed to providing high-quality products and efficient after-sales service. For any questions, concerns, or support needs regarding your 2-in-1 Foldable Hand Truck Dolly, please contact our customer service team.
Customer Service: Please refer to your purchase platform or product packaging for the most current contact information.
Warranty: This product typically comes with a 1-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.
