BLACK+DECKER BXWT-H206-SP 2-in-1 Folding Handtruck User Manual

1. Introduction

Thank you for choosing the BLACK+DECKER BXWT-H206-SP 2-in-1 Folding Handtruck. This versatile utility cart is designed for easy transport of various items, functioning both as a traditional handtruck and a flat platform cart. Its robust construction and foldable design ensure durability and convenient storage. Please read this manual carefully before use to ensure safe and efficient operation.

Image: The BLACK+DECKER BXWT-H206-SP 2-in-1 Folding Handtruck shown in its compact, folded state.

2. Safety Information

Always follow basic safety precautions when using this product to reduce the risk of injury or damage.

• Load Capacity: Do not exceed the maximum load capacity: 55 kg (handtruck mode) and 120 kg (platform cart mode). Overloading can cause instability and damage.
• Secure Loads: Always ensure items are securely placed and balanced on the handtruck or platform cart before moving. Use straps or bungee cords if necessary.
• Clear Path: Ensure your path is clear of obstacles, debris, and other hazards.
• Proper Footwear: Wear appropriate footwear to maintain good traction and protect your feet.
• Handle with Care: Avoid sudden movements, especially when carrying heavy loads. Push rather than pull when possible, maintaining a clear view.
• Folding/Unfolding: Exercise caution when folding or unfolding the unit to prevent pinching fingers or hands.
• Storage: Store the handtruck in a dry, secure location away from children.

3. Product Overview

Familiarize yourself with the main components of your BLACK+DECKER 2-in-1 Folding Handtruck.

Image: Labeled diagram of the handtruck, highlighting the Handle Grip, Telescoping Frame, Locking Clamps, Support Frame, Hinges & Mechanism, Folding Base Plate, and Wheels.

Key Features:

• 2-in-1 Functionality: Easily converts between a handtruck (dolly) and a flat platform cart.
• High Load Capacity: Supports up to 55 kg in handtruck mode and 120 kg in platform cart mode.
• Durable Construction: Made from strong steel and nylon components for reliability.
• Compact Folding Design: Folds flat for convenient storage and transport.
• Rubber Wheels: Equipped with 12.7 cm plastic wheels and 8.6 cm swivel caster wheels for smooth movement.

4. Setup and Transformation

The BXWT-H206-SP is designed for quick setup and transformation between its two modes. Refer to the diagram below for visual guidance.

Image: Step-by-step diagram showing how to unfold the unit from its compact state into a platform cart, and then transform it into a handtruck, and vice-versa.

Unfolding to Platform Cart Mode:

1. Place the folded unit on a flat surface.
2. Release any locking mechanisms holding the unit in its folded position.
3. Carefully extend the base plate and unfold the frame until it forms a flat platform. Ensure all hinges click into place.
4. Extend the handle to a comfortable height.

Transforming to Handtruck Mode:

1. From platform cart mode, lift the handle and pivot the main frame upwards.
2. Fold the rear wheels inwards and secure the base plate in its upright position.
3. Ensure all locking clamps are engaged to secure the frame in the handtruck configuration.
4. Adjust the telescoping handle to your desired height.

Folding for Storage:

1. Reverse the transformation steps. Retract the handle fully.
2. Release the locking clamps and fold the frame components inwards.
3. Ensure the base plate is folded flat against the main frame.
4. The unit should be compact and secure for storage.

5. Operating Instructions

Using as a Handtruck:

Ideal for moving taller, stacked items like boxes or appliances.

1. Ensure the unit is securely locked in handtruck mode.
2. Slide the base plate under the item to be moved.
3. Tilt the handtruck back, using your foot on the axle bar for leverage if needed, to balance the load.
4. Push or pull the handtruck to transport the item. Maintain a firm grip on the handle.

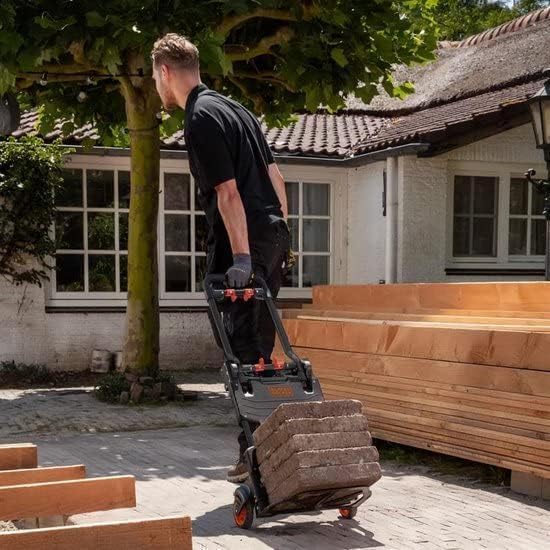

Image: A person demonstrating the use of the handtruck to transport heavy paving stones across an outdoor surface.

Using as a Platform Cart:

Suitable for wider, multiple, or irregularly shaped items that require a flat surface.

1. Ensure the unit is securely locked in platform cart mode.
2. Place items centrally on the platform, distributing weight evenly.
3. Push the cart using the handle. The swivel caster wheels provide maneuverability.

Image: A person using the platform cart to transport a large toolbox, demonstrating its stability and ease of movement.

6. Maintenance

Regular maintenance will extend the life of your handtruck.

• Cleaning: Wipe down the frame and wheels with a damp cloth to remove dirt and debris. Avoid harsh chemicals.
• Lubrication: Periodically apply a small amount of lubricant to the wheel axles and hinge points to ensure smooth operation.
• Inspection: Before each use, check all bolts, screws, and moving parts for tightness and wear. Replace any damaged components immediately.
• Wheel Care: Ensure wheels are free of tangled hair, string, or other obstructions that could impede movement.

7. Troubleshooting

If you encounter issues with your handtruck, refer to these common solutions:

• Difficulty Folding/Unfolding: Check for any obstructions in the hinges or locking mechanisms. Ensure all parts are aligned correctly before applying gentle force. Do not force components if they resist.
• Wheels Not Rolling Smoothly: Inspect wheels for debris (hair, string, dirt) and remove any obstructions. Lubricate axles if necessary. Check for damaged wheels that may need replacement.
• Unit Feels Unstable: Ensure the load is within the specified capacity and is evenly distributed. Verify that all locking mechanisms are fully engaged in the chosen configuration (handtruck or platform cart).
• Handle Not Extending/Retracting: Check for debris inside the telescoping tubes. Ensure the locking buttons or clamps are fully disengaged before attempting to adjust the handle.

For persistent issues, contact customer support.

8. Specifications

Detailed specifications for the BLACK+DECKER BXWT-H206-SP 2-in-1 Folding Handtruck:

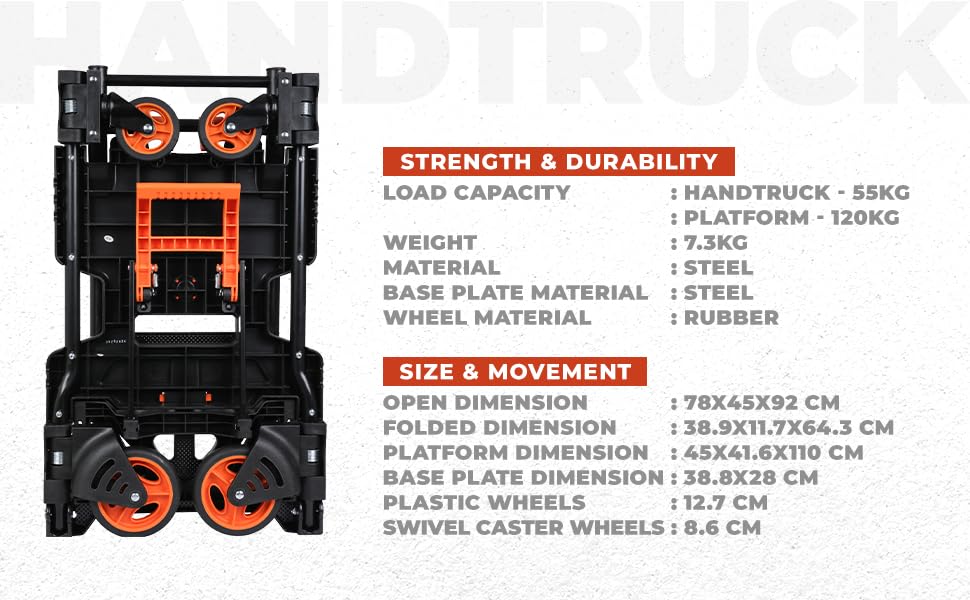

Image: A graphic detailing the strength, durability, size, and movement specifications of the handtruck.

9. Warranty and Support

BLACK+DECKER products are manufactured to high-quality standards. For warranty information or technical support, please contact our customer care team.

Image: Customer care contact details, including phone number, email, and a QR code for WhatsApp support.

Customer Care Contact:

• Phone: 1800-203-0644 (Mon-Sat, 09:00 AM - 06:00 PM IST, except government holidays)
• Email: SBD-CUSTOMERCOMMUNICATIONS@SBDINC.COM
• WhatsApp: Scan QR Code or Click Here
• Number of Authorized Service Centers: 500+

Manufacturer: BLACK+DECKER, Stanley Black & Decker India Pvt Limited, GAT NO. 135. 137 & 157. PO Mahalunge Talukha - Khed Pune 410501. India.
