Luxell OC88 Black Glass Built-in Hob User Manual

1. Introduction

Thank you for choosing the Luxell OC88 Black Glass Built-in Hob. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read these instructions carefully before using the hob and keep them for future reference.

The Luxell OC88 is a modern gas hob designed for efficiency and ease of use, featuring automatic ignition and a gas safety system.

2. Important Safety Instructions

Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, burns, or injury.

• Gas Safety: This appliance uses gas. Ensure proper ventilation and check for gas leaks regularly. Installation must be performed by a qualified technician.
• Ventilation: Ensure the kitchen is well-ventilated when the hob is in use.
• Children: Keep children away from the appliance during operation and cooling.
• Hot Surfaces: The hob surface and surrounding areas become hot during use. Avoid touching hot surfaces.
• Flammable Materials: Do not store or use flammable materials near the hob.
• Cleaning: Disconnect the appliance from the gas supply before cleaning.

3. Product Overview

The Luxell OC88 Built-in Hob features a sleek black glass surface and four high-efficiency burners.

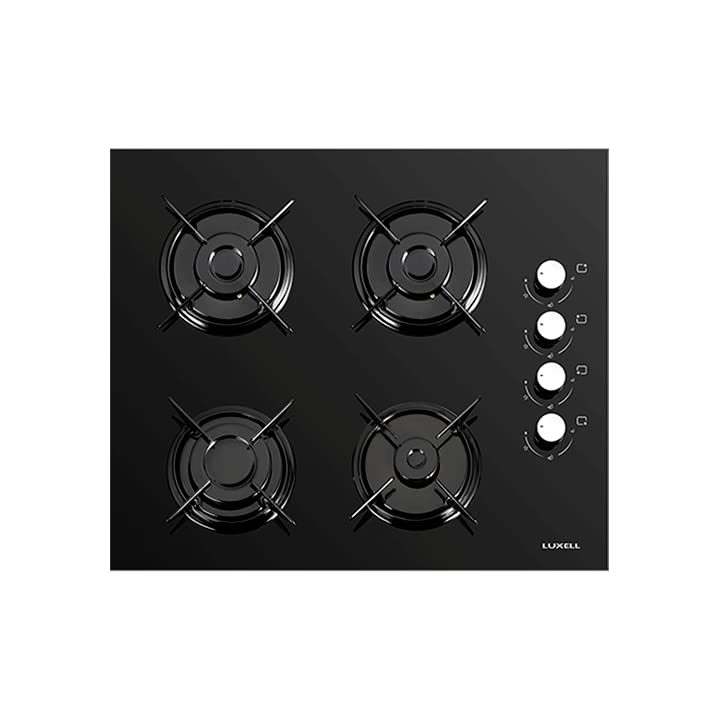

Image 1: Luxell OC88 Black Glass Built-in Hob with four burners and control knobs.

Key Features:

• Enamel grates for stable cookware support.
• Integrated gas safety system (Flame Failure Device) for enhanced safety.
• Automatic ignition for convenient startup.
• One rapid burner (2.20 kW) for quick heating.
• Two semi-rapid burners (1.65 kW each) for versatile cooking.
• One auxiliary burner (power not specified, typically smaller) for simmering.

Image 2: Close-up view of a burner and enamel grate on the Luxell OC88 Hob.

4. Installation

Installation of this built-in hob must be carried out by a qualified and authorized technician in accordance with local regulations and standards.

Dimensions:

• Product Dimensions: 10 x 60 x 52 cm (Height x Width x Depth)
• Weight: 10.3 Kilograms

Ensure adequate clearance around the hob for ventilation and safety. The countertop cutout dimensions should match the hob's specifications for a secure fit. The gas connection must be leak-tested after installation.

5. Operating Instructions

Igniting a Burner:

1. Place your cookware centrally on the chosen burner's grate.
2. Push in the corresponding control knob and turn it counter-clockwise to the maximum flame position (large flame symbol).
3. Hold the knob in for a few seconds until the flame ignites and stabilizes. The automatic ignition system will spark.
4. Once the flame is stable, release the knob. If the flame goes out, repeat the process.

Adjusting the Flame:

After ignition, you can adjust the flame size by turning the control knob between the maximum and minimum flame positions (large and small flame symbols). For simmering, turn the knob to the smallest flame setting.

Turning Off a Burner:

To turn off a burner, turn the control knob clockwise until it clicks into the 'off' position (dot symbol). Ensure the flame is completely extinguished.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your hob.

General Cleaning:

• Always ensure the hob is cool before cleaning.
• Wipe the glass surface with a soft cloth and a mild detergent. Avoid abrasive cleaners or scouring pads that can scratch the glass.
• For stubborn stains, use a specialized ceramic hob cleaner.

Cleaning Burner Components:

• Remove the enamel grates, burner caps, and flame spreaders.
• Wash these components in warm soapy water. Dry them thoroughly before reassembling.
• Ensure the ignition pin and thermocouple (gas safety device) are clean and free from food debris.
• Reassemble all parts correctly to ensure proper burner function.

7. Troubleshooting

If you encounter issues with your hob, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Luxell customer support or a qualified service technician.

8. Technical Specifications

9. Warranty and Customer Support

For warranty information, service requests, or technical assistance, please refer to the warranty card included with your product or visit the official Luxell website. Keep your purchase receipt as proof of purchase.

You can visit the Luxell store on Amazon for more information: Luxell Store
