GGM Gastro Refrigerated Bench ECO

1. Product Overview

The GGM Gastro Refrigerated Bench ECO is a high-capacity, energy-efficient refrigeration unit designed for commercial kitchen environments. It provides ample storage space and maintains precise temperature control for various food items, ensuring freshness and accessibility.

Key features include:

• Spacious and Efficient: Dimensions of 223 x 70 x 85 cm with 4 doors, ideal for diverse food storage.
• Energy Saving: Environmentally friendly design for reduced energy consumption.
• Sturdy Construction: Solid stainless steel structure for long-lasting durability in demanding kitchen settings.
• Practical Organization: Multiple compartments and adjustable shelves for easy organization.
• Easy Care: Smooth stainless steel surfaces and removable shelves facilitate hygienic cleaning.

Figure 1: Front view of the GGM Gastro Refrigerated Bench ECO, showcasing its four stainless steel doors and integrated control panel on the right side.

2. Safety Instructions

Please read all safety instructions carefully before operating the appliance. Failure to comply with these instructions may result in injury or damage to the unit.

• Ensure the unit is placed on a stable, level surface to prevent tipping.
• Do not block ventilation openings. Maintain adequate clearance around the unit for proper airflow.
• Connect the unit to a grounded power outlet with the correct voltage as specified on the rating label.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Keep the interior and exterior clean to prevent contamination and ensure efficient operation.
• Only qualified personnel should perform maintenance or repairs.
• Disconnect the power supply before cleaning or performing any maintenance.

3. Setup and Installation

Proper installation is crucial for the optimal performance and longevity of your refrigerated bench.

1. Unpacking: Carefully remove the unit from its packaging. Inspect for any shipping damage.
2. Placement: Position the unit on a flat, sturdy surface. Ensure there is sufficient space for ventilation, especially around the compressor compartment. The unit dimensions are 223 x 70 x 85 cm (Width x Depth x Height).
3. Leveling: Use the adjustable feet to level the unit. This is important for proper door sealing and drainage.
4. Power Connection: Connect the power cord to a dedicated, grounded electrical outlet. Allow the unit to stand for at least 2 hours before plugging it in to allow refrigerants to settle.
5. Shelf Installation: Install the adjustable shelves into the desired positions within each compartment. The shelf supports are designed for easy adjustment.

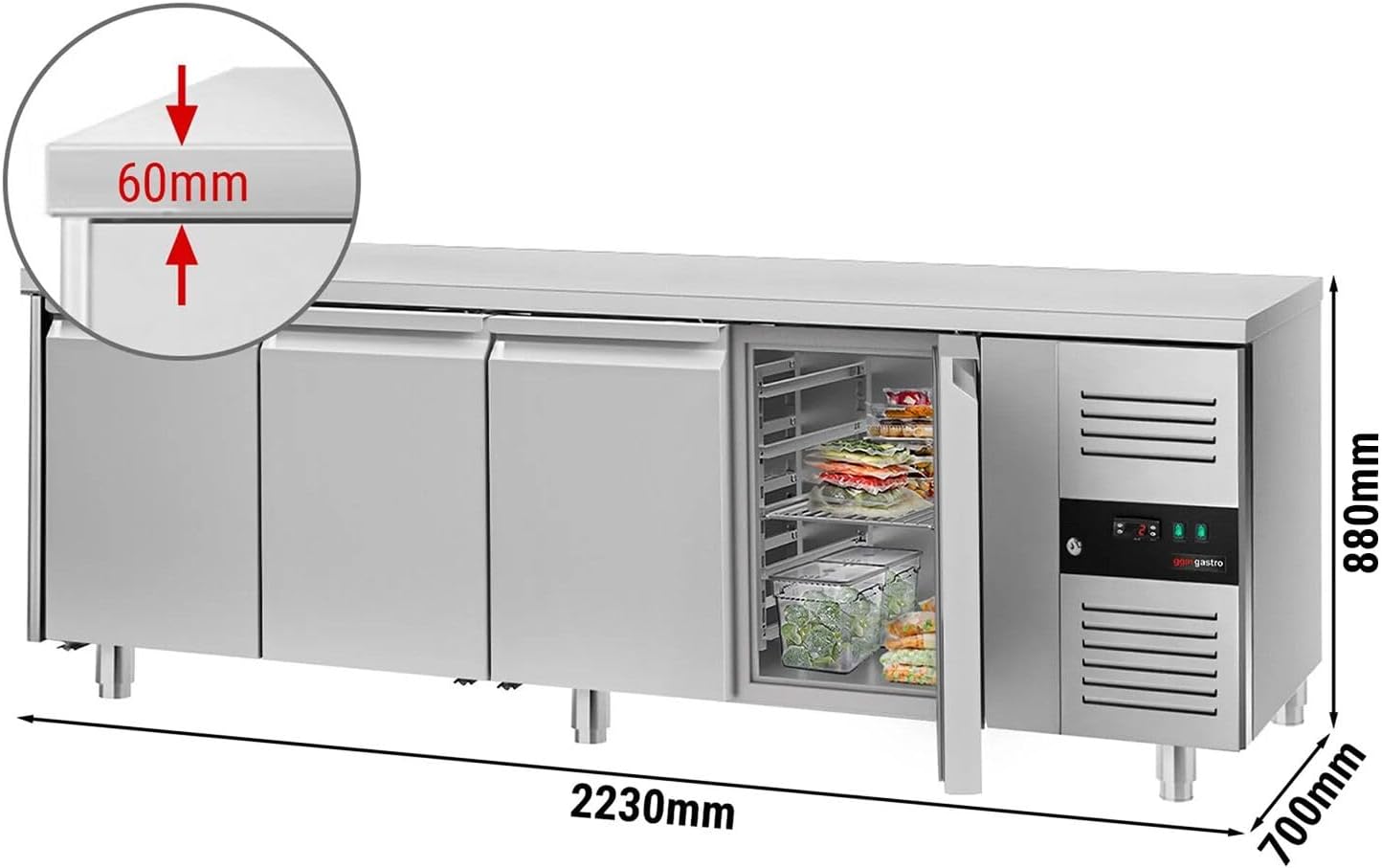

Figure 2: The refrigerated bench with key dimensions highlighted: 2230mm length, 700mm depth, and 880mm height, along with a 60mm insulation thickness.

Figure 3: Interior view of a compartment, illustrating the adjustable shelf system for flexible storage configurations.

4. Operation

This refrigerated bench features an intuitive control system for precise temperature management and a No-Frost system to prevent ice buildup.

1. Power On: After installation and settling time, plug in the unit. The digital display on the control panel will illuminate.
2. Temperature Setting: Use the control panel to set the desired temperature. Refer to the specific instructions on the control panel for detailed temperature adjustment procedures. The unit has adjustable temperature control.
3. Loading: Load food items into the compartments. Ensure proper air circulation by not overfilling the shelves. The unit features four independent doors for organized access.
4. Door Sealing: Always ensure doors are fully closed to maintain internal temperature and energy efficiency. The unit features robust door seals.

Figure 4: One compartment open, showing organized food containers and the spacious interior for practical storage.

Figure 5: Detailed view of the digital control panel, used for monitoring and adjusting the internal temperature settings.

5. Maintenance and Cleaning

Regular maintenance and cleaning will ensure the longevity and hygienic operation of your refrigerated bench.

• Daily Cleaning: Wipe down interior and exterior stainless steel surfaces with a mild detergent and a soft cloth. Rinse with clean water and dry thoroughly.
• Removable Shelves: The shelves are removable for easy and thorough cleaning. Wash them with warm, soapy water and dry completely before returning them to the unit.
• Door Gaskets: Regularly inspect and clean the door gaskets to ensure a tight seal. A clean, pliable gasket prevents cold air loss.
• Condenser Coil: Periodically clean the condenser coil (located near the compressor) to remove dust and debris. This improves efficiency and prevents overheating. Disconnect power before cleaning.
• No-Frost System: The integrated No-Frost system minimizes ice buildup, reducing the need for manual defrosting. However, ensure proper air circulation inside the unit for optimal performance of this system.

Figure 6: Close-up view of the robust door seal, highlighting the 60mm insulation thickness, crucial for maintaining internal temperatures.

Figure 7: Interior view of an empty compartment, demonstrating the cleanable stainless steel surfaces and the sturdy shelf support system.

6. Troubleshooting

Before contacting service, please check the following common issues:

7. Specifications
