Rebo® Children's Challenge Wooden Climbing Frame User Manual

1. Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your Rebo® Children's Challenge Wooden Climbing Frame. This playset features a robust climbing tower with an integrated swing arm and an "up and over" climbing wall. Designed and manufactured in the UK from pressure-treated timber, this climbing frame is built for durability and years of outdoor enjoyment. It includes a rock wall, wooden ladder, 8ft injection-moulded slide, and an "up and over" climbing wall with climbing rocks on one side and a cargo net on the other. Please read all instructions carefully before assembly and use.

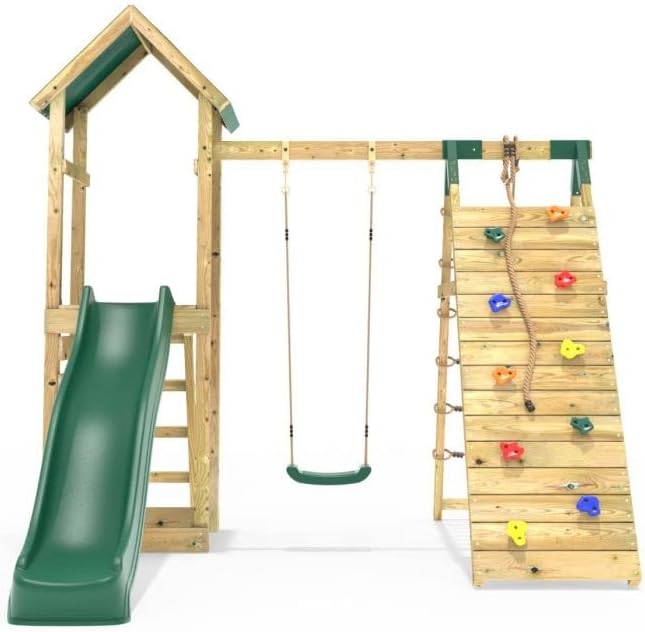

Figure 1.1: Overview of the Rebo Children's Challenge Wooden Climbing Frame.

2. Safety Information

Your safety and the safety of others are paramount. Failure to follow these instructions can result in serious injury.

• Adult Supervision Required: Always ensure children are supervised by a responsible adult while using the climbing frame.
• Proper Installation: Ensure the climbing frame is assembled correctly and securely according to the instructions. All bolts and fasteners must be tightened.
• Level Surface: Install the climbing frame on a level, soft surface such as grass, wood chips, or sand. Avoid hard surfaces like concrete or asphalt.
• Clearance Area: Maintain a safe clearance area around the climbing frame, free from obstacles, fences, or other structures.
• Weather Conditions: Do not use the climbing frame during wet, icy, or extremely windy conditions. Timber can become slippery when wet.
• Weight Limits: Adhere to any specified weight limits for individual components (e.g., swings, slide).
• Regular Inspections: Periodically inspect all components for wear, damage, or loose connections. Refer to the Maintenance section for details.
• No Modifications: Do not modify the climbing frame in any way. Use only original replacement parts if needed.
• Age Appropriateness: Ensure the climbing frame is used by children within the recommended age range.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact Rebo customer support immediately.

• Pre-cut pressure-treated timber components for tower, swing arm, and climbing wall.
• 8ft Injection-moulded slide (green).
• Swing seat and ropes.
• Climbing rock holds (various colours).
• Cargo net.
• Rope for climbing wall.
• All necessary hardware (bolts, screws, washers, nuts).
• Instruction manual.
• Tarpaulin material for roof (requires cutting to size).

Figure 3.1: Components of the climbing frame, including the main tower, swing, and climbing wall.

4. Setup and Assembly

Assembly of the Rebo® Children's Challenge Wooden Climbing Frame requires two adults and approximately 6-8 hours. Please ensure you have adequate space and the necessary tools before beginning.

4.1 Required Tools

• Electric Drill (essential, wood is not pre-drilled)
• Drill bits (appropriate sizes for pilot holes and bolts)
• Socket Wrench Set
• Adjustable Wrench
• Measuring Tape
• Spirit Level
• Hammer/Mallet
• Saw or strong scissors (for cutting tarpaulin roof material)
• Safety Glasses
• Gloves

4.2 Assembly Steps

1. Site Preparation: Choose a level outdoor area with sufficient clearance around the playset. Ensure the ground is suitable for anchoring the structure.
2. Unpack and Sort: Carefully unpack all components. Sort timber pieces by size and label, and organize hardware.
3. Assemble Tower Base: Follow the detailed diagrams in the included instruction booklet to construct the base frame of the climbing tower. Ensure all joints are square and secure.
4. Attach Tower Uprights: Securely fasten the vertical timber posts to the tower base. Use a spirit level to ensure they are plumb.
5. Install Slide Platform: Mount the slide platform at the specified height on the tower.
6. Attach Slide: Securely attach the 8ft injection-moulded slide to the platform. Ensure all connection points are robust.
7. Construct Swing Arm: Assemble the swing arm structure according to the diagrams.
8. Connect Swing Arm to Tower: Securely attach the swing arm to the main climbing tower.
9. Install Swing: Hang the swing seat and ropes from the swing arm. Adjust height as desired.
10. Assemble Climbing Wall: Construct the "up and over" climbing wall frame.
11. Attach Climbing Holds and Rope: Securely fasten the colourful climbing rock holds and the climbing rope to the climbing wall panels.
12. Install Cargo Net: Attach the cargo net to the designated side of the climbing wall structure.
13. Connect Climbing Wall to Swing Arm: Securely connect the assembled climbing wall to the swing arm.
14. Roof Assembly: Cut the provided tarpaulin material to size and secure it to the roof frame of the tower.
15. Final Inspection: Before first use, perform a thorough inspection. Check all bolts, screws, and connections for tightness. Ensure there are no sharp edges or protruding parts.

Important Note: The timber components are not pre-drilled. You will need to drill pilot holes for all screws and bolts as indicated in the detailed assembly diagrams provided with your product. This ensures a secure and stable structure.

Figure 4.1: The climbing frame during assembly, highlighting the cargo net and climbing wall.

5. Operating Instructions (Usage)

The Rebo® Children's Challenge Wooden Climbing Frame offers multiple play activities. Always ensure children use the playset responsibly and under adult supervision.

• Climbing Tower: Children can access the slide platform via the wooden ladder or the rock wall. Encourage safe climbing practices, using both hands and feet.
• Slide: Children should slide down feet first, one at a time. Ensure the landing area is clear before sliding. The 8ft injection-moulded slide can be modified for water play by connecting a hose (check manufacturer's instructions for slide).
• Swing: Use the swing one child at a time. Encourage gentle swinging and discourage standing on the swing seat or excessive twisting of ropes.
• Up and Over Climbing Wall: Children can challenge themselves by climbing the wall using the rock holds and rope, or by traversing the cargo net. Ensure proper footing and hand placement.
• Space Under Platform: The area beneath the tower platform can be utilized as a sandpit, ball pool, or for toy storage.

Figure 5.1: A child demonstrating safe use of the climbing wall with rock holds.

Figure 5.2: A child demonstrating safe use of the slide.

6. Maintenance

Regular maintenance is crucial to ensure the longevity and safety of your Rebo® Children's Challenge Wooden Climbing Frame. The timber is pressure-treated for durability, but ongoing care is recommended.

• Monthly Inspection:
  • Check all bolts, nuts, and screws for tightness. Re-tighten as necessary.
  • Inspect all timber components for cracks, splinters, or signs of rot. Sand down splinters or replace damaged parts.
  • Examine ropes, chains, and swing hangers for wear, fraying, or corrosion. Replace if compromised.
  • Check the slide for cracks or damage.
  • Ensure the ground anchors are secure and the playset remains stable.
• Annual Treatment: Although the timber is pressure-treated, applying a water-repellent sealant or wood stain annually can further protect the wood from weathering and extend its lifespan.
• Cleaning: Clean the slide and other plastic components with mild soap and water. Avoid harsh chemicals.
• Ground Surface: Regularly check and replenish the loose-fill surfacing material (e.g., wood chips, sand) to maintain adequate depth for fall protection.
• Winter Care: In areas with harsh winters, consider covering the playset or removing detachable components like swings and storing them indoors to prevent damage from extreme cold and snow.

7. Troubleshooting

This section addresses common issues you might encounter with your climbing frame.

8. Specifications

Figure 8.1: Dimensional drawing of the climbing frame.

9. Warranty and Support

Rebo products are designed for durability and enjoyment. While specific warranty details are typically provided with your purchase documentation, general support information is available.

• Returns Policy: This product typically comes with a 30-day return/replacement policy from the date of purchase. Please refer to your retailer's specific terms and conditions.
• Customer Support: For any questions regarding assembly, missing parts, or product issues, please contact Rebo customer service or the retailer from whom you purchased the product. Contact information can usually be found on the Rebo official website or your purchase receipt.
• Online Resources: Visit the official Rebo website for additional product information, FAQs, and potential assembly videos.

For more information, you can visit the Rebo Store on Amazon.co.uk.
