GGM Gastro CUH12N Vegetarian Cutter

1. Introduction

Thank you for choosing the GGM Gastro CUH12N Vegetarian Cutter. This professional-grade appliance is designed for efficient cutting and mixing of various fruits and vegetables in commercial kitchen environments. To ensure safe operation and optimal performance, please read this manual thoroughly before using the appliance and keep it for future reference.

The CUH12N features a robust stainless steel construction, a 12-liter capacity bowl, and a powerful 1.8 kW motor with continuously adjustable speed, making it ideal for a wide range of food preparation tasks.

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Read all instructions before operating the appliance.
• Ensure the appliance is connected to a grounded power outlet with the correct voltage (230V / 1N/PE / 50 Hz).
• Do not operate the appliance with a damaged cord or plug, or if it has been dropped or damaged in any manner.
• Keep hands and utensils away from moving parts during operation.
• Always unplug the appliance from the power outlet before cleaning, assembling, or disassembling parts.
• Never immerse the motor base in water or other liquids.
• This appliance is not suitable for processing hummus. Processing hummus will void the warranty.
• Use only original GGM Gastro accessories and replacement parts.
• Ensure the lid is securely locked in place before starting the appliance.
• Do not overload the bowl beyond the 'MAX' fill line.

3. Product Overview

Familiarize yourself with the components of your GGM Gastro CUH12N Vegetarian Cutter.

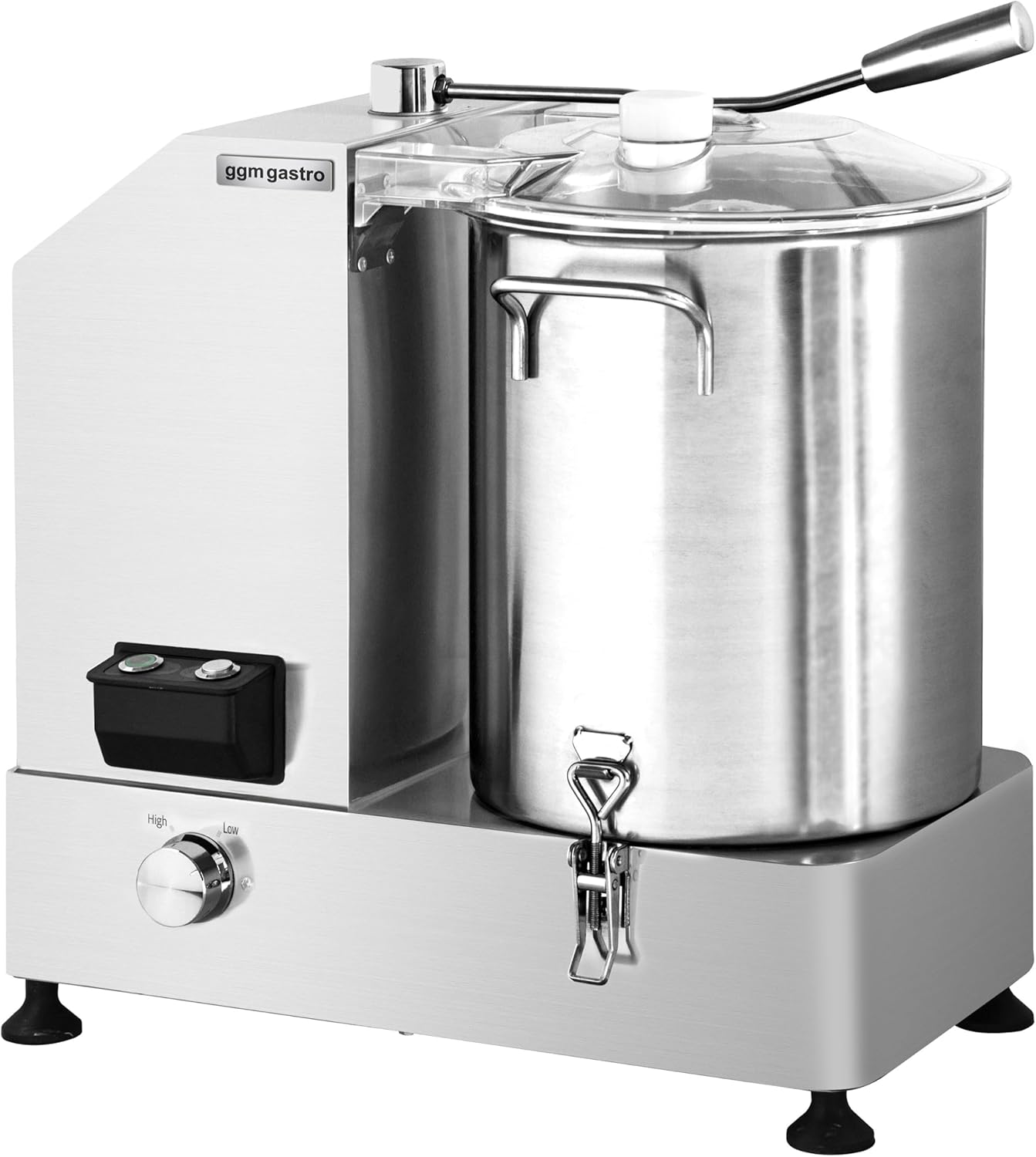

This image shows the GGM Gastro CUH12N Vegetarian Cutter, highlighting its stainless steel body, transparent lid, and control knob. The robust design is evident, with the main processing bowl and motor unit clearly visible.

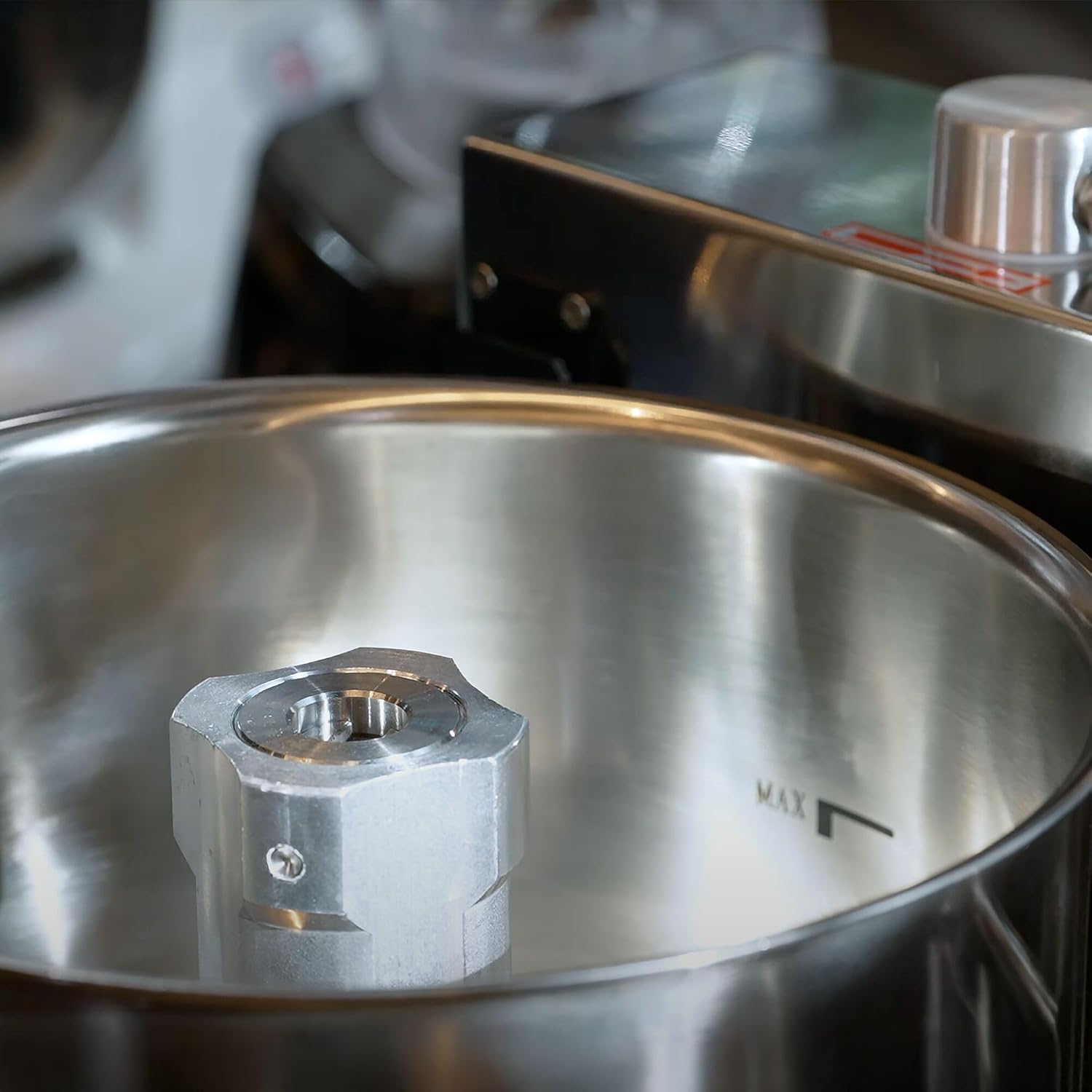

A close-up view of the interior of the 12-liter stainless steel processing bowl, showing the central spindle where the cutting blade assembly is attached. A 'MAX' fill line is visible on the side.

Key Components:

• Motor Base: Houses the motor and control panel.
• Processing Bowl: 12-liter stainless steel bowl with handles.
• Transparent Lid: Allows observation of processing and includes a feed opening.
• Cutting Blade Assembly: (Not pictured, but implied) Attaches to the central spindle for cutting and mixing.
• Control Knob: For continuously adjustable speed (High/Low).
• Anti-slip Feet: Four feet for stability during operation.

4. Setup

1. Unpacking: Carefully remove the appliance and all accessories from the packaging. Retain packaging for future transport or storage.
2. Placement: Place the cutter on a stable, level, and dry surface. Ensure there is adequate ventilation around the unit. The four anti-slip feet provide stability.
3. Initial Cleaning: Before first use, clean all parts that will come into contact with food (processing bowl, lid, blade assembly) according to the 'Cleaning and Maintenance' section.
4. Assembly:
   • Place the processing bowl onto the motor base, ensuring it is seated correctly.
   • Carefully place the cutting blade assembly onto the central spindle inside the bowl.
   • Place the transparent lid securely onto the processing bowl and lock it into position.
5. Power Connection: Plug the power cord into a suitable 230V / 1N/PE / 50 Hz grounded electrical outlet.

5. Operating Instructions

The GGM Gastro CUH12N is designed for cutting and mixing fruits and vegetables.

An example of ingredients that can be processed by the cutter, showing diced red bell peppers, sliced zucchini, and whole mushrooms, ready for preparation.

1. Preparation: Ensure the appliance is properly assembled and plugged in. Prepare your ingredients by washing them and cutting them into manageable sizes if necessary to fit through the lid's opening.
2. Loading Ingredients: Open the lid or use the feed opening to add ingredients to the processing bowl. Do not exceed the 'MAX' fill line indicated inside the bowl.
3. Secure Lid: Ensure the transparent lid is securely closed and locked before starting the appliance.
4. Start Operation: Turn the control knob to the desired speed setting. The speed is continuously adjustable from 1100 to 2800 RPM. Start with a lower speed and gradually increase if needed.
5. Monitoring: Observe the processing through the transparent lid. Process ingredients until the desired consistency is achieved.
6. Stopping Operation: Turn the control knob to the 'OFF' position to stop the appliance.
7. Unloading: Wait for the blades to come to a complete stop. Unplug the appliance. Carefully remove the lid, then remove the blade assembly, and finally empty the processed ingredients from the bowl.

Important Notes:

• Do not process extremely hard items that could damage the blades or motor.
• Avoid continuous operation for extended periods without breaks to prevent motor overheating. Refer to specifications for duty cycle if applicable.
• The appliance is not suitable for processing hummus. This will void the warranty.

6. Cleaning and Maintenance

Regular cleaning and proper maintenance will ensure the longevity and hygienic operation of your GGM Gastro CUH12N.

1. Disconnect Power: Always unplug the appliance from the power outlet before cleaning.
2. Disassemble: Remove the lid, blade assembly, and processing bowl from the motor base.
3. Cleaning Parts: Wash the processing bowl, lid, and blade assembly with warm, soapy water. Use a soft brush for hard-to-reach areas. Rinse thoroughly with clean water. These parts are generally dishwasher safe, but hand washing is recommended for longevity.
4. Cleaning Motor Base: Wipe the motor base and control panel with a damp cloth. Do not immerse the motor base in water or spray it directly with water. For stubborn stains, use a mild, non-abrasive cleaner.
5. Drying: Dry all parts completely before reassembling or storing to prevent water spots and corrosion, especially on stainless steel components.
6. Storage: Store the clean and dry appliance in a cool, dry place, away from direct sunlight and moisture.

Maintenance Tips:

• Regularly inspect the power cord for any signs of damage.
• Check the blade assembly for sharpness and any signs of wear. Replace if necessary.
• Ensure the anti-slip feet are clean and intact for stable operation.

7. Troubleshooting

If you encounter issues with your GGM Gastro CUH12N, refer to the following table for common problems and solutions.

If the problem persists after attempting these solutions, please contact GGM Gastro customer support.

8. Specifications

Technical data for the GGM Gastro CUH12N Vegetarian Cutter.

This diagram illustrates the external dimensions of the GGM Gastro CUH12N Vegetarian Cutter: Length (B) = 317mm, Depth (T) = 523mm, and Height (H) = 489mm. These measurements are crucial for placement and installation.

9. Warranty and Support

GGM Gastro products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the official GGM Gastro website.

For technical support, spare parts, or service inquiries, please contact GGM Gastro customer service. When contacting support, please have your model number (CUH12N) and purchase date available.

GGM Gastro Official Website: www.ggmgastro.com
