SHA CERLIN Full Size Lift Up Storage Bed Instruction Manual

Introduction

Thank you for choosing the SHA CERLIN Full Size Lift Up Storage Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Information

Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
Assemble the bed frame on a soft, clean surface to prevent scratches.
Tighten all bolts and screws securely. Periodically check and re-tighten fasteners to ensure stability.
Keep children and pets away from the assembly area.
Do not exceed the maximum weight capacity of the bed frame (800 lbs for static load, 100 lbs for lifting mechanism).
Use caution when operating the hydraulic lift mechanism. Keep hands and fingers clear of moving parts.

Package Contents

Please verify that all components listed below are included in your package. If any parts are missing, contact customer support.

Headboard (Wingback design)
Side Rails and Footboard (Upholstered)
Hydraulic Lifting Mechanism
Metal Frame Support Structure
Wooden Slats with Plastic Buckles
Hardware Pack (Bolts, Screws, Allen Wrench, etc.)
Anti-Falling Device for Mattress

Setup and Assembly

Follow these steps carefully for proper assembly. Two people are recommended for assembly.

Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface. Check against the package contents list.
Assemble Headboard: Attach the wingback sections to the main headboard panel using the provided hardware. Ensure all connections are secure.
Connect Side Rails and Footboard: Attach the side rails to the headboard and footboard using the designated bolts. Do not fully tighten yet.
Install Metal Support Structure: Place the metal support frame within the bed frame. Secure it to the side rails and footboard as per the diagrams in your included paper manual. This structure provides robust support.
Attach Hydraulic Lifting Mechanism: Carefully install the hydraulic lifting arms to the designated points on the metal frame and the bed base. Ensure they are correctly oriented and securely fastened.
Insert Wooden Slats: Place the wooden slats into the designated slots on the metal frame. The plastic buckles will help secure them. Ensure slats are evenly spaced and fully seated. The solid wood slats are designed for smart assembly and provide direct mattress support, eliminating the need for a box spring.
Install Anti-Falling Device: Attach the anti-falling device at the foot of the bed frame to prevent the mattress from sliding when the lift mechanism is engaged.
Final Tightening: Once all components are in place, fully tighten all bolts and screws. Do not overtighten.
Check Stability: Gently shake the assembled bed frame to ensure it is stable and all connections are secure.

Front view of the SHA CERLIN bed frame without a mattress, showing the wooden slats and the upholstered wingback headboard.

Image: Front view of the bed frame, illustrating the slat system and headboard structure.

Close-up images showing the solid wood slats with smart assembly, thick attached foams for noise reduction, and sturdy metal structure support.

Image: Detailed view of the bed frame's construction, highlighting solid wood slats, noise-muting foams, and metal support.

Operating Instructions

This bed frame features a hydraulic lift mechanism for convenient under-bed storage access.

Lifting the Platform: To access the storage space, grasp the handle or edge of the mattress platform (ensure the mattress is in place) and gently lift upwards. The hydraulic mechanism will assist in raising the platform smoothly and holding it in the open position.
Accessing Storage: Once the platform is lifted, you can access the spacious storage area underneath. This space is suitable for items such as suitcases, storage bags, and seasonal bedding.
Lowering the Platform: To close, gently pull the platform downwards. The hydraulic mechanism will control the descent, ensuring a slow and safe closing. Ensure no objects or body parts are in the path of the closing platform.

The SHA CERLIN full size bed with the mattress platform lifted, revealing a spacious under-bed storage area with various items stored inside.

Image: Bed with mattress lifted, showcasing the large under-bed storage.

A close-up view of the under-bed storage area with suitcases and storage boxes, illustrating the ample space available compared to small drawers.

Image: Detailed view of the spacious under-bed storage, suitable for various items.

Two images: one showing a hand lifting the bed platform with an arrow indicating upward movement, and another showing the anti-falling device designed to prevent bedding from sliding.

Image: Illustration of the hydraulic lift design and the anti-falling device for mattress stability.

An image showing the bed platform lifted, with text indicating 'Maximum Weight Capacity When Lifting Up: 100 lbs'.

Image: Important note regarding the maximum weight capacity for the lifting mechanism.

Maintenance

Cleaning: For the upholstered fabric, gently spot clean with a damp cloth and mild detergent if necessary. Avoid harsh chemicals or abrasive cleaners.
Hardware Check: Periodically (every 3-6 months) check all bolts and screws to ensure they remain tight. Re-tighten if loose to maintain the bed frame's stability and integrity.
Hydraulic Mechanism: The hydraulic mechanism is designed for long-term use and generally requires no special maintenance. Avoid applying excessive force when lifting or lowering.

Troubleshooting

Squeaking Noises: If the bed frame develops squeaking noises, check all connections and tighten any loose bolts. Ensure the wooden slats are properly seated. The thick attached foams are designed to mute noises.
Difficulty Lifting/Lowering: Ensure the mattress is properly positioned and not obstructing the mechanism. Check that the hydraulic arms are correctly installed and free of obstructions. Do not exceed the 100 lbs lifting capacity.
Mattress Sliding: Verify that the anti-falling device is correctly installed at the foot of the bed.
Wobbling: Check all frame connections and ensure they are fully tightened. Ensure the bed is on a level surface.

Specifications

Size	Full
Product Dimensions (L x W x H)	79.4" x 57.7" x 44.5"
Under Bed Storage Height (slats to floor)	10.8 inches
Recommended Mattress Height	10-14 inches
Color	Light Beige
Special Features	Lift Up Storage, Squeak Resistant, Wingback Headboard
Weight Capacity (Static)	800 lbs
Weight Capacity (Lifting)	100 lbs

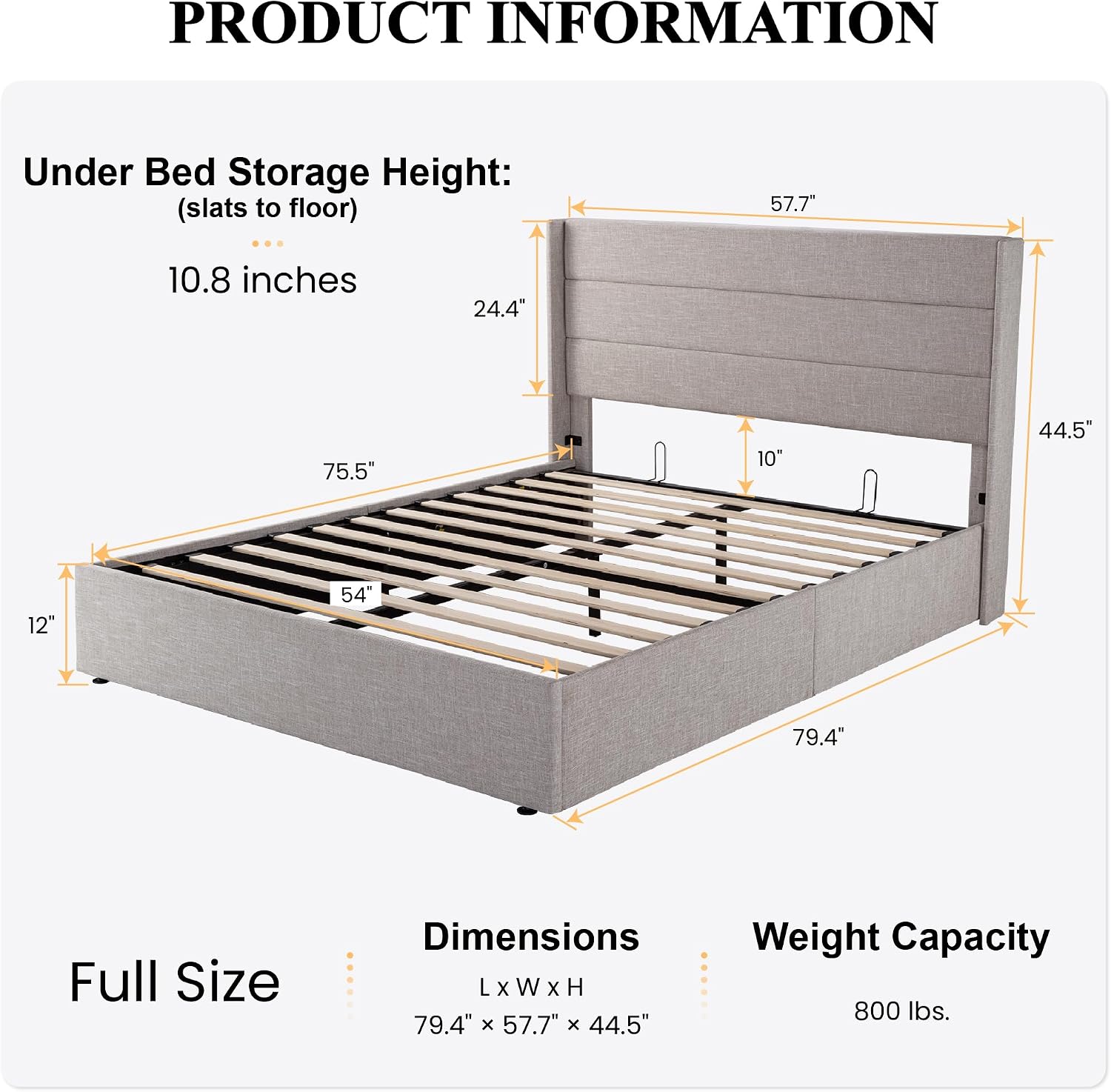

Diagram showing the dimensions of the SHA CERLIN Full Size bed frame: 79.4 inches length, 57.7 inches width, 44.5 inches height. It also indicates an under-bed storage height of 10.8 inches and a weight capacity of 800 lbs.

Image: Product dimensions and weight capacity overview.

An illustration of the bed frame with a mattress, indicating a recommended mattress height range of 10-14 inches.

Image: Recommended mattress height for optimal use.

Warranty Information

SHA CERLIN products are manufactured with quality and care. This product comes with a limited warranty against manufacturing defects. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official SHA CERLIN website. Please retain your proof of purchase for warranty claims.

Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact SHA CERLIN customer support. Our team is available to help you.

Online Support: Visit the SHA CERLIN store on Amazon or the official brand website for FAQs and contact options.
Email: Refer to your purchase documentation for the customer service email address.
