Important Safety Instructions
Please read and understand all safety instructions before operating your Dessiz Compact Portable Clothes Dryer. Keep this manual for future reference.
- Ensure the dryer is properly grounded to prevent electrical shock.
- Do not dry articles that have been soiled with cooking oils, flammable chemicals, or other combustible substances.
- Clean the lint filter before or after each load to prevent fire hazards and maintain drying efficiency.
- Do not allow children to play on or in the dryer. Close supervision is necessary when the dryer is used near children.
- Do not install or store the dryer where it will be exposed to the weather or freezing temperatures.
- For quick drying of laundry, do not put excessively damp laundry into the dryer. Ensure clothes are adequately spun in a washing machine first.
Product Overview
The Dessiz 11LBS Compact Portable Clothes Dryer is designed for efficiency and convenience in small living spaces. Its powerful 950W motor ensures quick drying, while its compact size and quiet operation make it suitable for apartments, dormitories, and RVs.
This image shows the Dessiz 11LBS Compact Portable Clothes Dryer from the front, highlighting its sleek white design with a black door and control panel. The dryer features an LED display and a rotary knob for easy operation.
Key features include a durable stainless steel tub, a multi-layer filtration system to capture lint, and various drying modes to suit different fabric types and drying needs.
This image illustrates the key specifications of the Dessiz dryer: an 11lb capacity, intuitive knob control, compact dimensions (7.7 inches deep), and a quiet 58 dB operating performance, comparable to a freezer.
Setup and Installation
Your Dessiz dryer comes ready for use with minimal setup required. It is designed for portability and can be placed in various configurations.
Unboxing and Initial Inspection
Carefully remove the dryer from its packaging. Inspect the unit for any signs of damage during transit. Ensure all included components are present: Dessiz clothes dryer x 1, User manual x 1, exhaust pipe x 1.
Placement Considerations
The compact design of the Dessiz dryer makes it ideal for small spaces. It can be used freestanding, stacked on top of a compatible washing machine, or placed side-by-side.
This image demonstrates the versatile installation options for the dryer, showing it as a freestanding unit, stacked above a washing machine, and placed next to a washing machine.
Power and Exhaust Connection
Plug the dryer into a standard 110V, 60Hz wall outlet. The dryer is equipped with a 950W heating element. Connect the provided exhaust pipe to the designated port on the back of the unit to vent moist air outside.
Setup Video Guide
This official product video from Dessiz provides a visual guide to the compact dryer's features and setup process, including unboxing and initial placement.
Operating Instructions
Operating your Dessiz dryer is straightforward thanks to its intuitive control panel and various drying modes.
Control Panel Overview

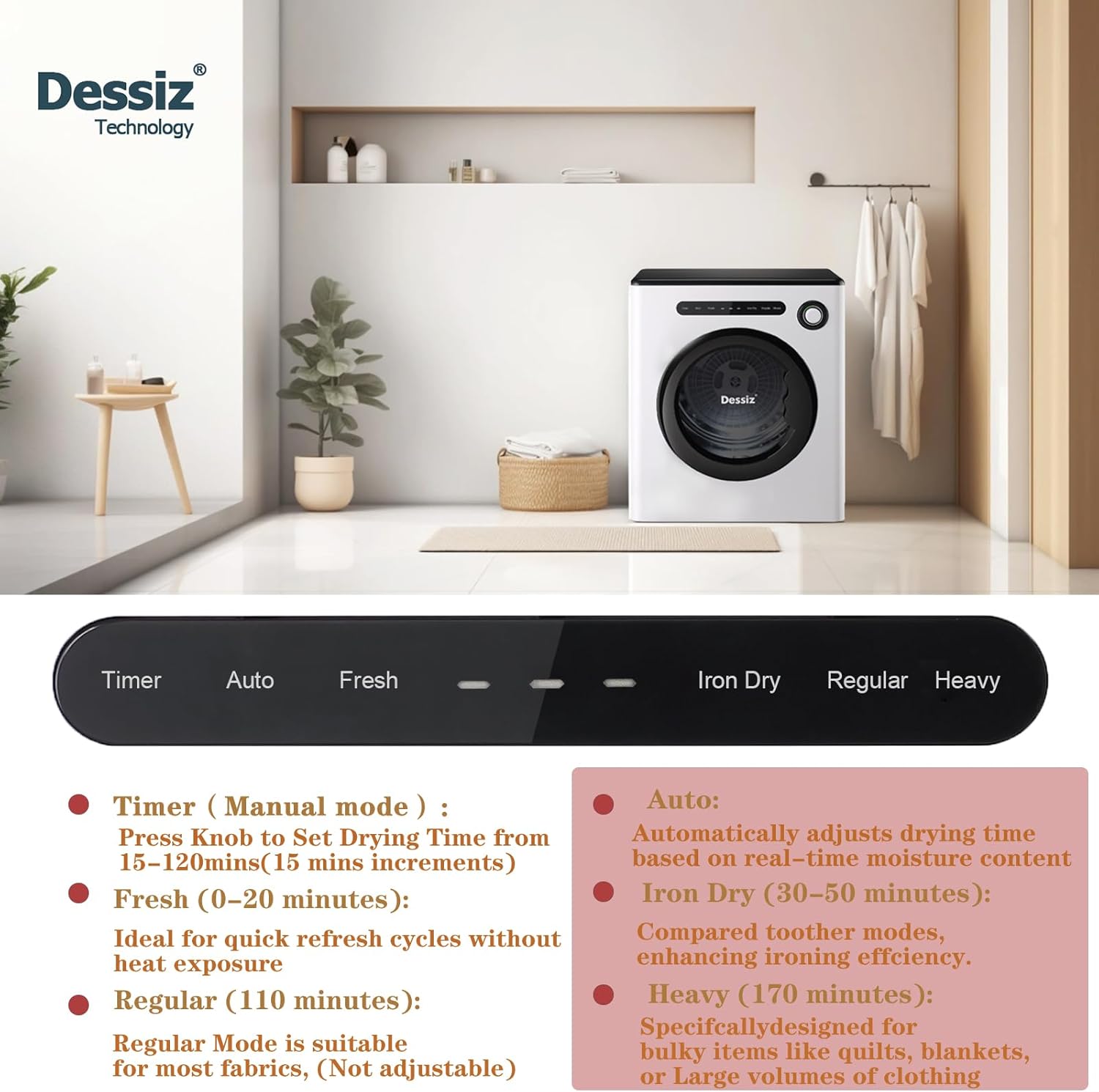

The control panel features an LED display and a rotary knob. The display shows the remaining drying time, and indicator lights illuminate the selected drying mode.
This image highlights additional features such as UV sterilization for bacteria removal, a user-friendly knob design for simple operations, dynamic drying that stops when clothes are dry, and a triple dander filtration system.
Drying Modes
- Timer (Manual mode): Allows you to set drying time from 15 to 120 minutes in 15-minute increments.
- Auto: Automatically adjusts drying time based on the real-time moisture content of the clothes.
- Fresh (0-20 minutes): Ideal for quick refresh cycles without significant heat exposure.
- Iron Dry (30-50 minutes): Designed to reduce wrinkles and enhance ironing efficiency.
- Regular (110 minutes): The standard mode suitable for most fabrics.
- Heavy (170 minutes): Specifically designed for bulky items like quilts, blankets, or large volumes of clothing.
Loading the Dryer
Load clothes into the dryer, ensuring not to overload the drum. Overloading can reduce drying efficiency and increase drying time. The dryer features a reverse tumble action to enhance softness and fluffiness while saving energy.
This image illustrates the dryer's reverse tumble action, which helps to prevent tangling and ensures more even drying, leading to softer and fluffier clothes.
This image emphasizes the dryer's 145°F low temperature drying feature, designed to protect clothes from damage while effectively drying them.
Maintenance
Regular maintenance ensures the longevity and efficient operation of your Dessiz dryer.
Cleaning the Lint Filter
The dryer is equipped with a 3-layer filtration system to effectively filter out lint and dust. It is crucial to clean the lint filter after every use to maintain optimal airflow and prevent lint buildup, which can be a fire hazard.
This diagram illustrates the dryer's 3-layer filtration system, detailing the air outlet cover, filter cotton, and filter net components that work together to capture lint and improve airflow.
Cleaning the Exterior
Wipe the exterior of the dryer with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the finish.
Storage
If storing the dryer for an extended period, ensure it is clean and dry. Disconnect it from the power supply and store it in a cool, dry place.
Troubleshooting
This section provides solutions to common issues you might encounter with your Dessiz dryer.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer does not start | Power cord unplugged; Door not closed properly; Power outage; Circuit breaker tripped. | Check power connection; Ensure door is securely latched; Check household power; Reset circuit breaker. |
| Clothes not drying completely | Lint filter clogged; Overloaded dryer; Incorrect drying mode selected; Exhaust vent blocked. | Clean lint filter; Reduce load size; Select appropriate drying mode (e.g., Heavy); Check and clear exhaust vent. |
| Unusual noise during operation | Dryer not level; Foreign objects in drum; Loose parts. | Adjust leveling feet; Check drum for foreign objects and remove; Contact customer support if noise persists. |
| Dryer stops mid-cycle | Overheating; Power interruption. | Allow dryer to cool down; Check power supply. |
Specifications
| Feature | Specification |
|---|---|
| Brand | Dessiz |
| Model Number | DTD10-WHITE |
| Capacity | 11 Pounds (1.6 Cu.Ft) |
| Rated Input | 950W |
| Voltage | 110V |
| Frequency | 60Hz |
| Product Dimensions | 16.5"D x 19.71"W x 23.4"H |
| Item Weight | 39.8 lbs |
| Noise Level | Approx. 58 decibels |
| Drum Material | Stainless Steel |
| Special Features | LED Display, UV Sterilization, Triple Filtration System, Reverse Tumble Action |
| Included Components | Dessiz clothes dryer x 1, User manual x 1, Exhaust pipe x 1 |
| UPC | 743645315329 |
Warranty and Support
Dessiz is committed to providing high-quality products and customer satisfaction. For any questions or assistance with your Dessiz Compact Portable Clothes Dryer, please do not hesitate to contact us.
We offer free exchanges for any quality problems within the warranty period. Please refer to your purchase documentation for specific warranty terms and conditions.
For support, please visit the official Dessiz website or contact our customer service team.
