Commercial Convection Oven User Manual

1. Product Overview

This commercial convection oven is designed for professional kitchen and bakery environments, offering efficient and versatile cooking capabilities. It operates on either natural gas or propane and features a powerful 54000 BTU/hr output. The oven includes a single deck with four chrome-plated racks, providing 13 adjustable positions for flexible cooking. Its porcelain enamel coated interior ensures easy cleaning and maintenance.

Figure 1: Front view of the Commercial Convection Oven.

2. Features

• High Efficiency: Delivers 54000 BTU/hr for rapid heating and cooking.
• Versatile Fuel Options: Compatible with both natural gas and propane.
• Adjustable Racks: Four chrome-plated racks with 13 positions for diverse cooking needs.
• Easy to Clean: Porcelain enamel coated interior simplifies maintenance.
• Durable Construction: Crafted with anti-corrosion stainless steel and a welded frame structure for long-lasting performance.
• Precise Control: Features a 60-minute timer and temperature adjustment from 150°C-500°C via dialing knobs.
• Enhanced Air Circulation: Convection fan effectively reduces cooking times (70%-80%) while maintaining food quality.
• Installation Flexibility: Comes with four legs, with an option for wheels (casters) for mobility.

Figure 2: Diagram highlighting key features and benefits of the oven.

3. Specifications

Figure 3: Product specification label with model, gas, and electrical details.

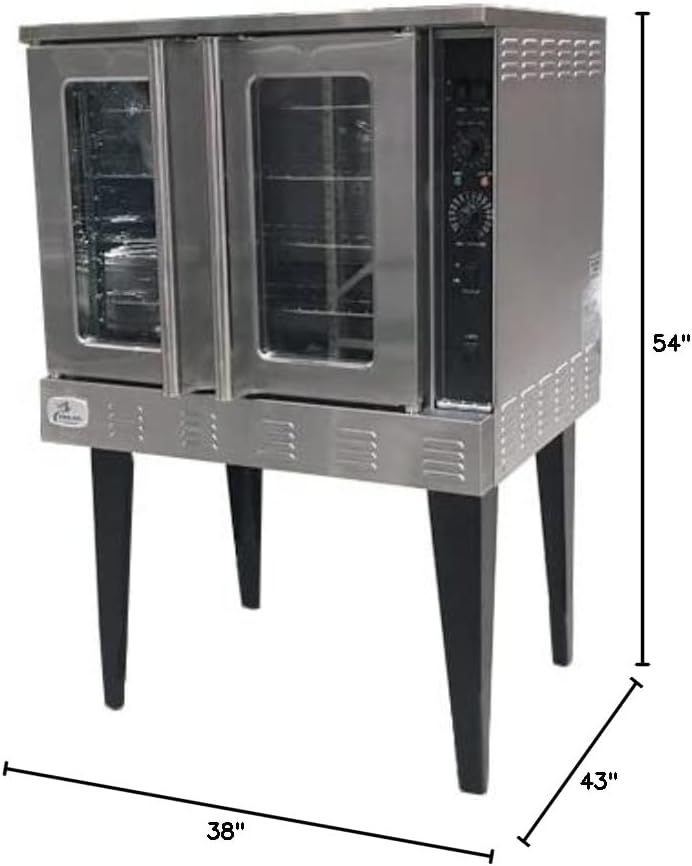

Figure 4: Visual representation of the oven's external dimensions.

4. Setup & Installation

Proper installation is crucial for the safe and efficient operation of your convection oven. This unit requires both a gas connection for heating and an electrical connection for the fan function.

4.1 Gas Connection

The oven is designed to operate on either natural gas or propane. A 3/4" NPT rear gas connection is included. Ensure installation is performed by a qualified professional in accordance with local codes and regulations.

4.2 Electrical Connection

The electric fan function requires a standard US plug. Connect the oven to a suitable power outlet as specified in the detailed installation manual.

4.3 Leg/Caster Installation

The oven comes with four sturdy legs for stable placement. Alternatively, casters (wheels) are available as an option for increased mobility. Refer to the included installation manual for detailed instructions on attaching either the legs or casters.

Figure 5: Rear view of the oven, showing the gas inlet and electrical connections.

Figure 6: The oven shown with its standard legs, and optional casters for mobility.

Figure 7: Detailed view of the oven's motor and electrical connections.

Video 1: A demonstration of the Commercial Convection Oven, including its features and dimensions.

5. Operating Instructions

The convection oven features intuitive controls for precise cooking. Always refer to the comprehensive instruction manual provided with the unit for detailed operating procedures and safety guidelines.

5.1 Control Panel Overview

The front control panel includes power switches, a temperature control knob, and a 60-minute timer. The fan function is electrically operated and can be controlled independently.

• Power Switch: Turns the oven's electrical components ON/OFF.
• Temperature Control: Adjusts the oven temperature from 150°C to 500°C.
• Timer: Sets the cooking duration up to 60 minutes.
• Fan Control: Activates the convection fan for even heat distribution.

Figure 8: Close-up view of the oven's control panel with temperature, timer, and fan controls.

Figure 9: Additional view of the control panel, highlighting the various switches and knobs.

5.2 Rack Adjustment

The oven features multiple rack positions to accommodate various pan sizes and cooking requirements. The chrome-plated racks can be easily removed or repositioned as needed.

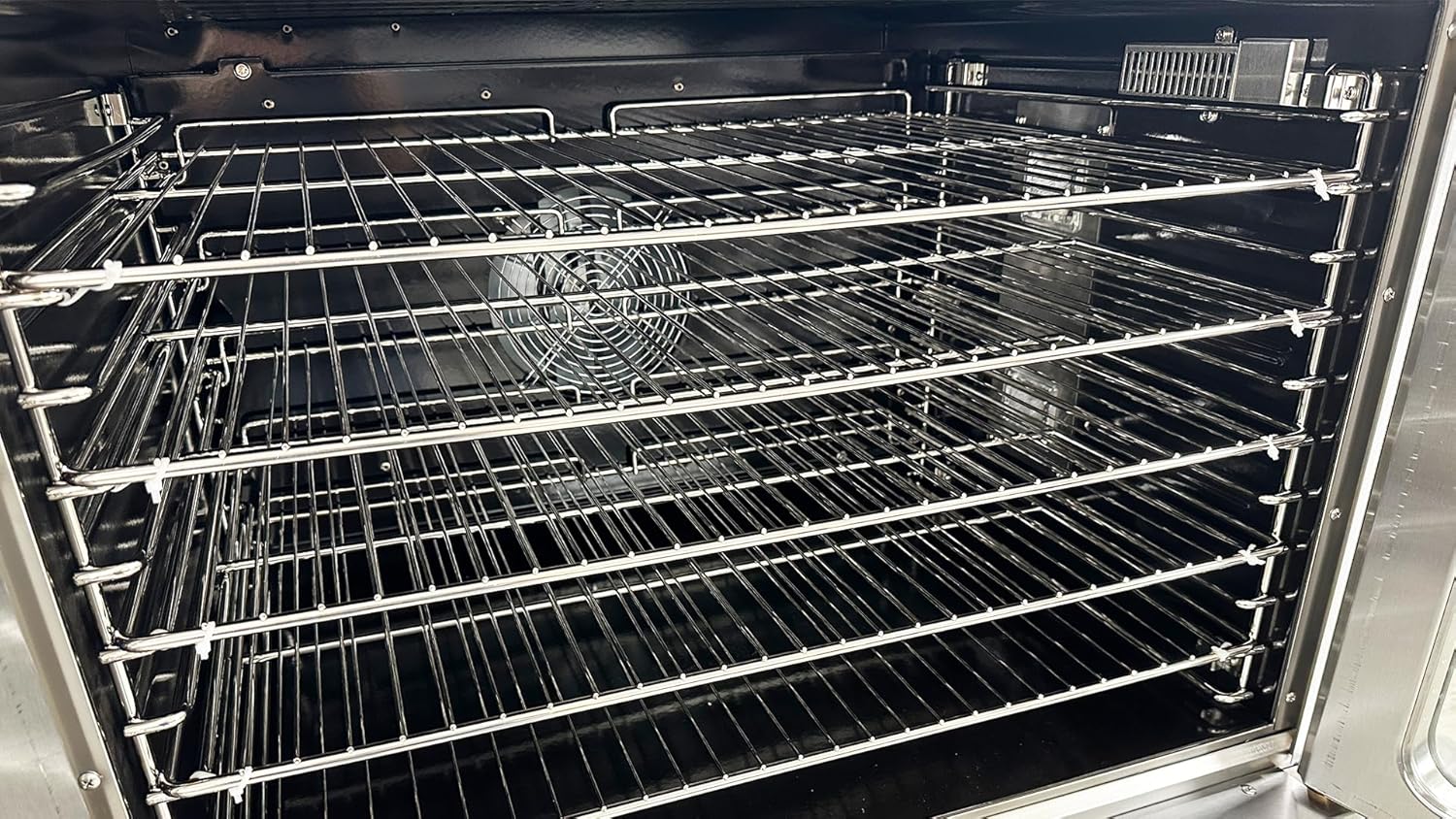

Figure 10: Interior view of the oven, showcasing the adjustable chrome-plated racks.

6. Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your convection oven. The porcelain enamel coated interior is designed for easy cleaning.

6.1 Daily Cleaning

• Allow the oven to cool completely before cleaning.
• Wipe down the interior and exterior surfaces with a damp cloth and mild detergent.
• Remove and clean the racks separately.

6.2 Periodic Maintenance

• Inspect gas connections for leaks periodically.
• Ensure the fan operates smoothly and is free from obstructions.
• Refer to the full instruction manual for detailed cleaning schedules and procedures.

7. Troubleshooting

Should you encounter any issues with your convection oven, please refer to the troubleshooting section in the comprehensive instruction manual. This section provides common problems and their solutions. For complex issues, contact qualified service personnel.

8. Warranty

This Commercial Convection Oven comes with a 1 Year All-Parts Warranty and a 1 Month Labor Warranty from the date of delivery. Please retain your proof of purchase for warranty claims. For full details and terms, refer to the warranty information provided in your product manual.

9. Support

For technical assistance, parts, or service inquiries, please contact cooler depot customer support. Have your model number (DCCOG1) and serial number ready when contacting support to ensure prompt service.

You can also find additional information and resources on the official cooler depot website or by referring to the detailed instruction manual included with your oven.
