EEFOW Rechargeable LED Work Light User Manual

Introduction

Thank you for choosing the EEFOW Rechargeable LED Work Light. This portable and versatile lighting tool is designed for various applications, including car repair, camping, hiking, BBQ, outdoor exploration, and emergency lighting. Please read this manual carefully before use to ensure proper operation and maintenance.

Safety Information

• Do not look directly into the LED light when it is on, as it may cause eye damage.
• Keep the device away from water and extreme temperatures.
• Do not attempt to disassemble or repair the device yourself. Contact qualified personnel for service.
• Use only the provided USB cable for charging.
• Keep out of reach of children.

Product Overview

The EEFOW LED Work Light features a robust design with dual COB LED lights, a 360-degree rotatable and foldable body, and a built-in power bank function.

Figure 1: Two EEFOW Rechargeable LED Work Lights. These units are designed for versatile illumination, featuring a durable black and yellow casing and adjustable stands for optimal positioning.

Key Features:

• Flexible and 360° Foldable: The work light can rotate 360 degrees, allowing quick adjustment to the optimal angle. Its foldable design supports double-sided lighting for omnidirectional illumination both indoors and outdoors.
• USB Charging Input: Equipped with a 5000 mAh rechargeable polymer battery, a single light can operate for 8 hours, and both lights can operate at high brightness for 5 hours.
• USB Power Output: The work light features a 1A output current, functioning as a portable power bank for charging mobile phones and other electronic devices in emergencies.
• Thoughtful Design: Two firm supports form a stable tripod base when separated and can be combined to act as a handle for convenient transport.
• Battery Indicators: Three super bright power indicators allow easy checking of the remaining battery power, ensuring timely recharging and preventing sudden power outages.

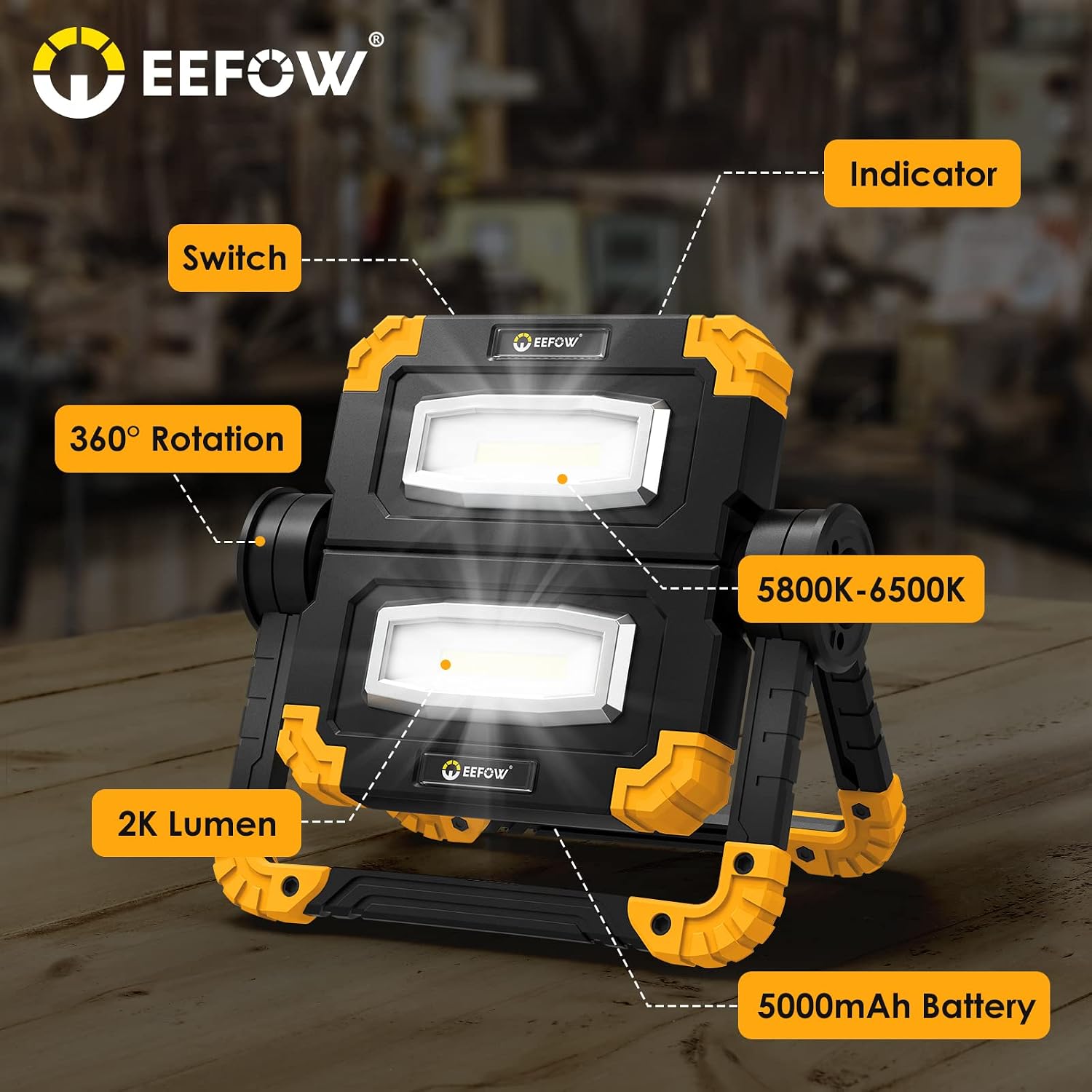

Figure 2: Labeled components of the EEFOW Work Light. This diagram highlights the key parts: the power switch, battery indicator lights, 360-degree rotation mechanism, 2000 lumen output, 5000mAh battery capacity, and a color temperature range of 5800K-6500K.

Figure 3: Product dimensions and flexibility. The image shows the work light's dimensions (20cm/7.9in width, 19cm/7.5in height, 7.7cm/3in depth) and illustrates its 360-degree rotatable and deformable design, enabling all-round lighting.

Setup

Initial Charging:

1. Before first use, fully charge the work light.
2. Locate the USB charging port on the device.
3. Connect the provided USB cable to the charging port and plug the other end into a 5V USB power source (e.g., wall adapter, computer USB port).
4. The battery indicator lights will show the charging progress. A full charge takes approximately 5 hours.
5. Once fully charged, disconnect the USB cable.

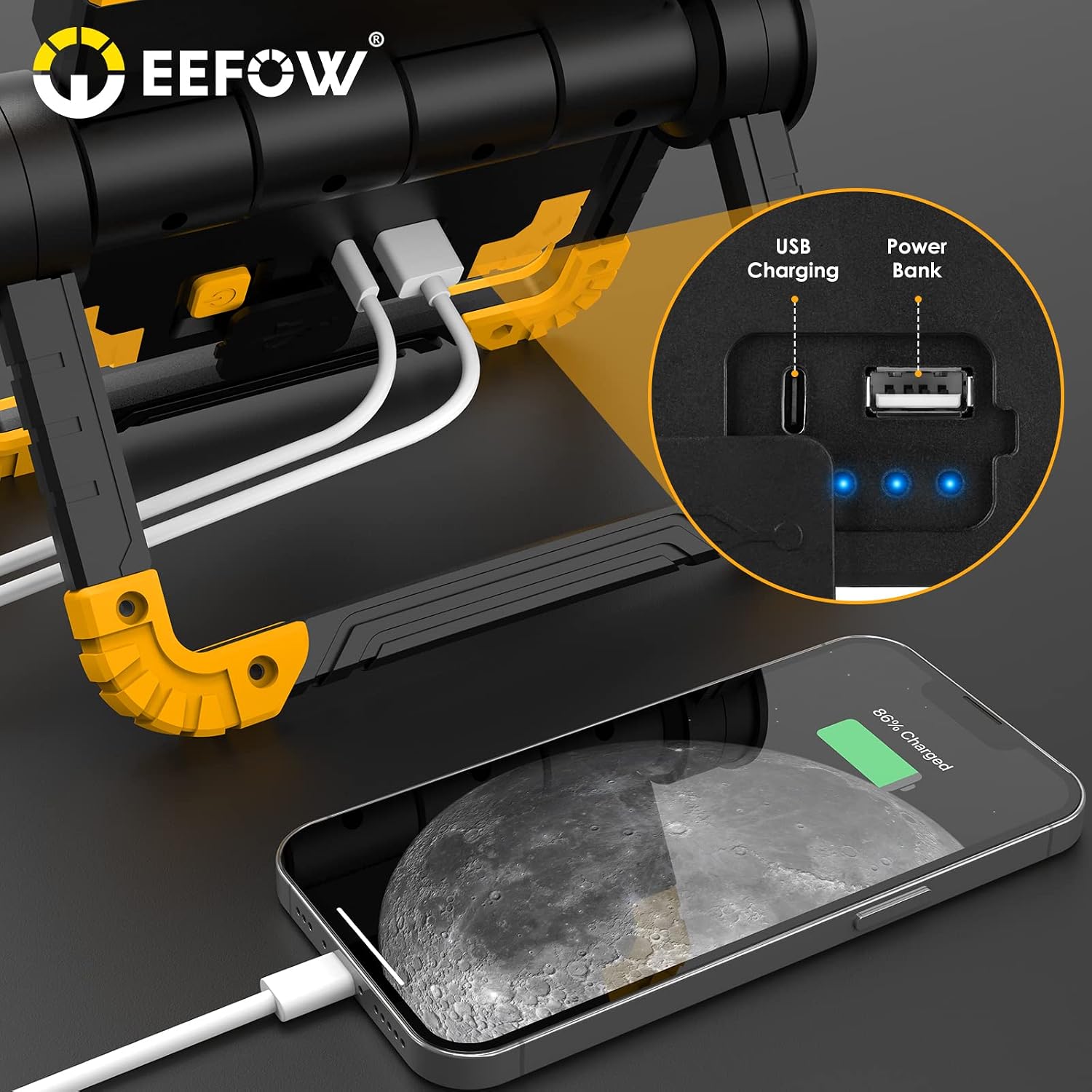

Figure 4: USB Charging and Power Bank Function. The image illustrates the USB input for charging the work light and the USB output for using it as a portable power bank to charge other devices like a smartphone.

Operating Instructions

Powering On/Off and Mode Selection:

The work light features 4 operating modes:

1. Mode 1 (Both Lights On): Press the power button once to turn on both COB LED lights for maximum illumination.
2. Mode 2 (Single Light On - Left): Press the power button a second time to turn on only one COB LED light (typically the left one).
3. Mode 3 (Single Light On - Right): Press the power button a third time to turn on only the other COB LED light (typically the right one).
4. Mode 4 (All Lights Off): Press the power button a fourth time to turn off all lights.

Cycle through these modes by repeatedly pressing the power button.

Adjusting Light Angle:

The work light's head can be rotated 360 degrees. Gently adjust the light panels to direct illumination precisely where needed. The foldable stands also allow for various positioning options, including a stable tripod-like base or a compact form for carrying.

Figure 5: Battery Life Performance. This image shows the approximate battery life: 5 hours when both lights are active (Dual-lighting) and 8 hours when only one light is active (Single-lighting).

Using as a Power Bank:

To use the work light as a portable charger:

1. Ensure the work light has sufficient battery charge.
2. Connect your mobile phone or other electronic device to the USB output port on the work light using your device's charging cable.
3. The work light will begin charging your device.

Figure 6: Portability and Handling. The image shows the work light being carried by its integrated handle, highlighting its compact and portable design suitable for various work environments.

Maintenance

• Cleaning: Wipe the surface of the work light with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the battery every 3-6 months to maintain its lifespan.
• Battery Care: Avoid fully discharging the battery frequently, as this can reduce its overall lifespan.

Troubleshooting

Specifications

Note: Dimensions and weight may vary slightly based on measurement method and packaging. Please refer to the product packaging for the most accurate information.

Warranty and Support

This product typically comes with a manufacturer's warranty. Some users have reported a 2-year guarantee after product registration. For warranty claims, technical support, or any questions not covered in this manual, please refer to the contact information provided with your product packaging or visit the official EEFOW website. Ensure to register your product if required for warranty activation.

For further assistance, please contact EEFOW customer service.
