1. Introduction
This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your Broil-Mate 30040BMT Cast 2-Burner Liquid Propane Gas Grill. Please read all instructions carefully before using your grill.

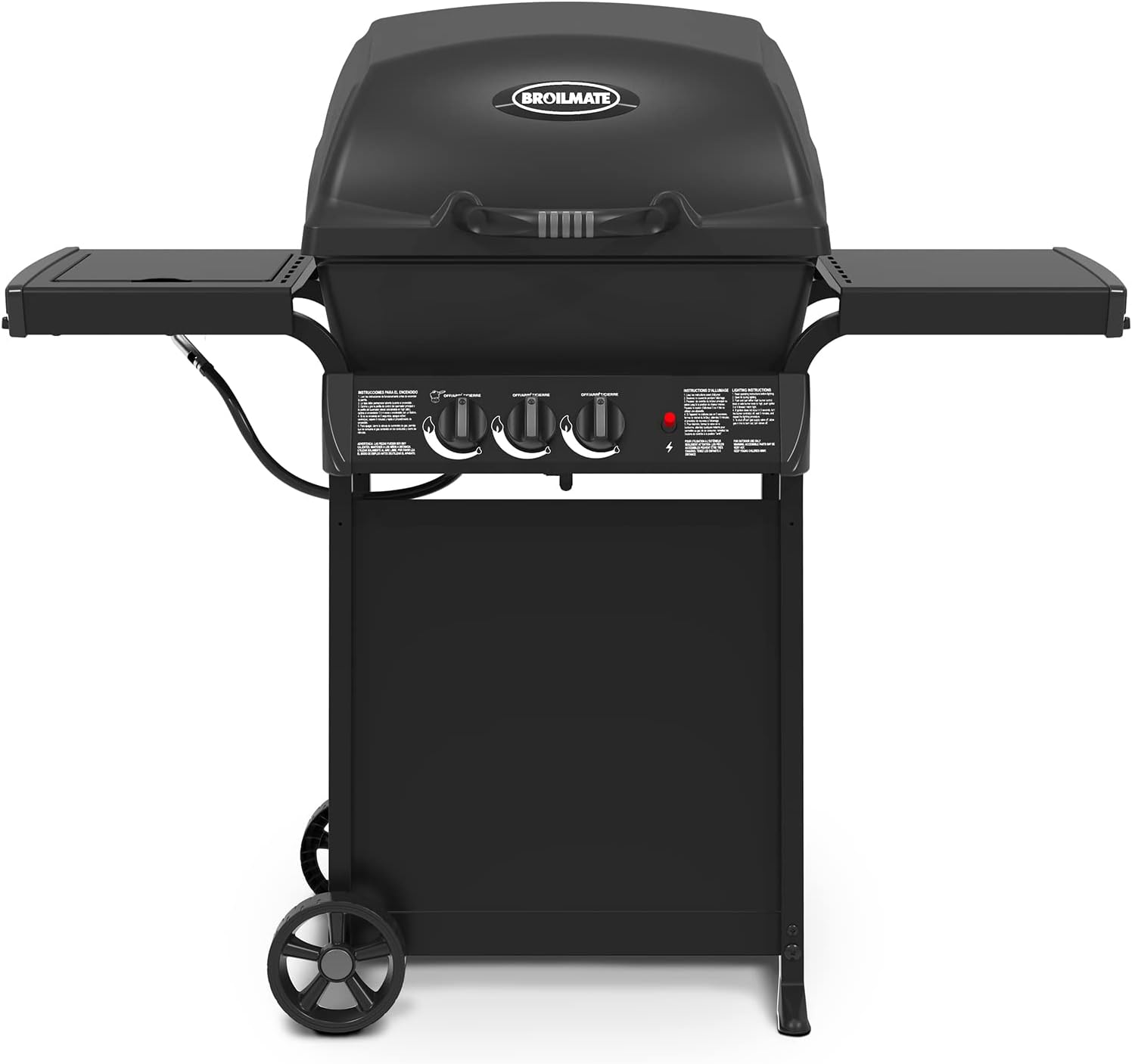

Figure 1.1: Front view of the Broil-Mate 30040BMT Gas Grill with lid closed.
Important Safety Information
Always follow these safety guidelines to prevent injury or property damage:
- For outdoor use only. Do not operate indoors.
- Read all instructions before assembly and use of the grill.
- Keep children and pets away from the grill at all times.
- Never store a spare LP cylinder under or near the grill.
- Do not obstruct the flow of combustion and ventilation air.
- Always check for gas leaks before each use.
- Ensure the grill is on a level, stable surface.
2. Setup and Assembly
Your Broil-Mate grill requires assembly. Follow the detailed instructions provided in the separate assembly guide included with your purchase. Ensure all components are present and undamaged before beginning assembly.
Unpacking
Carefully remove all parts from the packaging. Keep all packing materials until the grill is fully assembled and tested to ensure no small parts are discarded.
Assembly
Assembly is required for this product. Refer to the included assembly manual for step-by-step instructions. Typical assembly involves attaching the cart, side shelves, and connecting the gas components. Ensure all fasteners are tightened securely.
Figure 2.1: Dimensions of the assembled Broil-Mate 30040BMT Gas Grill (50"D x 24"W x 45.5"H).
Gas Connection
Connect the liquid propane (LP) cylinder to the grill's regulator. Ensure the connection is tight and free of leaks. Perform a leak test using a soapy water solution on all gas connections before initial use and after any cylinder change.
3. Operating Instructions
Pre-Operation Checklist
- Ensure the LP cylinder is full and properly connected.
- Check for any obstructions in the burner tubes.
- Verify that all control knobs are in the OFF position.
- Open the grill lid before lighting any burner.
Ignition Procedure
- Open the grill lid.
- Ensure all burner control knobs are in the OFF position.
- Turn on the gas supply at the LP cylinder.
- Push and turn one main burner control knob to the HIGH position.
- Immediately press and hold the Sure-Lite ignition button for 3-5 seconds until the burner ignites.
- If ignition does not occur within 5 seconds, turn the burner control knob to OFF, wait 5 minutes, and repeat the lighting procedure.
- Once the first burner is lit, you can light other main burners by turning their respective knobs to HIGH.
Figure 3.1: Pressing the Sure-Lite ignition button to light the grill.
Figure 3.2: Adjusting a burner control knob.
Main Burner Operation
The grill features a powerful 30,000 BTU main burner. Once lit, adjust the control knob to achieve the desired cooking temperature. The primary cooking surface is 300 sq. in., complemented by a 130 sq. in. chrome-coated warming rack, providing a total of 430 sq. in. cooking surface.
Side Burner Operation
The 10,000 BTU inset side burner is ideal for preparing sauces or side dishes. To light, open the side burner lid, push and turn the side burner control knob to HIGH, and press the ignition button. Adjust the flame as needed.
Figure 3.3: The side burner in operation.
Cooking Tips
Preheat the grill for 10-15 minutes with the lid closed to reach optimal cooking temperature. Use the warming rack to keep cooked food warm or to gently toast buns. The cast aluminum oven design helps maintain consistent heat.

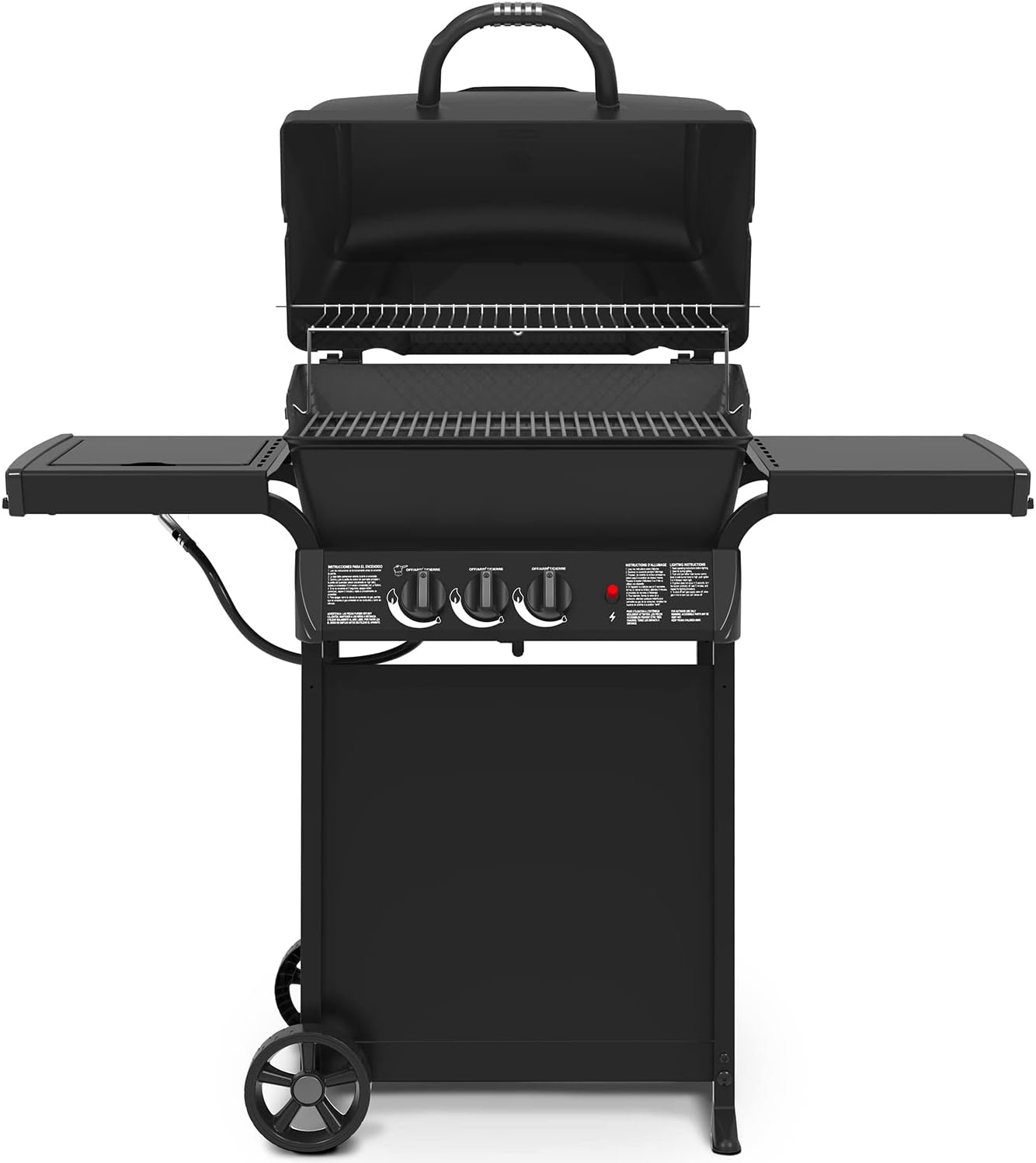

Figure 3.4: Interior view of the grill with cooking grates and warming rack.
4. Care and Maintenance
Regular cleaning and maintenance will extend the life of your grill and ensure optimal performance.
Cleaning the Cooking Grates
After each use, while the grill is still warm, brush the chrome-coated cooking grates with a grill brush to remove food residue. For stubborn residue, wash with warm soapy water and rinse thoroughly.
Cleaning Burners
Periodically inspect the aluminized steel cooking system and burners for blockages (e.g., spider webs, food debris). Use a wire brush to clean the burner ports. Ensure the heat diffuser/flavorizer bars are clean to prevent flare-ups.
Figure 4.1: View of the main burner heat diffuser/flavorizer bar.
Exterior Cleaning
Clean the exterior surfaces with mild soap and water. The grill features a stylish black cart and weather-resistant sturdy side shelves. Avoid abrasive cleaners that could damage the finish.
Storage
When not in use, store the grill in a dry, protected area. If storing outdoors, use a grill cover to protect it from the elements. Disconnect the LP cylinder if storing for extended periods.
5. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner fails to ignite | No gas flow; blocked burner port; faulty igniter. | Check LP cylinder connection and gas level; clean burner ports; check igniter electrode and wire. |
| Uneven heat distribution | Blocked burner ports; warped heat diffuser; low gas pressure. | Clean burner ports; inspect and replace heat diffuser if necessary; check LP cylinder and regulator. |
| Yellow or orange flame | Blocked burner ports; improper air/gas mixture. | Clean burner ports; ensure air shutters are clear. |
| Excessive flare-ups | Grease buildup; excessive fat in food. | Clean grill interior and grease tray; trim excess fat from food. |
6. Product Specifications
Detailed specifications for your Broil-Mate 30040BMT Gas Grill:
| Feature | Specification |
|---|---|
| Brand | Broil-Mate |
| Model Name | Broil-Mate, 30040BMT, Cast 2-Burner, Liquid Propane Gas Grill with Side Burner |
| Product Dimensions (D x W x H) | 50" x 24" x 45.5" |
| Fuel Type | Liquid Propane (Gas) |
| Main Burner BTU | 30,000 BTU |
| Side Burner BTU | 10,000 BTU |
| Primary Cooking Surface Area | 300 sq. in. |
| Warming Rack Area | 130 sq. in. |
| Total Cooking Surface Area | 430 sq. in. |
| Material | Metal (Cast Aluminum, Stainless Steel) |
| Item Weight | 57.9 pounds |
| Ignition System | Sure-Lite |
| UPC | 062703300405 |
7. Warranty and Customer Support
For specific warranty information regarding your Broil-Mate 30040BMT Gas Grill, please refer to the warranty card included with your product packaging or visit the official Broil-Mate website. Warranty terms typically cover manufacturing defects for a specified period.
If you require assistance with assembly, operation, troubleshooting, or parts replacement, please contact Broil-Mate customer support. Contact details can usually be found on the manufacturer's website or in your product documentation.
