Introduction
Thank you for choosing the ORALNER Cast Iron Hibachi Grill. This portable tabletop charcoal grill is designed for outdoor cooking, offering excellent heat retention and control for various foods. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your grill.
Safety Information
- Always use the grill outdoors in a well-ventilated area. Never use indoors or in enclosed spaces.
- Keep children and pets away from the hot grill.
- Place the grill on a stable, non-combustible surface.
- Use heat-resistant gloves when handling hot components.
- Do not use gasoline, kerosene, or alcohol to light charcoal. Use only charcoal starter fluid or natural fire starters.
- Allow the grill to cool completely before cleaning or moving.
- Ensure proper disposal of ash after use.
Package Contents
Verify that all components are present before assembly:
- 1 x ORALNER Cast Iron Hibachi Grill
- 1 x User Manual
Setup and Assembly
The ORALNER Cast Iron Hibachi Grill is designed for straightforward assembly. Follow these general steps:
- Unpack all components and ensure no parts are missing or damaged.
- Place the main grill body on a flat, stable surface.
- Insert the legs securely into the designated slots on the base of the grill body.
- Position the charcoal grate inside the grill body.
- Place the double-sided grilling net on top of the grill body. Ensure it is stable.
- Familiarize yourself with the air control sliding door and the front coal access door.
Operating Instructions
Follow these steps for effective and safe operation of your hibachi grill:
1. Initial Seasoning (Before First Use)
Before first use, it is recommended to season the cast iron grill to enhance its non-stick properties and prevent rust. Apply a thin layer of cooking oil to all cast iron surfaces, then heat the grill for approximately 30-60 minutes. Allow it to cool completely.
2. Adding Charcoal
- Open the front coal access door.
- Place charcoal briquettes or lump charcoal onto the charcoal grate. Do not overfill.
- Use a charcoal chimney starter or appropriate fire starters to ignite the charcoal.
- Once the charcoal is fully lit and covered with a light gray ash, spread it evenly.
3. Temperature Control

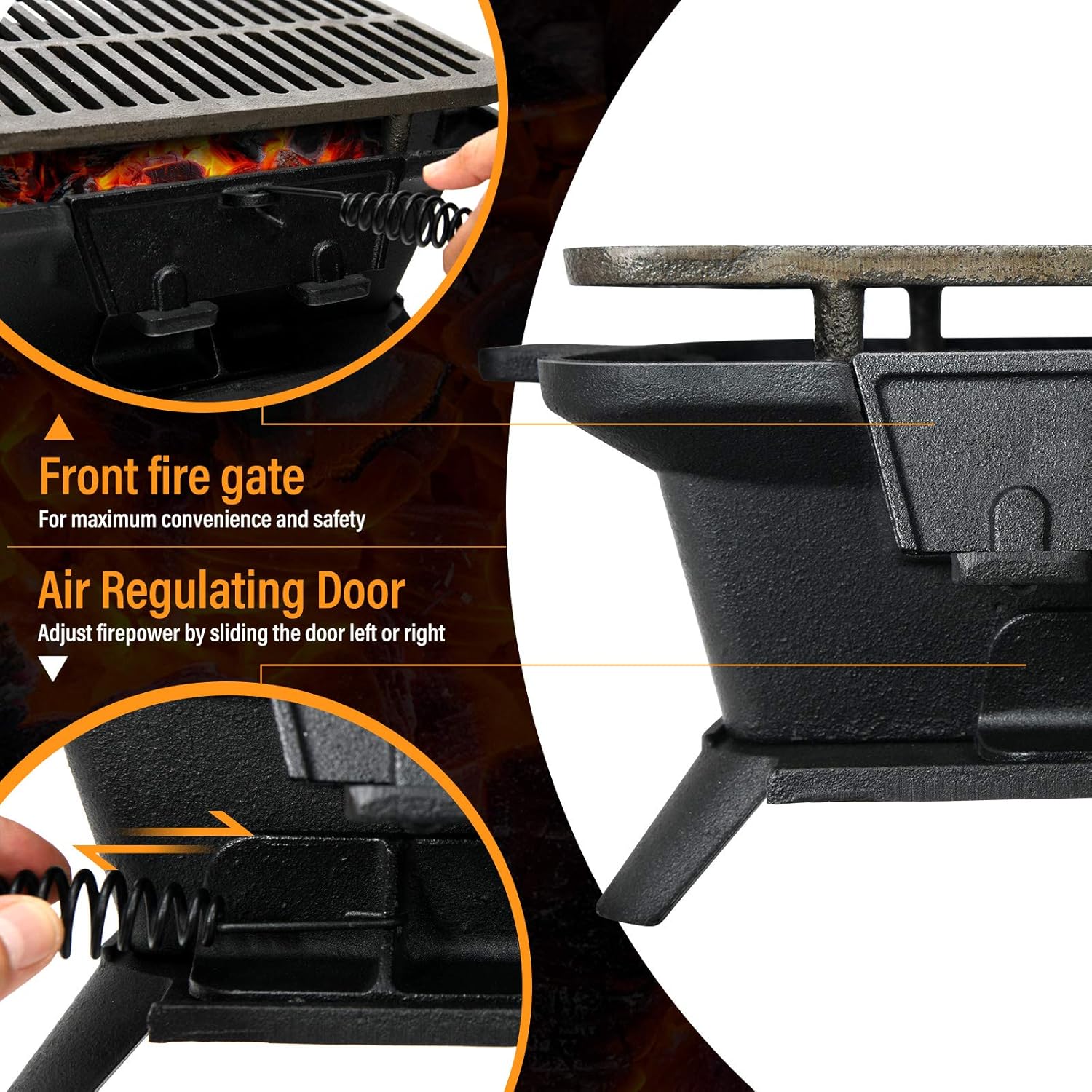

The grill features a sliding air control door to manage airflow to the coals, which directly affects the cooking temperature.
- Increase Temperature: Slide the air control door open to allow more oxygen to the coals.
- Decrease Temperature: Slide the air control door closed to restrict oxygen flow.
4. Grilling Net Height Adjustment
The double-sided grilling net can be positioned at two different heights above the coals, allowing for versatile cooking options.
- For higher heat and faster cooking, place the grilling net closer to the coals.
- For lower heat and slower cooking, or to keep food warm, place the grilling net further from the coals.
5. Cooking
Place food directly on the grilling net. The cast iron material provides excellent heat retention, ensuring even cooking and distinct grill marks.
Maintenance
Proper care will extend the life of your cast iron hibachi grill.
1. Cleaning After Use
- Allow the grill to cool completely.
- Remove the grilling net and charcoal grate.
- Scrape off any food residue from the grilling net and interior surfaces using a stiff brush or scraper.
- Empty the ash from the grill body.
- Wipe down all cast iron parts with a damp cloth. Avoid using soap, as it can strip the seasoning.
2. Re-seasoning and Rust Prevention
- After cleaning and drying, apply a thin layer of cooking oil (e.g., vegetable oil, flaxseed oil) to all cast iron surfaces, especially the grilling net.
- This helps maintain the non-stick surface and prevents rust.
3. Storage
- Store the grill in a dry place to prevent rust.
- If storing for extended periods, ensure it is clean, dry, and lightly oiled.
Troubleshooting
If you encounter issues with your ORALNER Cast Iron Hibachi Grill, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Grill not heating sufficiently | Insufficient charcoal; Air control door closed; Wet charcoal | Add more charcoal; Open air control door; Use dry charcoal |
| Food sticking to grilling net | Grill not seasoned; Insufficient oil on food/grate; Grill not hot enough | Season the grill; Lightly oil food or grate before cooking; Allow grill to reach proper temperature |
| Rust appearing on cast iron | Improper cleaning; Lack of seasoning/oiling; Stored in damp environment | Clean thoroughly, dry, and re-season with cooking oil; Store in a dry place |

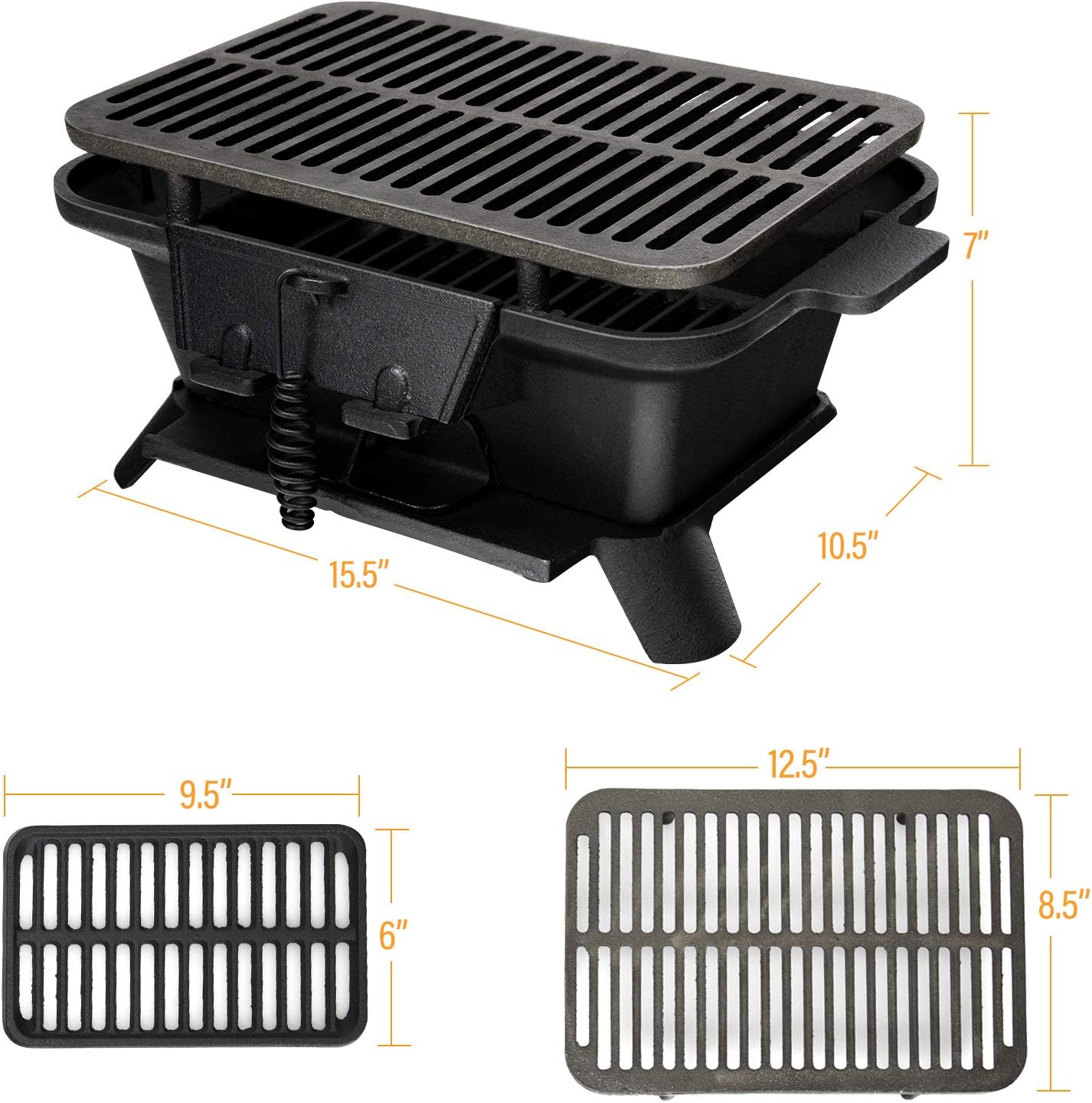

Specifications
| Feature | Detail |
|---|---|
| Model Number | CR-70617-OP |
| Dimensions (L x W x H) | 16" x 11" x 7" |
| Cooking Surface Area | 12.5" L x 8.5" W (approx. 106.25 sq. inches) |
| Net Weight | 20 lbs |
| Material | Cast Iron |
| Fuel Type | Charcoal |
| Special Features | Adjustable grilling net height, Sliding air control door, Front coal access door |
Warranty Information
The ORALNER Cast Iron Hibachi Grill comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, neglect, accidents, or unauthorized modifications. Please retain your proof of purchase for warranty claims.
Customer Support
For any questions, concerns, or assistance with your ORALNER Cast Iron Hibachi Grill, please refer to the contact information provided with your purchase or visit the official ORALNER website for support resources.
