GGM Gastro GKE685 Professional 2-Burner Gas Cooker Instruction Manual

1. Introduction

Thank you for choosing the GGM Gastro GKE685 Professional 2-Burner Gas Cooker. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read these instructions thoroughly before use and retain them for future reference. This appliance is designed for professional use in commercial kitchens.

Image 1.1: Front view of the GGM Gastro GKE685 Professional 2-Burner Gas Cooker, showcasing its stainless steel construction and two cast iron burners with control knobs.

2. Important Safety Instructions

Failure to follow these safety instructions may result in property damage, personal injury, or death. This appliance must be installed and serviced by a qualified technician in accordance with local codes and regulations.

• Gas Safety: Ensure proper ventilation. If you smell gas, immediately shut off the gas supply, open windows and doors, and do not operate any electrical switches or appliances. Contact a qualified technician.
• Installation: Only qualified personnel should install this appliance. Ensure all gas connections are secure and leak-free.
• Ventilation: Adequate ventilation is crucial for gas appliances. Ensure the kitchen area is well-ventilated to prevent the accumulation of combustion by-products.
• Flammable Materials: Keep flammable materials (e.g., curtains, paper, aerosols) away from the appliance during operation.
• Hot Surfaces: The appliance surfaces become hot during use. Use heat-resistant gloves and avoid direct contact with hot parts.
• Children and Unauthorized Personnel: Keep children and unauthorized personnel away from the appliance during operation and when it is cooling down.
• Cleaning: Disconnect the appliance from the gas supply and allow it to cool completely before cleaning.
• Maintenance: Regular maintenance by a qualified technician is recommended to ensure safe and efficient operation.

3. Product Components

The GGM Gastro GKE685 gas cooker is constructed with high-quality materials for durability and performance in a professional environment. Familiarize yourself with its main parts:

• Stainless Steel Body: The main housing of the cooker, providing durability and ease of cleaning.
• Cast Iron Cooking Plates/Grates: Robust and heat-retaining surfaces for supporting cookware over the burners.
• Gas Burners (2): Two powerful 2-ring burners designed for efficient heat distribution.
• Control Knobs: Located on the front panel, these knobs regulate the gas flow and ignition for each burner.
• Magnetic Safety Switch: An integrated safety feature to ensure safe operation.
• Adjustable Legs: For stable placement and leveling of the appliance.

Image 3.1: Detailed view showing the control knobs and a lit burner, highlighting the robust cast iron grates.

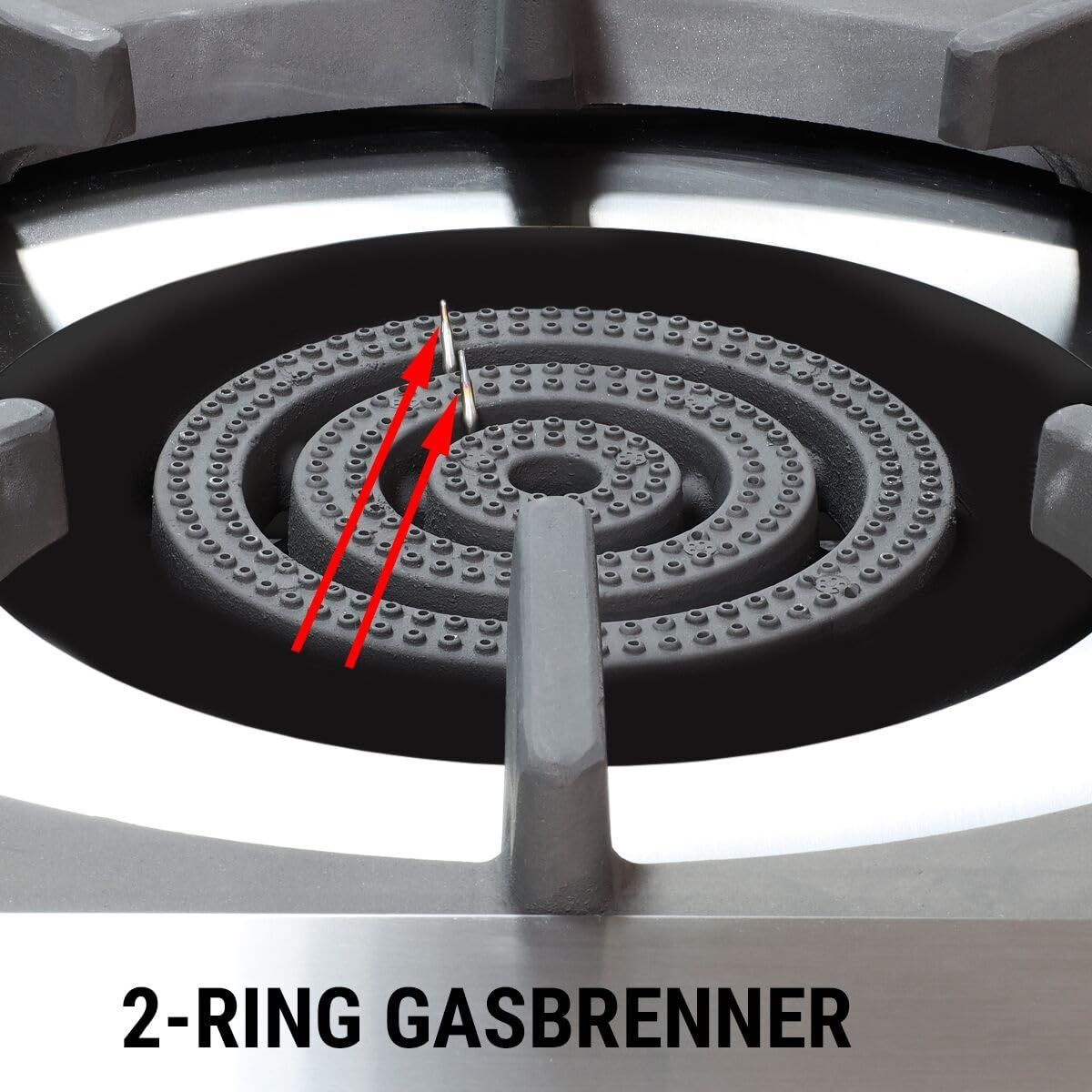

Image 3.2: Close-up of a 2-ring gas burner, illustrating its design for even heat distribution.

4. Setup and Installation

Installation of the GGM Gastro GKE685 must be performed by a certified gas technician in compliance with all local and national regulations.

1. Unpacking: Carefully remove the appliance from its packaging. Inspect for any shipping damage. Report any damage to the carrier immediately.
2. Placement: Position the cooker on a stable, level, non-combustible surface. Ensure adequate clearance from walls and other appliances as per local codes. The area must have proper ventilation.
3. Leveling: Adjust the appliance's legs to ensure it is perfectly level. This is crucial for stable cooking and proper drainage.
4. Gas Connection:
   • Ensure the gas supply type (natural gas or propane) matches the appliance's configuration. The GKE685 is suitable for both.
   • Connect the appliance to the main gas supply using approved flexible or rigid gas lines.
   • Perform a leak test on all connections using a soap solution. Never use an open flame to check for gas leaks.
5. Initial Burn-off: Before first use, operate the burners at maximum setting for approximately 15 minutes to burn off any manufacturing residues. Ensure the area is well-ventilated during this process.

5. Operating Instructions

The GGM Gastro GKE685 features electronic ignition for convenient and reliable operation.

1. Before Use: Ensure all grates are properly seated over the burners. Check that the gas supply valve is open.
2. Igniting a Burner:
   • Push in the desired burner control knob and turn it counter-clockwise to the "High" or "Ignite" position.
   • Hold the knob in for a few seconds to allow the electronic igniter to spark and the gas to flow. You should hear a clicking sound and see the flame ignite.
   • Once the burner is lit, continue to hold the knob for approximately 5-10 seconds to allow the thermocouple (safety device) to heat up and register the flame. Release the knob. If the flame extinguishes, repeat the process.
3. Adjusting the Flame: Once the burner is lit, rotate the control knob to adjust the flame intensity from high to low as required for cooking.
4. Turning Off a Burner: Turn the control knob clockwise to the "Off" position. Ensure the flame is completely extinguished.
5. After Use: It is recommended to close the main gas supply valve at the end of each working day or extended period of non-use.

Image 5.1: A chef operating a GGM Gastro gas cooker, demonstrating its use in a professional kitchen setting.

6. Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and efficient operation of your GGM Gastro GKE685 cooker. Always ensure the appliance is cool and disconnected from the gas supply before cleaning.

• Daily Cleaning:
  • Wipe down the stainless steel body with a damp cloth and mild detergent. Dry thoroughly to prevent water spots.
  • Remove the cast iron grates and wash them with warm, soapy water. For stubborn food residues, use a non-abrasive scrubber. Dry completely before replacing.
  • Clean around the burners, ensuring no food particles or spills block the gas ports.
• Burner Maintenance: Periodically inspect the burner ports for blockages. Use a soft brush or a thin wire to clear any debris. Ensure the igniter electrode is clean and free from grease.
• Deep Cleaning: For more thorough cleaning, especially after heavy use, consider using specialized stainless steel cleaners. Always follow the product instructions.
• Professional Servicing: It is recommended to have the appliance inspected and serviced by a qualified gas technician at least once a year to ensure optimal performance and safety.

7. Troubleshooting

Before contacting service, please check the following common issues:

For issues not listed above or if troubleshooting steps do not resolve the problem, please contact GGM Gastro customer support or a qualified service technician.

8. Technical Specifications

Detailed technical information for the GGM Gastro GKE685 Professional 2-Burner Gas Cooker:

• Model: GKE685
• Brand: GGM Gastro
• Type: Professional Gas Cooker
• Number of Burners: 2
• Total Power: 27 kW
• Fuel Type: Natural Gas (convertible to Propane Gas by qualified technician)
• Ignition System: Electronic
• Body Material: High-quality Stainless Steel
• Cooking Plate Material: Cast Iron
• External Dimensions (W x D x H): 600 mm x 800 mm x 500 mm
• Special Features: Compact, Easy to Clean, Magnetic Safety Switch
• Compliance: CE Directive, European Food Standards

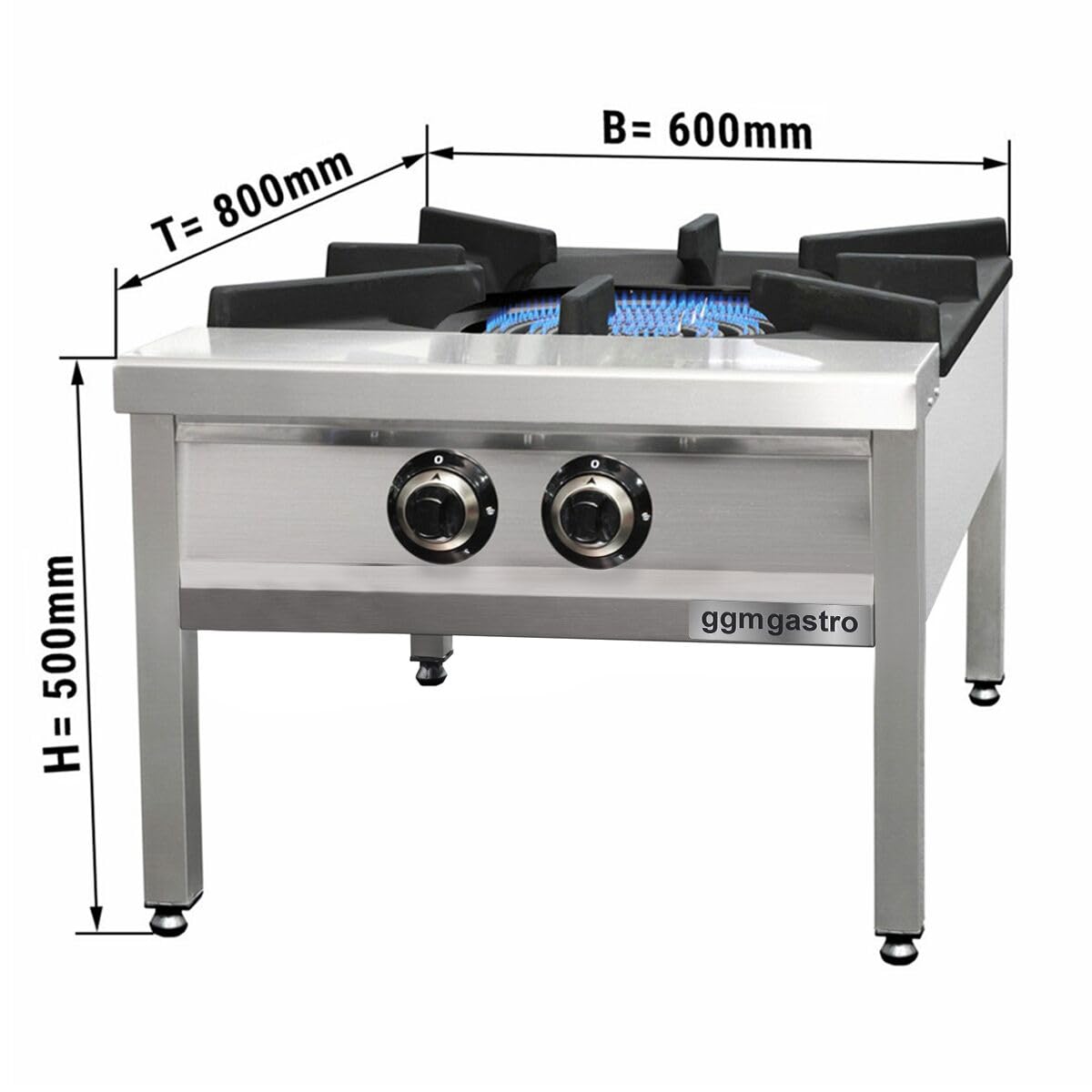

Image 8.1: The GGM Gastro GKE685 cooker with its external dimensions (Width=600mm, Depth=800mm, Height=500mm) clearly labeled.

9. Warranty and Support

For information regarding the warranty period and terms for your GGM Gastro GKE685 gas cooker, please refer to the warranty card included with your purchase or contact your retailer. For technical support, spare parts, or service inquiries, please contact GGM Gastro customer service directly or visit their official website.

GGM Gastro Contact Information: www.ggmgastro.com
