User Manual for Dual Tub Semi-Automatic Washing Machine

Introduction

Thank you for choosing the Generic XPB45-ZK45 Dual Tub Semi-Automatic Washing Machine. This appliance is designed to provide efficient and convenient laundry care for your home. Featuring a compact design with a powerful washing and spinning capability, it is an indispensable tool for managing your daily laundry needs. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your washing machine.

Safety Instructions

Please read all instructions carefully before using the washing machine to prevent injury and damage. Keep this manual for future reference.

• Ensure the power source matches the specifications (220V/60Hz) before plugging in the appliance.
• Do not operate the washing machine with a damaged power cord or plug.
• Keep children and pets away from the machine during operation.
• Do not immerse the electrical parts in water or other liquids.
• Always unplug the machine before cleaning or performing any maintenance.
• Do not wash waterproof clothing or items that float easily, as this may cause imbalance during spinning.

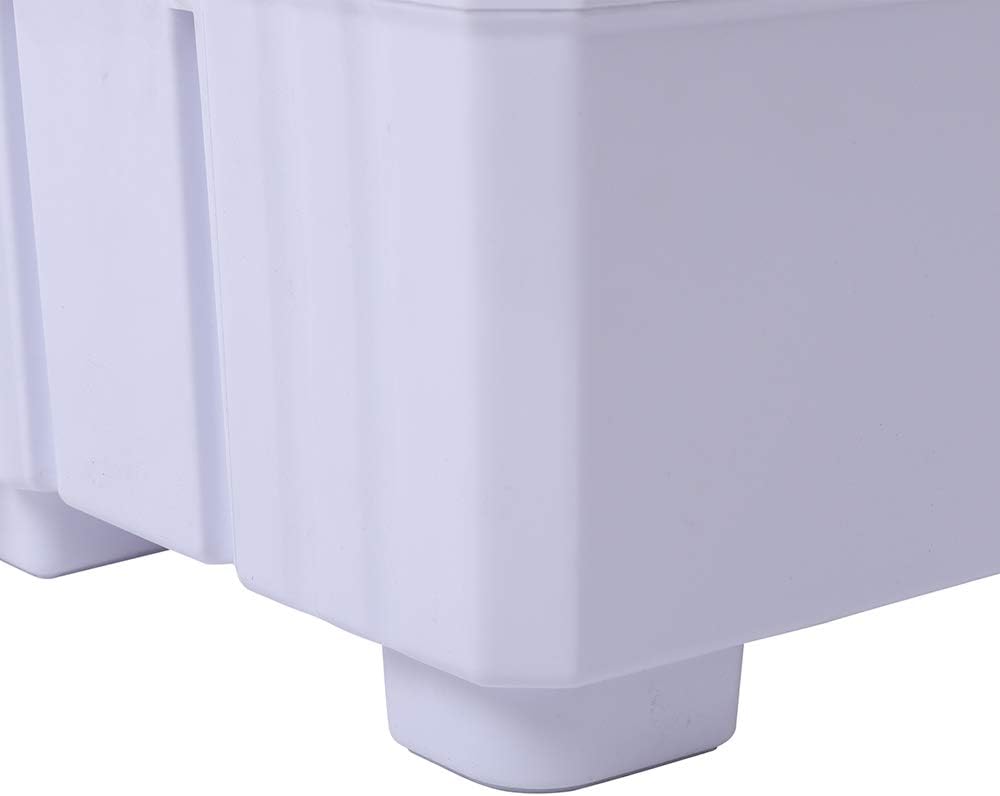

• Ensure the machine is placed on a stable, level surface to prevent vibration and noise.
• Do not open the spin tub lid until the spin cycle has completely stopped.
• Avoid overloading the washing or spin tubs beyond their rated capacities.

Product Overview

The XPB45-ZK45 is a dual-tub semi-automatic washing machine designed for efficient and convenient laundry. It features separate tubs for washing and spinning, allowing for simultaneous operation.

Components and Controls

• Wash Timer Knob: Controls the duration of the wash cycle.
• Wash Selector Knob: Selects wash mode (e.g., Gentle, Normal, Drain).
• Spin Timer Knob: Controls the duration of the spin cycle.
• Wash Tub: For washing clothes. Rated capacity: 9.9 lbs.
• Spin Tub: For spinning/drying clothes. Rated capacity: 6.6 lbs.
• Water Inlet: Connection point for the water supply hose.
• Drain Hose: For draining water from both tubs. Features a built-in drain pump for easier water discharge.
• Power Cord: For connecting to the electrical outlet.

Setup

1. Unpacking: Carefully remove the washing machine from its packaging. Inspect for any damage during transit.
2. Placement: Place the washing machine on a firm, level surface. Ensure there is enough space around the machine for ventilation and operation. Avoid placing it in direct sunlight or in excessively damp environments.
3. Drain Hose Installation: Connect the drain hose to a suitable drainage point. The built-in drain pump allows for flexible placement, as it can discharge water through a longer pipe. Ensure the drain hose is not kinked or blocked.
4. Water Inlet Connection: Connect the provided water inlet hose to a water tap and to the water inlet port on the washing machine. Ensure connections are secure to prevent leaks.
5. Power Connection: Plug the power cord into a grounded 220V/60Hz electrical outlet.

Operating Instructions

Washing Clothes

1. Load Clothes: Open the wash tub lid and place clothes loosely into the wash tub. Do not exceed the rated washing capacity of 9.9 lbs.
2. Add Water and Detergent: Fill the wash tub with water to the desired level. Add appropriate amount of detergent.
3. Select Wash Mode: Turn the Wash Selector Knob to your desired wash mode (e.g., Gentle for delicate items, Normal for regular clothes).
4. Set Wash Timer: Turn the Wash Timer Knob to set the desired washing time (e.g., 0-15 minutes). The machine will start washing automatically.
5. Drain Water: Once the wash cycle is complete, turn the Wash Selector Knob to "Drain" to empty the water from the wash tub. The built-in drain pump will facilitate this process.

Spinning Clothes

1. Transfer Clothes: Carefully transfer the washed clothes from the wash tub to the spin tub. Distribute clothes evenly to prevent imbalance. Do not exceed the rated spin capacity of 6.6 lbs.
2. Secure Spin Tub: Place the spin cap (if provided) over the clothes in the spin tub and close the spin tub lid securely.
3. Set Spin Timer: Turn the Spin Timer Knob to set the desired spinning time (e.g., 0-5 minutes). The spin cycle will begin.
4. Wait for Stop: Allow the spin tub to come to a complete stop before opening the lid and removing clothes.

Note: The washing and spinning functions can be operated simultaneously for increased efficiency.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your washing machine.

• Cleaning the Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Cleaning the Tubs: After each use, rinse the wash and spin tubs with clean water. For deeper cleaning, occasionally run a wash cycle with just water and a small amount of vinegar or washing machine cleaner.
• Drain Hose: Periodically check the drain hose for blockages or kinks. Ensure it is clear for efficient water drainage.
• Water Inlet Filter: If water flow is reduced, check the filter screen at the water inlet connection for debris and clean it if necessary.
• Storage: If storing the machine for an extended period, ensure both tubs are empty and dry. Unplug the power cord and store the hoses neatly.

Troubleshooting

If the problem persists after attempting these solutions, please contact customer support.

Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact the retailer. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical assistance or spare parts, please contact the manufacturer's authorized service center. Details can typically be found on the product packaging or the brand's official website.
