1. Introduction and Overview
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your CT Copper Tailor 48 Inch Range Hood Insert with Remote Blower. This unit is designed to provide powerful and quiet ventilation for your kitchen, effectively removing smoke, odors, steam, heat, and grease.

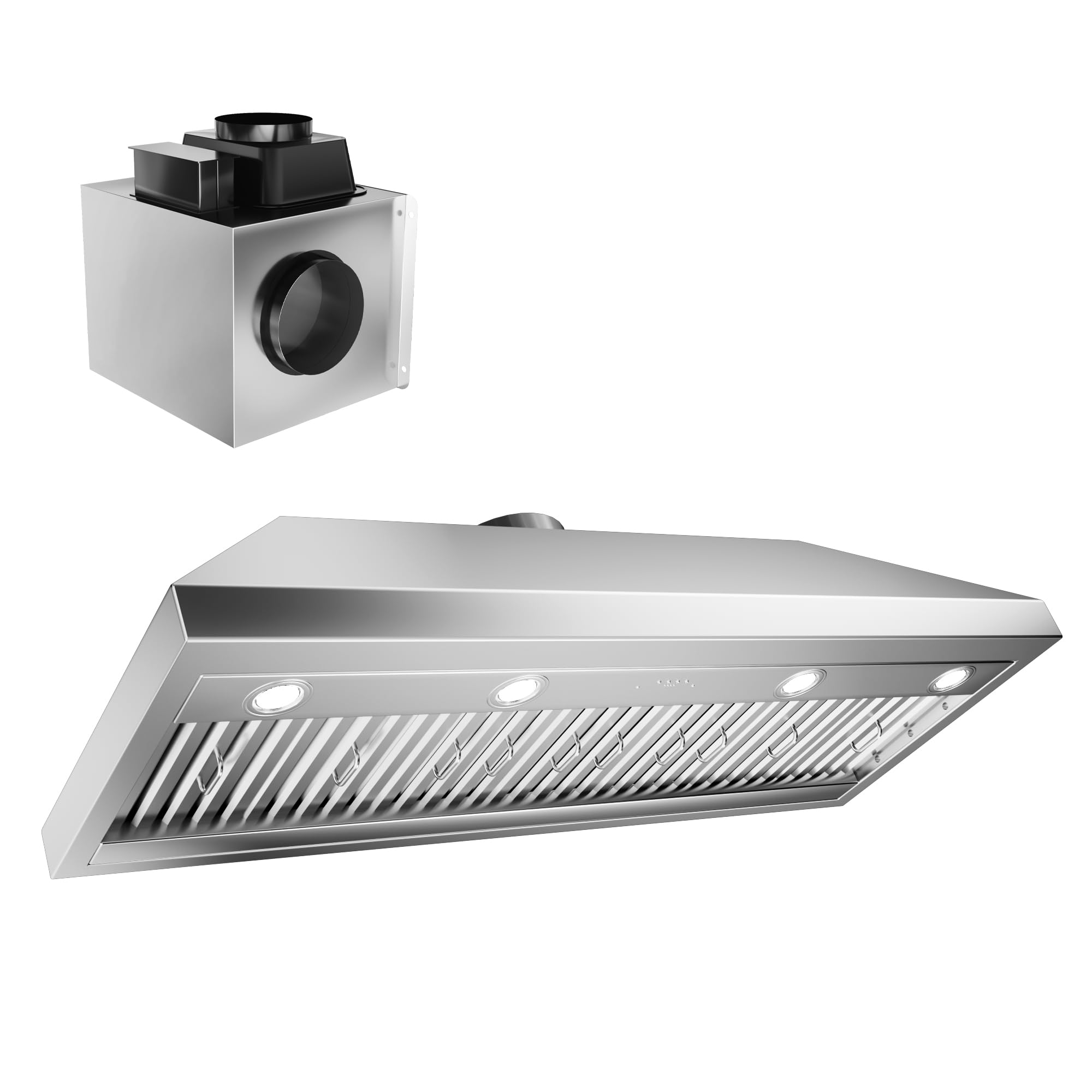

Image 1.1: The CT Copper Tailor 48 Inch Range Hood Insert, showcasing its sleek design and integrated lighting.
The system includes a built-in hood insert unit and a remote inline blower unit, which can be installed in an attic or other remote location for ultra-quiet operation. It delivers a maximum airflow of 1260 CFM, ensuring a clean and fresh cooking environment.
2. Safety Information
Please read all instructions carefully before installation and operation. Keep this manual for future reference.
- Electrical Safety: Ensure the power supply matches the unit's requirements (120V/60Hz). The unit uses a 3-prong plug. Always disconnect power before servicing.
- Installation: Installation should be performed by a qualified technician in accordance with all local codes and standards.
- Fire Hazard: Do not flambé under the range hood. Clean grease filters regularly to prevent grease buildup, which can be a fire hazard.
- Overheating Protection: The built-in hood vent insert is equipped with an automatic power shut-off feature if the temperature becomes too high, enhancing safety.
- Ducting: Use appropriate ducting materials and ensure proper sealing to prevent air leaks. The unit requires an 8-inch round exhaust duct.
3. What's in the Box
Verify that all components are present before beginning installation:
- Range Hood Insert Unit
- Remote Blower Unit
- Grease Filters
- 3-Prong Power Plug
- Mounting Screws
- User Manual
Image 3.1: Illustration of the power cord with a 3-prong plug and the 8-inch round vent connection point.
4. Setup and Installation
This range hood insert is designed for custom metal, wood, or plaster hood covers/cabinets and requires dedicated attic space for the remote blower. Professional installation is recommended.
4.1 Dimensions and Fit Check
Before purchase and installation, carefully verify all dimensions to ensure proper fit within your custom hood enclosure and available attic space.
- Vent Hood Insert Size: 46-3/8"W x 18"D x 10"H
- Inline Blower Size (L x W x H): 16"L x 15"W x 14.5"H
- Exhaust Duct: 8" Round
Image 4.1: Detailed diagram showing the dimensions of both the range hood insert and the remote blower unit.
4.2 Component Identification
Image 4.2: Separate views of the Remote Blower Unit and the Vent Hood Insert Unit, illustrating their distinct designs.
4.3 Custom Hood Compatibility
The design allows for integration with various custom hood materials, ensuring aesthetic compatibility with your kitchen style.
Image 4.3: Examples of the range hood insert integrated into custom hoods made from different materials, demonstrating its versatile fit.
5. Operating Instructions
The range hood features user-friendly controls for lighting and fan speed.
5.1 Controls
The unit is equipped with press-to-use buttons for easy control. These buttons allow you to adjust the fan speed and turn the LED lights on or off.
5.2 Fan Speed Settings
The 4-speed fan setting allows you to select the appropriate ventilation level for various cooking needs, from light simmering to heavy frying.
Image 5.1: Visual representation of the four fan speed settings and their recommended uses for different cooking intensities.
5.3 LED Lighting
The integrated LED lights provide sufficient and natural illumination for your cooking surface.
Image 5.2: Close-up view of the warm white LED lights providing clear illumination over a cooking area.
5.4 Powerful Ventilation
The 1260 CFM airflow efficiently removes smoke, odors, and heat from your kitchen.
Image 5.3: Illustration demonstrating the powerful 1260 CFM suction effectively clearing smoke and odors from the cooking area.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your range hood.
6.1 Cleaning Baffle Filters
The stainless steel baffle filters are designed to trap grease and oil effectively. They are dishwasher-safe for easy cleaning.
Image 6.1: A close-up view of the baffle filters being removed for cleaning, with an inset showing them in a dishwasher.
Image 6.2: Detailed view of the baffle filters, highlighting their design for efficient grease trapping and ease of cleaning.
6.2 Exterior Cleaning
The range hood features a smudge-proof 304 stainless steel surface, which resists fingerprints and stains. Clean the exterior with a soft cloth and mild detergent. Avoid abrasive cleaners.
Image 6.3: A comparison illustrating the smudge-proof stainless steel surface of the CT Copper Tailor range hood against a standard stainless steel surface.
7. Troubleshooting
If you encounter issues with your range hood, refer to the following common troubleshooting steps:
- No Power: Check if the unit is properly plugged into a working outlet. Verify the circuit breaker has not tripped.
- Weak Suction: Ensure baffle filters are clean and not clogged. Check for obstructions in the ductwork. Verify that the fan speed is set appropriately for the cooking task.
- Excessive Noise: Confirm that the remote blower is securely mounted. Check for loose parts or obstructions in the fan blades.
- Lights Not Working: Check if the LED light switch is on. If individual lights are out, they may need replacement (consult customer support).
- Automatic Shut-off: If the unit shuts off unexpectedly, it may be due to overheating. Allow the unit to cool down before attempting to restart. Ensure proper ventilation and clear any obstructions.
For persistent issues, please contact CT Copper Tailor customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | CT Copper Tailor |
| Model Number | CT48VH-IRB |
| Product Dimensions (Insert) | 18"D x 46.38"W x 10"H |
| Blower Dimensions (L x W x H) | 16"L x 15"W x 14.5"H |
| Air Flow Capacity | 1260 CFM |
| Noise Level | 69 dB |
| Number of Speeds | 4 |
| Control Method | Touch / Remote |
| Light Source | LED |
| Filter Type | Baffle (Dishwasher-Safe) |
| Material Type | 304 Commercial Grade Stainless Steel |
| Finish Type | Brushed |
| Voltage | 120 volts |
| Frequency | 60 hertz |
| Amperage | 2.1 A |
| Wattage | 252 watts |
| Mounting Type | Built-In Mount |
| Ventilation Type | Exhaust |
| Certifications | ETL Listed; Certified to CSA |
9. Warranty and Support
CT Copper Tailor provides an industry-leading ONE-YEAR parts warranty for this product, giving you peace of mind. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or any questions regarding your range hood, please contact CT Copper Tailor customer support. Have your model number (CT48VH-IRB) and purchase information ready when contacting support.
Contact Information: Please refer to your purchase documentation or the CT Copper Tailor official website for the most current customer support contact details.
