JACKCHEN Demolition Electric Jack Hammer JC-65 User Manual

1. Product Overview

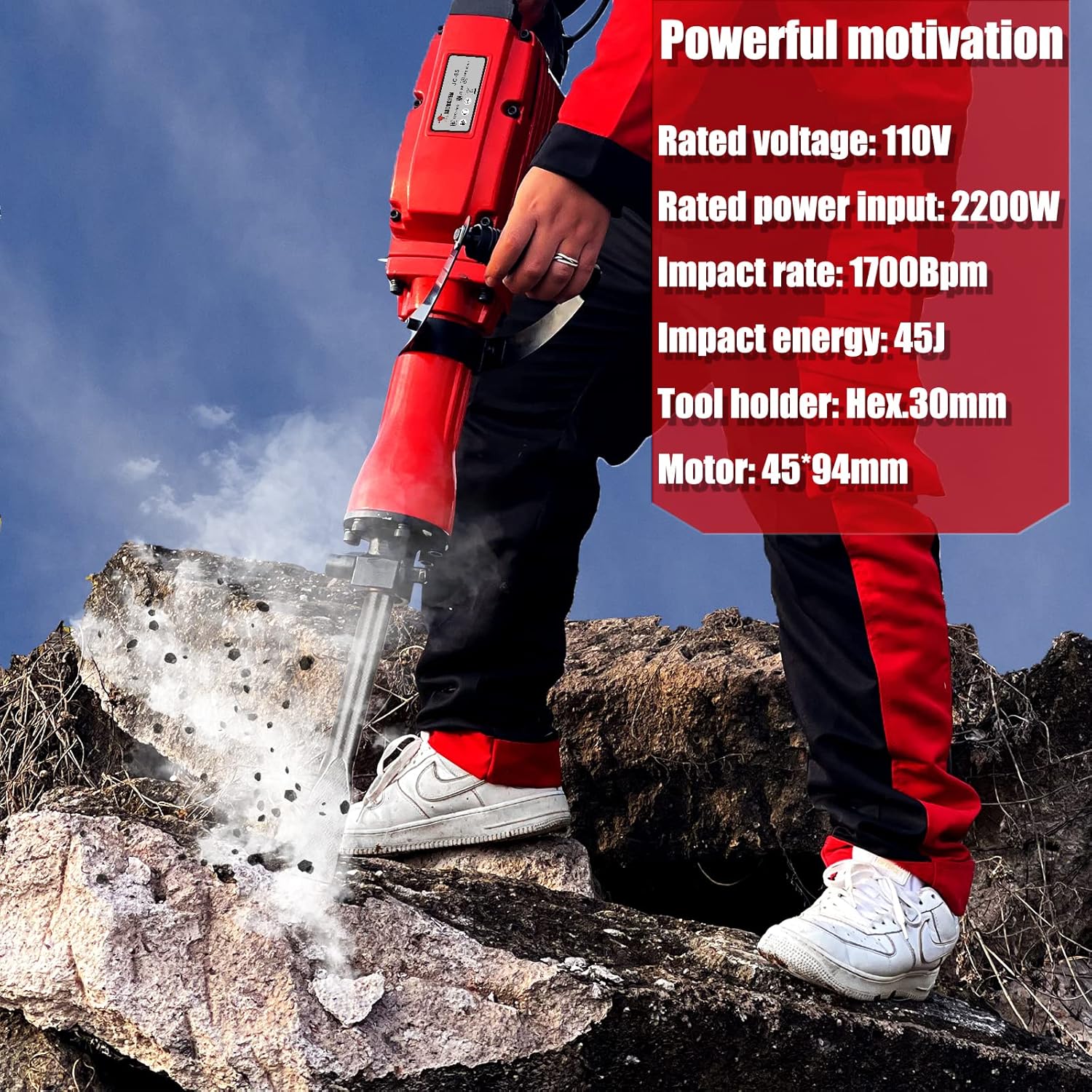

The JACKCHEN Demolition Electric Jack Hammer, model JC-65, is a heavy-duty power tool designed for breaking concrete, asphalt, and other hard materials. It features a powerful motor and a robust construction suitable for demanding demolition tasks.

Key Features:

• Powerful Motor: Equipped with a 2200W motor for efficient demolition.
• High Impact Rate: Delivers up to 1900 impacts per minute for rapid material removal.
• Ergonomic Design: Features a 360° adjustable handle and a D-shaped soft handle for improved comfort and control, reducing vibration and fatigue.
• Versatile Accessories: Includes a variety of chisel bits for different applications.
• Durable Construction: Built for longevity and consistent performance in tough environments.

2. Safety Instructions

Always prioritize safety when operating power tools. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

General Safety:

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
• Electrical Safety: Do not expose power tools to rain or wet conditions. Ensure the power cord is in good condition and avoid using it in damp locations. The tool operates on 110 Volts.
• Personal Safety: Always wear appropriate personal protective equipment (PPE).

Specific PPE for Demolition Hammer Use:

• Eye Protection: Wear safety glasses or goggles to protect against flying debris.
• Hearing Protection: Use earplugs or earmuffs to prevent hearing damage from loud noise.
• Hand Protection: Wear heavy-duty gloves to protect hands from vibration and sharp objects.
• Foot Protection: Wear hard-toe shoes to protect feet from falling objects.
• Respiratory Protection: Wear a dust mask when working in dusty environments.

WARNING: This tool is heavy (approximately 70.2 pounds). Use proper lifting techniques and maintain a stable stance to prevent injury.

3. Setup

3.1 Unpacking and Inspection

1. Carefully remove all components from the packaging.
2. Inspect the tool and accessories for any signs of damage during shipping. Do not operate if damaged.
3. Verify all included accessories are present: Demolition Hammer, 16" bullhead chisel, 16" flat chisel, D-shaped chisel, wrench, carbon brushes, gloves, safety goggles, and oil bottle.

3.2 Chisel Installation

1. Ensure the tool is unplugged from the power source.
2. Clean the shank of the desired chisel bit.
3. Insert the chisel bit into the tool holder until it clicks securely into place. The quick assembly/disassembly mechanism ensures a firm lock.
4. Pull on the chisel to confirm it is properly seated and cannot be easily removed.

3.3 Handle Adjustment

The D-shaped auxiliary handle can be adjusted 360° to provide optimal comfort and control for various working positions. Loosen the handle clamp, rotate the handle to the desired angle, and then securely tighten the clamp.

3.4 Lubrication

Before first use and periodically thereafter, ensure the tool is properly lubricated. The oil filling port is designed for quick lubrication. Use 15-40w oil as directed. Refer to the diagram for the oil filling port location.

4. Operating Instructions

4.1 Power Connection

Connect the power cord to a standard 110V AC outlet. Ensure the outlet is properly grounded.

4.2 Starting and Stopping

• To start the tool, press the trigger button located on the D-shaped handle.
• To stop the tool, release the trigger button.

4.3 Demolition Technique

1. Position the chisel bit against the material to be broken.
2. For initial breaking, hold the hammer at an angle, nearly perpendicular to the work surface, to 'under bite' the face of the material.
3. Once a crack or initial break is made, hold the hammer vertically to 'clip off' the top sections.
4. Repeat the process, working systematically across the material.
5. Take frequent breaks to avoid fatigue, especially given the tool's weight.
6. Regularly clear away broken debris from the work area.

5. Maintenance

5.1 Cleaning

After each use, disconnect the tool from power and clean off any dust and debris. Use a dry cloth or soft brush. Do not use water or chemical cleaners.

5.2 Lubrication

Regular lubrication is crucial for the longevity and performance of the jack hammer. Check the oil level periodically and refill with 15-40w oil as needed through the oil filling port.

5.3 Carbon Brush Replacement

The carbon brushes are wear items and will need replacement over time. When the tool's performance decreases or it stops working, inspect the carbon brushes. Replace both brushes simultaneously with genuine JACKCHEN replacement parts.

6. Troubleshooting

This section addresses common issues you might encounter with your JACKCHEN Demolition Electric Jack Hammer.

6.1 Tool Does Not Start

• Check Power Connection: Ensure the power cord is securely plugged into a functional 110V outlet.
• Circuit Breaker: Verify that the circuit breaker has not tripped.
• Carbon Brushes: Worn carbon brushes can prevent the motor from starting. Inspect and replace if necessary.

6.2 Reduced Impact Performance

• Lubrication: Insufficient oil can reduce impact force. Check and refill the oil reservoir.
• Chisel Condition: A dull or damaged chisel bit will perform poorly. Replace with a sharp, undamaged bit.
• Carbon Brushes: Partially worn brushes can lead to reduced power. Replace if needed.

6.3 Excessive Vibration or Noise

• Chisel Seating: Ensure the chisel bit is correctly and securely installed in the tool holder.
• Loose Components: Check for any loose screws or parts on the tool body or handle. Tighten as required.
• Internal Damage: If the issue persists, discontinue use and contact customer support.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

Specific warranty details for the JACKCHEN Demolition Electric Jack Hammer JC-65 are typically provided with the product packaging or can be obtained directly from the manufacturer. Please retain your proof of purchase for any warranty claims.

8.2 Customer Support

For technical assistance, replacement parts, or any other inquiries, please contact JACKCHEN customer support. Refer to the contact information provided in your product documentation or visit the official JACKCHEN website.
