1. Introduction
Thank you for choosing the DEIME 4.2 QT Digital Air Fryer. This appliance is designed to provide a healthier way to cook your favorite foods, utilizing rapid hot air circulation to achieve crispy results with significantly less oil. Please read this manual thoroughly before operation to ensure safe and efficient use of your new air fryer.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury.
- Read all instructions before use.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the basket is properly inserted and locked before operating.
- Do not block any ventilation openings.
3. Product Overview
Components
- Main Unit with Digital LCD Touch Screen
- Removable Non-Stick Basket
- Non-Stick Rack/Crisper Plate
- Integrated Handle
- Visual Cooking Window with Built-in Light
Figure 3.1: DEIME 4.2 QT Digital Air Fryer, showcasing its sleek gray design with a gold handle and a front viewing window displaying food.
Key Features
- 4.2 QT Capacity: Ideal for 2-5 people, fitting a 3-5 lbs chicken or multiple servings of fries.
- 1200W Power: Ensures rapid heating and efficient cooking.
- Digital LCD Touch Screen: Intuitive interface for easy operation.
- 7 Preset Cooking Programs: One-touch cooking for common dishes like fries, chicken, bacon, shrimp, steak, cake, and fish.
- Visual Cooking Window: Allows monitoring of food without opening the basket, preserving heat.
- Non-Stick Basket & Rack: Designed for easy food release and cleaning.
- 360° Hot Air Circulation: Ensures even cooking and crispy results with up to 80% less fat.
Figure 3.2: The air fryer's digital touch screen displaying 7 preset cooking functions, including Fries, Bacon, Shrimp, Chicken, Steak, Cake, and Fish.
Figure 3.3: A close-up view of the air fryer's cooking viewing window, highlighting the built-in light and heat-resistant glass for easy monitoring of food during cooking.
4. Setup
Unpacking
- Carefully remove all packaging materials from the air fryer.
- Remove any stickers or labels from the appliance.
- Clean the basket and crisper plate with hot water, dish soap, and a non-abrasive sponge.
- Wipe the inside and outside of the appliance with a damp cloth.
Placement
- Place the air fryer on a stable, horizontal, and heat-resistant surface.
- Ensure there is at least 4 inches (10 cm) of free space on the back and sides, and 4 inches (10 cm) above the appliance to allow for proper air circulation.
- Do not place the appliance against a wall or other appliances.
5. Operating Instructions
Preheating
- Plug the air fryer into a grounded wall outlet.
- Press the power button to turn on the display.
- Set the desired temperature (e.g., 375°F) and time (e.g., 3-5 minutes) for preheating.
- Press the start button to begin preheating.
Cooking with Presets
- Place food in the air fryer basket. Do not overfill.
- Slide the basket back into the air fryer until it clicks into place.
- Press the power button to activate the display.
- Select one of the 7 preset cooking programs by tapping the corresponding icon on the touch screen. The air fryer will automatically set the optimal temperature and time.
- Press the start button to begin cooking.
Manual Cooking (Adjusting Temperature and Time)
- Place food in the air fryer basket and slide it into the unit.
- Press the power button.
- Use the temperature control buttons (up/down arrows) to adjust the temperature from 180°F to 400°F.
- Use the time control buttons (up/down arrows) to adjust the cooking time from 1 to 60 minutes.
- Press the start button to begin cooking.

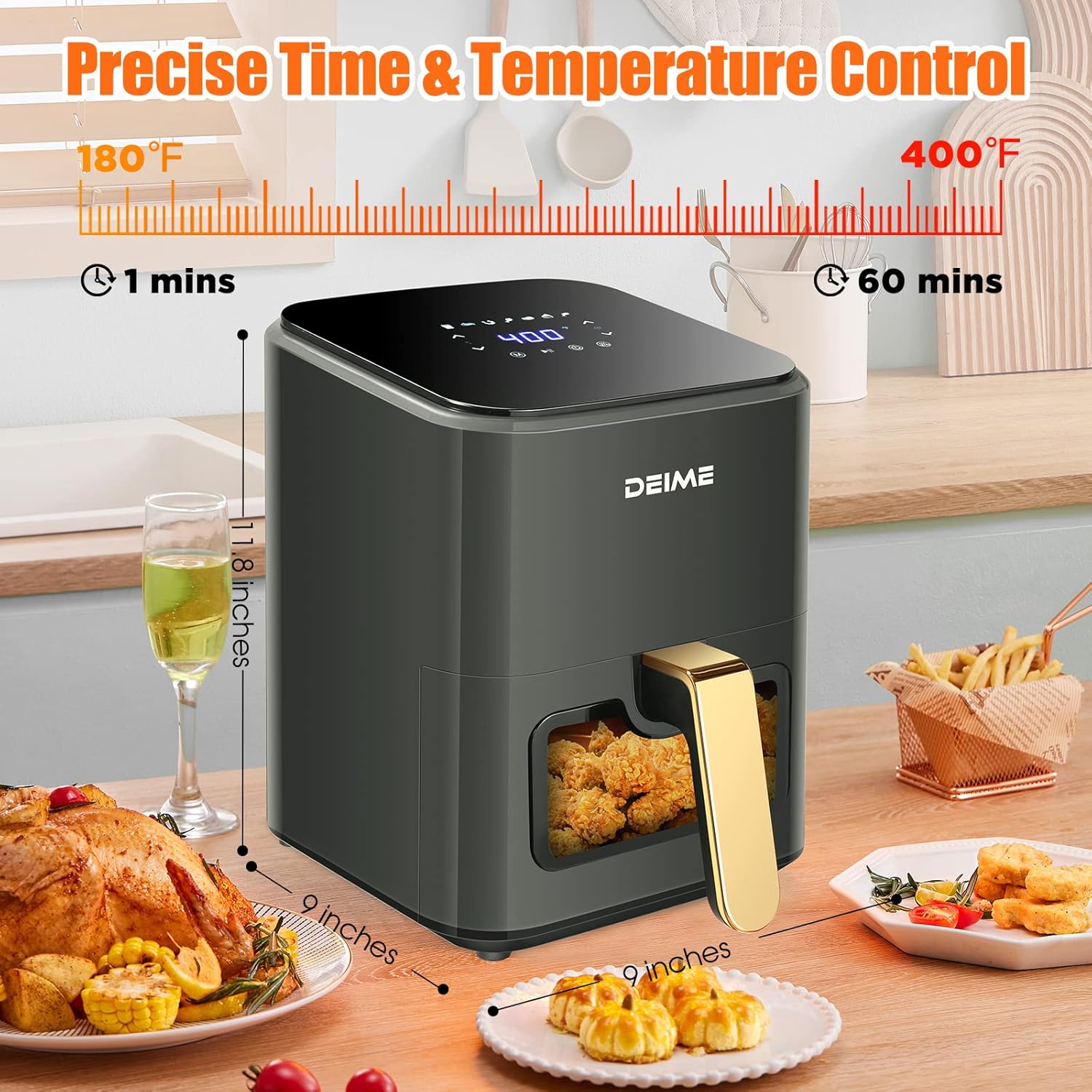

Figure 5.1: Illustration demonstrating the precise time and temperature control capabilities of the DEIME Air Fryer, with a temperature range of 180°F to 400°F and a timer up to 60 minutes.
Shaking Food
- For some recipes, it is recommended to shake the ingredients halfway through the cooking time to ensure even cooking.
- Carefully pull the basket out of the appliance by the handle. The air fryer will automatically pause.
- Shake the basket gently.
- Slide the basket back into the air fryer. Cooking will resume automatically.
Using the Viewing Window
- The visual cooking window allows you to observe the cooking progress without interrupting the cycle.
- Press the light bulb icon on the touch screen to illuminate the interior of the basket. The light will turn off automatically after a few seconds or can be turned off manually by pressing the icon again.
6. Maintenance and Cleaning
Regular cleaning of your air fryer will ensure optimal performance and extend its lifespan.
Before Cleaning
- Always unplug the air fryer from the power outlet and allow it to cool down completely before cleaning.
Cleaning the Basket and Crisper Plate
- The non-stick basket and crisper plate are dishwasher safe.
- Alternatively, they can be washed by hand with hot water, dish soap, and a non-abrasive sponge.
- For stubborn food residue, soak the basket and crisper plate in hot water with some dish soap for about 10 minutes before cleaning.
- Ensure the silicone bumpers on the crisper plate are securely attached.
Figure 6.1: A person demonstrating the ease of cleaning the non-stick air fryer basket under running water.
Cleaning the Main Unit
- Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads.
- Clean the interior of the appliance with a damp cloth.
- If necessary, use a soft brush to remove any food residue from the heating element.
Storage
- Store the air fryer in a cool, dry place.
- Ensure all parts are clean and dry before storage.
7. Troubleshooting
If you encounter any issues with your DEIME Air Fryer, please refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in; Power button not pressed; Power button light flickering/not working. | Ensure the power cord is securely plugged into a grounded outlet. Press the power button firmly. If the light flickers, try unplugging and replugging the unit. |
| Food is not cooked evenly. | Basket is overcrowded; Food not shaken during cooking. | Cook food in smaller batches. Shake the basket halfway through the cooking process. |
| Food is not crispy. | Not enough oil (for certain foods); Temperature too low; Cooking time too short. | Lightly brush or spray food with oil. Increase temperature or cooking time as needed. |
| White smoke coming from the appliance. | Grease residue from previous use; High-fat food being cooked. | Clean the basket and crisper plate thoroughly. For high-fat foods, drain excess fat from the basket during cooking. |
| Basket does not slide in smoothly. | Basket not aligned correctly; Obstruction. | Ensure the basket is empty and aligned properly with the guides. Check for any food debris or foreign objects obstructing the path. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | deime |
| Model Name | Air Fryer |
| Capacity | 4.2 Quarts |
| Output Wattage | 1200 Watts |
| Voltage | 110 Volts |
| Control Method | Touch |
| Max Temperature Setting | 400 Degrees Fahrenheit |
| Product Dimensions | 9"D x 9"W x 11.8"H |
| Item Weight | 8.93 pounds |
| Material | Plastic |
| Nonstick Coating | Yes |
| Dishwasher Safe Parts | Yes (Basket and Crisper Plate) |
9. Warranty and Support
The DEIME Air Fryer typically comes with a 1-year limited warranty from the date of purchase, covering defects in materials and workmanship under normal use. Please refer to your product packaging or purchase documentation for specific warranty terms and conditions.
For any questions, technical support, or warranty claims, please contact the seller directly through the Amazon platform where the product was purchased. Provide your order number and a detailed description of the issue for prompt assistance.
