Bstrip Plant Shelf with Grow Light User Manual

Introduction

This user manual provides comprehensive instructions for the assembly, operation, and maintenance of your Bstrip Plant Shelf with Grow Light. Designed for indoor plant cultivation, this 6-tier greenhouse system offers optimal lighting conditions and a controlled environment for various plants, from seed starting to flowering.

Product Overview

The Bstrip Plant Shelf with Grow Light is a versatile indoor gardening solution. It features a sturdy metal frame, five full-spectrum LED grow lights, a transparent EVA cover with a roll-up zippered door, and integrated PP mats for water leakage prevention. Its compact design and high bearing capacity make it suitable for various indoor spaces.

• Dimensions: 29.5" L x 13.8" W x 70" H
• Weight: Approximately 35.9 pounds (16.3 kg)
• Frame Material: Alloy Steel (Metal)
• Light Color: Warm Yellow, Pink

Figure 1: Fully assembled Bstrip Plant Shelf with Grow Light and cover.

Features

• Compact Footprint & Large Capacity: Measures 29.5" L × 13.8" W × 70" H with 6 tiers, ideal for 10" x 20" seed trays and displaying plants.
• Mobility & High Bearing Capability: Equipped with 8 industrial wheels (4 with fixed locks) for easy movement and secure placement. Constructed from sturdy material with good rust and oxidation resistance, supporting up to 270 lbs.
• Roll-Up Zippered Door & EVA Cover: Features a durable, transparent EVA material cover for easy plant observation. The high-quality zipper and ribbon ties allow for controlled ventilation, watering, and fertilization.
• Five Full-Spectrum LED Grow Lights: Lights are infinitely close to sunlight, providing necessary light for different growth stages. Offers three light modes: warm yellow, pink, and mixed light. Each light consumes 30W and outputs 206.5µmol/㎡/s, suitable for seed starting, growing, and flowering.
• Water Leakage Prevention: Includes 6 PP mats to prevent water from reaching the grow lights during watering, protecting electrical components.

Figure 2: Details of the durable EVA transparent cover, showing roll-up door, smooth zipper, EVA material, and ventilated windows.

Figure 3: Illustration of the three distinct light modes (Seedling, Growing, Fruit & Flower) provided by the LED grow lights to support different plant stages.

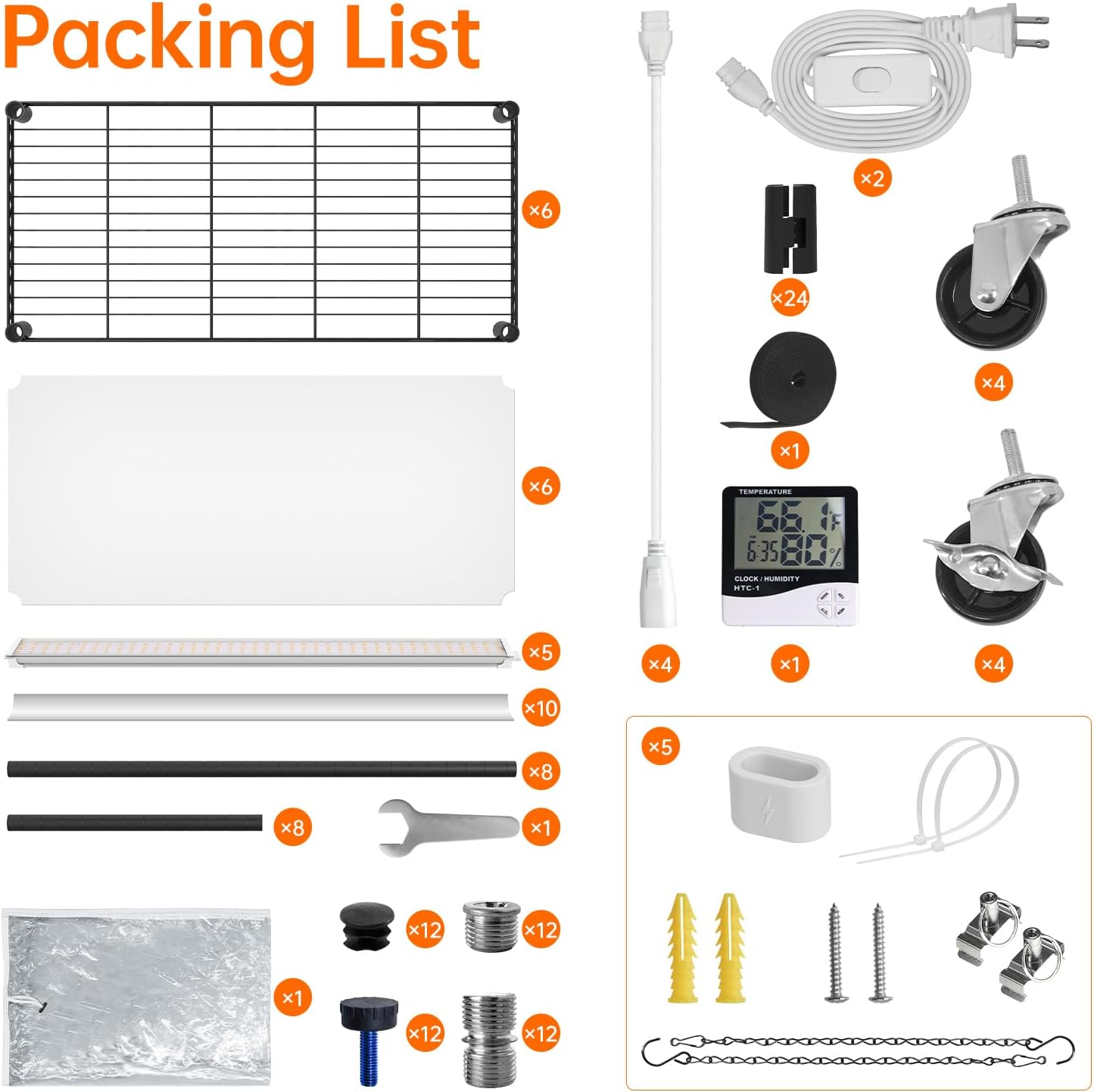

Packing List

Please verify that all components are present before beginning assembly:

Figure 4: Visual representation of all components included in the package.

• Wire Shelves (x6)
• PP Mats (x6)
• LED Grow Lights (x5)
• Light Fixture Supports (x10)
• Vertical Poles (x8)
• Horizontal Bars (x8)
• Wrench (x1)
• Plastic Clips (x24)
• Wheels (x8, 4 with locks)
• Storage Belt (x1)
• Thermometer/Hygrometer (x1)
• Power Cords (x2)
• Light Connectors (x4)
• Wall Anchors & Screws (x5 sets)
• Zip Ties (various)
• End Caps (x12)
• Adjustable Feet (x12)
• Hanging Chains (various)

Setup Instructions

Assembly is straightforward and typically takes a short amount of time. Follow these steps for proper setup:

1. Unpack Components: Carefully remove all parts from the packaging and verify against the packing list.
2. Assemble Frame: Connect the vertical poles using the plastic clips to form the desired height and number of tiers. Ensure clips are securely fastened at the desired shelf height.
3. Install Shelves: Slide the wire shelves over the assembled poles, resting them on the plastic clips. Adjust shelf height as needed to accommodate plant growth.
4. Attach Wheels or Feet: Screw in the industrial wheels for mobility or the adjustable feet for stationary placement into the bottom of the vertical poles. If using wheels, ensure the locking mechanisms are functional.
5. Install Grow Lights: Attach the LED grow lights to the underside of the shelves using the provided light fixture supports, zip ties, or hanging chains. Ensure lights are evenly spaced for optimal coverage.
6. Place PP Mats: Lay the PP mats on each wire shelf to prevent water leakage.
7. Apply EVA Cover: Drape the transparent EVA cover over the assembled shelf unit. Secure the cover using the zipper and ribbon ties.
8. Position Thermometer: Place the included thermometer/hygrometer inside the greenhouse for environmental monitoring.
9. Secure to Wall (Optional): For added stability, especially if the unit is tall or in a high-traffic area, use the provided wall anchors and screws to secure the shelf to a wall.

Figure 5: Illustration of the shelf's strong bearing capacity, adjustable shelves, and locking wheels.

Operating Instructions

Operating your Bstrip Plant Shelf is simple and designed for efficient plant growth:

1. Power On/Off: Connect the grow lights to a power source. Use the integrated button switch on the power cord for quick on and off control of the lights.
2. Select Light Mode: The LED grow lights offer three modes: warm yellow, pink, and mixed light. Cycle through these modes to select the appropriate spectrum for your plants' current growth stage (e.g., seedling, vegetative, flowering).
3. Adjust Light Height: As plants grow, adjust the height of the grow lights to maintain optimal distance from the plant canopy. This can be done by repositioning the hanging chains or supports.
4. Manage Environment with Cover:
   • Ventilation: Use the roll-up zippered door and side ventilated windows to control airflow and humidity within the greenhouse.
   • Humidity & Temperature: Monitor internal conditions using the provided thermometer/hygrometer. Adjust ventilation as needed to maintain ideal levels for your specific plants.
5. Watering: Water plants as needed. The PP mats will collect excess water, preventing it from dripping onto the lights or lower shelves.
6. Mobility: Unlock the wheels to move the shelf to a new location. Lock the wheels once positioned to ensure stability.

Figure 6: Close-up of the button switch for controlling the grow lights.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your plant shelf:

• Cleaning: Wipe down the metal frame and shelves with a damp cloth periodically to remove dust and debris. The EVA cover can be wiped clean with a mild soap solution and water.
• Water Management: Regularly check and empty any accumulated water from the PP mats to prevent overflow and maintain hygiene.
• Light Inspection: Periodically inspect the grow lights and their connections for any signs of wear or damage. Ensure they are securely attached.
• Cover Care: Handle the EVA cover with care to avoid tears or punctures. When not in use, it can be rolled up and secured with the ribbon ties.
• Wheel/Foot Check: Ensure wheels are clean and roll smoothly. If using adjustable feet, verify they are stable and level.

Troubleshooting

Refer to this section for common issues and their solutions:

Specifications

• Brand: Bstrip
• Model Number: Greenhouse with Grow Light
• Product Dimensions: 29.5"L x 13.8"W x 70"H
• Item Weight: 35.9 pounds (16.3 Kilograms)
• Frame Material: Alloy Steel (Metal)
• Light Color: Warm Yellow, Pink
• Power Source: AC/DC
• Special Features: Roll-up zippered door, EVA cover, five full-spectrum LED grow lights with adjustable light modes, waterproof design with PP mats.

Warranty & Support

For warranty information or technical support, please refer to the contact details provided with your product packaging or visit the official Bstrip website. Keep your purchase receipt for warranty claims.
