GGM Gastro Premium Refrigerator ECO - KS600ND User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your GGM Gastro Premium Refrigerator ECO, model KS600ND. Please read this manual thoroughly before operating the appliance and keep it for future reference.

The GGM Gastro Premium Refrigerator ECO is designed for professional use in catering environments, offering reliable and consistent cooling for various food items. Its ECO-design ensures high performance with low power consumption.

2. Safety Instructions

Always adhere to the following safety precautions to prevent injury or damage to the appliance.

2.1 General Safety

• Ensure the appliance is placed on a stable, level surface.
• Do not block ventilation openings in the appliance enclosure or in the built-in structure.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• This appliance is intended for commercial use only.
• Keep children away from the appliance.
• The appliance body is made of high-quality AISI 430 stainless steel. Handle with care during installation to avoid scratches or dents.

2.2 Electrical Safety

• Connect the appliance only to a grounded power outlet with the specified voltage (230 V/1N/PE/50 Hz).
• Do not use extension cords or adapters.
• Always unplug the appliance before cleaning or performing any maintenance.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

3. Product Overview and Features

The GGM Gastro Premium Refrigerator ECO KS600ND is a robust and efficient cooling solution for professional kitchens.

Figure 3.1: Front view of the GGM Gastro Premium Refrigerator ECO KS600ND, showcasing its stainless steel finish and top-mounted control panel.

Figure 3.2: The refrigerator with its external dimensions: 740mm width, 730mm depth, and 2010mm height.

Key Features:

• ECO-design: High performance with low power consumption, environmentally friendly.
• High-Quality Construction: Body made of high-quality AISI 430 stainless steel (0.90 mm thickness).
• Optimal Insulation: Features 60mm insulation for efficient temperature retention.
• Digital Thermostat: Precise temperature control and display.
• Circulating Air Cooling: Ensures strong and constant cooling throughout the compartment.
• Automatic Defrost Function: Simplifies maintenance and prevents ice buildup.
• Integrated Door Lock: Provides optimal security for stored contents.
• Quiet Operation: Designed for minimal noise.
• Reversible Door: Door stop is exchangeable for flexible placement.
• Spacious Interior: 600 liters capacity with rounded inner corners for easy cleaning.
• Refrigerant: Uses R290, CFC-free.
• LED Lighting: Interior LED lighting for clear visibility.

4. Package Contents

Upon unpacking, ensure all the following items are present:

• 1x GGM Gastro Premium Refrigerator ECO KS600ND unit
• 3x Load rails
• 3x Pairs of stainless steel rails (for shelves)
• 4x Wheels (pre-installed or to be installed)
• 1x Set of keys for the integrated door lock
• 1x User Manual (this document)

5. Setup and Installation

5.1 Unpacking

Carefully remove the refrigerator from its packaging. Inspect the unit for any signs of damage incurred during transit. Report any damage to your supplier immediately.

5.2 Placement

• Place the refrigerator on a firm, level surface capable of supporting its weight (approx. 110.25 kg empty, plus contents).
• Ensure adequate ventilation around the unit, especially at the top where the refrigeration unit is located. Maintain at least 10 cm clearance from walls or other objects.
• Avoid direct sunlight or proximity to heat sources (e.g., ovens, radiators) as this will affect cooling efficiency and increase energy consumption.
• The appliance is tested for ambient temperatures up to 38°C.

5.3 Initial Cleaning

Before first use, clean the interior and exterior of the refrigerator with a mild detergent and warm water. Wipe dry thoroughly. Do not use abrasive cleaners or solvents.

5.4 Power Connection

After placement and initial cleaning, connect the power cord to a dedicated, grounded 230 V/1N/PE/50 Hz electrical outlet. Allow the refrigerator to stand for at least 2 hours before plugging it in to allow the refrigerant to settle.

6. Operating Instructions

6.1 Digital Thermostat and Control Panel

The refrigerator is equipped with a digital thermostat located above the front panel for precise temperature control and monitoring.

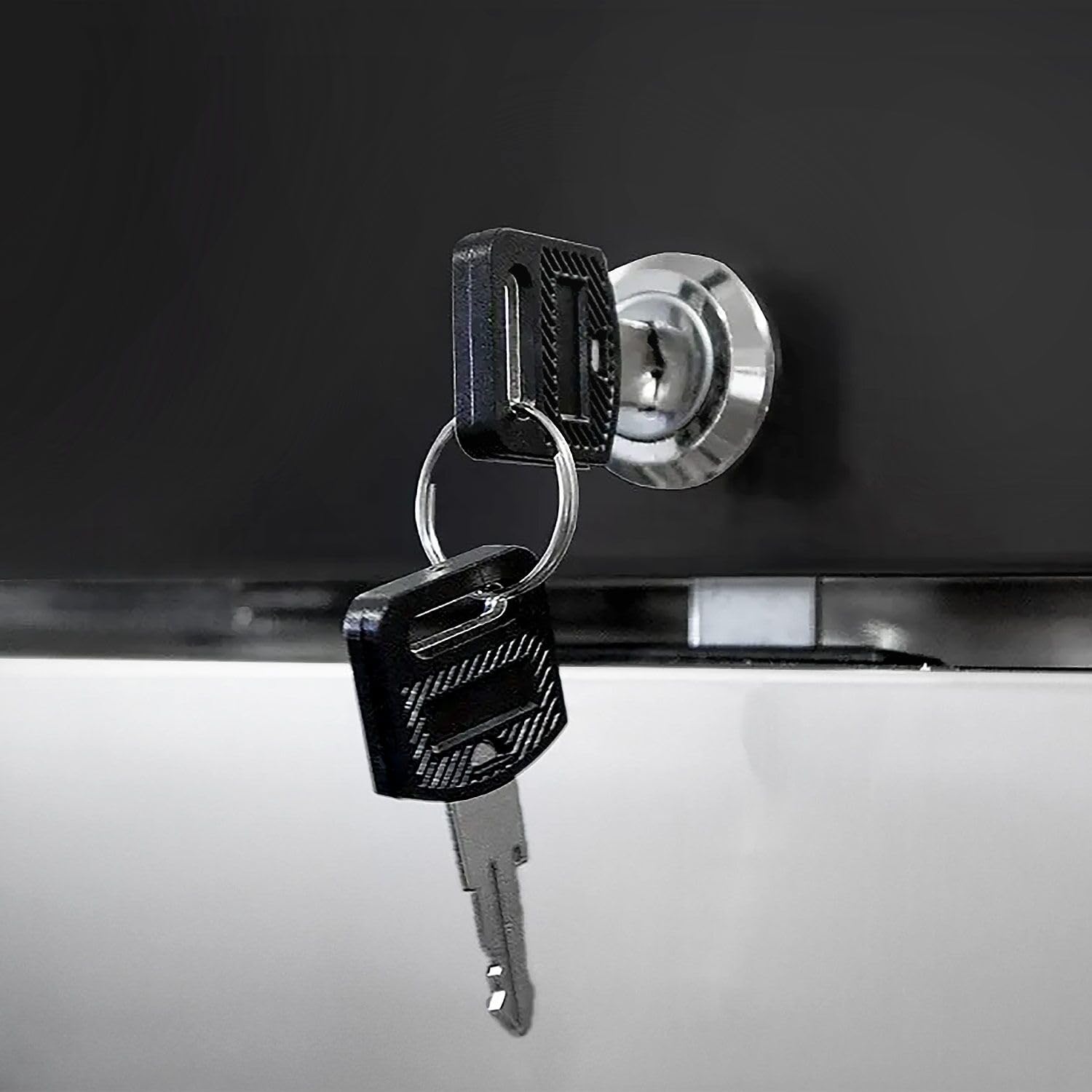

Figure 6.1: Detail of the integrated door lock, ensuring secure storage.

Figure 6.2: The spacious interior of the refrigerator, demonstrating its capacity for various food items on adjustable shelves.

Refer to the specific instructions provided with the thermostat unit for detailed programming and setting procedures. The typical temperature range for this unit is -2 °C to 8 °C.

6.2 Loading the Refrigerator

• The refrigerator is designed to accommodate GN 1/4 containers.
• Utilize the provided load rails and stainless steel shelf pairs to configure the interior according to your storage needs.
• Ensure proper air circulation by not overfilling the shelves and leaving space between items.
• The interior dimensions are 624 mm (W) x 602 mm (D) x 1414 mm (H).

6.3 Defrost Function

The unit features an automatic defrost function. This process typically occurs periodically to prevent ice buildup on the evaporator coils. During defrost, the temperature may temporarily rise slightly, which is normal. The melted water is automatically drained.

7. Maintenance

7.1 Cleaning

• Daily Cleaning: Wipe down the interior and exterior surfaces with a damp cloth and mild, food-safe detergent. Dry thoroughly.
• Monthly Cleaning: For a more thorough cleaning, remove all shelves and rails. Clean them separately. Clean the interior with a solution of warm water and baking soda or a specialized stainless steel cleaner.
• Condenser Coil Cleaning: Periodically clean the condenser coils (located at the top of the unit) to ensure optimal performance. Use a soft brush or vacuum cleaner to remove dust and debris. Always unplug the unit before cleaning the condenser coils.
• Do not use abrasive pads, steel wool, or harsh chemical cleaners on stainless steel surfaces, as they can scratch or damage the finish.

7.2 Door Seal Maintenance

Regularly inspect the door gasket for cracks or damage. A damaged gasket can lead to air leaks, reducing cooling efficiency. Clean the gasket with warm, soapy water and ensure it forms a tight seal when the door is closed.

8. Troubleshooting

Before contacting service, check the following common issues and solutions:

If the problem persists after attempting these solutions, please contact qualified service personnel or GGM Gastro customer support.

9. Specifications

Note: Specifications are subject to change without prior notice for product improvement.

10. Warranty and Support

For warranty information and technical support, please refer to the purchase documentation or contact your GGM Gastro supplier directly. Ensure you have your model number (KS600ND) and purchase date available when contacting support.

This product complies with European food standards and carries the CE marking according to relevant directives, ensuring hygiene and safety policies are met.
