1. Product Overview
This replacement remote control is designed for use with ZOKOP HT-1188, HT-1217, and HT1188 electric fireplace infrared heaters. It is pre-programmed and requires no additional setup or programming. Simply insert batteries, and it is ready for use.
Figure 1: Front view of the remote control, showing the button layout.
2. Setup and First Use
2.1 Inserting Batteries
The remote control requires two AAA batteries (not included). Follow these steps to install them:
- Turn the remote control over to locate the battery compartment on the back.
- Slide the battery compartment cover downwards to open it.
- Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery compartment cover back into place until it clicks securely.

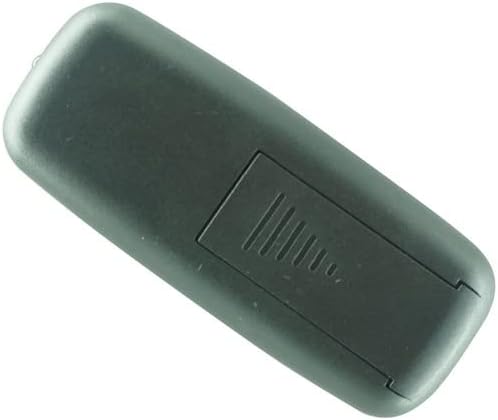

Figure 2: Back view of the remote control, showing the battery compartment.
Figure 3: Remote control with the battery compartment open, showing where to insert batteries.
Once batteries are inserted, the remote control is ready for immediate use with compatible ZOKOP electric fireplace infrared heaters. No programming is required.
3. Operating Your Remote Control
3.1 Basic Functions
The remote control provides convenient access to various functions of your electric fireplace heater. Refer to the button descriptions below:
- Power Button (⏻): Turns the fireplace heater ON or OFF.
- Flame Effect Button (🔥): Adjusts the flame brightness or turns the flame effect ON/OFF.
- Fan/Air Circulation Button (💨): Activates or adjusts the fan for air circulation.
- Temperature Up Button (⬆): Increases the desired temperature setting.
- Temperature Down Button (⬇): Decreases the desired temperature setting.
- Timer Button (⏱): Sets or adjusts the operating timer for the heater.
- Function/Mode Button (F): Cycles through different operating modes or functions of the heater.
3.2 Compatibility
This remote control is specifically designed to be compatible with the following ZOKOP electric fireplace infrared heater models:
- ZOKOP HT-1188
- ZOKOP HT-1217
Ensure your heater model is listed above for proper functionality.
4. Care and Maintenance
To ensure the longevity and proper functioning of your remote control, follow these care guidelines:
- Cleaning: Wipe the remote control with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface or internal components.
- Battery Replacement: Replace batteries promptly when the remote's range decreases or it stops responding. Always use new AAA batteries.
- Storage: If the remote control will not be used for an extended period, remove the batteries to prevent leakage and potential damage. Store it in a cool, dry place away from direct sunlight and extreme temperatures.
- Avoid Drops: Protect the remote from physical impact, as drops can damage internal circuitry.
5. Troubleshooting
If you experience issues with your remote control, consider the following troubleshooting steps:
- Remote Not Responding:
- Check if the batteries are inserted correctly with the correct polarity (+/-).
- Replace old batteries with new AAA batteries.
- Ensure there are no obstructions between the remote control and the infrared receiver on your electric fireplace heater.
- Confirm that the remote control is pointed directly at the heater's receiver.
- Limited Range:
- Replace batteries with new ones.
- Ensure no strong light sources (like direct sunlight or bright fluorescent lights) are interfering with the infrared signal.
- Incorrect Function:
- Verify that your electric fireplace heater model is listed as compatible (ZOKOP HT-1188, HT-1217).
- Ensure you are pressing the correct button for the desired function.
If problems persist after attempting these steps, please refer to the support information provided with your original electric fireplace heater or contact the seller of this remote control.
6. Product Specifications
| Model Number | 3868d763-814b-4bae-b21a-079eb603fb43 |
| Power Source | 2 x AAA Batteries (not included) |
| Connectivity Technology | Infrared |
| Compatible Devices | ZOKOP HT-1188, ZOKOP HT-1217 |
| Special Feature | No additional programming required |
7. Warranty and Customer Support
No specific warranty information is provided for this replacement remote control. For any issues or inquiries regarding this product, please contact the seller directly through your purchase platform. Ensure you have your order details ready for faster assistance.
