1. Product Overview
The Jorking Electric Spin Scrubber is an upgraded cordless power cleaning tool designed to make household cleaning tasks more efficient and enjoyable. It features a powerful motor, adjustable length, and a variety of interchangeable brush heads to tackle different surfaces and cleaning needs.
Key features include:
- Powerful Cleaning: Up to 420 RPM for effective stain and dirt removal.
- Interchangeable Brush Heads: Comes with 8 types of brush heads for versatile cleaning.
- Adjustable Length: Can be used as a 12-inch handheld scrubber or extended up to 43.3 inches.
- Digital Display & Voice Broadcast: LED display shows battery and speed, with voice prompts for operational status.
- Long Battery Life: Equipped with a 2600 mAh battery providing up to 100 minutes of working time on a single charge.
- IPX7 Waterproof: Designed for use in wet environments (do not immerse the digital display screen).

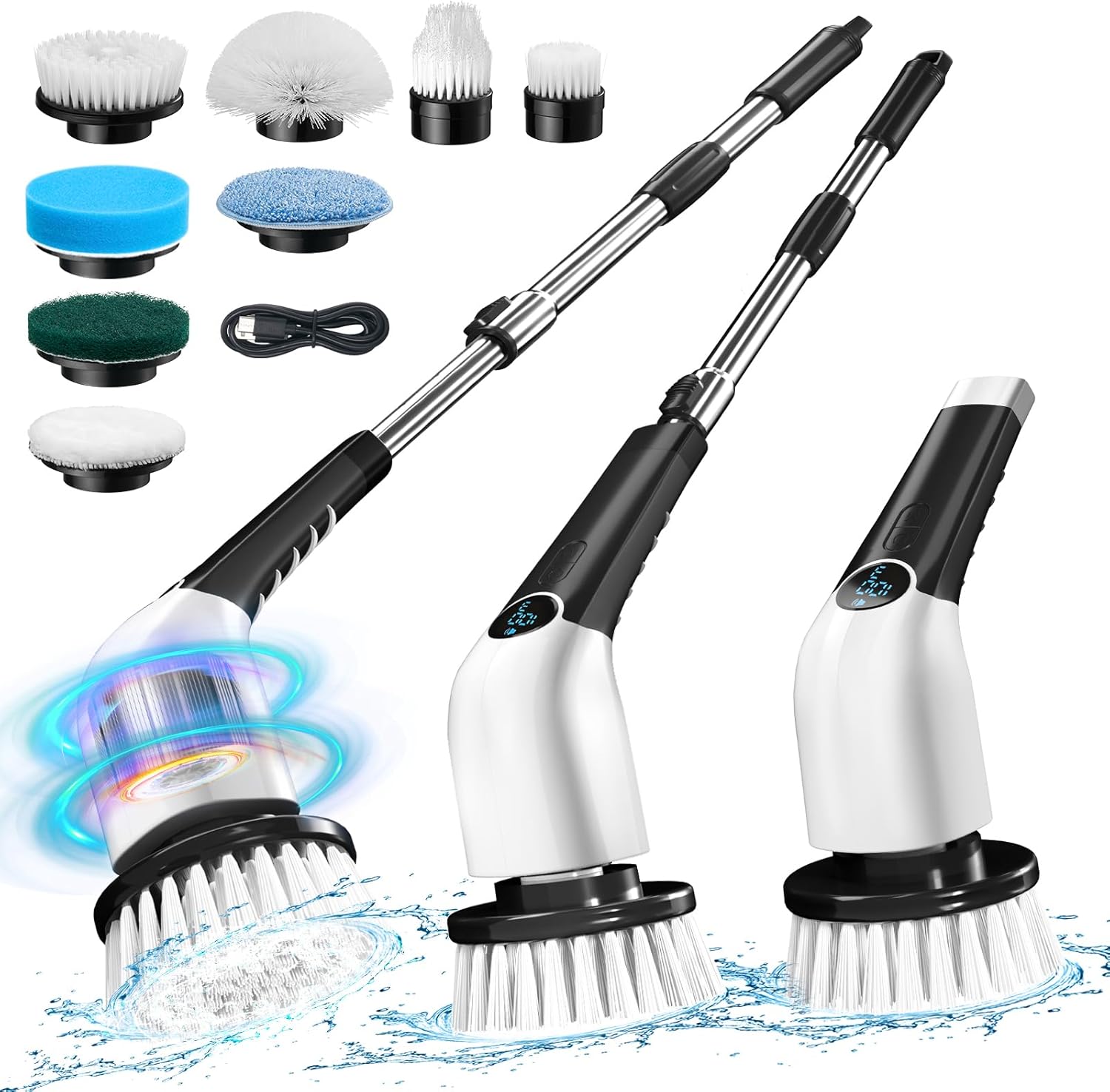

Figure 1.1: Jorking Electric Spin Scrubber with its full set of accessories.
2. Product Components
The Jorking Electric Spin Scrubber package includes the following items:
- 1 x Electric Spin Scrubber Unit
- 1 x Extendable Handle
- 8 x Replaceable Brush Heads (Large Flat Brush, Small Flat Brush, Corner Brush, Dome Brush, Scouring Pad, Absorbent Cloth, Sponge Brush, Copy Wool Brush)
- 1 x Charging Cable
- 1 x User Manual

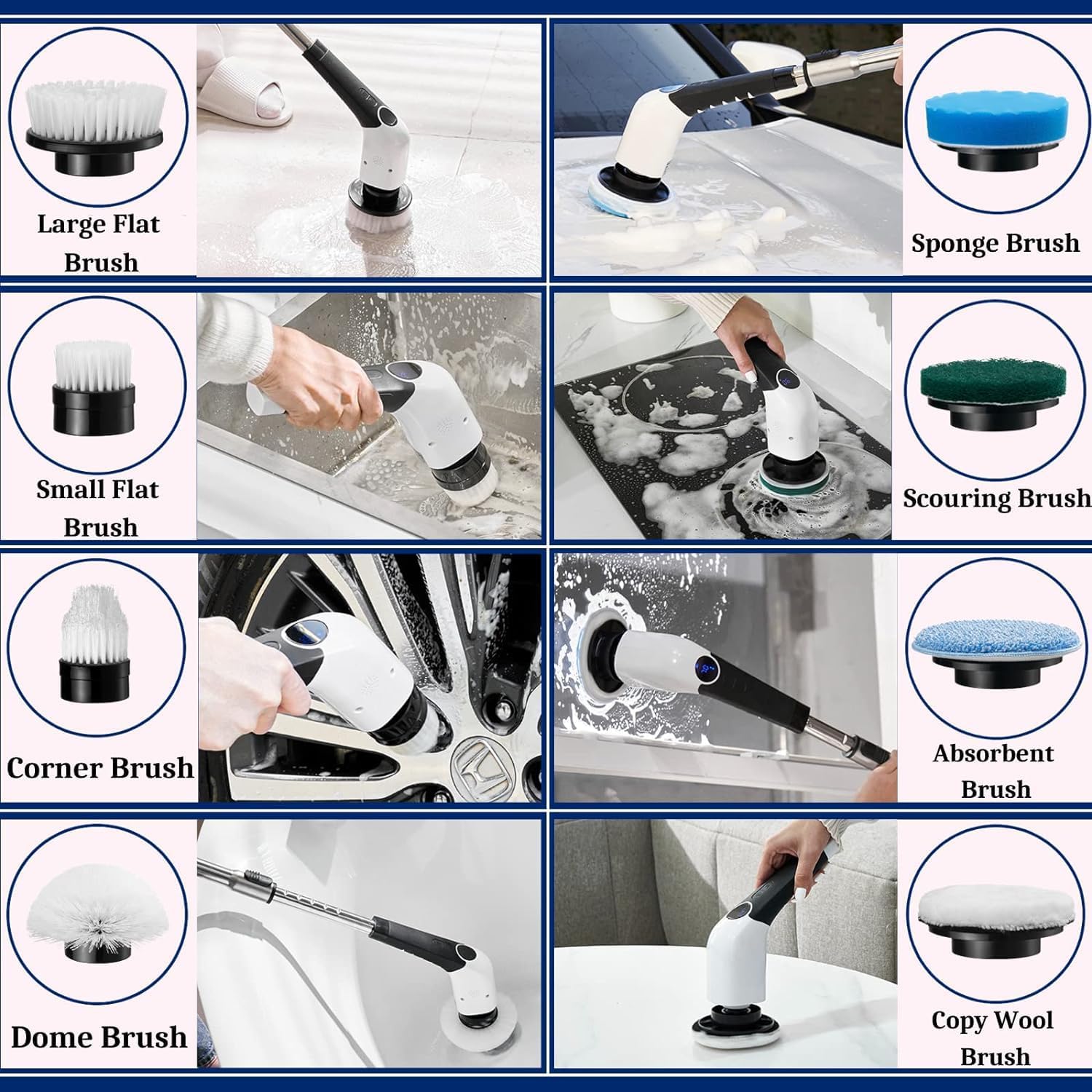

Figure 2.1: Overview of the 8 interchangeable brush heads.
3. Setup Instructions
- Initial Charging: Before first use, fully charge the scrubber. Connect the charging cable to the scrubber's charging port and plug the other end into a suitable USB power adapter (not included). The LED display will indicate charging status. A full charge takes approximately 3 hours.
- Attaching a Brush Head: Select the appropriate brush head for your cleaning task. Align the brush head with the rotating base of the scrubber and press firmly until it clicks into place. Ensure it is securely attached before operation.
- Assembling the Extension Handle (Optional): For extended reach, attach the extension handle. Insert the scrubber unit into one end of the handle and twist to secure. Then, connect the other sections of the handle as needed. The handle can be adjusted to various lengths up to 43.3 inches.

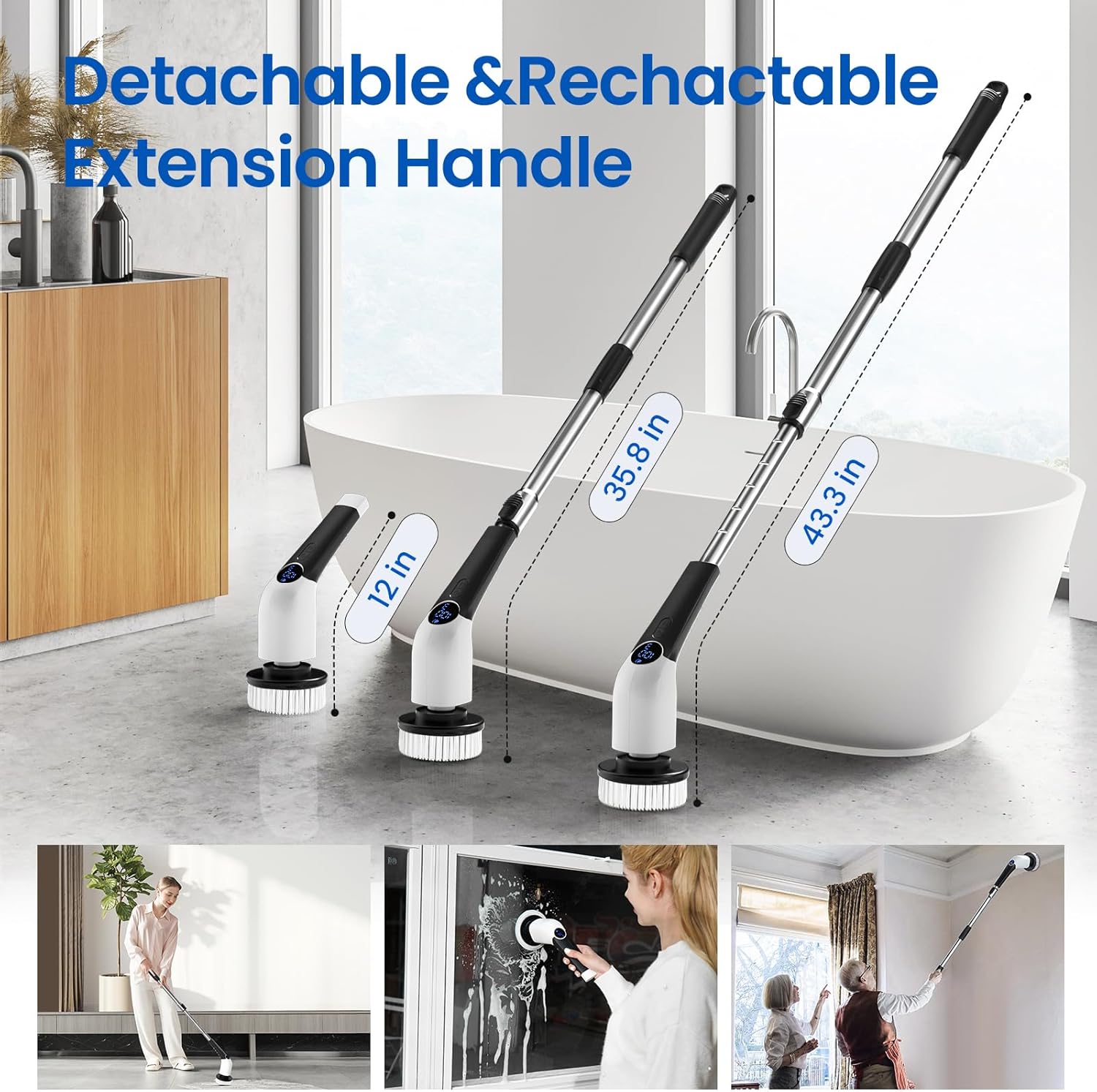

Figure 3.1: The scrubber can be used handheld or with the adjustable extension handle.
4. Operating Instructions
- Power On/Off: Press the power button to turn the scrubber on. Press again to turn it off.
- Adjusting Speed: The scrubber offers three speed settings: 260 RPM, 360 RPM, and 420 RPM. Press the speed adjustment button to cycle through the speeds. The LED display will show the current RPM.
- Voice Broadcast: The scrubber features a voice broadcast function that announces the current operating status, such as battery level and speed changes.
- Child Lock: For safety, the scrubber includes a child lock feature. Refer to the voice broadcast or LED display for instructions on activating/deactivating the child lock.
- Cleaning Application: Apply appropriate cleaning solution to the surface or brush head. Hold the scrubber firmly and guide the rotating brush over the area to be cleaned. Apply light pressure; the motor's power is designed to do the work.

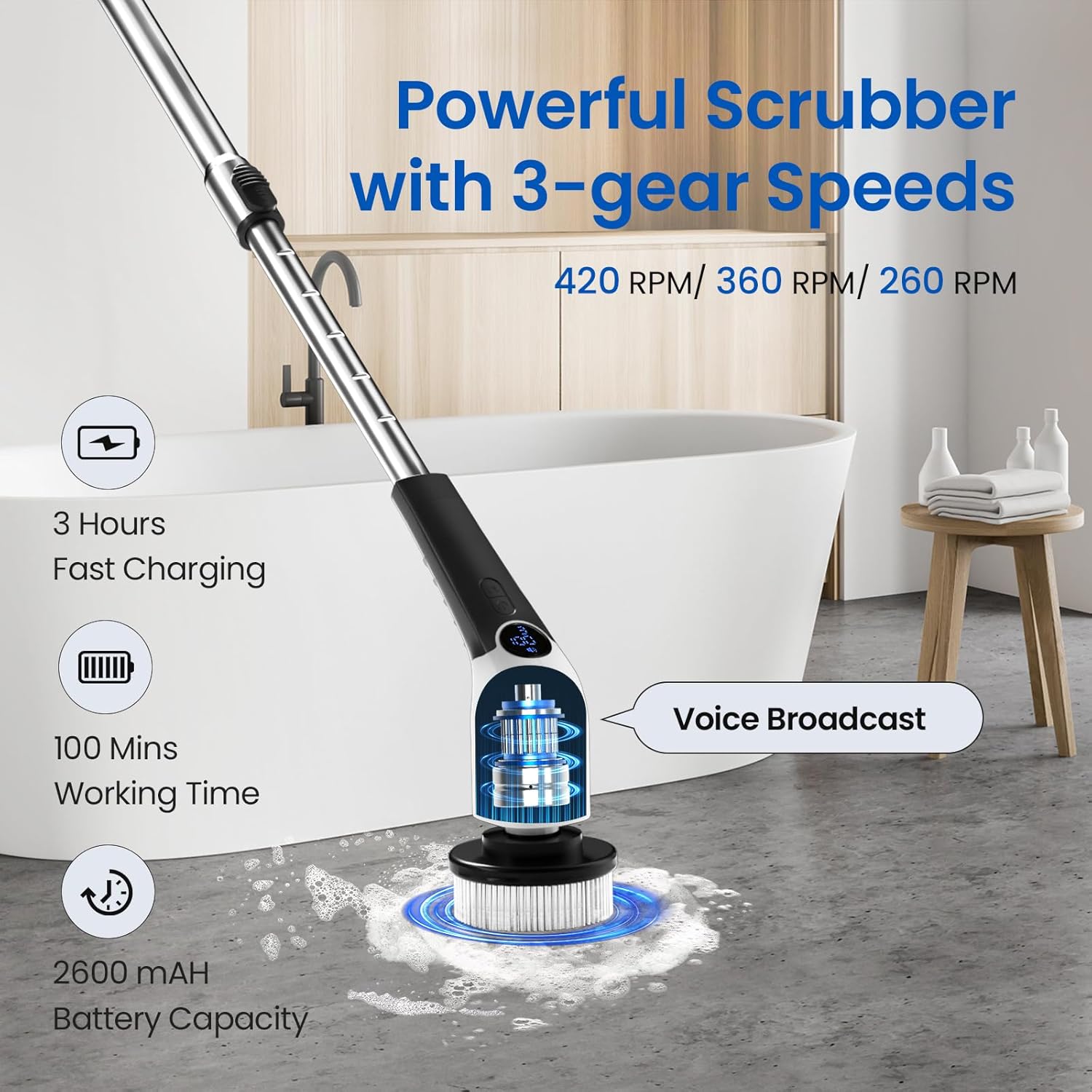

Figure 4.1: Digital display showing battery and speed, with voice broadcast capability.
5. Maintenance
- Cleaning the Scrubber: After each use, detach the brush head and rinse it thoroughly under running water. Wipe down the main scrubber unit with a damp cloth. Do not immerse the main unit (especially above the digital display) in water, as it is only IPX7 waterproof (splash-proof).
- Brush Head Care: Allow brush heads to air dry completely before storing. Replace brush heads when they show signs of wear or become less effective.
- Charging: Recharge the battery when the power indicator on the LED display is low. Avoid completely draining the battery for optimal battery life.
- Storage: Store the scrubber and its accessories in a cool, dry place away from direct sunlight and extreme temperatures.

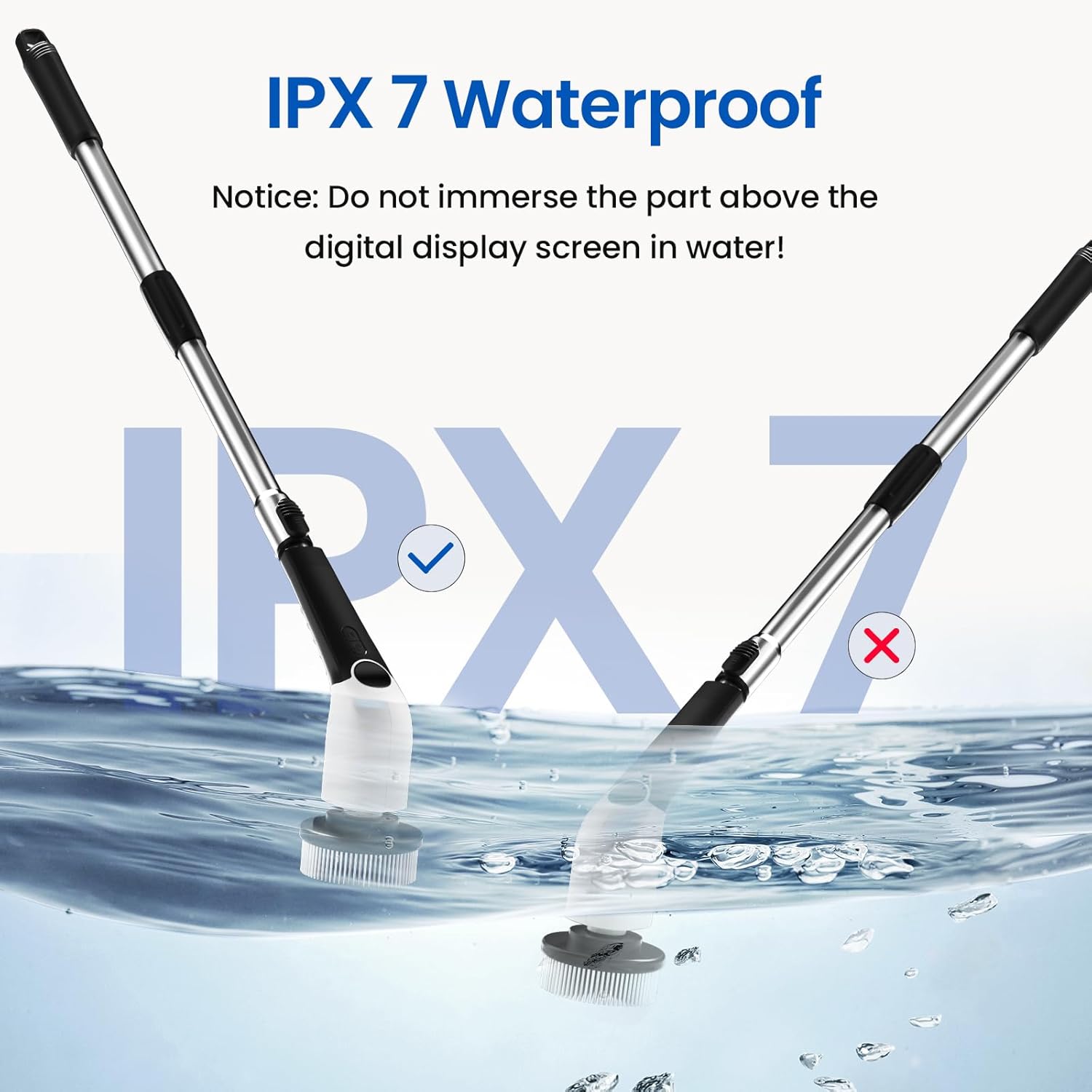

Figure 5.1: The scrubber is IPX7 waterproof, suitable for wet environments but avoid submerging the upper part.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scrubber does not turn on. | Battery is depleted. Child lock is active. | Charge the scrubber fully. Deactivate child lock as per voice broadcast instructions. |
| Brush head does not spin or spins weakly. | Low battery. Brush head not properly attached. Excessive pressure applied. | Recharge the battery. Ensure brush head is securely clicked into place. Reduce pressure during cleaning. |
| Voice broadcast is unclear or not working. | Volume setting too low. Speaker obstructed. | Check for volume adjustment options (if available). Ensure speaker area is clean and free of debris. |
| Scrubber not charging. | Charging cable or adapter faulty. Charging port obstructed. | Try a different USB charging cable and adapter. Ensure charging port is clean and free of debris. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | ANS-8051A |
| Brand | Jorking |
| Color | Black |
| Handle Material | Silicone, Stainless Steel |
| Product Dimensions | 4"L x 4"W x 46"H (fully extended) |
| Material | Fabric, Plastic, Silicon, Stainless Steel |
| Special Features | Extendable, Long Handle, Portable, Digital Display, Voice Broadcast |
| Battery Capacity | 2600 mAh Lithium Ion |
| Working Time | Up to 100 minutes |
| Charging Time | Approx. 3 hours |
| Speed Settings | 260 RPM, 360 RPM, 420 RPM |
| Waterproof Rating | IPX7 |
| Item Weight | 2.7 Pounds |
| Included Components | 1*Charging Line, 1*Electric Spin Scrubber, 1*User Manual, 8*Replaceable Brushes, Handle |
8. Warranty and Support
For warranty information and customer support, please refer to the contact details provided on the product packaging or the official Jorking website. Keep your purchase receipt as proof of purchase for any warranty claims.
If you encounter any issues not covered in this manual, please contact Jorking customer service for assistance.
