1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF 9.5' x 13' Outdoor Retractable Pergola. Designed with a high-performance powder-coated aluminum frame and an upgraded yarn-dyed fabric canopy, this pergola offers a durable and adjustable shade solution for your outdoor space. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Figure 1: Fully assembled PURPLE LEAF 9.5' x 13' Outdoor Retractable Pergola.
2. Safety Information
Always secure the pergola to a stable foundation using expansion bolts to prevent it from tipping over in windy conditions. Be cautious when adjusting the canopy, as the moving parts can cause injury if not handled properly.
- Ensure all bolts and connections are tightened securely before use.
- Do not hang heavy objects from the pergola frame.
- Retract the canopy during strong winds, heavy rain, or snow to prevent damage.
- Keep children and pets away from the pergola during assembly and operation.
3. Package Contents
Before beginning assembly, verify that all parts listed in the instruction manual are present and undamaged. The package typically includes:
- Aluminum frame components (posts, beams, rails)
- Retractable canopy fabric
- Hardware kit (bolts, screws, expansion bolts, tools)
- Rope loop for canopy adjustment
If any parts are missing or damaged, please contact customer support.
4. Setup and Assembly
Assembly typically requires two or more adults. Follow the detailed step-by-step instructions provided in the included assembly guide. Ensure you have adequate space and the necessary tools before starting.
4.1 Frame Assembly
Begin by assembling the main aluminum frame. The thick gauge posts and beams are designed for superior strength and durability.
Figure 2: Detail of the sturdy powder-coated aluminum frame construction.
Figure 3: Illustration of the robust post design for enhanced stability.
4.2 Securing the Pergola
The pergola features rectangular stand poles with pre-drilled holes for easy fixation to various floor types. It is highly recommended to use the provided expansion bolts to secure the pergola to a concrete or other stable foundation to increase its wind-resistant capacity.
Figure 4: Sturdy base plates designed for secure ground attachment.
4.3 Canopy Installation
Install the retractable canopy fabric onto the designated rails. Ensure the fabric is correctly aligned and all attachment points are secured. The canopy is made of an upgraded yarn-dyed fabric for enhanced durability.
Figure 5: Detail of the upgraded yarn-dyed fabric canopy.
5. Operating Instructions
The pergola features an adjustable, retractable canopy for optimal shade control. Use the integrated rope loop and locking system to easily adjust the canopy to your desired position.
5.1 Retracting the Canopy
To retract the canopy, gently pull the rope loop. The canopy will fold back smoothly along its rails. Secure it in the retracted position using the locking mechanism to prevent it from extending unintentionally or being affected by wind.

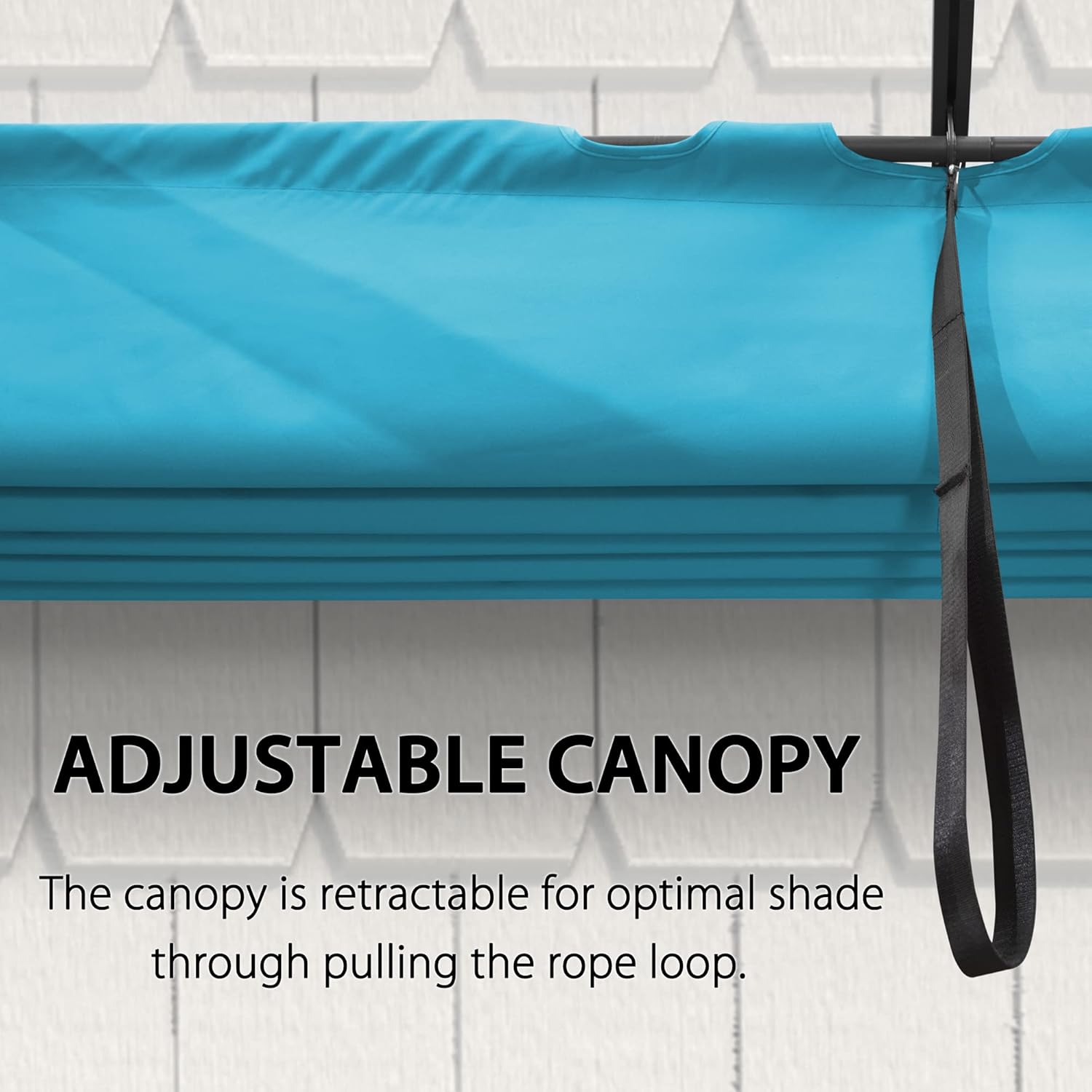

Figure 6: Operating the retractable canopy with the rope loop.
Figure 7: Canopy in open and closed positions.
5.2 Extending the Canopy
To extend the canopy, release the locking mechanism and gently guide the canopy forward until it reaches the desired extension. Ensure it is evenly spread for full coverage.
6. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your pergola.
- Cleaning the Frame: The powder-coated aluminum frame is easy to maintain. Clean with mild soap and water, then rinse thoroughly. Avoid abrasive cleaners.
- Cleaning the Canopy: The yarn-dyed fabric canopy can be cleaned with a soft brush, mild soap, and water. Allow it to air dry completely before retracting or storing.
- Inspection: Periodically check all bolts, screws, and connections to ensure they remain tight. Inspect the canopy fabric for any signs of wear or damage.
- Winterization/Storm Preparation: In anticipation of strong winds, heavy snow, or prolonged periods of non-use, it is recommended to retract and secure the canopy. For extreme weather, consider removing the canopy fabric for storage.
7. Troubleshooting
- Canopy not retracting/extending smoothly: Check the rails for any obstructions or debris. Ensure the canopy fabric is properly aligned on the rails. Verify that the locking mechanism is fully disengaged.
- Pergola feels unstable: Re-check all frame connections and ensure they are tightened. Confirm that the base plates are securely anchored to the ground using expansion bolts.
- Water pooling on canopy: Ensure the canopy is fully extended and taut. If water continues to pool, gently push up from underneath to release the water. Retract the canopy during heavy rain.
For further assistance, please contact PURPLE LEAF customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | PURPLE LEAF |
| Model Number | HSPERGOLA |
| Overall Dimensions | 9.5' X 13' (156"L x 114"W x 156"H) |
| Material | Aluminum frame, Metal, Yarn-dyed fabric canopy |
| Item Weight | 85.8 pounds (39 Kilograms) |
| Water Resistance Level | Water Resistant |
| Ultraviolet Light Protection | UV-resistant |
| Assembly Required | Yes |
Figure 8: Detailed product dimensions.
9. Warranty and Support
The PURPLE LEAF 9.5' x 13' Outdoor Retractable Pergola is constructed with top-of-the-line materials designed for a long service life. For specific warranty details, product support, or to inquire about replacement parts, please refer to the official PURPLE LEAF website or contact their customer service department directly. Contact information can typically be found on the product packaging or the manufacturer's official website.
