1. Introduction
This manual provides instructions for the proper setup, operation, and maintenance of your Lunderg Alternating Air Pressure Mattress Pad. This system is designed to relieve pressure on skin and bony areas, boost circulation, and reduce the need for frequent repositioning, aiding in the prevention and healing of bedsores. The mattress pad features a unique flocking technology for enhanced comfort and a quiet pump with both alternating and static modes.
Image 1.1: The Lunderg Alternating Air Pressure Mattress Pad system, including the mattress pad, air pump, and product packaging.
2. Safety Information
Please read all safety instructions before operating the device. Failure to follow these instructions may result in injury or damage to the product.
- Ensure the power outlet voltage matches the pump's specifications (110V 60Hz for US models). Incorrect voltage can damage the pump.
- Do not immerse the pump in water or other liquids.
- Keep the pump away from heat sources and direct sunlight.
- Do not use near open flames or flammable gases.
- Inspect the mattress pad and hoses regularly for any signs of damage or leaks.
- This product is designed to support individuals up to 300 lbs. Do not exceed this weight limit.
- Consult a healthcare professional for guidance on proper use, especially for individuals with specific medical conditions.
3. Setup Instructions
Follow these steps to set up your Lunderg Alternating Air Pressure Mattress Pad:
- Unroll and Position the Pad: Unroll the mattress pad and lay it flat on the bed, either on top of an existing mattress or directly on a hospital bed frame. Ensure the air connection points are positioned at the foot or head of the bed.
- Connect Air Hoses: Connect the air hoses from the pump to the valves on the mattress pad. Ensure a secure connection to prevent air leaks.
- Plug in the Pump: Plug the pump into a standard electrical outlet.
- Initial Inflation: Turn the pump ON and set the pressure adjustment knob to the "Firm" setting. Allow approximately 20 minutes (or 3 full alternating cycles) for the pad to fully inflate.
- Tuck Excess Material: Once inflated, tuck any excess material of the mattress pad under the main mattress to secure it in place.
- Adjust Pressure: After initial inflation, adjust the pressure knob to your desired comfort level, starting from "Firm" and moving towards "Soft" as needed.

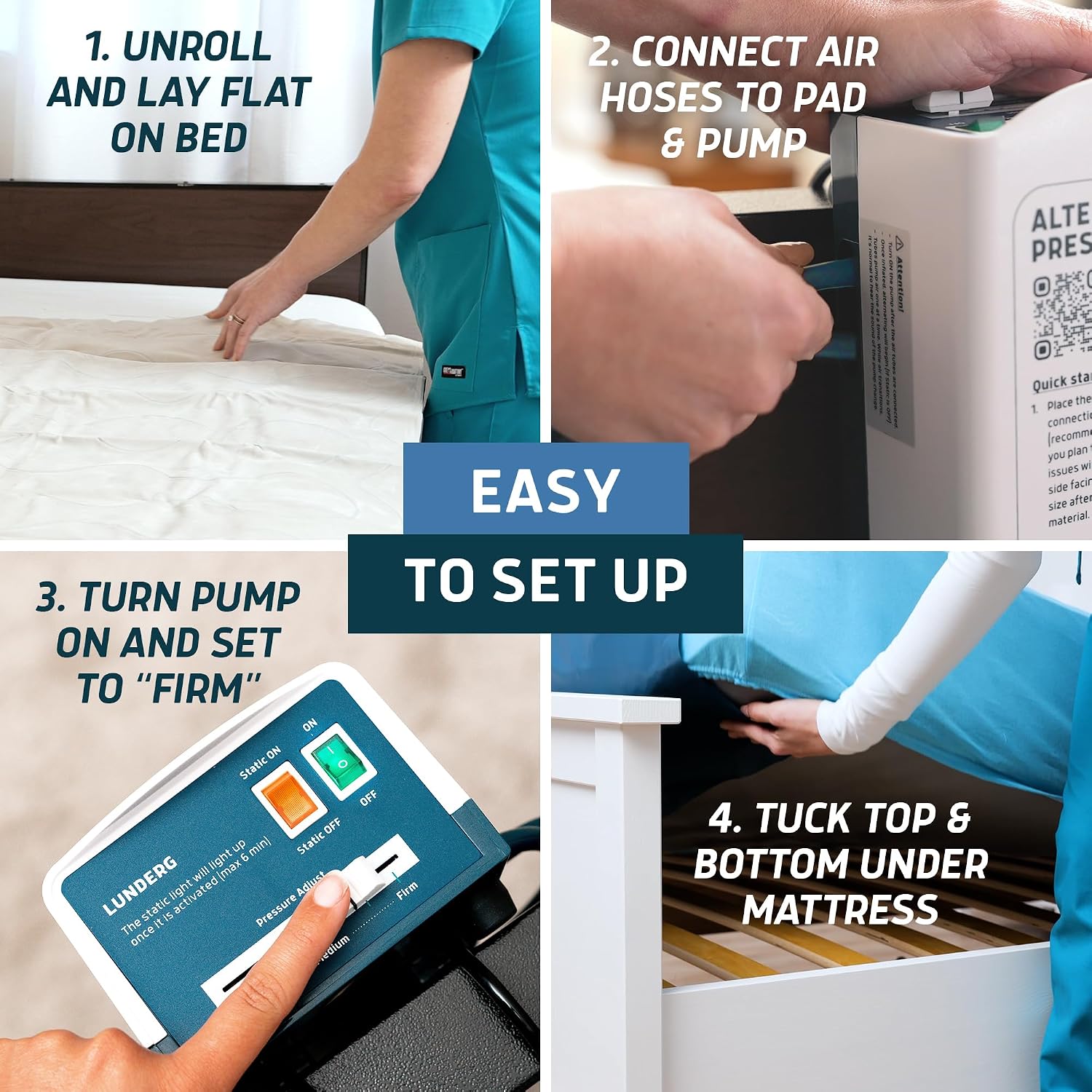

Image 3.1: Visual guide for the easy setup process of the Lunderg mattress pad.
4. Operating Instructions
The Lunderg Air Pressure Mattress Pad offers two primary operating modes:
4.1. Alternating Mode
In Alternating Mode, the air cells within the mattress pad inflate and deflate in a cycle, continuously shifting pressure points. This dynamic pressure redistribution helps prevent and treat bedsores by promoting blood circulation.
- To activate, ensure the green ON/OFF switch on the pump is in the 'ON' position and the orange 'Static ON/OFF' switch is in the 'OFF' position.
- Adjust the pressure knob from "Soft" to "Firm" to control the inflation level and firmness of the mattress pad according to user comfort.
4.2. Static Mode
Static Mode keeps all air cells fully inflated, providing a stable and firm surface. This mode is useful when a stable surface is preferred, such as during transfers, dressing, or for short periods of rest from alternation.
- To activate, ensure the green ON/OFF switch is 'ON' and then switch the orange 'Static ON/OFF' switch to 'ON'. The static light will illuminate.
- The mattress pad will remain fully inflated in this mode.
- To return to Alternating Mode, switch the orange 'Static ON/OFF' switch back to 'OFF'.
Image 4.1: The control panel of the Lunderg pump, illustrating the switches for power, static mode, and pressure adjustment.
Image 4.2: The Lunderg pump with the Static Mode option engaged, providing a stable surface for the user.
5. Maintenance and Care
Proper maintenance ensures the longevity and hygienic operation of your mattress pad.
- Cleaning the Mattress Pad: The flocked fabric surface can be gently wiped clean with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners. Ensure the pad is completely dry before use or storage.
- Cleaning the Pump: Wipe the exterior of the pump with a dry or slightly damp cloth. Do not use liquid cleaners directly on the pump.
- Storage: When not in use, deflate the mattress pad, fold it neatly, and store it in a cool, dry place away from direct sunlight and sharp objects.
- Inspection: Periodically check the air hoses for kinks, cracks, or loose connections. Ensure the pump's air filter (if accessible) is clean and free of dust.
6. Troubleshooting
If you encounter issues with your Lunderg Air Pressure Mattress Pad, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pad not inflating or deflating properly | Loose hose connection, kinked hose, power issue, pump malfunction, air leak in pad. | Check all hose connections for tightness. Ensure hoses are not kinked. Verify pump is plugged in and powered on. Inspect pad for punctures or tears. If issues persist, contact customer support. |
| Pump is unusually noisy | Pump motor issue, obstruction in air intake. | Ensure the pump is placed on a stable, flat surface. Check for any obstructions around the air intake. If noise continues, contact customer support. |
| Mattress pad feels too soft or too firm | Incorrect pressure setting. | Adjust the pressure knob on the pump to your preferred comfort level. Allow a few minutes for the pressure to equalize. |
| Pump not turning on | No power, faulty outlet, pump malfunction. | Check if the power cord is securely plugged into a working outlet. Test the outlet with another device. Ensure the ON/OFF switch is in the 'ON' position. If still unresponsive, contact customer support. |
| Pump burned out (especially in non-US regions) | Incorrect voltage supply. | This pump operates on 110V 60Hz. If used in regions with different voltage standards (e.g., 220-240V), a voltage converter is required. Using the pump without a suitable converter will cause damage and void the warranty. |
7. Specifications
| Feature | Detail |
|---|---|
| Product Model Number | UPC-LUN-ALTPRESSURE-KIT |
| ASIN | B0BNVJQ111 |
| Brand | Lunderg |
| Size | Flocking Twin Size (35"x75") |
| Product Dimensions (Inflated) | 78.74 x 35.43 x 5.91 inches |
| Product Weight | 9.22 Pounds |
| Fabric Type | Flock-tech Fabric & PVC |
| Color | White |
| Special Features | Adjustable, Alternating & Static Mode, Patented Heat Resistant & Cooling Pressure Pad with Flocking, Whisper-Quiet Pump |
| Maximum User Weight | 300 lbs |
| Pump Voltage | 110V 60Hz (US Standard) |
8. Warranty and Support
For warranty information, product support, or to report any issues, please contact Lunderg customer service directly. Refer to the product packaging or the official Lunderg website for contact details.
Manufacturer: Lunderg
