Kneading Paddle Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, use, and care of the replacement kneading paddle designed specifically for Toastmaster Bread Maker Models 1172, 1172A, and 1172X. Please read these instructions carefully before use to ensure optimal performance and longevity of your bread maker accessory.

Figure 1: Replacement Kneading Paddle for Toastmaster Bread Makers.

2. Compatibility Check

This kneading paddle is designed exclusively for Toastmaster Bread Maker Models 1172, 1172A, and 1172X. To ensure proper fit and function, it is crucial to verify your bread maker's model number before installation.

Figure 2: Important notice to verify your bread maker's brand and model number. This information is typically found on a label on the exterior surface of your machine (sides, bottom, or control panel).

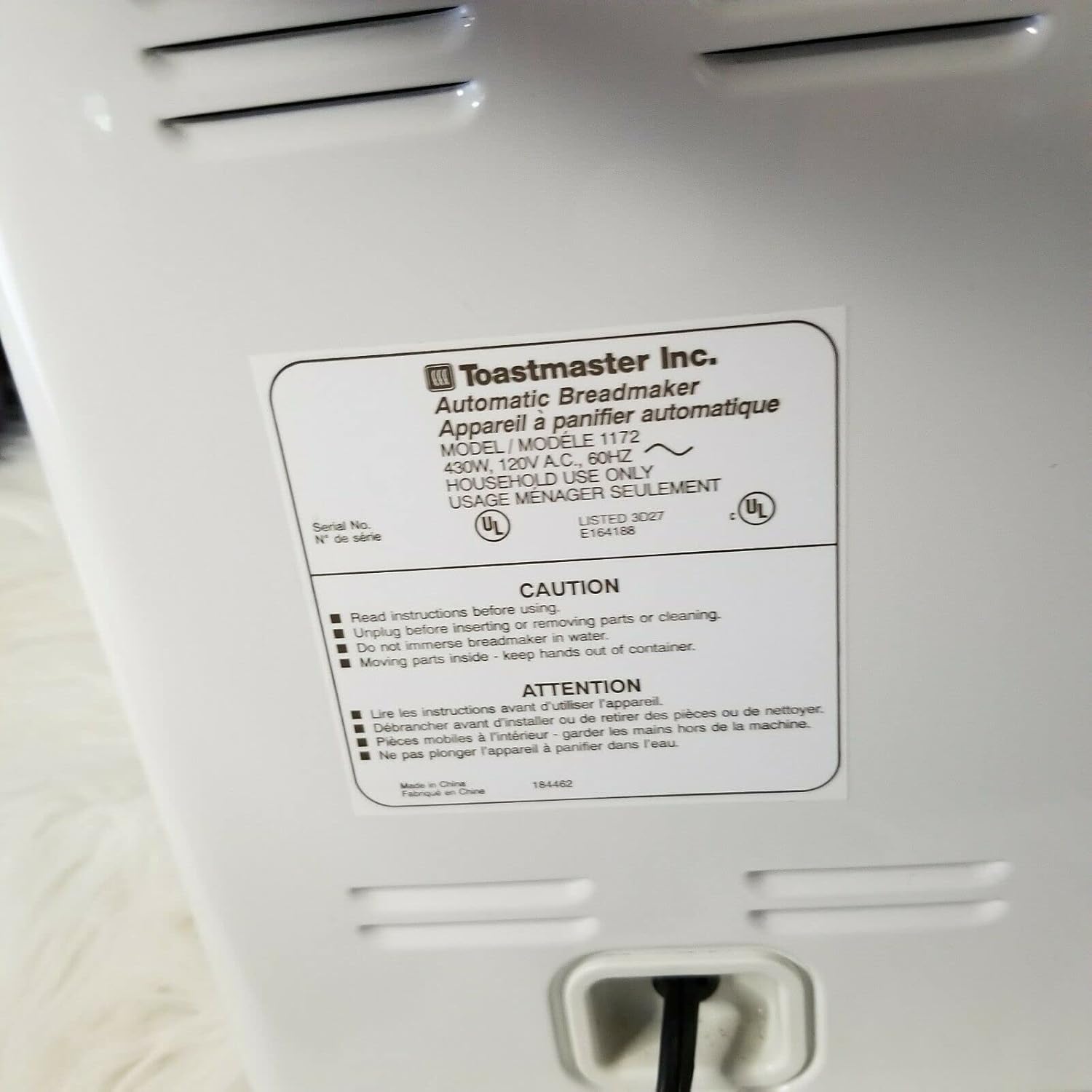

Figure 3: Example of a Toastmaster Bread Maker label, clearly indicating "MODEL / MODÈLE 1172". Ensure your model matches one of the compatible numbers.

3. Installation

1. Ensure Safety: Before installing or removing the kneading paddle, always ensure your Toastmaster bread maker is unplugged from the power outlet and completely cooled down.
2. Remove Bread Pan: Open the lid of your bread maker and carefully lift out the bread pan.
3. Position Paddle: Locate the drive shaft at the bottom center of the bread pan. Align the opening at the base of the new kneading paddle with the drive shaft.
4. Secure Paddle: Press the kneading paddle firmly onto the drive shaft until it is securely seated. It should fit snugly and not wobble.
5. Reinsert Bread Pan: Place the bread pan back into the bread maker, ensuring it clicks into place. Close the lid.

The kneading paddle is now ready for use. Always ensure it is properly installed before adding ingredients and starting a baking cycle.

4. Operation

The kneading paddle functions automatically as part of your Toastmaster bread maker's cycle. Once installed, it will mix and knead the dough according to the selected program. No manual intervention is required during the kneading process.

• During Kneading: The paddle will rotate to combine ingredients and develop the dough.
• After Baking: The paddle may remain embedded in the finished loaf. Allow the bread to cool slightly before carefully removing the paddle. A small hole will be left at the bottom of the loaf where the paddle was located.

5. Maintenance and Cleaning

Regular cleaning of your kneading paddle will ensure hygienic operation and extend its lifespan.

1. Immediate Cleaning: After each use, remove the kneading paddle from the bread pan. If dough is stuck, soak the paddle in warm, soapy water for a few minutes to loosen any residue.
2. Hand Washing: Wash the paddle by hand using a soft sponge and mild dish soap. Avoid abrasive cleaners or scouring pads, as these can damage the non-stick coating (if applicable).
3. Rinsing and Drying: Rinse thoroughly under running water and dry completely before storing or reinstalling.
4. Storage: Store the clean, dry paddle in a safe place to prevent loss or damage.

6. Troubleshooting

• Paddle Not Turning:
  • Ensure the paddle is correctly seated on the drive shaft.
  • Verify the bread pan is properly installed in the bread maker.
  • Check if the bread maker is plugged in and the correct program is selected.
• Dough Sticking to Paddle:
  • This is common. Soaking the paddle in warm water after use will help remove stuck dough.
  • Ensure the paddle's non-stick coating (if present) is not damaged.
• Paddle Comes Off During Kneading:
  • The paddle may not have been fully seated on the drive shaft. Reinstall firmly.
  • Excessively stiff dough might put too much strain on the paddle. Adjust recipe if consistently occurring.

7. Specifications

8. Warranty & Support

For specific warranty information regarding this replacement kneading paddle, please refer to the documentation provided with your purchase or contact the seller directly. For support related to your Toastmaster Bread Maker, please consult your original bread maker manual or the Toastmaster customer service.
