1. Introduction
The Purafilter 2000 Gold Series AC/Furnace Air Filter is designed to enhance indoor air quality by effectively capturing a wide range of airborne contaminants. This pleated filter features a MERV 11 rating, indicating its efficiency in trapping microscopic particles.
This manual provides essential information for the proper installation, operation, and maintenance of your Purafilter air filter.
Image: Purafilter 2000 Gold Series banner illustrating air filtration and improved breathing.
2. Safety Information
- Always turn off your furnace or AC unit at the thermostat and circuit breaker before attempting to remove or install an air filter.
- Wear appropriate personal protective equipment, such as gloves, if you are sensitive to dust or allergens when handling used filters.
- Ensure the filter is correctly sized for your HVAC system to prevent air bypass and maintain system efficiency.
3. Installation Instructions
Follow these steps to properly install your new Purafilter air filter:
- Turn off HVAC System: Locate your furnace or AC unit and turn off the power at the thermostat and the main circuit breaker. This is a critical safety step.
- Remove Old Filter: Carefully open the filter compartment or grille. Slide out the old, dirty filter. Note the direction of the airflow arrow on the old filter.
- Unpack New Filter: Remove the new Purafilter from its packaging.
- Insert New Filter: Locate the airflow arrow printed on the frame of the new Purafilter. Insert the filter into the compartment, ensuring the arrow points in the direction of the airflow towards the furnace or air handler.
- Record Date: Write the installation date on the designated space on the filter frame. This helps track when the next replacement is due.
- Restore Power: Close the filter compartment or grille securely. Restore power to your HVAC system at the circuit breaker and thermostat.

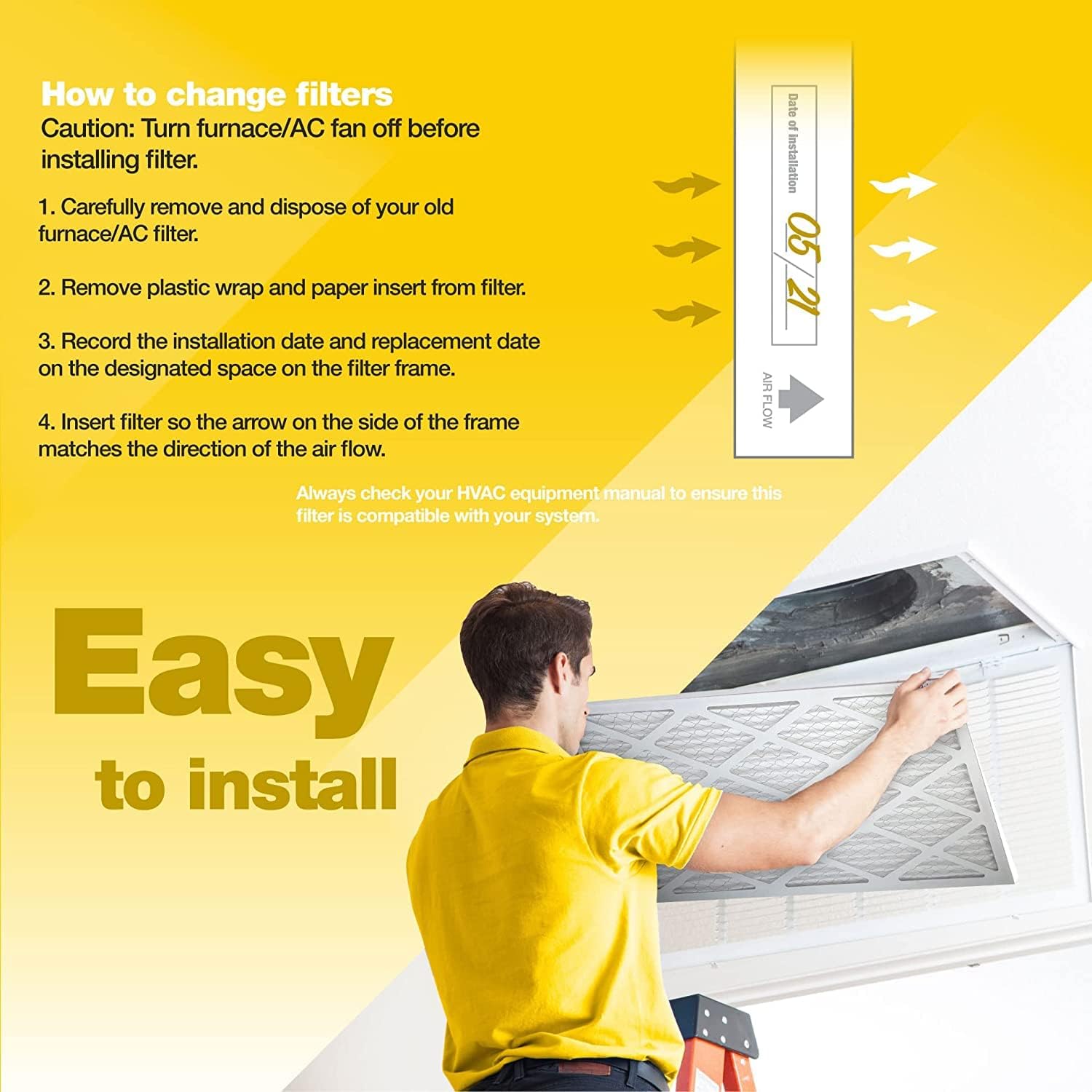

Image: Visual guide for filter replacement, highlighting airflow direction and date recording.

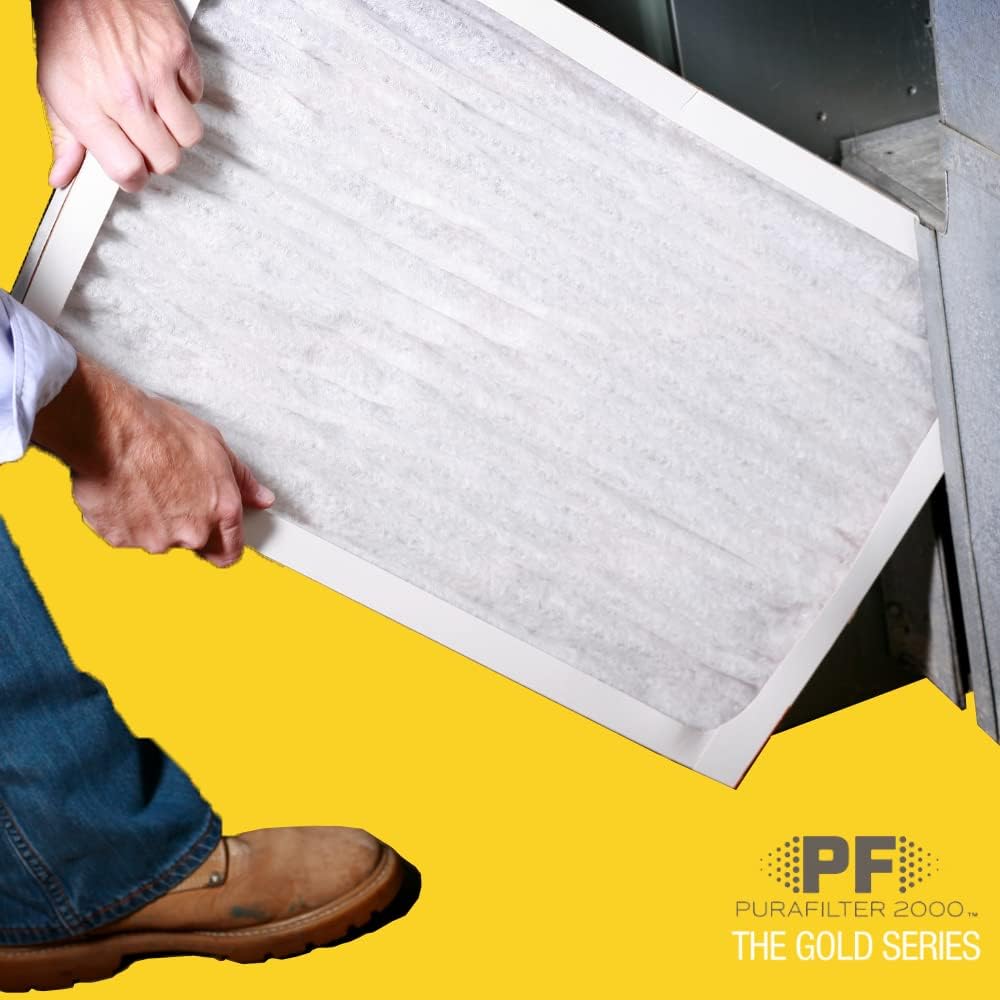

Image: Close-up of hands carefully sliding a new air filter into place.
4. Operating Principles and Performance
The Purafilter 2000 Gold Series filter is rated MERV 11, which stands for Minimum Efficiency Reporting Value. This rating indicates the filter's ability to capture airborne particles between 0.3 and 10 microns in size. A higher MERV rating signifies greater filtration efficiency.
This filter is designed to capture up to 85% of common airborne contaminants, contributing to cleaner indoor air. These contaminants include:
- Dust
- Lint
- Dust Mite Debris
- Pollen (inanimate)
- Pet Dander
- Mold Spores
- Smoke
Image: Diagram explaining MERV 11 filtration, showing particles being trapped by the filter media.
5. Maintenance
Regular filter replacement is crucial for maintaining optimal HVAC system performance and indoor air quality. It is recommended to replace your Purafilter 2000 Gold Series air filter every 90 days under normal operating conditions.
Factors such as pets, construction, or high pollen counts may necessitate more frequent filter changes.
Image: Graphic indicating a recommended filter lifespan of up to 90 days.
6. Troubleshooting
If you experience issues after installing your new filter, consider the following:
- Reduced Airflow: Ensure the filter is installed with the airflow arrow pointing correctly towards the furnace/air handler. Check that the filter is not obstructed.
- Unusual Noises: Verify the filter is seated properly and not vibrating within the compartment.
- Persistent Air Quality Issues: While the filter is highly efficient, severe indoor air quality problems may require professional HVAC inspection or additional air purification solutions.
Always consult your HVAC system's specific manual or a qualified technician for complex issues.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Purafilter |
| Model | 2000 Gold |
| Actual Product Dimensions | 23"L x 21"W x 1"Th (58.42 cm x 53.34 cm x 2.54 cm) |
| Nominal Size | 21x23x1 inches |
| MERV Rating | 11 |
| Compatible Devices | Furnace, AC Unit |
| Material Type | Pleated Synthetic Media, Metal Frame |
| Item Weight | Approximately 5 pounds (for a pack of 12) |
| Manufacturer | PURAFILTER 2000 |
8. Warranty Information
Every Purafilter Gold Series air filter is designed and manufactured in the United States. These filters are built to last up to 90 days under normal operating conditions. For specific warranty claims or product defects, please refer to the manufacturer's official website or contact customer support.
9. Customer Support
For further assistance, questions, or concerns regarding your Purafilter 2000 Gold Series air filter, please visit the official Purafilter website or contact their customer service department. Contact information can typically be found on the product packaging or the manufacturer's website.
