Jtron CP415 Vapor Canister Purge Valve Solenoid User Manual

1. Product Overview

The Jtron CP415 Vapor Canister Purge Valve Solenoid is a critical component of your vehicle's Evaporative Emission Control (EVAP) system. This valve controls the flow of fuel vapors from the charcoal canister to the engine intake manifold, where they are burned during combustion. This process prevents harmful fuel vapors from escaping into the atmosphere, contributing to environmental protection and vehicle efficiency.

A malfunctioning purge valve can lead to various issues, including diagnostic trouble codes (DTCs) such as P0496, difficulty starting the vehicle after refueling, elevated EVAP emissions, or the illumination of the check engine light.

Image 1.1: Front view of the Jtron CP415 Vapor Canister Purge Valve Solenoid.

2. Vehicle Compatibility

This CP415 Vapor Canister Purge Valve is designed as a direct replacement for specific Chrysler, Dodge, Jeep, and Ram vehicles. It is essential to verify compatibility with your vehicle's make, model, year, and existing part number before installation.

Compatible Vehicle Models:

• Jeep: 1997-2004 Wrangler, 1997-2001 Cherokee, 1996-2001 Grand Cherokee
• Chrysler: 1996-1997 Concorde, 1996-1997 Intrepid, 1996-1997 LHS
• Dodge: 1999-2003 Ram 1500, 2500, 3500; 1997-2006 Viper; 1997-1999 Plymouth Grand Voyager

Important Note: Always cross-reference the OEM part numbers (e.g., 911213, MD04669475, PV300, 4669475AB) to ensure an exact match for your vehicle. Consult your vehicle's service manual or a qualified mechanic if you are uncertain about compatibility.

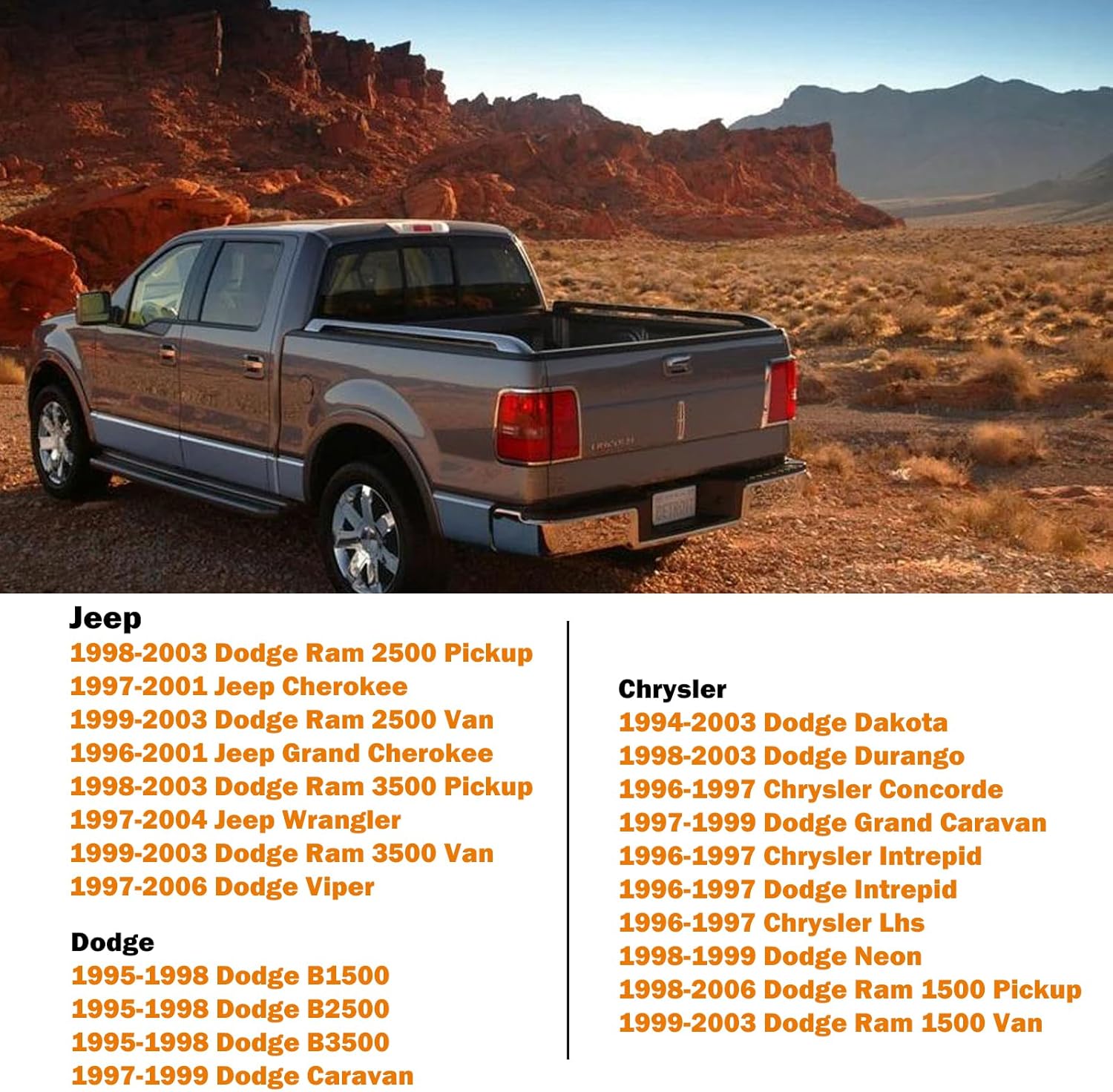

Image 2.1: Visual representation of vehicle compatibility for the CP415 purge valve.

3. Installation Guide

Replacing the vapor canister purge valve requires basic automotive knowledge and tools. If you are not confident in performing this procedure, it is recommended to seek assistance from a certified mechanic.

Safety Precautions:

• Ensure the vehicle is turned off and the engine is cool before beginning any work.
• Disconnect the negative terminal of the battery to prevent electrical hazards.
• Wear appropriate personal protective equipment, including gloves and eye protection.

General Installation Steps:

1. Locate the Purge Valve: Refer to your vehicle's service manual for the exact location of the vapor canister purge valve. It is typically found near the engine or mounted on the EVAP canister.
2. Disconnect Electrical Connector: Carefully disconnect the electrical connector from the old purge valve.
3. Disconnect Hoses: Detach the vacuum hoses connected to the purge valve. Note their positions to ensure correct reattachment.
4. Remove Old Valve: Unmount the old purge valve from its bracket or connection point.
5. Install New Valve: Install the Jtron CP415 purge valve in the reverse order of removal. Ensure it is securely mounted.
6. Reconnect Hoses and Electrical Connector: Reattach all vacuum hoses and the electrical connector firmly.
7. Reconnect Battery: Reconnect the negative battery terminal.
8. Test System: Start the vehicle and check for any leaks or error codes. It may take a few drive cycles for the EVAP system monitors to reset.

Image 3.1: Example of a purge valve installed in an engine compartment, alongside a new unit.

4. Operating Principle

The CP415 purge valve operates under the control of the engine's Powertrain Control Module (PCM). When the engine is running and certain conditions are met (e.g., engine warm, specific speed and load), the PCM sends a signal to the purge valve, causing it to open. This allows stored fuel vapors from the charcoal canister to be drawn into the engine's intake manifold and burned as part of the normal combustion process.

The valve's precise opening and closing regulate the amount of vapor entering the engine, preventing both excessive vacuum in the fuel tank and rich fuel mixtures that could affect engine performance and emissions.

Image 4.1: Top view of the CP415 valve, highlighting the electrical connector for PCM control.

5. Maintenance

The Jtron CP415 Vapor Canister Purge Valve is designed for durability and typically does not require routine maintenance. However, regular vehicle maintenance can help ensure the longevity and proper function of all EVAP system components.

• Regular Inspections: Periodically inspect all vacuum hoses connected to the purge valve and canister for cracks, leaks, or disconnections.
• Fuel Cap Check: Ensure your fuel cap is always tightened properly. A loose or faulty fuel cap can trigger EVAP system errors, sometimes mimicking purge valve issues.
• Diagnostic Scans: If your check engine light illuminates, have your vehicle scanned for diagnostic trouble codes (DTCs) promptly. This can help identify EVAP system issues early.

If the purge valve is found to be faulty, replacement is the standard procedure as it is not a serviceable component.

6. Troubleshooting Common Issues

If you experience problems related to your vehicle's EVAP system, the purge valve may be a contributing factor. Here are common symptoms and potential solutions:

Symptom: Check Engine Light Illuminated

• Possible Cause: Faulty purge valve, vacuum leak, or other EVAP system component failure.
• Action: Have your vehicle scanned for diagnostic trouble codes (DTCs). Common codes related to a faulty purge valve include P0440, P0441, P0442, P0446, P0455, P0456, and P0496. If P0496 (EVAP Flow During Non-Purge) is present, the purge valve is a likely culprit.

Symptom: Hard to Start After Filling Up with Gas

• Possible Cause: A purge valve stuck open can allow excessive fuel vapors into the engine, leading to a rich fuel mixture that makes starting difficult.
• Action: This is a strong indicator of a faulty purge valve. Replacement is typically required.

Symptom: EVAP Emissions High

• Possible Cause: A purge valve that is not functioning correctly can lead to improper vapor management, resulting in higher emissions.
• Action: A diagnostic check of the EVAP system, including the purge valve, is recommended.

If troubleshooting indicates a faulty purge valve, replacement with a quality part like the Jtron CP415 is the recommended solution.

Image 6.1: Professional mechanics performing vehicle diagnostics.

7. Product Specifications

8. Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the seller's policies on the platform where the product was purchased or contact Jtron customer service directly. Ensure you have your purchase details and model number (911213) available when contacting support.

For additional resources and product information, you may visit the Jtron Store on Amazon.
