VIHELM SW-733A Combustible Gas Detector User Manual
Model: SW-733A
Introduction
This manual provides comprehensive instructions for the safe and effective use of the VIHELM SW-733A Combustible Gas Detector. Please read this manual thoroughly before operating the device and retain it for future reference.
Figure 1: The VIHELM SW-733A Combustible Gas Detector, featuring its main unit and flexible detection probe.
Safety Information
Always adhere to the following safety precautions to prevent injury or damage to the device:
- Do not operate the device in environments exceeding its specified temperature and humidity ranges.
- Ensure proper ventilation when testing for combustible gases.
- Do not attempt to repair or modify the device. Refer all servicing to qualified personnel.
- Keep the device away from strong electromagnetic fields.
- Regularly check the device for any signs of damage before use.
Product Overview
Components

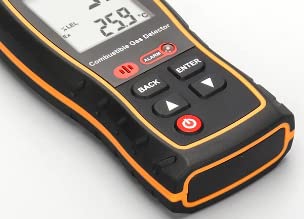

Figure 2: Close-up view of the SW-733A's control panel, showing the display, alarm indicator, and control buttons.
- Flexible Probe: For detecting gas leaks in hard-to-reach areas.
- LCD Display: Shows real-time gas concentration, battery level, and temperature.
- Control Buttons: Including Power, Alarm, Back, Enter, and navigation arrows.
- Alarm Indicator: Visual and audible alerts for gas detection.
Features
- Detection of combustible gases (Natural gas, liquefied petroleum gas, artificial gas).
- 0-100% LEL (Lower Explosive Limit) measurement range.
- Automatic backlight LCD display.
- Two-point field calibration for alarm values.
- Audible and visual alarm prompts.
- Explosion-proof design (Ex ib IIB T3 GB).
Figure 3: Examples of typical application environments for the gas detector, such as industrial facilities, gas pipelines, fuel stations, and metal processing plants.
Setup
Unpacking
Carefully remove the SW-733A from its packaging. Verify that all components listed in the "What's in the Box" section are present and undamaged.

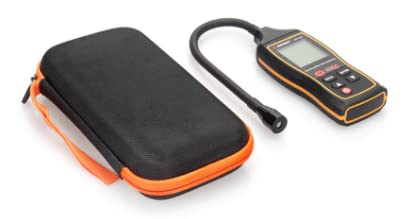

Figure 4: The SW-733A gas detector shown alongside its protective carrying case.
Battery Installation
- Locate the battery compartment on the back of the device.
- Open the compartment cover.
- Insert three (3) AAA alkaline dry batteries, ensuring correct polarity.
- Close the battery compartment cover securely.
Operating Instructions
Powering On/Off
- To power on, press and hold the Power button until the display illuminates.
- The device will undergo a warm-up period (T90 < 30 seconds).
- To power off, press and hold the Power button until the display turns off.
Gas Detection
- Once powered on and warmed up, position the flexible probe near the suspected gas leak source.
- The device will display the real-time gas concentration in %LEL.
- An audible alarm and visual LED will activate if the gas concentration exceeds the set alarm value. A higher beep frequency indicates a higher concentration.

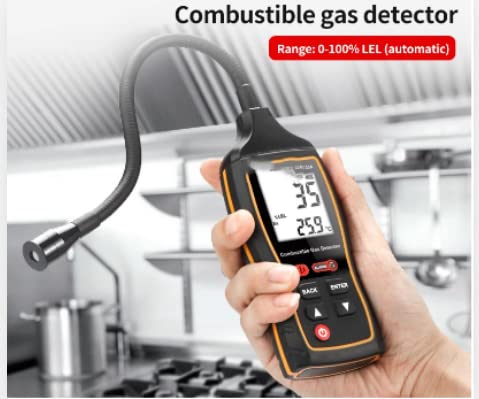

Figure 5: Demonstrating the use of the SW-733A gas detector in a typical household environment, such as near a kitchen stove.
Alarm Settings and Calibration
The device supports two-point field calibration for alarm values (low report function, high report function settings). Refer to the on-screen menu for navigation using the ENTER and arrow buttons to adjust these settings.
Maintenance
Cleaning
Wipe the device exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the device is dry before storage.

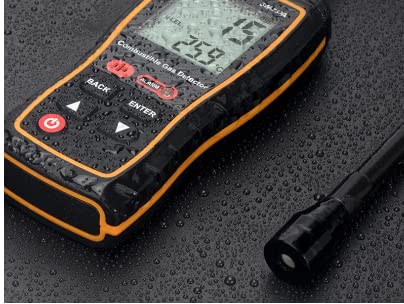

Figure 6: The SW-733A gas detector displayed on a wet surface, highlighting its robust design.
Battery Replacement
Replace batteries when the low battery indicator appears on the display. Use only 3 AAA alkaline dry batteries.
Storage
Store the device in its protective carrying case in a cool, dry place away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on. | Dead or incorrectly installed batteries. | Replace batteries, ensuring correct polarity. |
| Inaccurate gas readings. | Sensor contamination or calibration needed. | Clean the sensor area carefully. Perform a two-point field calibration. |
| Alarm sounds continuously. | High gas concentration detected or alarm threshold set too low. | Evacuate the area if gas is present. Adjust alarm settings if necessary. |
| Display is dim or flickering. | Low battery. | Replace batteries. |
Specifications

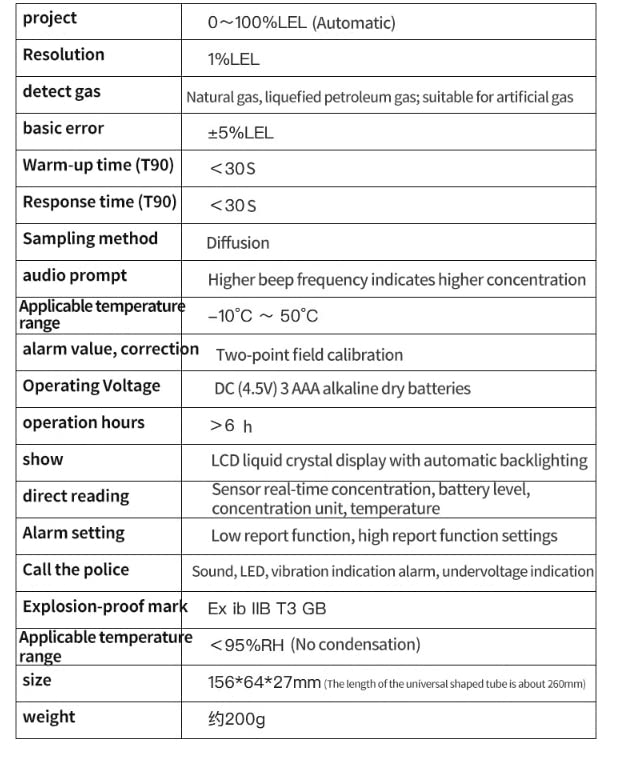

Figure 7: Detailed technical specifications for the SW-733A Combustible Gas Detector.
| Parameter | Value |
|---|---|
| Detection Range | 0~100% LEL (Automatic) |
| Resolution | 1% LEL |
| Detected Gas | Natural gas, liquefied petroleum gas; suitable for artificial gas |
| Basic Error | ±5% LEL |
| Warm-up Time (T90) | <30 S |
| Response Time (T90) | <30 S |
| Sampling Method | Diffusion |
| Audio Prompt | Higher beep frequency indicates higher concentration |
| Applicable Temperature Range | -10℃ ~ 50℃ |
| Alarm Value, Correction | Two-point field calibration |
| Operating Voltage | DC (4.5V) 3 AAA alkaline dry batteries |
| Operation Hours | >6 h |
| Display | LCD liquid crystal display with automatic backlighting |
| Direct Reading | Sensor real-time concentration, battery level, concentration unit, temperature |
| Alarm Setting | Low report function, high report function settings |
| Alarm Indication | Sound, LED, vibration indication alarm, undervoltage indication |
| Explosion-proof Mark | Ex ib IIB T3 GB |
| Applicable Humidity Range | <95% RH (No condensation) |
| Size | 156*64*27mm (The length of the universal shaped tube is about 260mm) |
| Weight | Approx. 200g |
What's in the Box
- SW-733A Combustible Gas Detector x 1
Warranty and Support
For warranty information or technical support, please contact VIHELM customer service through the retailer where the product was purchased or refer to the official VIHELM website for contact details.
Note: Specific warranty terms may vary by region and retailer. Please retain your proof of purchase.
