HOMELUX 4-Burner Outdoor Gas Stove User Manual

1. Introduction

Thank you for purchasing the HOMELUX 4-Burner Outdoor Gas Stove. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new gas stove. Please read this manual thoroughly before use and keep it for future reference.

This gas stove is designed for outdoor use only. Do not use it indoors or in enclosed spaces.

2. Safety Instructions

Your safety and the safety of others are paramount. Always follow these basic safety precautions when using this appliance:

• Outdoor Use Only: This appliance is designed exclusively for outdoor use. Never operate it indoors, in garages, or any enclosed area.
• Ventilation: Ensure adequate ventilation when operating.
• Gas Leaks: Before each use, check for gas leaks using a soapy water solution. Never use a flame to check for leaks.
• Flammable Materials: Keep the stove clear of flammable materials, gasoline, and other flammable vapors and liquids.
• Children and Pets: Keep children and pets away from the stove during operation and while it is cooling down.
• Stable Surface: Always place the stove on a stable, level, non-combustible surface.
• Gas Cylinder: Use only the type of gas and gas cylinder specified for this appliance. Ensure the gas hose is properly connected and not kinked or damaged.
• No Auto-Ignition: This stove does not feature auto-ignition. Use a long match or lighter to ignite the burners.
• Hot Surfaces: Surfaces will be hot during and after use. Allow the stove to cool completely before handling or cleaning.

Image: A yellow triangular warning sign with an exclamation mark, indicating caution and important safety information.

3. Product Overview

The HOMELUX 4-Burner Outdoor Gas Stove is a portable and efficient cooking solution for outdoor activities. It features a robust design and multiple burners for versatile cooking.

Components:

• Metal Casing with Lid
• Four Gas Burners (various power outputs)
• Removable Cast Aluminum Grate
• Individual Control Knobs
• Gas Inlet Connection

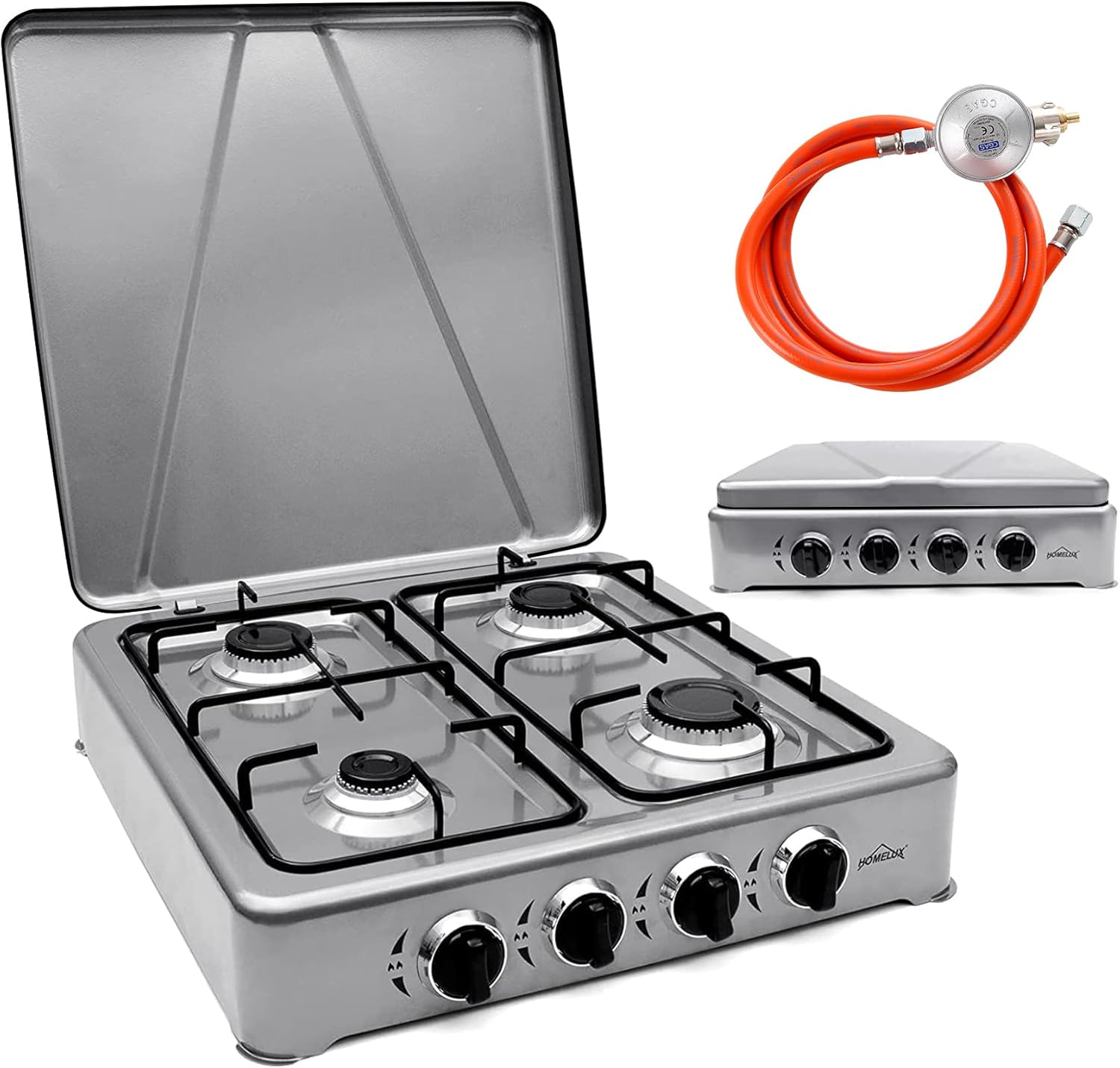

Image: The HOMELUX 4-burner outdoor gas stove shown with its lid open, revealing the four burners and control knobs. A gas hose and regulator are also visible, indicating the necessary accessories for operation.

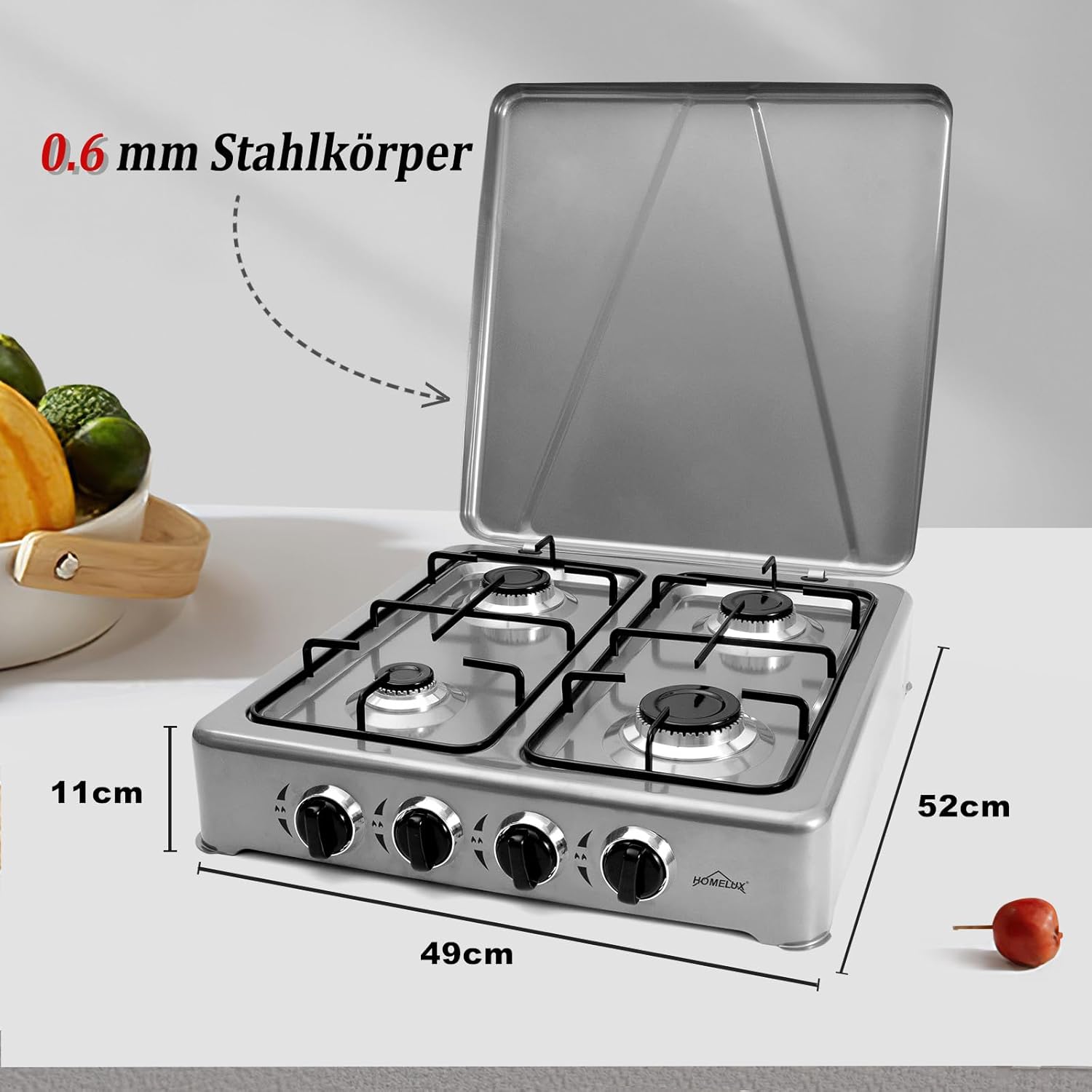

Image: The HOMELUX 4-burner outdoor gas stove with its dimensions labeled: approximately 49 cm (width), 52 cm (depth), and 11 cm (height). The image also highlights the 0.6 mm steel body construction.

Image: A visual representation of the four burners and their respective power outputs: two 1.5 kW burners, one 1 kW burner, and one 2.2 kW burner, totaling 6.2 kW.

4. Setup and Installation

Follow these steps to set up your gas stove safely:

1. Unpack: Carefully remove all packaging materials and inspect the stove for any damage.
2. Placement: Place the stove on a firm, level, non-combustible surface outdoors, away from any flammable objects or structures.
3. Gas Connection: Connect the gas hose (not included) to the stove's gas inlet and to your gas bottle regulator. Ensure all connections are tight and secure.
4. Leak Test: Before first use and after every gas cylinder change, perform a leak test. Apply a soapy water solution to all gas connections. If bubbles appear, there is a leak. Tighten connections or replace faulty parts. Do not use the stove if a leak is detected.
5. Grate Placement: Ensure the cast aluminum grate is properly seated over the burners.

Image: A comparison showing the correct gas connection point on the stove (indicated by a green checkmark) versus an incorrect connection point (indicated by a red cross), emphasizing proper setup.

5. Operating Instructions

Igniting a Burner:

1. Ensure the gas cylinder valve is open.
2. Push in and turn the desired burner control knob counter-clockwise to the "MAX" position.
3. Immediately apply a long match or lighter to the burner until it ignites.
4. Once ignited, adjust the flame by turning the control knob between "MIN" and "MAX" settings.
5. If the burner does not ignite within 5 seconds, turn the knob to "OFF", wait 5 minutes for gas to disperse, and repeat the process.

Turning Off the Stove:

1. Turn all burner control knobs to the "OFF" position.
2. Close the valve on the gas cylinder.

Image: A close-up view of an ignited gas burner, showing a steady blue flame. Text indicates the burner head is made of cast aluminum, is high-temperature resistant, fixed at the base, and very safe.

Image: The HOMELUX gas stove in use, with a pot on one burner and a frying pan with vegetables being stir-fried on another, demonstrating its cooking capability.

Image: A collage showing different cooking applications on the gas stove, including grilling meat, preparing soup, stewing, and stir-frying, highlighting its versatility.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and safe operation of your gas stove.

Cleaning Instructions:

1. Ensure the stove is completely cool before cleaning.
2. Remove the cast aluminum grate and burner caps.
3. Wipe off any oil stains or food residue from the surface with paper towels.
4. Wash the grate and burner caps with warm, soapy water. Rinse thoroughly and dry completely.
5. Clean the stove surface with a damp cloth and mild detergent. Avoid abrasive cleaners that could scratch the finish.
6. Ensure all parts are dry before reassembling and storing the stove.

Image: A visual guide demonstrating the ease of cleaning the gas stove. It shows the removable grate and burner components being washed under running water, highlighting the simple maintenance process.

7. Troubleshooting

If you encounter issues with your HOMELUX gas stove, refer to the following table for common problems and solutions:

If the problem persists after attempting these solutions, contact customer support.

8. Specifications

9. Warranty and Support

Specific warranty information is not provided in this manual. Please refer to your purchase documentation or contact the retailer for details regarding warranty coverage.

For technical support, spare parts, or any inquiries not covered in this manual, please contact HOMELUX customer service through the retailer or official HOMELUX channels.
