VnioLife Dual Ionic Foot Bath Detox Machine User Manual

1. Introduction

This manual provides detailed instructions for the safe and effective operation and maintenance of your VnioLife Dual Ionic Foot Bath Detox Machine. Please read this manual thoroughly before use and retain it for future reference.

2. Important Safety Information

WARNING: To reduce the risk of electric shock, burns, fire, or injury, always follow these precautions:

• Do not operate the machine if the power cord or plug is damaged.
• Keep the machine away from water or other liquids.
• Do not use this device if you have a pacemaker, are pregnant, or have open wounds on your feet.
• Consult a healthcare professional before use if you have any medical conditions, especially diabetes, heart conditions, or epilepsy.
• Ensure the wristband makes proper skin contact for safe operation.
• Keep out of reach of children.
• Unplug the device when not in use and before cleaning.

3. Package Contents

Carefully unpack your VnioLife Dual Ionic Foot Bath Detox Machine and verify that all items are present and undamaged. If any items are missing or damaged, please contact customer support.

Image 1: The VnioLife Dual Ionic Foot Bath Detox Machine, including the main unit, two heating belts, two arrays, two conductive wristbands, power cord, and a measuring spoon, all stored within a portable aluminum case.

• 1 x Ionic Detox Machine Main Unit
• 2 x Heating Belts
• 2 x Arrays
• 2 x Conductive Wristbands
• 1 x User Manual (this document)
• 1 x Power Cord
• 1 x Measuring Spoon
• 1 x Portable Aluminum Case

4. Product Overview and Controls

Familiarize yourself with the main unit and its various interfaces and controls.

Image 2: Front and rear views of the control unit, highlighting the display, control buttons, and connection ports for wristbands, arrays, heating belts, and power cord.

Front Panel Controls (User Interface A & B):

• MODE Button: Selects one of the 5 detoxification modes.
• ON/OFF Button: Activates or deactivates the detox function.
• TIME Buttons (+/-): Adjusts the session duration (10-60 minutes).
• START/STOP Button: Initiates or pauses the session.
• Display Screen: Shows current mode, voltage (V), amperage (A), and remaining time.
• Wristband Interface: Connects the conductive wristband.
• Array Interface: Connects the array.

Rear Panel Connections:

• Power Cord Interface: Connects the main power cord.
• Belt Interface: Connects the heated waist belt.
• Power Switch: Turns the entire unit on or off.

5. Setup Instructions

1. Placement: Place the main unit on a stable, dry surface near an electrical outlet.
2. Connect Power: Plug the power cord into the Power Cord Interface on the rear panel, then into a standard 110V-220V / 50Hz-60Hz electrical outlet.
3. Connect Arrays: Insert the array cables into the Array Interfaces (A and/or B) on the front panel. Place the arrays into a foot basin filled with water.
4. Connect Wristbands: Attach the conductive wristbands to the Wristband Interfaces (A and/or B). Ensure the wristband makes firm contact with your skin.
5. Connect Heating Belts (Optional): If desired, connect the heating belts to the Belt Interfaces on the rear panel. Wrap the belt around your waist or back.
6. Prepare Foot Bath: Fill a foot basin with warm water, ensuring the array is fully submerged. Add a small amount of non-iodized salt (using the provided spoon) to the water to improve conductivity. Start with a small amount and add more gradually if needed, monitoring the amperage on the display. The recommended amperage is around 2.0A.

6. Operating Instructions

The VnioLife Dual Ionic Foot Bath Detox Machine supports two users simultaneously with independent controls (User Interface A and B).

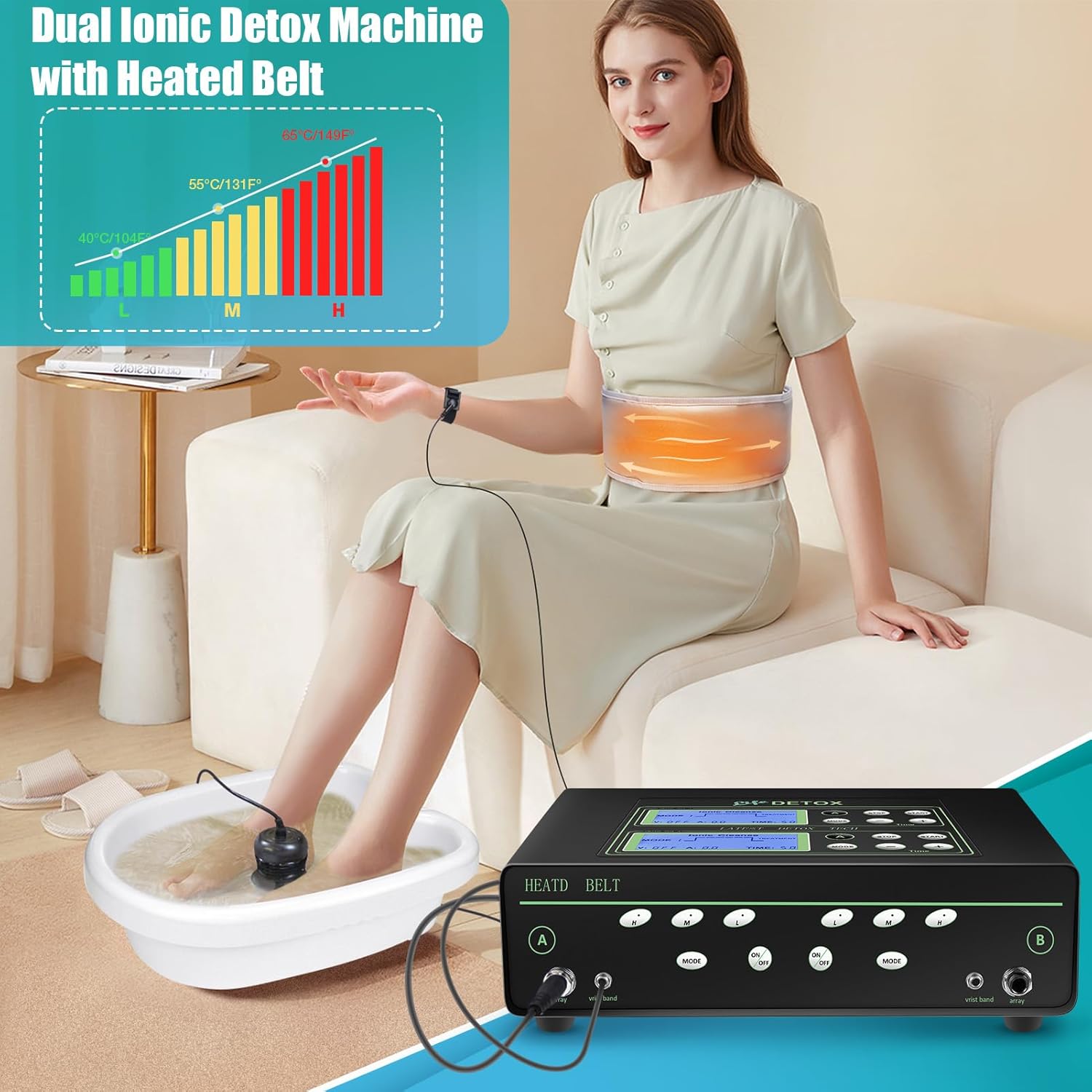

Image 3: A user demonstrating the foot bath and heated belt in use.

1. Power On: Flip the main Power Switch on the rear panel to the "ON" position. The display screens will illuminate.
2. Select Mode: For each user (A or B), press the MODE button to cycle through the 5 available detoxification modes. Refer to the "Detoxification Modes" section below for details on each mode.
3. Set Time: Use the TIME + and TIME - buttons to set the desired session duration (recommended 30-60 minutes).
4. Start Session: Press the START button for User A and/or User B to begin the session. The display will show the active mode, voltage, amperage, and countdown timer.
5. Adjust Heating Belt (Optional): If using the heating belt, press the corresponding ON/OFF button for the belt and adjust the temperature (Low, Medium, High) as desired.
6. Monitor Amperage: The display shows the amperage (A). If the amperage is too low (below 1.0A), add a small amount of salt to the water. If it's too high (above 2.5A), dilute the water slightly or remove some water and add fresh water. Optimal operation is typically between 1.5A and 2.5A.
7. Pause/Stop: To pause a session, press the STOP button. Press START again to resume. To end a session prematurely, press and hold the STOP button.
8. Session End: The machine will automatically stop when the set time expires.
9. Power Off: After use, turn off the main Power Switch on the rear panel and unplug the device from the wall outlet.

6.1 Detoxification Modes

The machine offers 5 distinct modes, each with specific characteristics:

Image 4: Visual representation of the five operational modes and their display indicators.

• Mode 1 (Ionic Cleanse): Focuses on expelling acidic substances and raising pH levels.
• Mode 2 (Positive Ionic Cleanse): Designed to expel heavy metals and lower pH levels.
• Mode 3 (Negative Ionic Cleanse): Increases pH levels. This is a commonly used mode.
• Mode 4 (Therapy): Aims to expel acidity and heavy metals, raising pH levels. Suitable for various physical conditions.
• Mode 5 (Modification): Focuses on expelling heavy metals and acidity, maintaining appropriate pH levels.

7. Maintenance

Regular cleaning and proper care will extend the life of your VnioLife Dual Ionic Foot Bath Detox Machine.

• Arrays: After each use, clean the arrays thoroughly with a brush and warm water to remove any residue. Allow them to dry completely before storage. Replace arrays when their performance diminishes (typically after 30-50 uses, depending on water quality and usage).
• Main Unit: Wipe the main unit with a soft, damp cloth. Do not use abrasive cleaners or submerge the unit in water.
• Wristbands and Belts: Wipe clean with a damp cloth. Ensure they are dry before storage.
• Storage: Store the machine and all accessories in the provided aluminum case in a cool, dry place, away from direct sunlight and extreme temperatures.

8. Troubleshooting

9. Specifications

• Model: Dual Ionic Foot Bath Detox Machine
• Brand: VnioLife
• Voltage: 110V-220V / 50Hz-60Hz
• Power: 60W
• Current: 2.5A (Max)
• Material: ABS
• Package Dimensions: 16.93 x 11.77 x 6.38 inches
• Weight: 11.79 Pounds
• GTIN/UPC: 752895759388

10. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact VnioLife customer service directly. Please have your model number and purchase date available when contacting support.

Manufacturer: VnioLife
