BOSCH BCS712XXL Cordless Stick Vacuum Cleaner User Manual

1. Important Safety Information

Please read this instruction manual carefully before using the appliance for the first time. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• This appliance is intended for domestic use only.
• Do not use the appliance on wet surfaces or to pick up liquids.
• Do not pick up flammable or combustible materials, hot ashes, or sharp objects.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Use only original Bosch accessories and spare parts.
• Ensure the battery is fully charged before first use.
• Do not expose the battery to high temperatures or direct sunlight.

2. Package Contents

Carefully unpack all components and check for any damage. Ensure all items listed below are present:

• Main vacuum unit (motor and dust container)
• Flexible suction tube
• DynamicPower Brush floor nozzle with LED lights
• Rechargeable battery (18V, 3.0Ah)
• Battery charger
• Crevice tool
• Upholstery tool
• Dusting brush
• Wall mount / Docking station
• User Manual (this document)

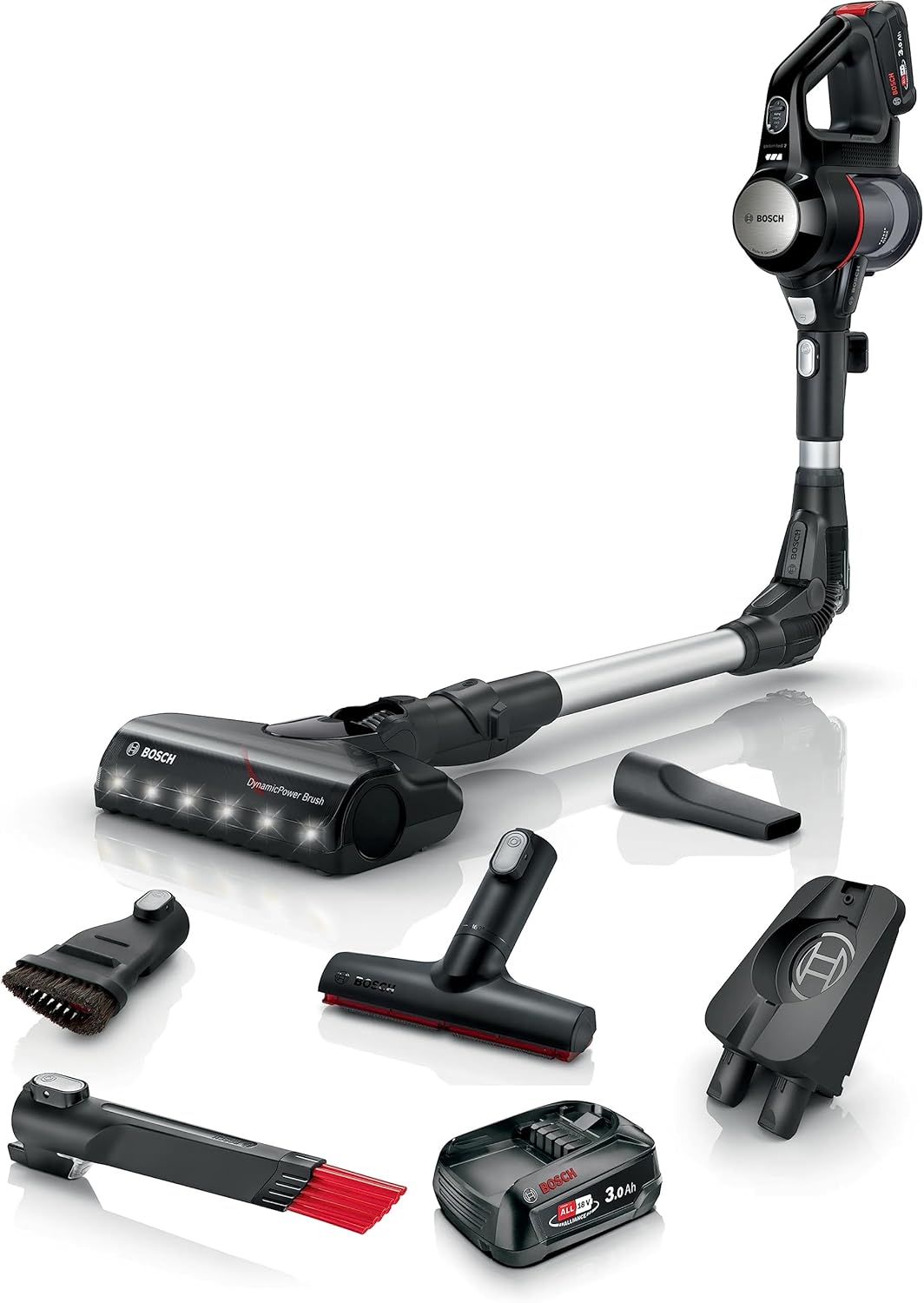

Image 2.1: Overview of the BOSCH BCS712XXL vacuum cleaner and its complete set of accessories, including the main unit, flexible tube, floor nozzle, battery, charger, and various attachments.

3. Assembly and Setup

3.1 Assembling the Vacuum Cleaner

1. Attach the Suction Tube: Insert the flexible suction tube into the main vacuum unit until it clicks securely into place.
2. Attach the Floor Nozzle: Connect the DynamicPower Brush floor nozzle to the other end of the suction tube, ensuring it locks.
3. Insert the Battery: Slide the fully charged battery into the designated slot on the main vacuum unit until it clicks.

3.2 Charging the Battery

Before first use, fully charge the battery. The battery can be charged either while inserted in the vacuum or separately using the charger.

• Connect the charger to a power outlet.
• Connect the charger to the battery or the vacuum cleaner.
• The battery indicator lights will show the charging status. A full charge is indicated when all lights are solid.

Image 3.1: The 18V 3.0Ah battery, which is interchangeable with other Bosch 18V power tools, highlighting its versatility and charging port.

4. Operating Instructions

4.1 Powering On/Off and Mode Selection

• Press the power button on the main unit to turn the vacuum cleaner on or off.
• Use the mode selection button (if available) to switch between different power settings (e.g., Eco, Auto, Turbo).

4.2 Using the Floor Nozzle

The DynamicPower Brush floor nozzle is designed for effective cleaning on various floor types. The integrated LED lights illuminate dust and debris for thorough cleaning.

Image 4.1: A user operating the vacuum cleaner on a carpet, showcasing the flexible design that allows easy access under low-lying furniture.

Image 4.2: Detailed view of the floor nozzle's LED lights actively illuminating dirt particles on a hard surface, ensuring no spot is missed.

4.3 Handheld Vacuum Operation

Detach the main unit from the suction tube to use it as a handheld vacuum for cleaning upholstery, car interiors, or hard-to-reach areas.

• Press the release button to detach the main unit.
• Attach the crevice tool or upholstery tool directly to the main unit for specialized cleaning.

Image 4.3: A composite image illustrating the vacuum's adaptability, transitioning from a full-size stick vacuum to a flexible cleaner for low spaces, and finally to a compact handheld unit.

Image 4.4: A user cleaning different areas of a home, including stairs and a tiled hallway, highlighting the vacuum's maneuverability and effectiveness across diverse surfaces.

5. Maintenance

5.1 Emptying the Dust Container

Empty the dust container regularly to maintain optimal suction power. The container has a capacity of 0.3 liters.

1. Ensure the vacuum cleaner is turned off.
2. Press the release button to detach the dust container from the main unit.
3. Open the dust container and empty its contents into a waste bin.
4. Close the container and reattach it to the main unit.

5.2 Cleaning the Filter

The filter should be cleaned periodically to prevent clogging and maintain performance.

1. Remove the dust container as described above.
2. Carefully remove the filter from the dust container.
3. Tap the filter gently over a waste bin to remove loose dust. If washable, rinse under cold running water.
4. Allow the filter to air dry completely before reinserting it. Do not use heat to dry.

5.3 Cleaning the Brush Roll

Hair and fibers can get tangled in the brush roll. Clean it regularly for efficient operation.

1. Turn off the vacuum cleaner and detach the floor nozzle.
2. Locate the brush roll access cover on the bottom of the nozzle.
3. Open the cover and remove the brush roll.
4. Use scissors or a brush to remove any tangled hair or debris.
5. Reinsert the brush roll and close the cover securely.

6. Troubleshooting

Refer to the table below for common issues and their solutions.

7. Specifications

• Model: BCS712XXL
• Brand: Bosch
• Type: Cordless Stick Vacuum Cleaner
• Battery Voltage: 18 V
• Battery Capacity: 3.0 Ah
• Dust Container Capacity: 0.3 L
• Approximate Runtime: 40 minutes (depending on power mode and accessories)
• Noise Level: 82 dB
• Features: LED light on floor nozzle, removable hand vacuum
• Model Number: S91103581

8. Warranty and Support

Bosch products are manufactured with quality and reliability in mind. For warranty information, please refer to the warranty card included with your purchase or visit the official Bosch website for your region.

For technical support, spare parts, or service inquiries, please contact Bosch customer service. Contact details can typically be found on the Bosch website or in your purchase documentation.

When contacting support, please have your model number (BCS712XXL) and serial number (if applicable) ready.
