COSTWAY 10-Drawer Rolling Storage Cart (Model 52045-CYHW) Instruction Manual

Important Safety Information

Please read and understand all instructions before assembly and use of this product. Keep this manual for future reference.

• Ensure all parts are present and undamaged before beginning assembly. Do not use if any parts are missing or broken.
• Assemble the cart on a soft, clean surface to prevent scratches.
• Do not overload the drawers (maximum 3 lbs per drawer) or the top surface (maximum 18 lbs). The total weight on the cart should not exceed 66 lbs.
• Always lock the casters when the cart needs to remain stationary to prevent accidental movement.
• Keep small parts away from children during assembly to avoid choking hazards.
• Periodically check all fasteners to ensure they remain tight.

Package Contents

Verify that all components listed below are included in your package:

• Metal Frame (Left and Right Sides)
• Top Mesh Shelf
• 10 Removable Drawers (Black)
• 4 Universal Casters (2 with Brakes)
• Drawer Knobs (10 pieces)
• Assembly Hardware (Screws, Wrench)

Image: Exploded view of the cart components, including the galvanized metal frame and lightweight PP drawers.

Assembly Instructions

Assembly is straightforward and typically takes 10-15 minutes. All necessary tools are provided.

1. Attach the Top Mesh Shelf: Align the top mesh shelf with the pre-drilled holes on the top of the metal frame sides. Secure it using the provided screws and wrench.
2. Attach the Casters: Insert the four universal casters into the designated holes at the bottom of the metal frame. Ensure the two casters with brakes are positioned on the same side for easy access. Tighten them securely.
3. Install Drawer Knobs: Screw each knob onto the front of each drawer. Ensure they are finger-tight.
4. Insert Drawers: Slide each of the 10 removable drawers into their respective slots on the metal frame.

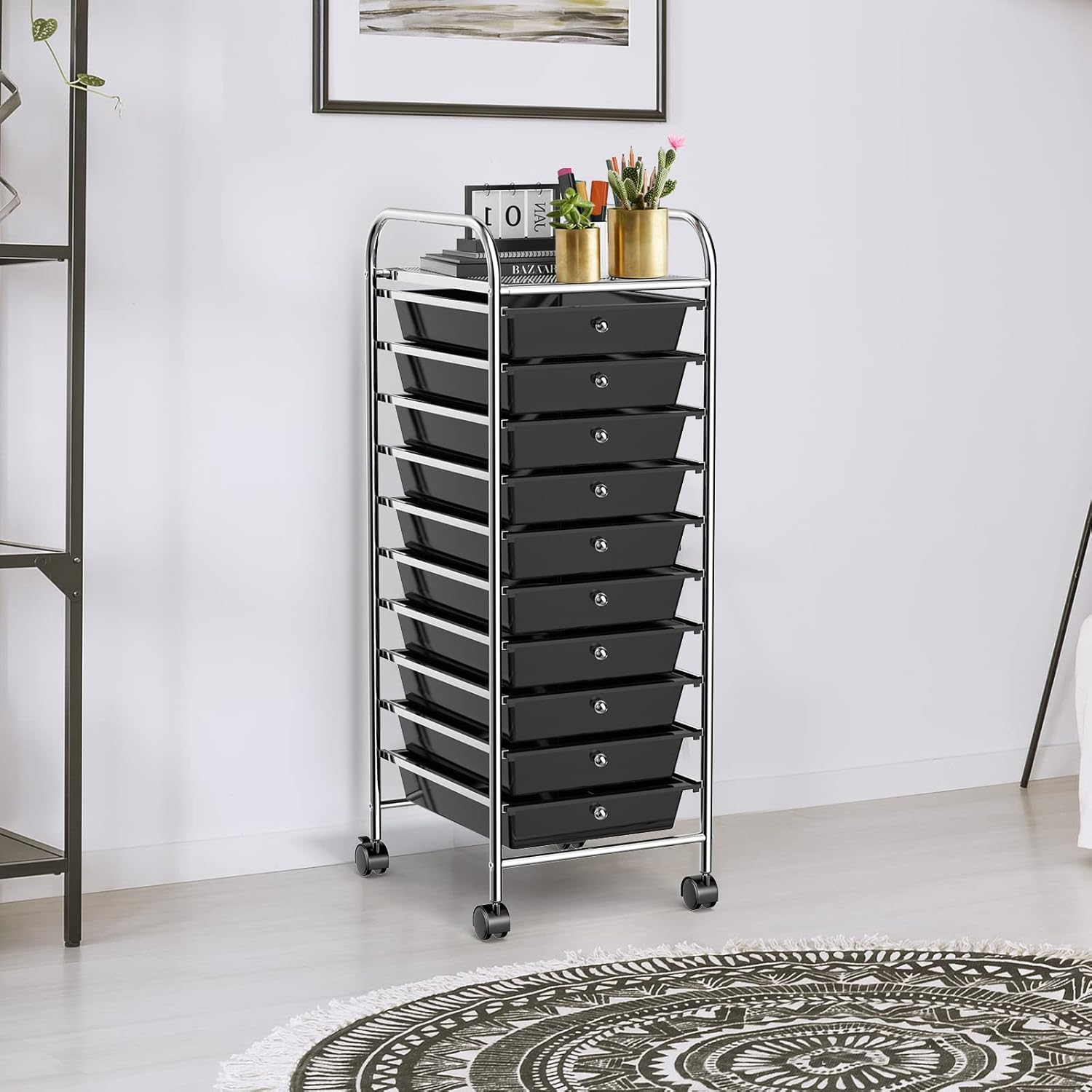

Image: The assembled 10-drawer cart, ready for use.

Image: Detail of the 360-degree rotating casters, highlighting the locking mechanism for stability.

Operating Instructions

This rolling storage cart is designed for versatile and convenient organization.

• Using the Drawers: Each drawer slides out independently. Pull the knob gently to open and push to close. The drawers are removable for easy access and cleaning.
• Mobility: The four universal casters allow for smooth 360-degree movement. To move the cart, simply push or pull it to your desired location.
• Locking the Casters: To keep the cart stationary, press down on the brake levers located on two of the casters. To unlock, lift the levers.
• Top Storage: The perforated top shelf provides additional storage space for frequently used items. The raised edges help prevent items from rolling off.

Image: Example of drawers storing items like paper, scissors, and other small objects.

Image: Detail showing the flat top with ventilation holes and the sleek drawer knobs.

Maintenance

Regular maintenance will ensure the longevity and optimal performance of your storage cart.

• Cleaning: Wipe the metal frame and plastic drawers with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Caster Care: Periodically check the casters for any accumulated debris (hair, lint) and clean as needed to ensure smooth rolling.
• Fastener Check: Every few months, inspect all screws and connections to ensure they are tight. Re-tighten if necessary.

Troubleshooting

If you encounter any issues with your storage cart, refer to the following common solutions:

• Cart does not roll smoothly: Check casters for debris. Ensure casters are not locked.
• Drawers stick or are difficult to open/close: Ensure drawers are inserted correctly and not overloaded. Check for any obstructions in the drawer slides.
• Cart feels unstable: Verify all assembly screws are securely tightened. Ensure casters are locked when stationary.

Specifications

Image: Visual representation of the cart's overall dimensions and individual drawer dimensions.

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official COSTWAY website.

Note: Specific warranty terms may vary. Please retain your proof of purchase.
