FORLIM SD-002C Boot Dryer Instruction Manual

Introduction

Thank you for choosing the FORLIM SD-002C Boot Dryer. This device is designed to efficiently dry and deodorize various types of footwear and gloves, providing comfort and extending the lifespan of your items. Please read this manual thoroughly before operation to ensure safe and effective use.

Safety Instructions

• Do not immerse the dryer in water or any other liquid.
• Do not use near flammable substances.
• Ensure proper ventilation during use.
• Do not place objects on the air outlet during operation.
• Unplug the device when not in use or before cleaning.
• Keep out of reach of children.
• Indoor use is recommended for optimal performance.
• The device includes over-temperature protection, which activates if the temperature exceeds the limit.

Product Overview

Key Features

• Upgraded Temperature Control: Three modes (hot air, warm air, natural air) for various footwear types.
• 24-Hour Delay Timer & Automatic Shut-Off: Schedule drying cycles for convenience.
• Creative Telescopic Bendable Design: Dry ports extend and bend to reach deep inside high boots.
• 180° Foldable Dry Rack: Accommodates footwear and gloves of all sizes and shapes.
• Built-In Ozone Deodorizer: Neutralizes odors while drying.
• Efficient Heating & Safety Assurance: Forced air drying (105°F-140°F / 40.5°C-60°C) with over-temperature protection.

Included Components

• Smart adjustable temperature shoe dryer (1 unit)
• Instruction Manual (1 unit)

Image: Comparison highlighting the FORLIM SD-002C's three temperature modes (High Temp, Low Temp, Fan) and telescopic/bendable design against a single-mode, non-flexible dryer.

Setup

1. Unpack the FORLIM SD-002C Boot Dryer and all components.
2. Place the dryer on a stable, flat surface in a well-ventilated area.
3. Extend the dry ports by gently pulling them upwards. The ports can be adjusted to various angles and heights to fit different footwear.
4. Plug the power cord into a standard electrical outlet.

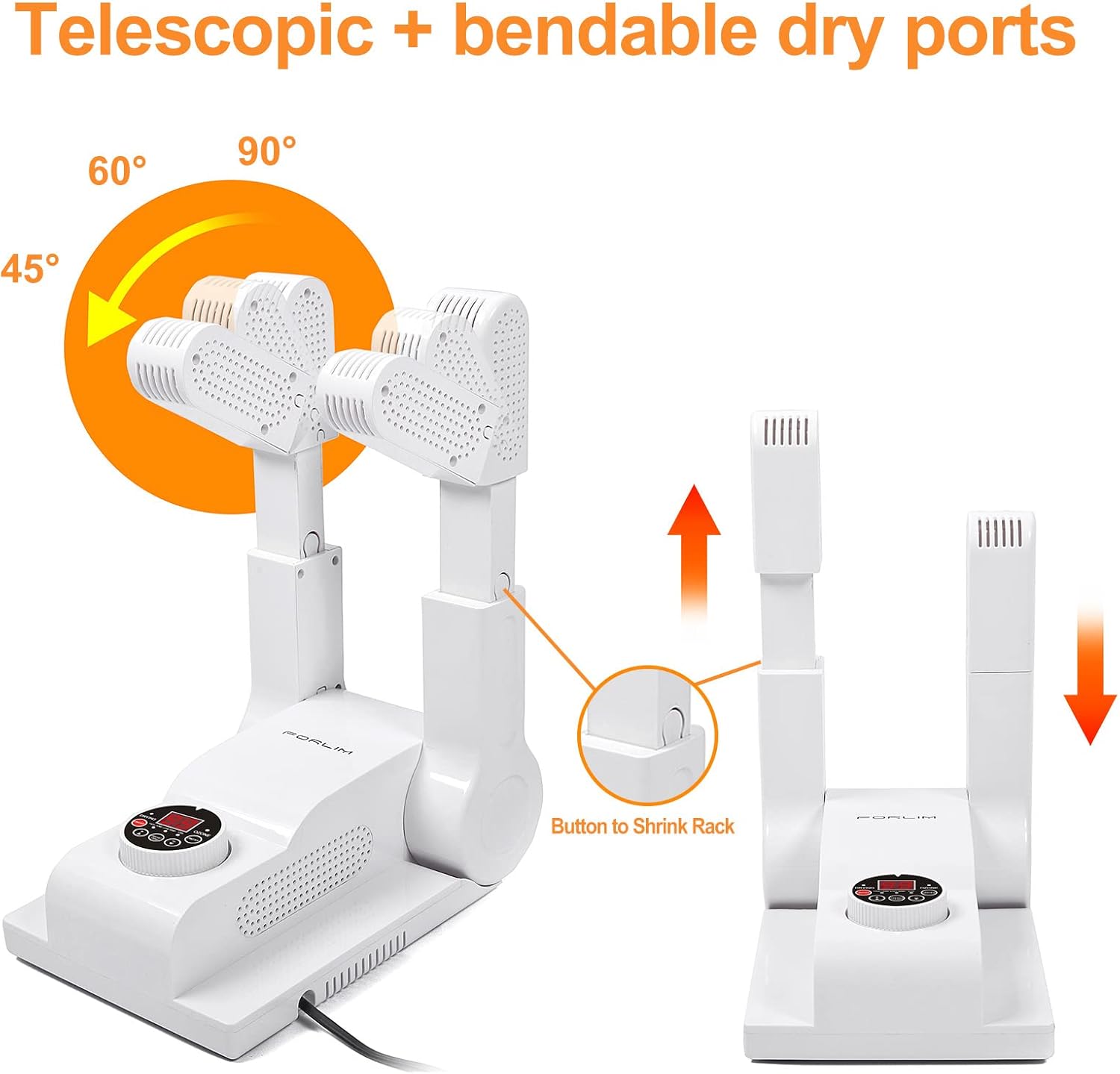

Image: The boot dryer with its telescopic and bendable dry ports extended, demonstrating flexibility for various footwear sizes.

Operating Instructions

Drying Function

1. Place your boots, shoes, or gloves onto the extended dry ports. Ensure the items are properly positioned for optimal airflow.
2. Press the 'ON/OFF' button under 'DRYING' to activate the drying function. The digital display will show the remaining drying time.
3. Adjusting Temperature: Use the 'PRESET/TEMP' button to cycle through High Temp (60°C), Low Temp (45°C), or Fan (natural air) modes. Corresponding indicator lights will illuminate.
4. Setting Drying Time: Use the '+' and '-' buttons to adjust the drying duration, up to a maximum of 99 minutes.
5. The dryer will automatically shut off once the set time has elapsed.

Ozone Deodorizing Function

1. To activate the ozone function, press the 'ON/OFF' button under 'OZONE'. An indicator light will confirm activation.
2. The ozone function can be used independently or concurrently with the drying function.
3. The ozone cycle duration is typically preset and designed for effective deodorization.

24-Hour Delay Timer

1. To set a delayed start, ensure the dryer is plugged in but not actively drying.
2. Use the '+' and '-' buttons to set the desired delay time in hours, up to 24 hours.
3. The dryer will automatically start the drying cycle after the set delay time.

Image: The FORLIM boot dryer actively drying boots with heat, illustrating the adjustable temperature settings (104°F-140°F) and fan mode.

Image: The boot dryer demonstrating its 360° hot air drying and ozone function, targeting moisture, bacteria, and odor removal.

Usage Examples

The FORLIM SD-002C is versatile and can be used for a wide range of footwear and garments:

• Boots: Work boots, snow boots, hiking boots, rain boots.
• Shoes: Sneakers, athletic shoes, casual shoes, leather shoes (use low heat or fan mode).
• Gloves: Ski gloves, work gloves, winter gloves.
• Other Small Items: Socks, hats (ensure proper positioning and airflow).

Image: The boot dryer demonstrating its 180° adjustable dry rack, accommodating different items like boots, slippers, sneakers, and gloves in various positions.

Maintenance

1. Always unplug the dryer before cleaning.
2. Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
3. Ensure the air inlets and outlets are free from dust and debris for optimal performance.
4. Store the dryer in a cool, dry place when not in use. The folding design allows for compact storage.

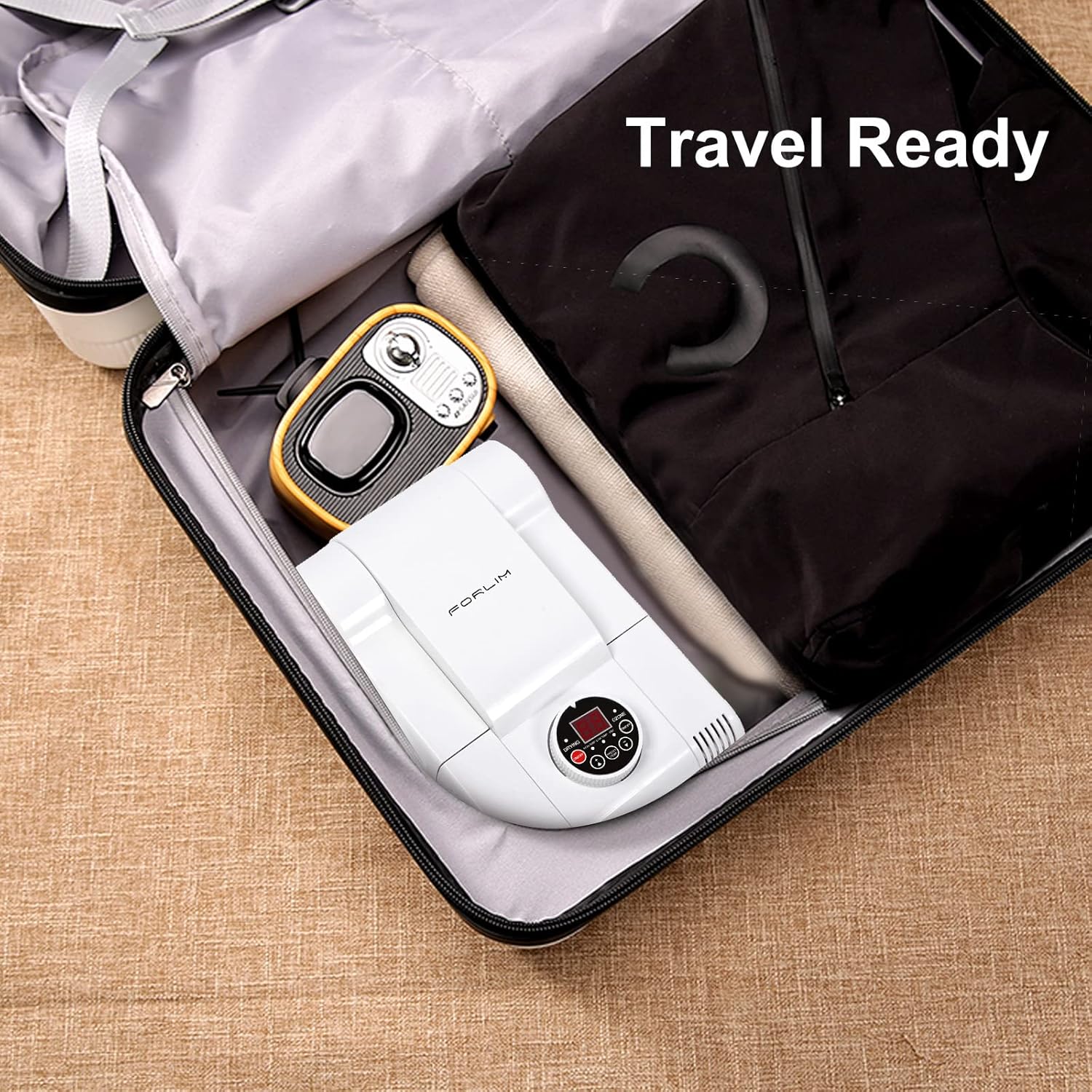

Image: The FORLIM boot dryer in its folded, compact state, labeled 'Travel Ready', showing its portability for storage or transport.

Troubleshooting

Specifications

• Brand: FORLIM
• Model Number: SD-002C
• Material: Acrylonitrile Butadiene Styrene (ABS)
• Item Dimensions (D x W x H): 9.7"D x 18.3"W x 3.66"H
• Temperature Range: 105°F-140°F (40.5°C-60°C)
• Timer: Up to 99 minutes (drying), up to 24 hours (delay start)
• Features: Upgraded Temperature Control, 24-Hour Delay Timer, Automatic Shut-Off, Folding Design, Smart Panel, Ozone Deodorizer

Image: Detailed dimensions of the FORLIM boot dryer, showing its compact and functional design.

Warranty and Support

The FORLIM SD-002C Boot Dryer comes with a 2-year warranty. For any product inquiries, troubleshooting assistance, or warranty claims, please contact FORLIM customer support through your retailer or the official FORLIM website.

FORLIM is committed to providing quality products and customer satisfaction. We aim to enhance daily life with thoughtful designs and reliable quality.
