Introduction
Thank you for choosing the Magnat Monitor Supreme Center 252 speaker. This manual provides essential information for the proper setup, operation, and maintenance of your new center channel speaker. Please read these instructions carefully before using the product to ensure optimal performance and longevity.
The Monitor Supreme Center 252 is a compact 2-way center speaker designed to enhance dialogue clarity and overall soundstage in your home theater system. It features a solid MDF cabinet and a sophisticated driver configuration for clear and dynamic audio reproduction.
Product Overview
Key Features:
- Superior Sound Quality: Experience crystal-clear audio with a 2-way system featuring a 100mm woofer-midrange and 13mm dome-tweeter, delivering immersive sound for your home theater.
- Enhanced Voice Clarity: Optimized for dialogue, this center speaker ensures every word is heard with precision, making movies and shows more engaging and easier to follow.
- Powerful Audio Performance: With 75W RMS and 150W max power handling, enjoy robust and dynamic sound that brings your favorite content to life with impressive clarity.
- Optimized Frequency Response: Experience a broad audio spectrum from 40 to 34,000 Hz, capturing deep lows and crisp highs for a balanced and detailed listening experience.
- Seamless Integration: Designed with a 4-8 Ohm impedance and 90 dB sensitivity, this speaker pairs effortlessly with a wide range of amplifiers, from 20 to 150 Watts.
What's in the Box:
- Magnat Monitor Supreme Center 252 Speaker
Setup
1. Speaker Placement
The center channel speaker is crucial for dialogue and should be placed directly above or below the center of your television or projection screen. Ensure it is positioned at approximately ear level when seated for the best listening experience. Avoid placing objects directly in front of the speaker that could obstruct sound.
Image 1: Front view of the Magnat Monitor Supreme Center 252 speaker with the protective grille removed, revealing the two 100mm woofer-midrange drivers on either side of the 13mm dome tweeter. The speaker cabinet has a mocca wood finish.

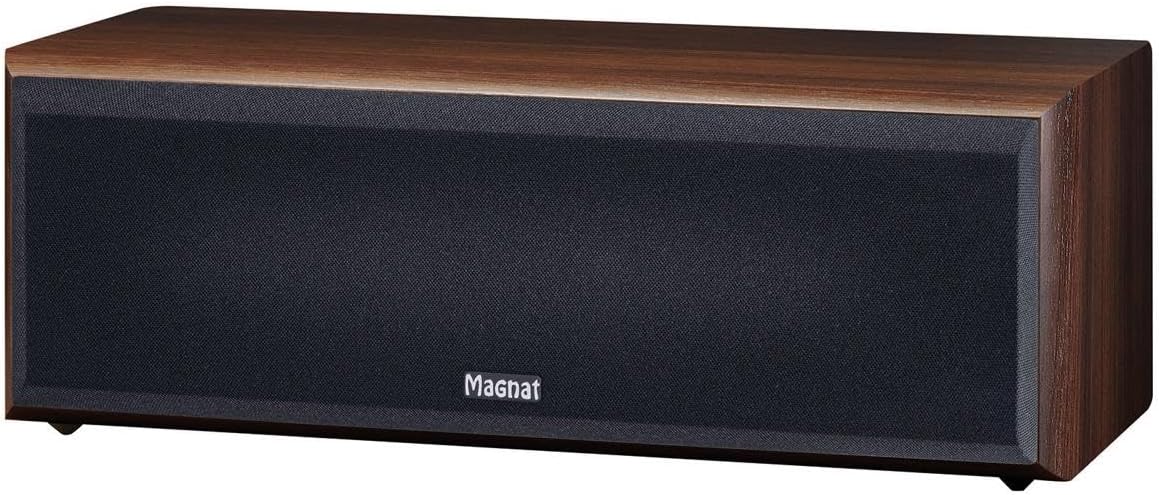

Image 2: Front view of the Magnat Monitor Supreme Center 252 speaker with its black fabric protective grille attached, displaying the Magnat logo centrally. The speaker cabinet features a mocca wood finish.
2. Connecting to Your Amplifier/Receiver
Ensure your amplifier or receiver is turned off before making any connections. Use high-quality speaker cables to connect the Magnat Monitor Supreme Center 252 to the "Center" channel output of your amplifier/receiver. Observe correct polarity: connect the red (+) terminal on the speaker to the red (+) terminal on your amplifier, and the black (-) terminal on the speaker to the black (-) terminal on your amplifier.
Image 3: Rear view of the Magnat Monitor Supreme Center 252 speaker, highlighting the gold-plated binding post terminals for speaker cable connection. The red terminal is for positive (+) and the black terminal for negative (-). A product label with model information is also visible.
Incorrect polarity can result in poor sound quality, particularly in bass response. Once connected, you can turn on your amplifier and proceed with any necessary speaker calibration settings on your receiver.
Operation
Once properly connected and positioned, the Magnat Monitor Supreme Center 252 operates in conjunction with your amplifier/receiver. The speaker does not have independent controls. Adjust volume and sound settings through your amplifier/receiver. For optimal performance, ensure your receiver's speaker settings are configured correctly for a center channel speaker, including crossover frequencies if applicable.
The speaker is designed for home theater applications, primarily handling dialogue and central sound effects. It is recommended to use it as part of a complete surround sound system for the best audio experience.
Maintenance
To maintain the appearance and performance of your Magnat Monitor Supreme Center 252 speaker, follow these guidelines:
- Cleaning: Use a soft, dry cloth to gently wipe the cabinet. For the grille, a soft brush or vacuum cleaner with a brush attachment can be used to remove dust. Avoid using abrasive cleaners, solvents, or polishes, as these can damage the finish.
- Placement: Keep the speaker away from direct sunlight, heat sources, and excessive moisture.
- Handling: When moving the speaker, always lift it carefully from the base. Avoid touching the speaker cones or tweeter dome directly.
Troubleshooting
If you encounter issues with your Magnat Monitor Supreme Center 252, refer to the following common problems and solutions:
- No Sound from Speaker:
- Check all cable connections between the speaker and the amplifier/receiver. Ensure they are secure and correctly connected to the center channel output.
- Verify that the amplifier/receiver is powered on and the correct input source is selected.
- Check the speaker settings on your amplifier/receiver to ensure the center channel is enabled and not muted.
- Distorted or Unclear Sound:
- Ensure speaker cables are connected with correct polarity (+ to + and - to -).
- Reduce the volume level on your amplifier/receiver. Overdriving the speaker can cause distortion.
- Check for any physical damage to the speaker cones or tweeter.
- Verify that the speaker impedance setting on your amplifier/receiver matches the speaker's impedance (4-8 Ohms).
- Weak Dialogue or Poor Soundstage:
- Adjust the center channel level in your amplifier/receiver's settings.
- Ensure the speaker is positioned correctly, ideally at ear level and centered with your display.
- Run your amplifier/receiver's automatic speaker calibration (if available) to optimize settings.
If problems persist, consult your amplifier/receiver manual or contact Magnat customer support.
Specifications
Image 4: Dimensional drawing of the Magnat Monitor Supreme Center 252 speaker, indicating its width as 18.5 inches, height as 8.27 inches, and depth as 9.85 inches. This view includes the protective grille.
| Feature | Detail |
|---|---|
| Model Name | Monitor Supreme 252 |
| Speaker Type | Center Channel |
| Power Handling (RMS/Max) | 75 W / 150 W |
| Frequency Response | 40 - 34,000 Hz |
| Impedance | 4 - 8 Ohms |
| Sensitivity (2.8V/1m) | 90 dB |
| Crossover Frequencies | 3,500 Hz |
| Drivers | 2 x 100mm woofer-midrange, 1 x 13mm dome-tweeter |
| Enclosure Type | Enclosed (Sealed) |
| Product Dimensions (W x H x D) | 18.5" x 8.27" x 9.85" (470 x 210 x 250 mm) |
| Item Weight | 11 Pounds (5 kg) |
| Material | Engineered Wood (MDF) |
| Compatible Devices | Home Theater Amplifiers/Receivers |
| UPC | 810072320124 |
| Item Model Number | D14482531NA |
Warranty and Support
The Magnat Monitor Supreme Center 252 speaker comes with a Full Warranty. For specific terms and conditions of your warranty, please refer to the documentation included with your purchase or visit the official Magnat website. Keep your proof of purchase for warranty claims.
For technical support, service, or further inquiries, please contact Magnat customer service through their official website or the contact information provided in your product packaging.
