1. Introduction
Welcome to the BERG Pedal Kart Rally NRG Orange user manual. This document provides essential information for the safe assembly, operation, and maintenance of your new pedal kart. The BERG Rally NRG Orange is designed for children aged 4 to 12 years, offering a fun and safe riding experience with its unique BFR-system, adjustable features, and durable construction.
Image: The BERG Pedal Kart Rally NRG Orange, showcasing its vibrant orange frame, black seat, and sturdy wheels.
2. Safety Guidelines
Always prioritize safety when operating the pedal kart. Failure to follow these guidelines may result in injury or damage.
- Adult Supervision: Children must always be supervised by an adult while using the pedal kart.
- Age and Weight Limits: Suitable for children aged 4-12 years. Ensure the user's length is between 110 cm and 150 cm.
- Protective Gear: Always wear a helmet, knee pads, and elbow pads.
- Operating Environment: Use on flat, even surfaces away from public roads, steep inclines, water, and other hazards.
- Pre-Ride Check: Before each use, ensure all bolts are tight, tires are properly inflated, and the steering and braking systems function correctly.
3. Setup
3.1 Unpacking and Assembly
Carefully unpack all components from the box. Refer to the separate assembly instructions provided with your product for detailed step-by-step guidance. Ensure all parts are accounted for before beginning assembly.
3.2 Adjusting the Seat
The BERG Rally NRG Orange features an adjustable seat to accommodate different user lengths. The seat has three positions, allowing the user to always reach the pedals comfortably.
- Locate the seat adjustment mechanism, typically a lever or pin beneath the seat.
- Release the mechanism and slide the seat to the desired position.
- Ensure the mechanism locks securely into place before use.

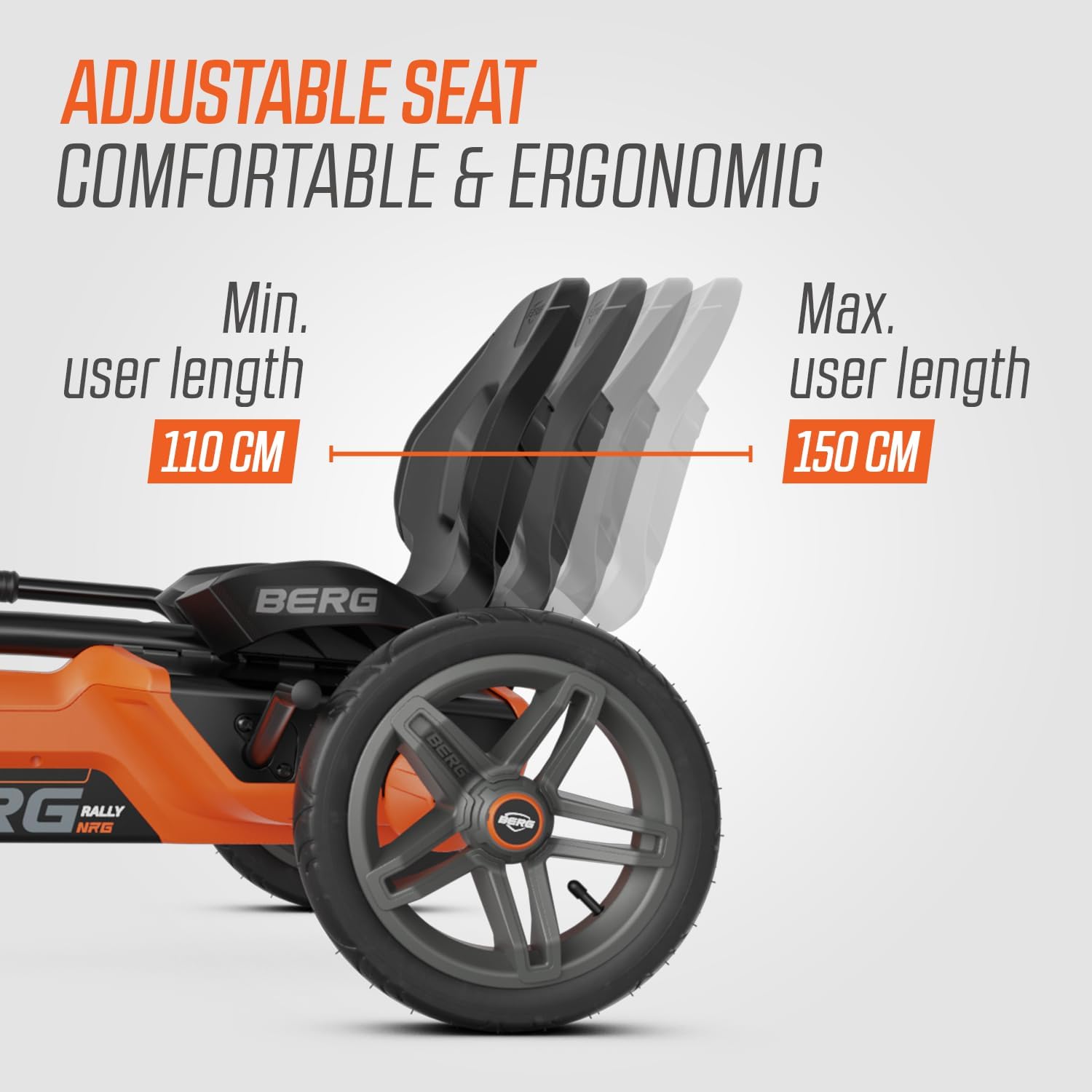

Image: A close-up view of the BERG Pedal Kart's adjustable seat, showing its multiple positions for user comfort and growth.
3.3 Adjusting the Steering Wheel
The steering wheel is infinitely height adjustable to ensure an ergonomic riding position for the user.
- Loosen the steering wheel adjustment clamp or knob.
- Raise or lower the steering wheel to the desired height.
- Tighten the clamp or knob firmly to secure the steering wheel in place.
Image: Diagram illustrating the dimensions (length 124cm, width 71cm, height 69cm) and age suitability (4+ years, user length 110-150cm) of the BERG Rally NRG Orange.
4. Operating the Pedal Kart
The BERG Rally NRG Orange is equipped with the unique BFR-system for easy and intuitive control.
4.1 BFR-System (Brake, Forward, Reverse)
The BFR-system allows you to brake, drive forward, and reverse using only the pedals. This system ensures a smooth and simple riding experience.
- Forward: Pedal forward to move the kart forward.
- Brake: To brake, pedal backward. This engages the coaster brake.
- Reverse: After coming to a standstill, continue pedaling backward to engage reverse gear.
- Freewheel: The pedals remain stationary while the wheels continue to spin, allowing for coasting.

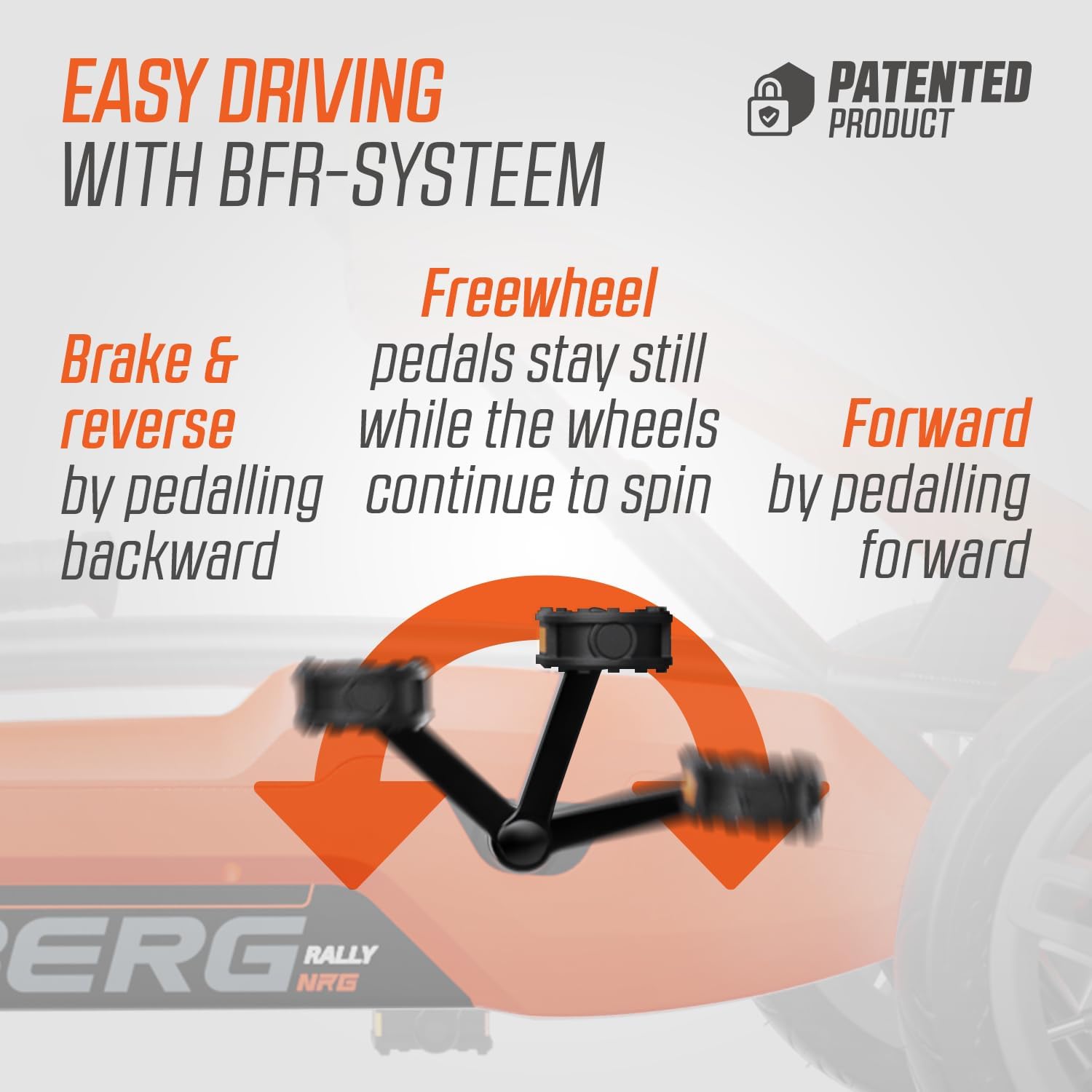

Image: A diagram illustrating the BFR-system, showing how pedaling forward drives the kart forward, pedaling backward brakes and then reverses, and the freewheel allows pedals to stay still while wheels spin.
4.2 Steering
Steer the pedal kart by turning the steering wheel left or right. The responsive steering allows for agile maneuvering.
4.3 Parking Brake
The pedal kart includes a parking brake for secure parking. Engage the parking brake when the kart is stationary to prevent accidental movement.
4.4 Pneumatic Tires and Swing Axle
The BERG Rally NRG Orange is equipped with pneumatic tires for a smoother ride and better grip, and a swing axle for stability on uneven terrain.
Image: A close-up view of the pneumatic tires on the BERG Pedal Kart, highlighting their robust design for good grip and a smooth ride.

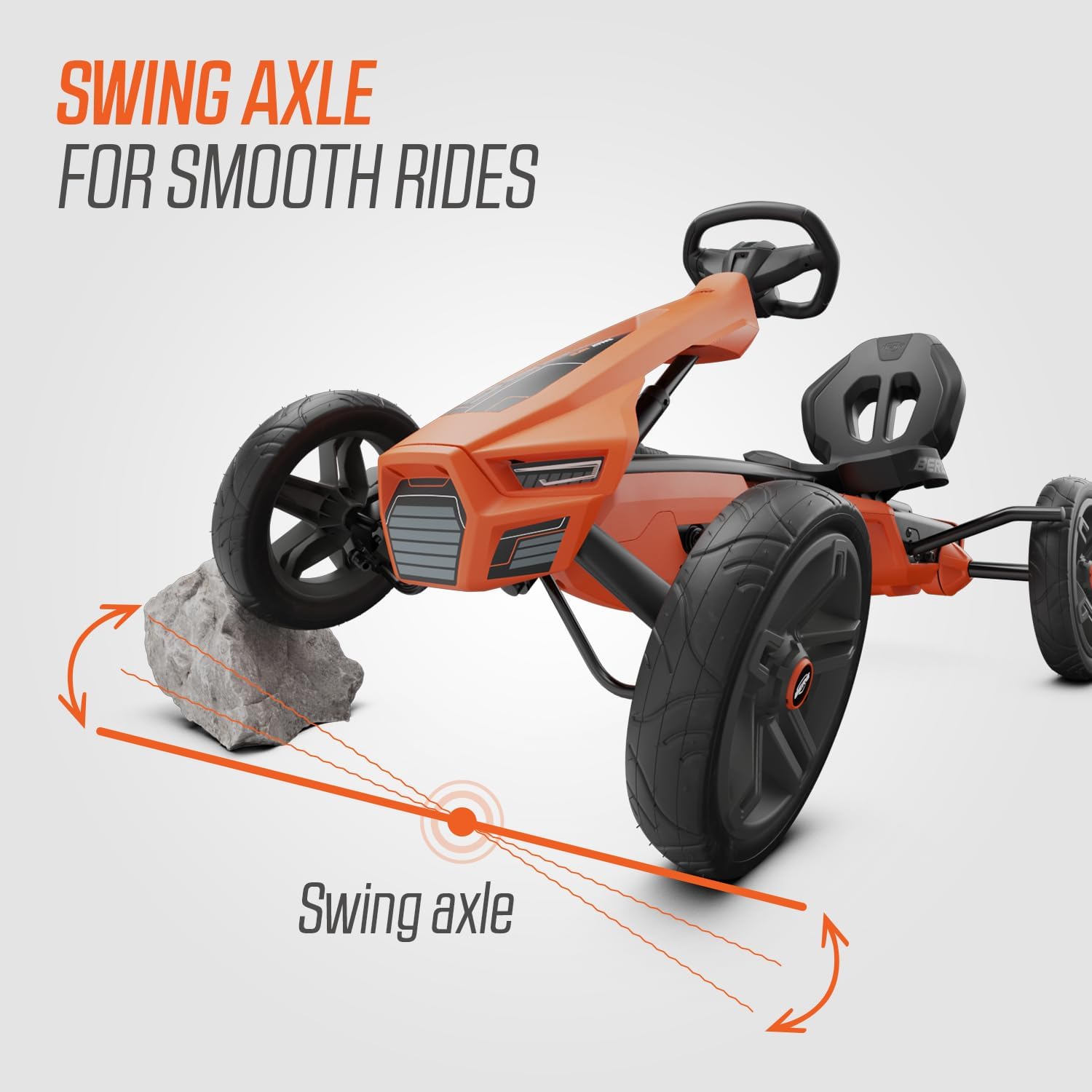

Image: A diagram illustrating the swing axle mechanism of the BERG Pedal Kart, showing how it allows the kart to maintain contact with the ground over uneven surfaces for a smooth ride.
Image: A child smiling while riding the BERG Pedal Kart Rally NRG Orange, demonstrating its ease of use and enjoyment.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your BERG Pedal Kart.
- Cleaning: Clean the kart regularly with a damp cloth and mild soap. Avoid harsh chemicals.
- Tire Pressure: Check the pneumatic tire pressure periodically. Maintain the recommended pressure as indicated on the tire sidewall.
- Lubrication: Lubricate moving parts such as the chain and axle bearings annually or as needed with a suitable lubricant.
- Bolt Tightness: Regularly check and tighten all bolts and nuts, especially on the wheels, steering, and seat.
- Storage: Store the pedal kart in a dry, sheltered place to protect it from weather elements.

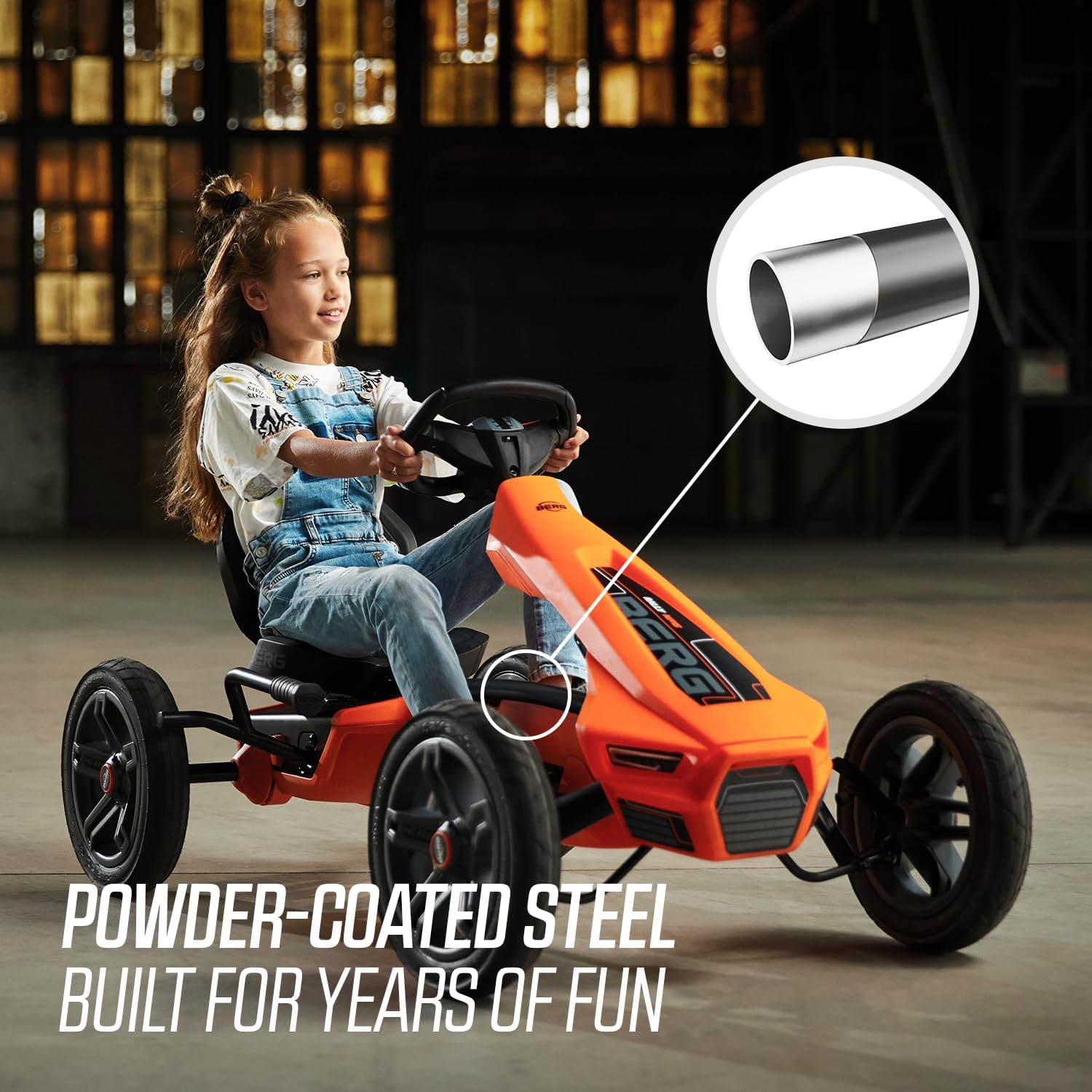

Image: A close-up view highlighting the powder-coated steel frame of the BERG Pedal Kart, indicating its durable construction designed for years of fun.
6. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty pedaling | Low tire pressure, stiff chain, obstruction | Check tire pressure, lubricate chain, remove obstructions. |
| Steering feels loose or stiff | Loose bolts, lack of lubrication, damaged steering components | Check and tighten steering bolts, lubricate moving parts, inspect for damage. |
| Kart pulls to one side | Uneven tire pressure, bent axle, misaligned steering | Adjust tire pressure, inspect axle for damage, check steering alignment. |
| Brakes not effective | Worn brake pads (if applicable), BFR system issue | Ensure proper pedal backward motion for BFR brake. If issue persists, contact support. |
7. Specifications
- Product Dimensions: 46.85 x 12.99 x 16.14 inches
- Item Weight: 61.6 pounds
- ASIN: B0BMJSTL4X
- Item Model Number: 1
- Manufacturer Recommended Age: 4 - 12 years
- Manufacturer: BERG Toys B.V.
8. Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or visit the official BERG website. For any questions, technical assistance, or customer support, please contact BERG customer service.
You can find more information and support options by visiting the BERG Store on Amazon.
