LG 7 Kg Fully-Automatic Front Load Washing Machine User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your LG 7 Kg Fully-Automatic Front Load Washing Machine, model FHM1207SDM. Please read this manual thoroughly before using the appliance and retain it for future reference.

Figure 1.1: Front view of the LG 7 Kg Fully-Automatic Front Load Washing Machine (FHM1207SDM).

2. Safety Information

Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury to persons when using this appliance.

• Read all instructions before using the appliance.
• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they emit vapors that could ignite or explode.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Do not reach into the appliance if the tub or agitator is moving.
• Do not install or store this appliance where it will be exposed to the weather or freezing temperatures.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in this manual or in published user-repair instructions that you understand and have the skills to carry out.
• Ensure the appliance is properly grounded.
• Unplug the appliance from the power supply before attempting any service or cleaning.

3. Product Features

The LG FHM1207SDM washing machine incorporates advanced features for efficient and effective laundry care.

• Direct Drive Technology: The Inverter Direct Drive motor connects directly to the drum, reducing noise and vibration while enhancing durability and wash performance.
• 6 Motion DD: This technology utilizes six distinct wash motions (Stepping, Tumble, Filtration, Scrubbing, Rolling, Swing) to optimize washing for various fabric types, ensuring thorough cleaning and reduced fabric damage.
• Hygiene Steam: The built-in steam function helps remove allergens and stubborn stains by penetrating fabrics with steam.
• Smart Diagnosis: A convenient feature that allows for quick troubleshooting of minor issues via a smartphone application, minimizing service calls.
• Stainless Steel Drum: Designed for longevity and hygiene, the stainless steel drum and lifters help maintain a clean washing environment.
• In-built Heater: Provides hot water wash options for enhanced cleaning and sanitization.
• Sensors: Equipped with a Water Level Sensor, Load Imbalance Sensor, and Laundry Load Sensor for optimized wash cycles.

Figure 3.1: Inverter Direct Drive motor technology ensures quiet and powerful operation.

Figure 3.2: Illustration of the 6 Motion DD technology, detailing Stepping, Tumble, Filtration, Scrubbing, Rolling, and Swing motions.

Figure 3.3: Steam technology effectively removes allergens from fabrics.

Figure 3.4: Integrated sensors for optimal washing performance.

4. Setup and Installation

Proper installation is crucial for the performance and longevity of your washing machine. It is recommended to have the appliance installed by a qualified technician.

4.1 Unpacking

• Carefully remove all packaging materials, including the base packaging and any protective films.
• Remove all transit bolts from the rear of the machine. Keep them for future transportation if needed.

4.2 Location Requirements

• Place the washing machine on a firm, level surface.
• Ensure adequate space around the machine for ventilation and maintenance.
• Avoid direct sunlight or exposure to freezing temperatures.

4.3 Water and Drain Connections

• Connect the cold supply hose to a cold water tap. Ensure connections are tight to prevent leaks.
• Position the drain hose correctly to allow for proper water drainage.
• The recommended water pressure suitability is 50 kPa ~ 800 kPa (0.5 ~ 8.0 kgf/cm²).

4.4 Electrical Connection

• Connect the power cord to a grounded electrical outlet.
• Ensure the voltage (230 Volts) and wattage (1700 Watts) match your household supply.

Figure 4.1: Included components for installation: Cold Supply Hose and Spanner.

5. Operating Instructions

Familiarize yourself with the control panel and wash programs for optimal use.

Figure 5.1: Control Panel Overview.

1. Power On/Off Button (1): Press to turn the washing machine on or off.
2. Programme Knob (2): Rotate to select one of the 10 available wash programs.
3. Start/Pause Button (3): Press to start a wash cycle or pause an ongoing one.
4. Customizing Washing Programmes Button (4): Use to adjust settings like temperature, spin speed, or add pre-wash.
5. Extra Options and Functions (5): Select additional features such as Child Lock or Time Delay.
6. Display (6): Shows remaining time, selected options, and error codes.

5.1 Wash Programs

The machine offers 10 wash programs:

• Cotton: For soiled cotton clothes.
• Cotton Large: Optimized for large amounts of cotton laundry.
• Mix: Cleans a variety of different fabrics simultaneously.
• Easy Care: For clothes that do not require ironing, such as polyamide, acrylic, and polyester fabrics.
• Baby Care: Washes at higher temperatures to eliminate bacteria.
• Sports Wear: Specific program for sportswear.
• Delicate: For large items like bed covers and pillows.
• Wool: Gentle wash for wool garments.
• Quick 30: A rapid wash cycle for lightly soiled items.
• Rinse+Spin: For rinsing and spinning only.

5.2 Loading Laundry

• Sort laundry by fabric type, color, and degree of soiling.
• Do not overload the machine; the capacity is 7 Kg.
• Close the door firmly before starting a cycle.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your washing machine.

6.1 Cleaning the Exterior

• Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners.

6.2 Cleaning the Drum

• Periodically run a drum clean cycle (if available) or a hot wash with no laundry and a washing machine cleaner.

6.3 Detergent Dispenser

• Clean the detergent dispenser drawer regularly to prevent residue buildup.

6.4 Drain Filter

• Check and clean the drain filter periodically to remove lint and small objects. Refer to the full user manual for specific instructions on accessing the drain filter.

7. Troubleshooting

Before contacting service, refer to the following common issues and their solutions. The Smart Diagnosis feature can also assist in identifying problems.

Figure 7.1: Using Smart Diagnosis for quick troubleshooting.

8. Specifications

Detailed technical specifications for the LG FHM1207SDM washing machine.

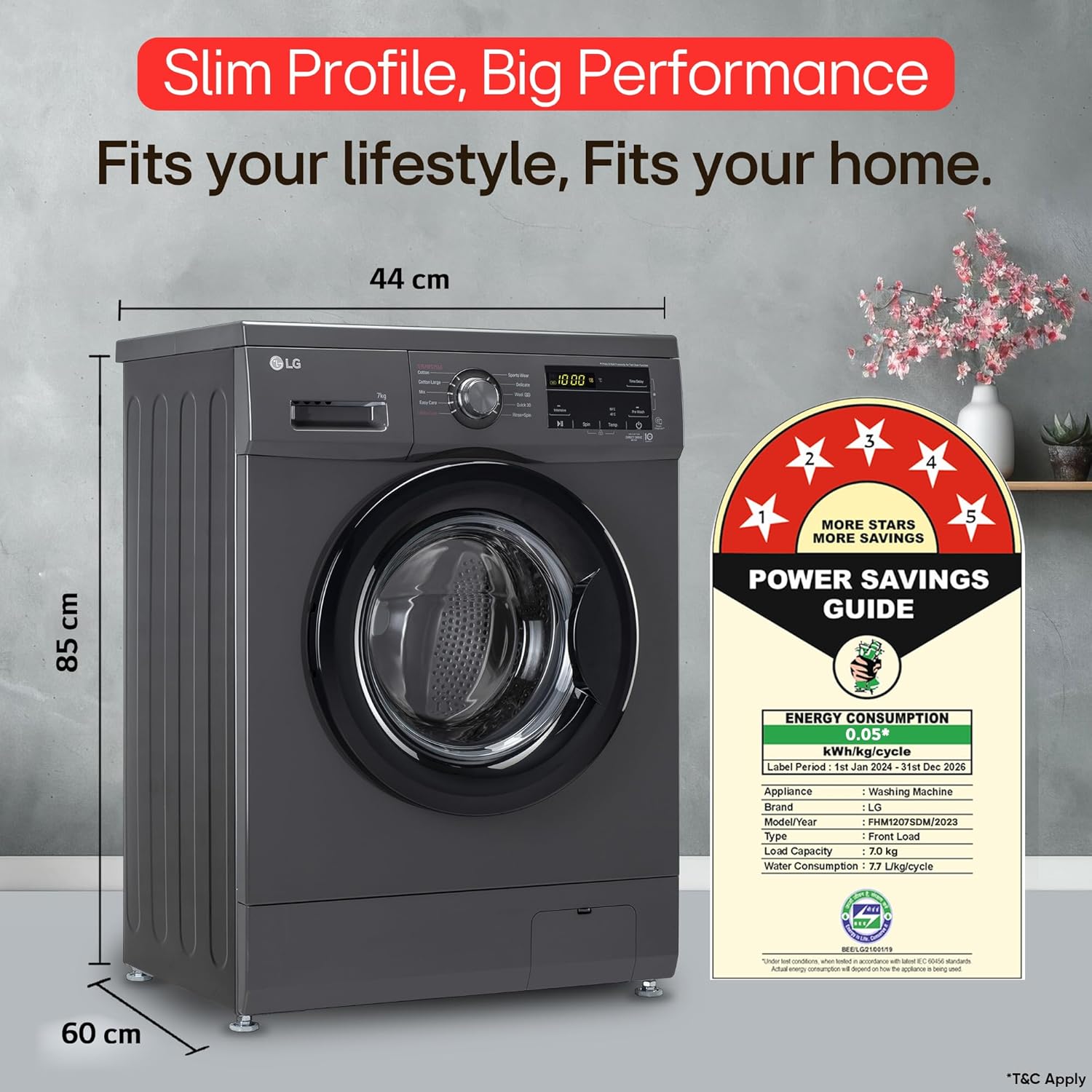

Figure 8.1: Product dimensions and energy efficiency rating.

9. Warranty and Support

Your LG washing machine is covered by a comprehensive warranty and dedicated customer support.

• Manufacturer Warranty: 2 Years Comprehensive on Product & 10 years on Motor (Terms and Conditions Apply).
• Manufacturer Contact: LG Electronics India Pvt. Ltd., Plot no. A-5, MIDC, Ranjangaon, Tal-Shirur Udyog Vihar, Pune (Maharashtra) PIN- 412220.
• Email: serviceindia@lge.com
• Toll-Free Numbers: 1800 315 9999 / 1800 180 9999
• WhatsApp Support: 9711709999
• For further assistance or to schedule a service, please contact LG customer support.
