ZHIPAIJI Eachine E160 RC Helicopter Spare Parts Instruction Manual

1. Introduction

This instruction manual provides essential information for the identification, installation, and maintenance of ZHIPAIJI spare parts for the Eachine E160 RC Helicopter. These parts are designed to replace original components, ensuring continued optimal performance of your helicopter. Please read this manual carefully before attempting any installation or maintenance.

2. Package Contents

The package includes the following components:

• 1 x Main Gear
• 1 x Landing Skid
• 1 x Tail Blade (Set of 2)
• 1 x Upper Linkage Rod Set (2 rods)
• 1 x Main Shaft
• 1 x Screwdriver
• 2 x Screws

3. Part Identification

Refer to the images below to identify each component included in your spare parts package.

Figure 3.1: Complete Spare Parts Package. This image displays all components included in the package: the main gear, landing skid, two tail blades, two upper linkage rods, and the main shaft. This provides a comprehensive view of the replacement parts.

Figure 3.2: Drivetrain and Control Components. This image highlights the main gear (large black cogwheel), two tail blades, the metallic main shaft, and two black upper linkage rods. These parts are crucial for the helicopter's propulsion and control mechanisms.

Figure 3.3: Landing Skid. This image shows the black plastic landing skid, which provides stability for the helicopter during takeoff and landing. It features a sturdy frame design.

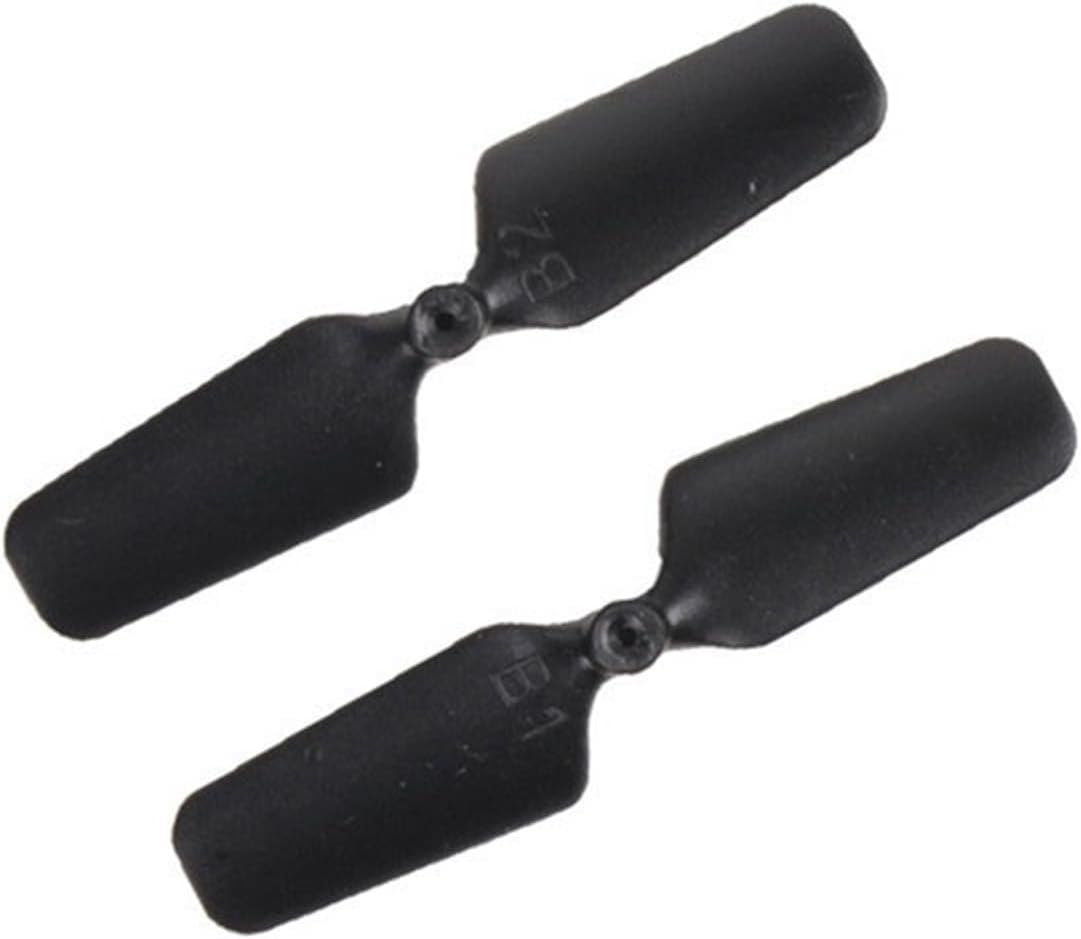

Figure 3.4: Tail Blades. This image focuses on the two black tail blades, labeled 'B1' and 'B2'. These blades are essential for counteracting torque and providing directional control for the helicopter.

4. Installation Guide

Replacing parts on your Eachine E160 RC Helicopter requires careful attention. Always refer to the original helicopter's instruction manual for detailed disassembly and reassembly procedures. The following are general guidelines for replacing the included spare parts:

4.1 General Precautions

• Power Off: Always ensure the helicopter is powered off and the battery is disconnected before beginning any work.
• Work Area: Work on a clean, well-lit surface to prevent loss of small parts.
• Tools: Use appropriate tools, such as the included screwdriver, to avoid damaging screws or components.
• Documentation: Take photos or notes during disassembly to aid in reassembly.

4.2 Replacing the Landing Skid

1. Carefully locate the screws or clips securing the existing landing skid to the helicopter frame.
2. Remove the fasteners and gently detach the damaged landing skid.
3. Align the new landing skid with the mounting points on the helicopter frame.
4. Secure the new landing skid using the original fasteners or the included screws, ensuring a snug fit without overtightening.

4.3 Replacing the Main Gear and Main Shaft

1. Access the main rotor assembly by carefully removing any obstructing body panels or components.
2. Identify the main gear and main shaft. The main gear is typically located at the base of the main shaft.
3. Loosen any set screws or retaining clips that hold the main gear and main shaft in place.
4. Carefully slide out the old main shaft and remove the damaged main gear.
5. Install the new main gear onto the new main shaft, ensuring proper orientation.
6. Insert the new main shaft assembly into the helicopter frame, aligning it with the motor pinion.
7. Secure the main gear and main shaft with the set screws or retaining clips, ensuring smooth rotation and proper mesh with the motor pinion.

4.4 Replacing Tail Blades

1. Locate the tail rotor assembly.
2. Carefully remove the small screws or pins that secure the old tail blades to the tail rotor hub.
3. Remove the damaged tail blades.
4. Install the new tail blades, ensuring they are oriented correctly (e.g., B1 and B2 markings, if present, match the original setup).
5. Secure the new tail blades with the screws or pins, ensuring they can pivot freely but are firmly attached.

4.5 Replacing Upper Linkage Rods

1. Identify the upper linkage rods connecting the swashplate to the main rotor head.
2. Gently unclip or unscrew the old linkage rods from their connection points.
3. Attach the new linkage rods, ensuring they are connected securely to the correct points on the swashplate and rotor head.
4. Verify that the swashplate moves smoothly and freely after replacement.

5. Maintenance

Regular maintenance of your RC helicopter's spare parts can extend their lifespan and ensure safe operation.

• Inspection: Periodically inspect all parts for signs of wear, cracks, or damage, especially after any hard landings or crashes.
• Cleaning: Keep parts clean from dirt, dust, and debris. Use a soft brush or cloth. Avoid harsh chemicals.
• Lubrication: Moving parts like the main shaft may benefit from a small amount of RC-safe lubricant, as recommended by the helicopter manufacturer.
• Tightness: Ensure all screws and fasteners remain tight. Overtightening can strip threads or crack plastic parts.

6. Troubleshooting

If you encounter issues after replacing parts, consider the following:

• Unusual Vibrations: Check if main gear or main shaft is properly seated and balanced. Ensure tail blades are correctly installed and undamaged.
• Loss of Control: Verify that linkage rods are securely attached and not bent. Ensure all parts move freely without binding.
• Helicopter Not Level: Inspect the landing skid for any damage or improper installation that might cause an uneven stance.
• Parts Feel Loose: Re-check all fasteners and ensure they are tightened appropriately.

For persistent issues, consult the Eachine E160 helicopter's main manual or contact technical support.

7. Specifications

8. Safety Information

• Always handle small parts with care to avoid injury or loss.
• Keep parts out of reach of small children due to choking hazards.
• Ensure all parts are correctly installed and secured before operating the RC helicopter. Improper installation can lead to malfunction and potential injury.
• Do not modify these spare parts. Use them only as intended for the Eachine E160 RC Helicopter.

9. Support

For further assistance, technical support, or inquiries regarding these spare parts, please contact the seller or manufacturer through your purchase platform. When contacting support, please provide your product model (Eachine E160) and the ASIN (B0BMF9R2N) for quicker service.

Manufacturer: ZHOUPENGF

10. Warranty Information

Specific warranty details for these spare parts are not explicitly provided in the product information. Please refer to the seller's return policy or contact the seller directly for information regarding warranty coverage and returns.

Generally, spare parts may be covered under a limited warranty against manufacturing defects. Keep your proof of purchase for any warranty claims.
