KENANLAN Ferris Wheel Revolving Ball Instruction Manual

1. Introduction

Thank you for purchasing the KENANLAN Electric Magnetic Rotation Ferris Wheel. This device is designed to provide a visually engaging display of perpetual motion, utilizing a magnetic control system to create a continuous revolving effect. It serves as a decorative item, a stress-relief toy, and can be used for educational purposes.

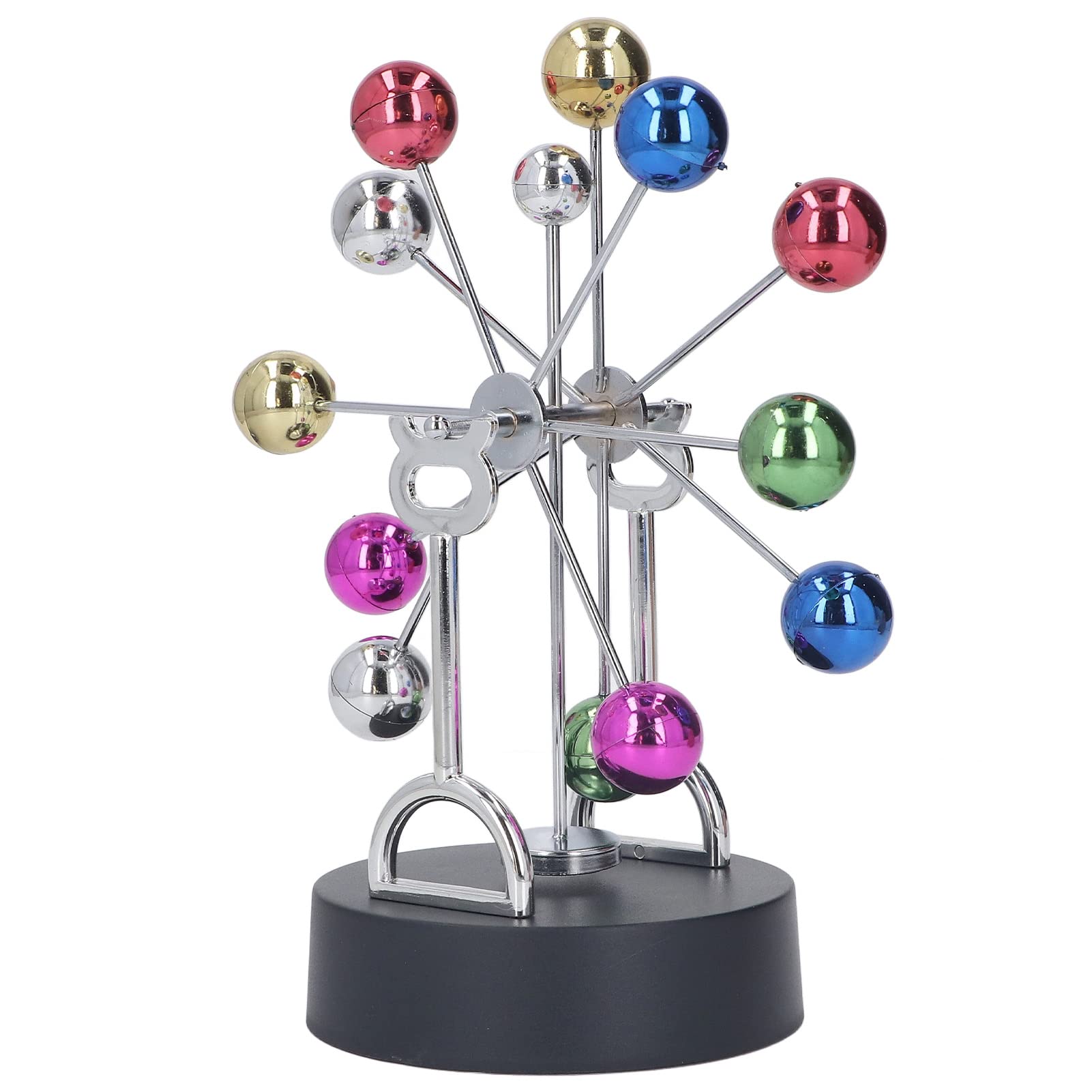

Image 1.1: The KENANLAN Ferris Wheel Revolving Ball in its assembled state, showcasing its colorful metal balls and magnetic rotation design.

2. Safety Information

• Keep out of reach of small children. This product contains small parts that could be a choking hazard.
• Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
• Ensure batteries are inserted with correct polarity (+ and -).
• Remove batteries if the product is not used for an extended period to prevent leakage.
• Avoid placing the device near strong magnetic fields or electronic equipment that could be affected by magnetism.

3. Package Contents

Please check the package to ensure all components are present:

• 1 x Base
• 2 x Install Accessories (support arms)
• 1 x Metal Colorful Ball Bracket (ferris wheel structure with balls)

4. Setup Instructions

Follow these steps to assemble and prepare your Ferris Wheel Revolving Ball:

1. Install Batteries: Locate the battery compartment on the underside of the base. Insert 4 x AA batteries (not included), ensuring correct polarity. Close the battery compartment securely.
2. Attach Support Arms: Take the two 'Install Accessories' (support arms). Insert the bottom end of each support arm into the designated slots on the base. Ensure they are firmly seated.

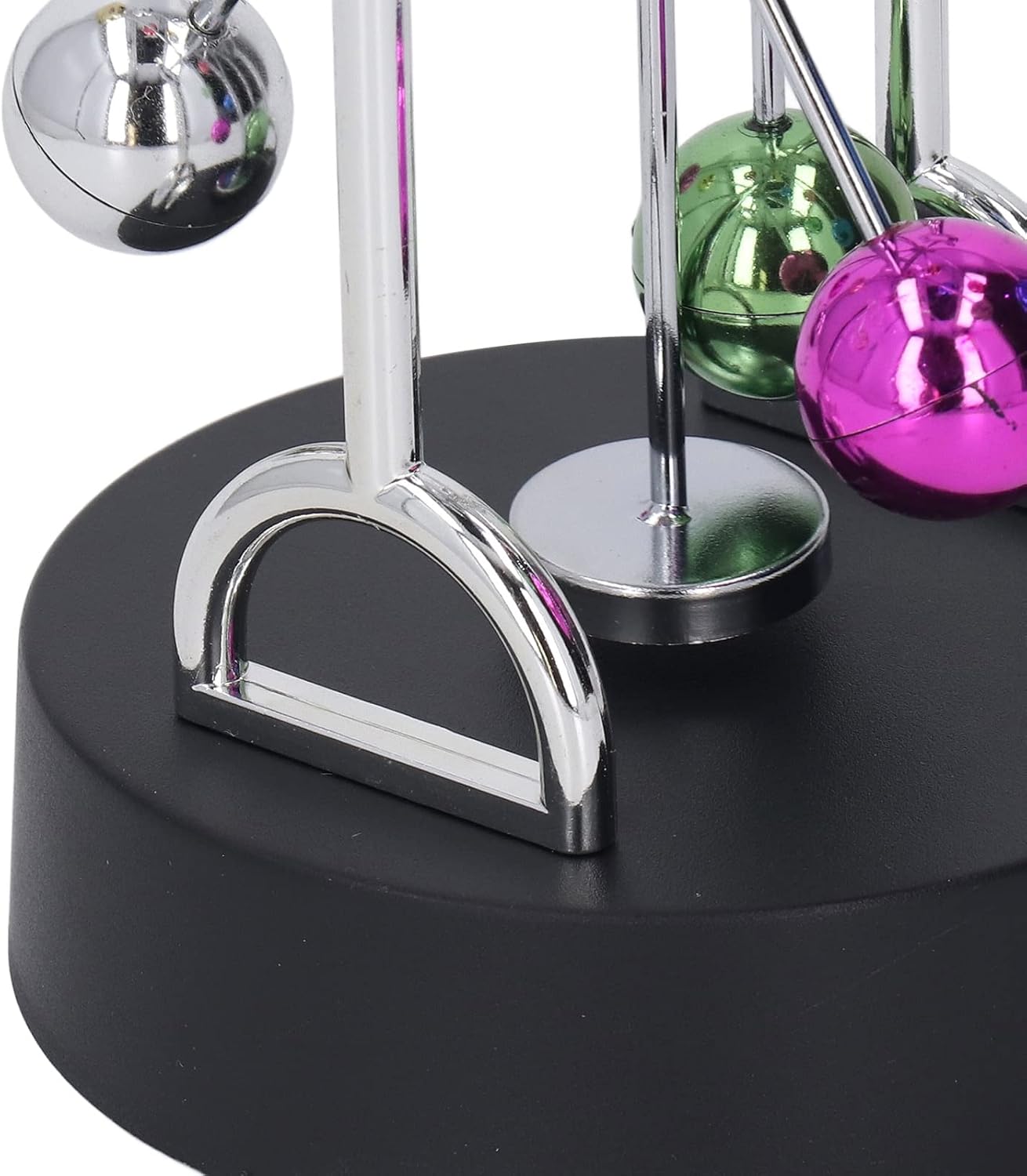

Image 4.1: Close-up view of the product's base, showing the slots where the support arms are to be inserted during assembly.

3. Mount Ferris Wheel Structure: Carefully place the 'Metal Colorful Ball Bracket' (the ferris wheel structure) onto the top of the support arms. There should be a central pivot point that aligns with the top of the main support. Ensure it is balanced and can rotate freely.


Image 4.2: Detailed view of the central mechanism where the ferris wheel structure connects to the support, highlighting the pivot point.

4. Placement: Place the assembled Ferris Wheel Revolving Ball on a flat, stable surface.

5. Operating Instructions

Once assembled and batteries are installed, the device is ready for operation.

• The magnetic control system will automatically initiate the rotation of the ferris wheel structure.
• The colorful metal balls will revolve continuously, creating a perpetual motion effect.
• There is no on/off switch; the device operates as long as batteries are present and functional. To stop operation, remove the batteries.

6. Maintenance

• Cleaning: Wipe the surface of the device with a soft, dry cloth. Do not use abrasive cleaners or immerse in water.
• Battery Replacement: When the rotation slows down or stops, replace all 4 AA batteries with new ones. Refer to Section 4 for battery installation.
• Storage: If storing for an extended period, remove the batteries to prevent potential leakage and damage.

7. Troubleshooting

• Device is not rotating or only rocks slightly:
  • Ensure 4 x AA batteries are correctly installed in the base with the proper polarity.
  • Replace old batteries with new ones.
  • Verify that the ferris wheel structure is properly seated on the support arms and can pivot freely without obstruction.
  • Ensure the device is on a level surface.
• Unusual noises during operation:
  • Check for any foreign objects obstructing the rotation.
  • Ensure all parts are assembled correctly and securely.

8. Specifications

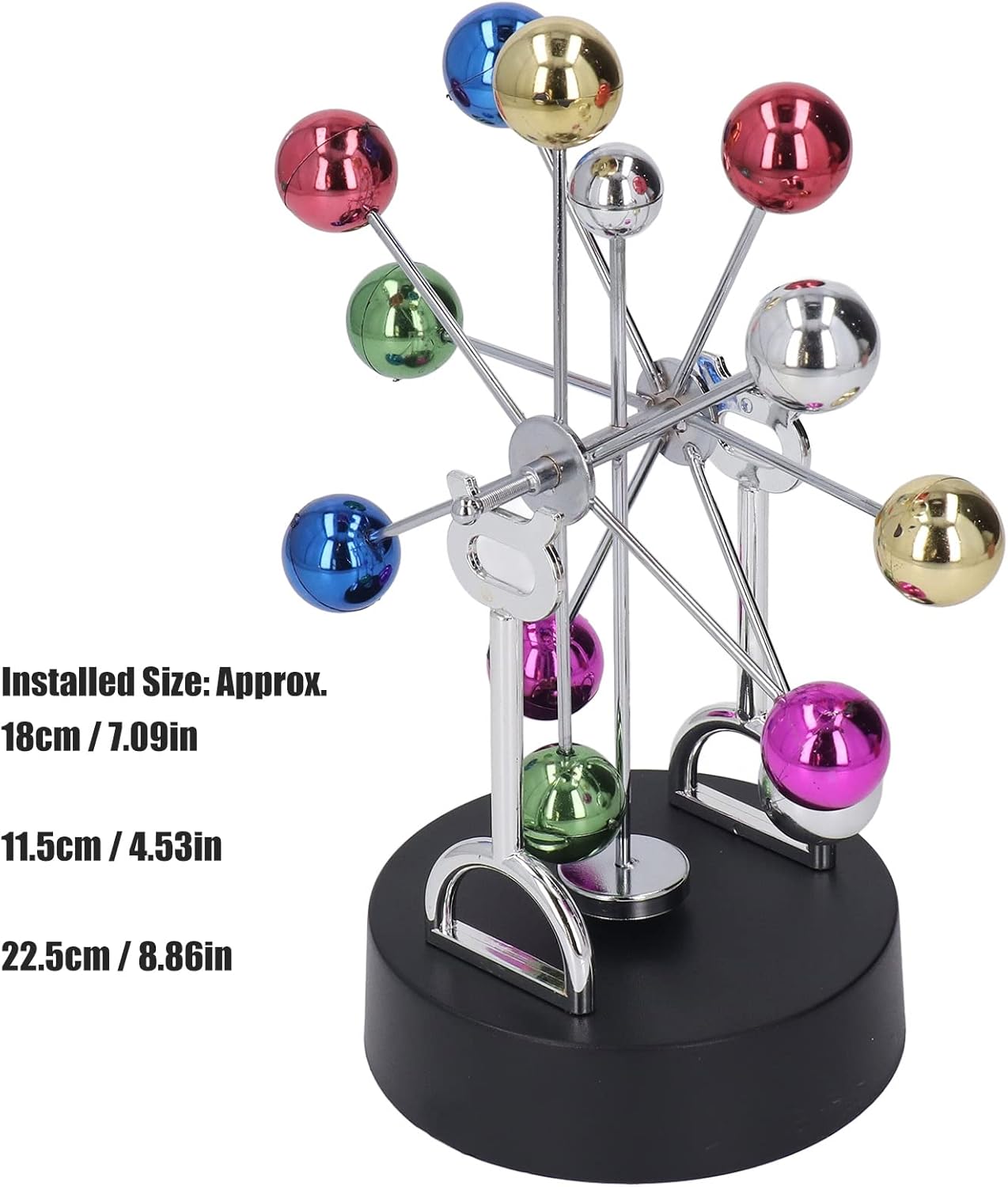

Image 8.1: Visual representation of the installed dimensions of the Ferris Wheel Revolving Ball.

9. Warranty and Support

Specific warranty information for this product is not provided in the available documentation. For any questions, technical support, or warranty inquiries, please contact the retailer or manufacturer directly through their official channels.
