PHILIPS 3000 Series Handheld Travel Steamer User Manual

Introduction

The PHILIPS 3000 Series Handheld Travel Steamer is designed for convenient and quick garment care. Its compact and foldable design makes it ideal for both home use and travel, ensuring your outfits remain fresh and wrinkle-free. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your steamer.

Key features include a fast heat-up time of just 30 seconds, continuous steam delivery of up to 20g/min with 1000W power, and a 100ml detachable water tank for steaming a full outfit without refilling. It eliminates the need for an ironing board, saving you time and effort.

Important Safety Information

Please read this safety information carefully before using the appliance and save it for future reference. Incorrect use can lead to electric shock, fire, or injury.

• Always ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Do not immerse the appliance in water or any other liquid.
• Keep the appliance and its cord out of reach of children.
• Never direct steam at people or pets. Steam is hot and can cause burns.
• Use only distilled or demineralized water in the water tank to prevent mineral buildup.
• Unplug the appliance from the power outlet when filling or emptying the water tank, and when not in use.
• Do not operate the appliance if it has a damaged cord or plug, or if it has been dropped or damaged.
• Place the appliance on a stable, heat-resistant surface when in use or cooling down.

Product Overview

Familiarize yourself with the components of your PHILIPS Handheld Travel Steamer.

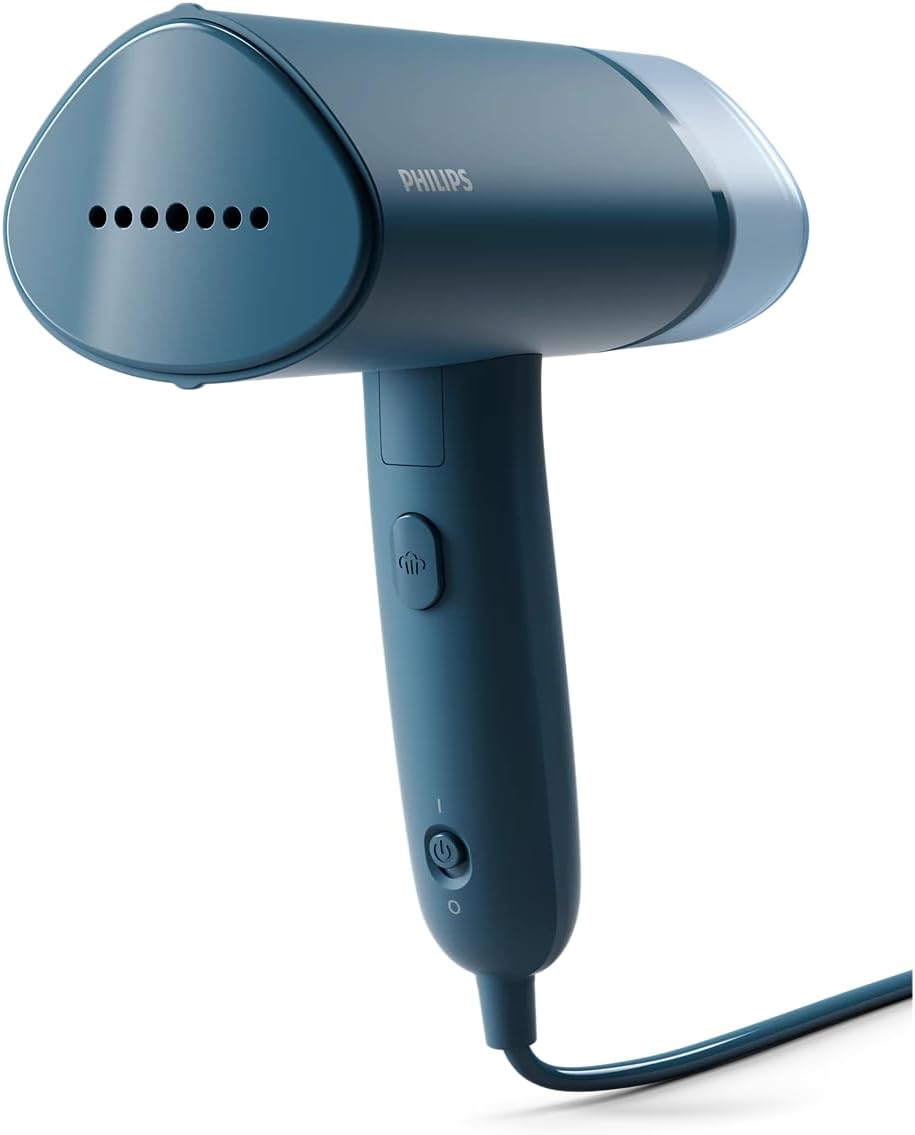

Figure 1: PHILIPS 3000 Series Handheld Travel Steamer. This image shows the compact, blue-colored steamer with its handle, steam head, and power cord.

• Steam Head: Emits steam for wrinkle removal.
• Water Tank: Detachable 100ml capacity for water.
• Power Button/Indicator Light: Turns the steamer on/off and indicates heating status.
• Steam Trigger: Activates continuous steam.
• Handle: Foldable for compact storage and travel.
• Power Cord: Connects the steamer to an electrical outlet.

Setup

1. Unpack: Carefully remove the steamer and all accessories from the packaging.
2. Fill Water Tank:
   • Ensure the steamer is unplugged.
   • Detach the 100ml water tank from the main unit.
   • Open the water tank cap and fill with distilled or demineralized water up to the MAX line. Do not overfill.
   • Close the cap securely and reattach the water tank to the steamer until it clicks into place.
3. Position: Place the steamer on a stable, flat, heat-resistant surface, or hold it upright.
4. Plug In: Insert the power plug into a suitable electrical outlet (220 Volts).
5. Heat Up: Press the power button. The indicator light will illuminate, signaling that the steamer is heating up. It will be ready in approximately 30 seconds when the light changes or stops blinking (refer to specific model light behavior if detailed).

Operating Instructions

Follow these steps for effective garment steaming.

Figure 2: A user demonstrating the PHILIPS Handheld Steamer in action, effectively removing wrinkles from a hanging garment.

1. Prepare Garment: Hang the garment on a hanger. For best results, pull the fabric taut with one hand while steaming with the other.
2. Start Steaming: Once the steamer is heated (indicator light ready), press and hold the steam trigger to release continuous steam.
3. Steam Motion: Move the steam head slowly downwards over the fabric, allowing the steam to penetrate and relax the fibers.
4. Wrinkle Removal: For stubborn wrinkles, pass the steam head over the area multiple times.
5. Finishing: After steaming, allow the garment to cool and dry completely before wearing or storing. This helps to set the wrinkle-free finish.
6. Power Off: When finished, release the steam trigger, press the power button to turn off the steamer, and unplug it from the outlet.

Tips for Best Results:

• Always test on an inconspicuous area of the fabric first, especially for delicate materials.
• For thicker fabrics, steam both sides of the garment.
• Do not press the steam head directly onto the fabric for extended periods, as this may cause dampness.
• Empty the water tank after each use to prevent mineral buildup.

Maintenance and Cleaning

Regular maintenance ensures the longevity and optimal performance of your steamer.

1. Empty Water Tank: After each use, unplug the steamer and allow it to cool down. Detach the water tank and empty any remaining water. This prevents mineral deposits.
2. Clean Exterior: Wipe the exterior of the steamer with a soft, damp cloth. Do not use abrasive cleaners or solvents.
3. Descaling (Recommended Monthly):
   • Mix 1 part white vinegar with 1 part water.
   • Pour the solution into the water tank.
   • Plug in the steamer and allow it to heat up.
   • Steam the solution until the tank is empty (do this in a well-ventilated area, away from garments).
   • Refill the tank with fresh distilled water and steam again to rinse out any vinegar residue.
   • Repeat the rinsing process if necessary.
4. Storage: Ensure the steamer is completely cool and dry before storing. Fold the handle for compact storage. Store in a dry place, away from direct sunlight.

Troubleshooting

If you encounter issues with your steamer, refer to the following common problems and solutions.

Specifications

Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official PHILIPS website. You can also contact PHILIPS customer service for assistance with product registration, troubleshooting, or spare parts.

Official PHILIPS Website: www.philips.com

Please have your model number (STH3000/20) and purchase date ready when contacting support.
