All States Main Drive Bearing Instruction Manual

1. Introduction

This instruction manual provides essential information regarding the All States Main Drive Bearing, Model 174710. It covers product overview, compatibility, general installation guidelines, maintenance recommendations, and specifications. Please read this manual thoroughly before installation or service to ensure proper handling and longevity of the component.

2. Product Overview

The All States Main Drive Bearing is a critical component designed for agricultural machinery, specifically various Belarus tractor models. This bearing facilitates smooth rotation and reduces friction between moving parts within the main drive system, ensuring efficient power transmission and reliable operation of the tractor.

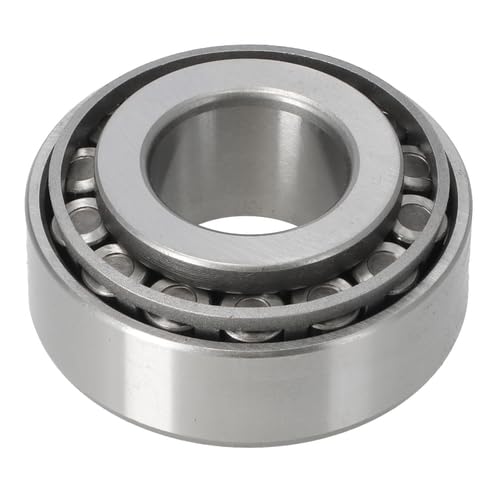

Image 1: The All States Main Drive Bearing. This image displays a tapered roller bearing, typically used in applications requiring high radial and axial load capacity, such as a main drive system in heavy machinery.

3. Compatibility

This Main Drive Bearing is compatible with the following Belarus Tractor models:

• 505, 510, 525, 530, 532
• 560, 562, 570, 572
• 820, 822, 825
• 900, 902, 905, 920, 922, 925
• 1025
• 5145, 6045, 6345, 8345, 9045

It serves as a direct replacement for Belarus OEM Number(s) 7607A.

4. Installation (Setup)

Installation of a main drive bearing requires specialized tools and technical expertise. Incorrect installation can lead to premature bearing failure, damage to associated components, and potential safety hazards. It is strongly recommended that installation be performed by a qualified and experienced mechanic or technician.

General Guidelines:

1. Safety First: Ensure the tractor is properly secured, engine is off, and all safety precautions are followed before beginning any work.
2. Component Removal: Carefully remove the old bearing and any associated components, noting their orientation and position.
3. Inspection: Inspect the housing and shaft for any damage, wear, or debris. Clean all surfaces thoroughly.
4. Lubrication: Apply appropriate lubricant to the bearing and mating surfaces as specified by the tractor manufacturer.
5. Press Fit: Bearings are often press-fit. Use a bearing press or appropriate tools to install the new bearing evenly and without applying force to the rolling elements.
6. Reassembly: Reassemble all components in reverse order of removal, ensuring all fasteners are tightened to the manufacturer's specifications.
7. Testing: After installation, perform functional tests to ensure proper operation and absence of unusual noises or vibrations.

Refer to your specific Belarus tractor service manual for detailed, model-specific installation procedures and torque specifications.

5. Operation

As a component part of the tractor's main drive system, this bearing does not have direct operational steps for the end-user. Its function is integral to the overall operation of the tractor. Proper installation and maintenance ensure its optimal performance during tractor operation.

6. Maintenance

Regular inspection and maintenance are crucial for extending the lifespan of the main drive bearing and ensuring the reliability of your Belarus tractor.

Maintenance Recommendations:

• Routine Inspection: Periodically inspect the bearing area for signs of wear, excessive play, unusual noise, or lubricant leakage.
• Lubrication: If the bearing is designed for re-lubrication, follow the tractor manufacturer's guidelines for type and frequency of grease application.
• Cleanliness: Keep the surrounding area clean to prevent contaminants from entering the bearing, which can cause premature wear.
• Replacement: Replace the bearing if any signs of damage, excessive wear, or failure are observed. Do not attempt to repair a damaged bearing.

7. Troubleshooting

Bearing issues typically manifest as unusual noises, vibrations, or excessive heat. Since this is a critical internal component, troubleshooting should be performed by a qualified technician.

Common Indicators of Bearing Problems:

• Unusual Noises: Grinding, humming, or squealing sounds from the main drive area.
• Vibration: Excessive vibration felt through the tractor chassis or controls.
• Excessive Heat: Localized heat around the bearing housing.
• Play: Noticeable looseness or play in the shaft when inspected.

If any of these symptoms are observed, discontinue operation and consult a professional mechanic immediately to prevent further damage to the tractor's drivetrain.

8. Specifications

9. Warranty and Support

For information regarding warranty coverage, technical support, or replacement parts, please contact your authorized All States dealer or the seller from whom the product was purchased. Keep your purchase receipt and product model number (174710) handy for faster service.

For general inquiries, you may visit the All States brand page.
