1. Product Overview
The Bokaiya 33x19 Drop-In Workstation Kitchen Sink is a premium 304 stainless steel single bowl sink designed for durability and functionality. It features a scratch-resistant surface treatment and a workstation design with integrated accessories to enhance kitchen efficiency.
Key Features:
- Durable Stainless Steel Construction: Crafted from premium 304 stainless steel for exceptional durability, corrosion resistance, and a scratch-resistant finish.
- Integrated Workstation Design: Features overhanging lips and a track system for sliding accessories like the cutting board, colander, and roll-up rack.
- Quiet Operation: Equipped with thicker and softer rubber pads to absorb sound and an anti-condensation undercoating to protect cabinets.
- Efficient Drainage: Designed with an X-shape flow line and engineered drain grooves to prevent water retention and clogging.
- Ultra-Deep Bowl: A 10-inch deep bowl provides ample space for large cookware and bakeware.
2. Package Contents
Please verify that all components are present before beginning installation:
- 33x19 Kitchen Sink
- Multi-functional Dish Grid with Rubber Feet
- Deep Drain Basket
- Dish Drying Roll-up Rack
- Stainless Steel Colander
- Wood Cutting Board
- Installation Instructions
- Cutout Template
- Mounting Clips
Figure 2.1: Included accessories for the Bokaiya workstation sink.
3. Safety Information
- Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
- Ensure the work area is well-lit and clear of obstructions.
- Turn off the main water supply before beginning any plumbing work.
- If you are unsure about any installation steps, consult a qualified plumber.
- Keep small parts and tools out of reach of children.
4. Setup and Installation
4.1 Pre-Installation Checklist
- Confirm sink dimensions match your cabinet and countertop cutout.
- Ensure all package contents are present and undamaged.
- Read through all instructions before starting.
4.2 Required Tools
- Tape Measure
- Pencil or Marker
- Jigsaw or appropriate cutting tool for countertop material
- Drill
- Screwdriver
- Plumber's Putty or Silicone Sealant
- Adjustable Wrench
4.3 Installation Steps
- Prepare Countertop: Use the provided cutout template to mark the opening on your countertop. Carefully cut the opening using a jigsaw or appropriate tool. Ensure the edges are smooth.
- Apply Sealant: Apply a bead of plumber's putty or silicone sealant around the perimeter of the countertop opening.
- Position Sink: Carefully lower the sink into the countertop opening, ensuring it is centered and level. Press down firmly to create a seal.
- Secure with Clips: Attach the mounting clips to the underside of the sink rim and tighten them against the countertop. Ensure even pressure around the sink.
- Install Drain Assembly: Apply plumber's putty to the underside of the drain flange and insert it into the sink's drain opening. Secure the drain body from underneath with the provided gasket and nut.
- Connect Plumbing: Connect the drain assembly to your household plumbing system. Ensure all connections are tight to prevent leaks.
- Install Faucet and Accessories: Install your chosen faucet and any other accessories (e.g., soap dispenser) into the pre-drilled holes on the sink deck, following their respective instructions.
- Test for Leaks: Turn on the water supply and check all connections for leaks.
Figure 4.1: Bokaiya 33x19 Drop-In Kitchen Sink before accessory placement.
5. Operating Instructions
5.1 Using the Workstation Features
The workstation design allows for versatile use of the sink space. The overhanging lips on the front and back serve as a track for sliding the included accessories.
- Cutting Board: Place the wood cutting board on the tracks to create an integrated food preparation area over the sink.
- Colander: Slide the stainless steel colander onto the tracks for rinsing fruits and vegetables, allowing water to drain directly into the sink.
- Roll-up Drying Rack: Position the roll-up rack over the sink for air-drying dishes, pots, or pans. It can be easily rolled up and stored when not in use.
- Dish Grid: Place the dish grid at the bottom of the sink to protect the surface from scratches and allow water to drain underneath dishes.
Figure 5.1: Workstation sink in use with cutting board, colander, and drying rack.
5.2 Drainage System
The sink features an X-shape flow line and engineered drain grooves on the bottom to facilitate efficient water drainage and prevent pooling. The deep drain basket helps to catch food debris and prevent clogging of the drain pipe.

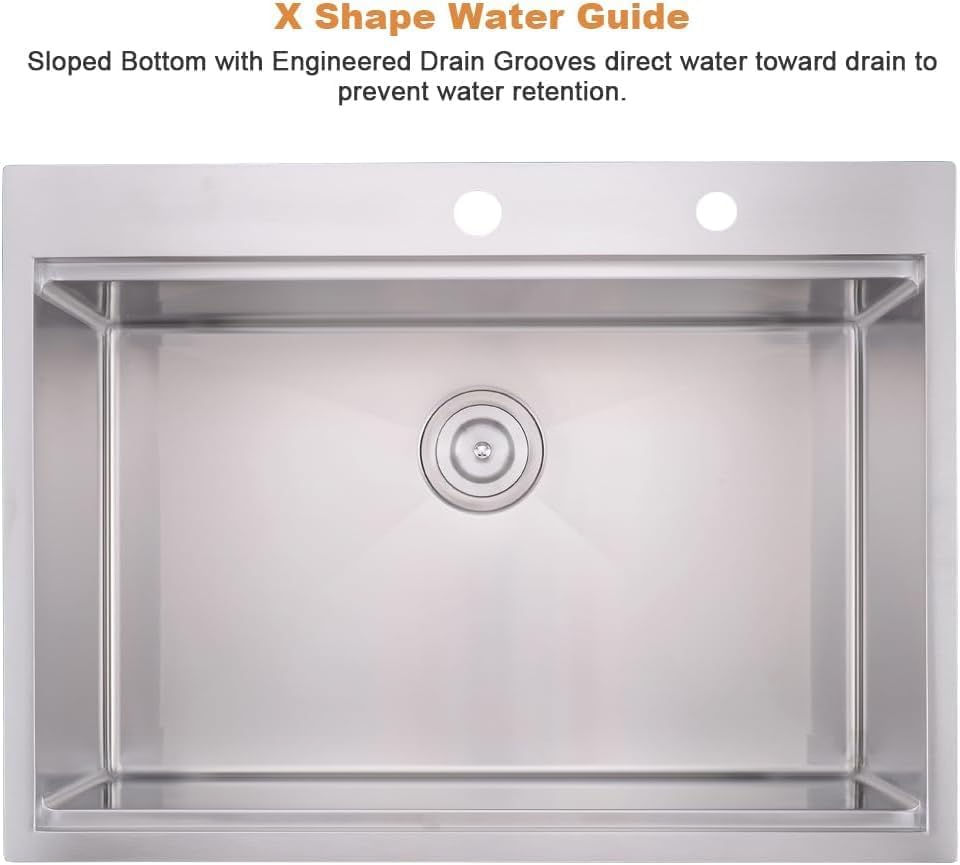

Figure 5.2: X-shape water guide for optimal drainage.
6. Maintenance and Care
6.1 Cleaning the Sink
- For daily cleaning, wipe the sink with a soft cloth and mild dish soap.
- Rinse thoroughly with water and wipe dry to prevent water spots.
- Avoid abrasive cleaners, steel wool, or harsh chemicals, as these can damage the stainless steel finish.
- For stubborn stains, use a non-abrasive stainless steel cleaner and follow the product instructions.
6.2 Preventing Scratches and Stains
- Use the included dish grid to protect the bottom of the sink from heavy pots and pans.
- Avoid dropping sharp or heavy objects directly onto the sink surface.
- Rinse the sink immediately after use to remove food particles and acidic liquids that could cause staining.
6.3 Sound Dampening and Condensation Protection
The sink is equipped with sound-proof rubber pads on the bottom to minimize noise from dishes and water flow. An anti-condensation spray undercoating is applied to prevent moisture buildup, protecting your cabinets from potential water damage.
Figure 6.1: Sound-proof rubber pads and anti-condensation undercoating.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water pooling in sink | Drainage grooves obstructed or sink not level. | Clear any debris from drain grooves. Verify sink is level during installation. |
| Slow drainage | Drain basket or plumbing clogged. | Remove and clean the deep drain basket. Check plumbing for obstructions. |
| Water leaks from connections | Loose plumbing connections or improper sealant. | Tighten all plumbing connections. Reapply plumber's putty or sealant if necessary. |
| Scratches on sink surface | Abrasive objects or cleaners used. | Use the included dish grid. Avoid abrasive materials for cleaning. Minor scratches are common with stainless steel over time. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Bokaiya |
| Model | 33x19 Drop-In Workstation Kitchen Sink |
| Material | 304 Stainless Steel |
| Color | Brushed Nickel |
| Exterior Dimensions | 33"L x 19"W x 10"D |
| Interior Dimensions | 31"L x 13"W x 10"D |
| Installation Type | Drop In (Top Mount) |
| Drain Opening | Standard 3-1/2" |
| Hole Count | 2 (for faucet and soap dispenser) |
| Item Weight | Approximately 0.564 ounces (Note: This weight seems incorrect from source data, actual product weight will be significantly higher) |
| Product Care Instructions | Wipe with Dry Cloth |
Figure 8.1: Illustration of the 10-inch deep sink bowl.
9. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or contact Bokaiya directly through their official channels. Keep your proof of purchase for any warranty claims.
